6-80 — BACK PANEL (#78590) — 58 parça

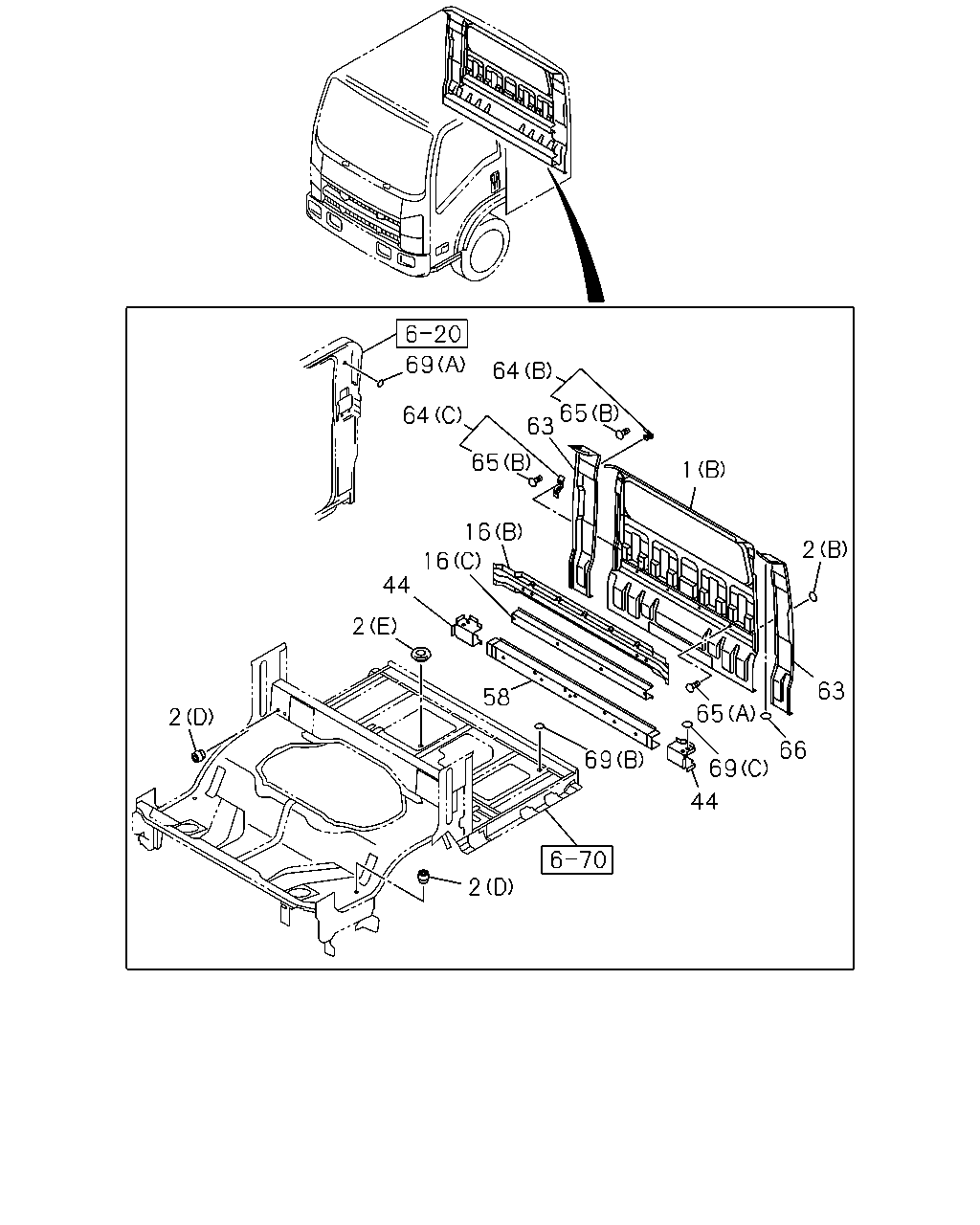

69 64 65 63 64 65 1 16 16 2 44 2 63 58 65 2 66 69 69 44 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; BACK OUTER (B)	8-97583-749-5	01	1	1112-	●
1	PANEL; BACK OUTER GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED<RS6> (A)	8-97584-311-4	01	1	1112-		●
1	PANEL; BACK OUTER EXC. GLASS BACK LIGHT DELETE<8CA> (A) IRA	8-97584-304-3	01	1	1112-		●
2	GROMMET; LOCATION HOLE,BACK PANEL INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK	8-98031-126-0	10	1	1112-		●
2	GROMMET; LOCATION HOLE,BACK PANEL (E) OD=35	8-94122-971-0	04	1	1112-	●
2	GROMMET; LOCATION HOLE,BACK PANEL (B) OD=15.0	8-94279-040-0	02	1	1112-	●
2	GROMMET; LOCATION HOLE,BACK PANEL (A) OD=25 BLACK	1-76798-019-0	02	1	1112-		●
2	GROMMET; LOCATION HOLE,BACK PANEL (D) OD=12.1	8-97898-423-0	04	1	1112-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (C) OD=32 BLACK	8-98031-126-0	02	1	1112-		●
2	GROMMET; LOCATION HOLE,BACK PANEL EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK	8-98031-126-0	06	1	1112-		●
16	REINFORCEMENT; BACK OUTER PNL (B)	8-97583-754-0	01	1	1112-	●
16	REINFORCEMENT; BACK OUTER PNL (C)	8-98006-213-0	01	1	1112-	●
16	REINFORCEMENT; BACK OUTER PNL (A) IRA	8-97584-608-2	01	1	1112-		●
44	BRACKET; RR SEAT ANCHOR	8-98055-947-0	01	1	1112-	●
44	BRACKET; RR SEAT ANCHOR	8-98055-949-0	01	1	1112-	●
58	REINFORCEMENT; SEAT BELT ANCHOR	8-98006-720-0	01	1	1112-	●
63	PANEL; BACK,SIDE	8-97583-750-6	01	1	1112-	●
63	PANEL; BACK,SIDE	8-97583-751-5	01	1	1112-	●
64	BRACKET; AIR INTAKE DUCT (B)	8-98054-615-0	01	1	1112-	●
64	BRACKET; AIR INTAKE DUCT (C)	8-98054-617-0	01	1	1112-	●
64	BRACKET; AIR INTAKE DUCT (A)	8-97584-611-1	01	1	1112-		●
65	STUD; BACK PANEL (B)	8-94389-701-0	02	1	1112-	●
65	STUD; BACK PANEL RR BODY FLAT BED<RS6> EXC. GLASS BACK LIGHT DELETE<8CA> (A) M6X12	8-98013-112-0	04	1	1112-		●
65	STUD; BACK PANEL (B)	8-94389-701-0	01	1	1112-		●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1112-		●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1112-	●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE	8-98059-421-0	05	1	1112-		●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1112-		●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1112-	●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK	5-76777-036-0	05	1	1112-		●
69	SEAL; LOCATION HOLE (C) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1112-	●
69	SEAL; LOCATION HOLE EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,SEAT BELT TENSIONER FRT<A70> (A) OD=36 WHITE	1-76778-007-0	02	1	1112-	●
69	SEAL; LOCATION HOLE EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,SEAT BELT TENSIONER FRT<A70> (B) OD=32 BLACK	8-98031-126-0	02	1	1112-	●

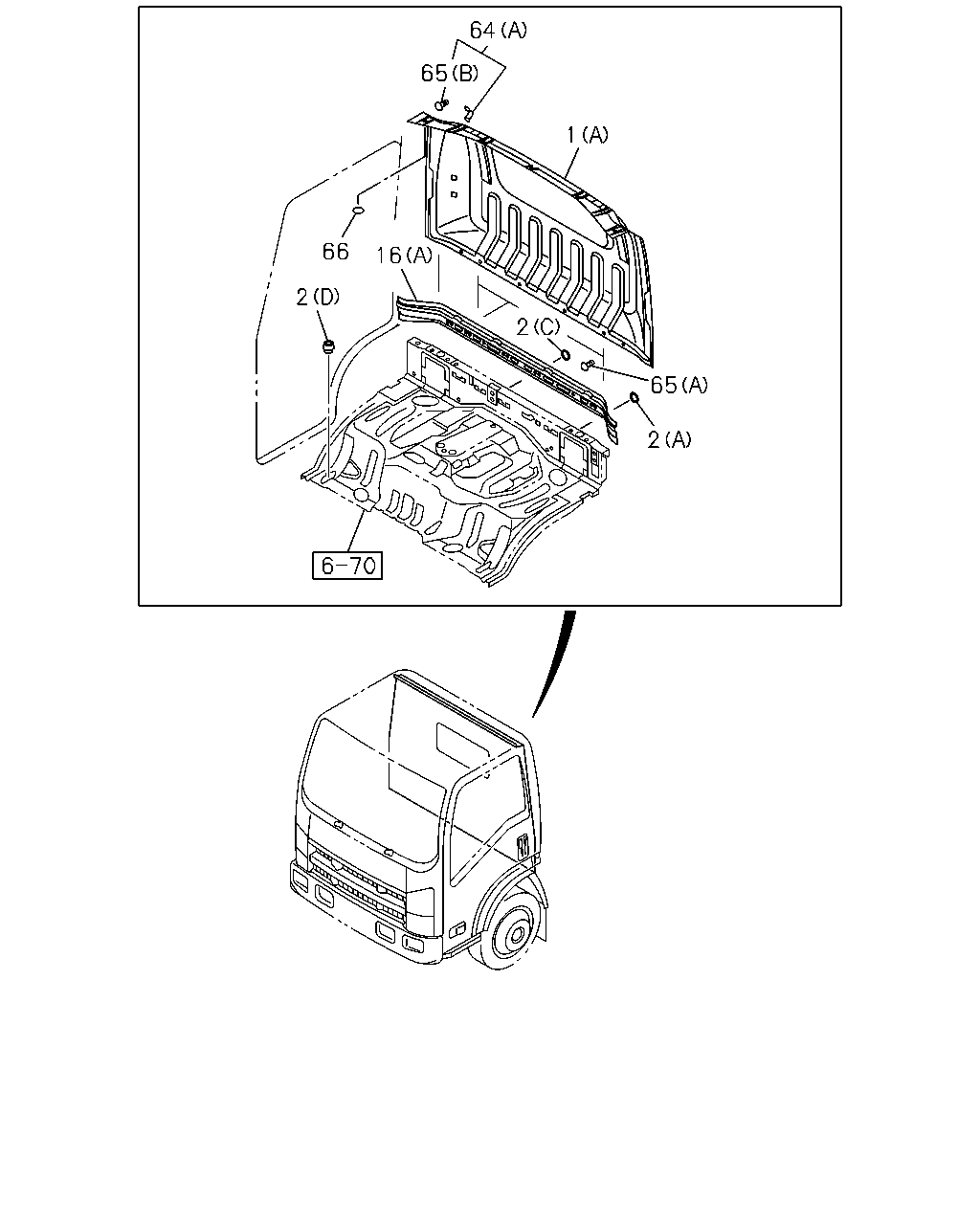

64 65 1 66 16 2 2 65 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; BACK OUTER (B)	8-97583-749-5	01	1	1112-	●
1	PANEL; BACK OUTER GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED<RS6> (A)	8-97584-311-4	01	1	1112-		●
1	PANEL; BACK OUTER EXC. GLASS BACK LIGHT DELETE<8CA> (A) IRA	8-97584-304-3	01	1	1112-		●
2	GROMMET; LOCATION HOLE,BACK PANEL INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK	8-98031-126-0	10	1	1112-		●
2	GROMMET; LOCATION HOLE,BACK PANEL (E) OD=35	8-94122-971-0	04	1	1112-	●
2	GROMMET; LOCATION HOLE,BACK PANEL (B) OD=15.0	8-94279-040-0	02	1	1112-	●
2	GROMMET; LOCATION HOLE,BACK PANEL (A) OD=25 BLACK	1-76798-019-0	02	1	1112-		●
2	GROMMET; LOCATION HOLE,BACK PANEL (D) OD=12.1	8-97898-423-0	04	1	1112-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (C) OD=32 BLACK	8-98031-126-0	02	1	1112-		●
2	GROMMET; LOCATION HOLE,BACK PANEL EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK	8-98031-126-0	06	1	1112-		●
16	REINFORCEMENT; BACK OUTER PNL (B)	8-97583-754-0	01	1	1112-	●
16	REINFORCEMENT; BACK OUTER PNL (C)	8-98006-213-0	01	1	1112-	●
16	REINFORCEMENT; BACK OUTER PNL (A) IRA	8-97584-608-2	01	1	1112-		●
64	BRACKET; AIR INTAKE DUCT (B)	8-98054-615-0	01	1	1112-	●
64	BRACKET; AIR INTAKE DUCT (C)	8-98054-617-0	01	1	1112-	●
64	BRACKET; AIR INTAKE DUCT (A)	8-97584-611-1	01	1	1112-		●
65	STUD; BACK PANEL (B)	8-94389-701-0	02	1	1112-	●
65	STUD; BACK PANEL RR BODY FLAT BED<RS6> EXC. GLASS BACK LIGHT DELETE<8CA> (A) M6X12	8-98013-112-0	04	1	1112-		●
65	STUD; BACK PANEL (B)	8-94389-701-0	01	1	1112-		●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1112-		●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1112-	●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE	8-98059-421-0	05	1	1112-		●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1112-		●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1112-	●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK	5-76777-036-0	05	1	1112-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
