3-75 — BRAKE PIPING; AIR,FRONT (#7859) — 155 parça

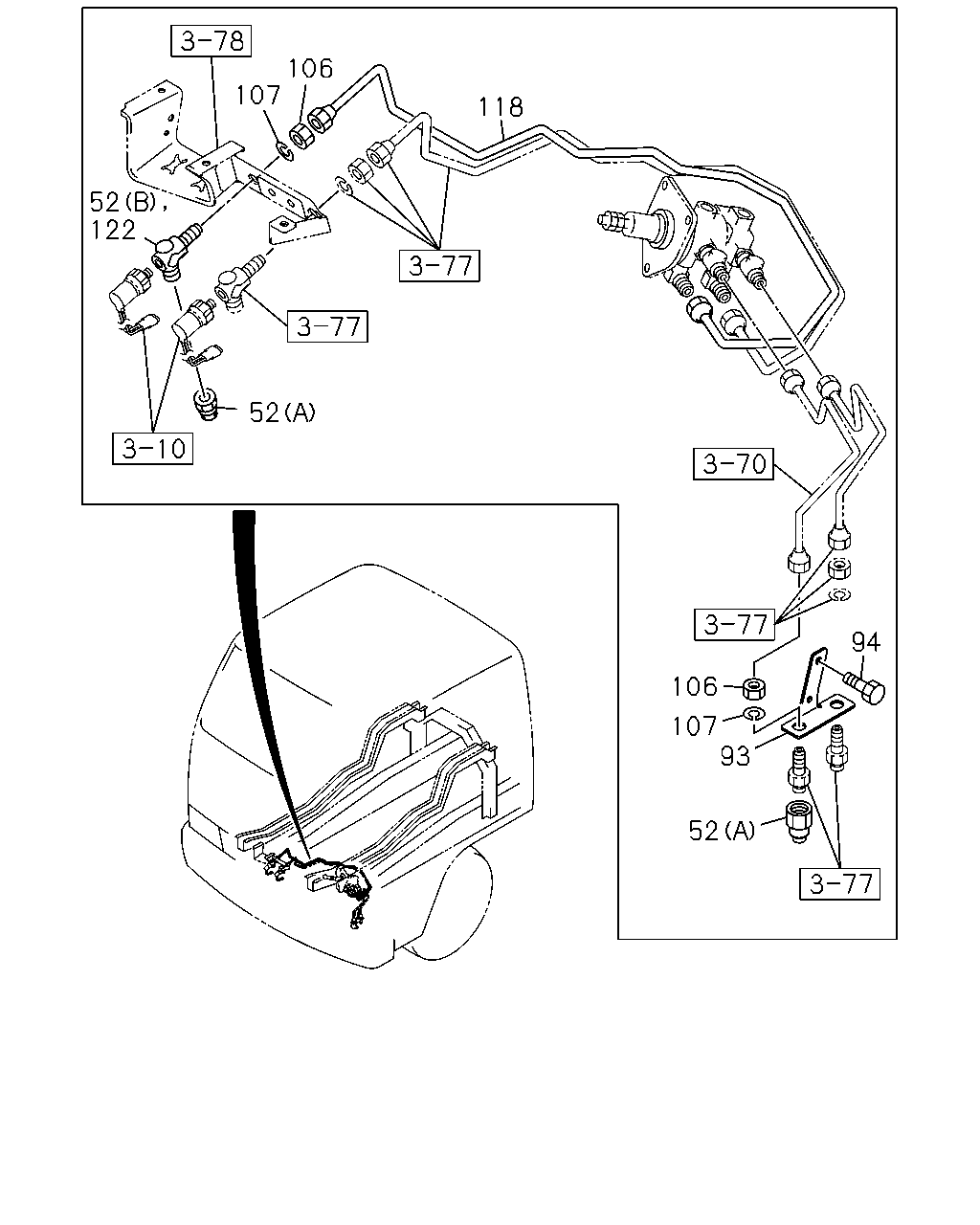

çizim 26733
106 107 118 52 122 52 94 106 107 93 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 CONNECTOR; NYLON TUBE
(B) M16X2 & PT1/4 3WAY 		1-09656-329-1 01 1 9905-0001 ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 9905-0301 ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0302- ● ● ●
93 BRACKET; UNION,TUBE 1-71996-119-0 01 1 9905-0301 ● ●
93 BRACKET; UNION,TUBE 1-71996-119-0 01 1 0302- ● ● ●
94 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9905-0301 ● ●
94 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0302- ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9905-0301 ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 0302-0512 ● ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0601- ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9905-0301 ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0302-0603 ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=989 		1-49121-666-0 01 1 9905-0301 ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=989 		1-49121-666-0 01 1 0302- ● ● ●
122 CONNECTOR; FLEX HOSE
M16X2 & PT1/4 3WAY 		1-09656-329-1 01 1 0002-0301 ● ●
122 CONNECTOR; FLEX HOSE
M16X2 & PT1/4 3WAY 		1-09656-329-1 01 1 0302- ● ● ●

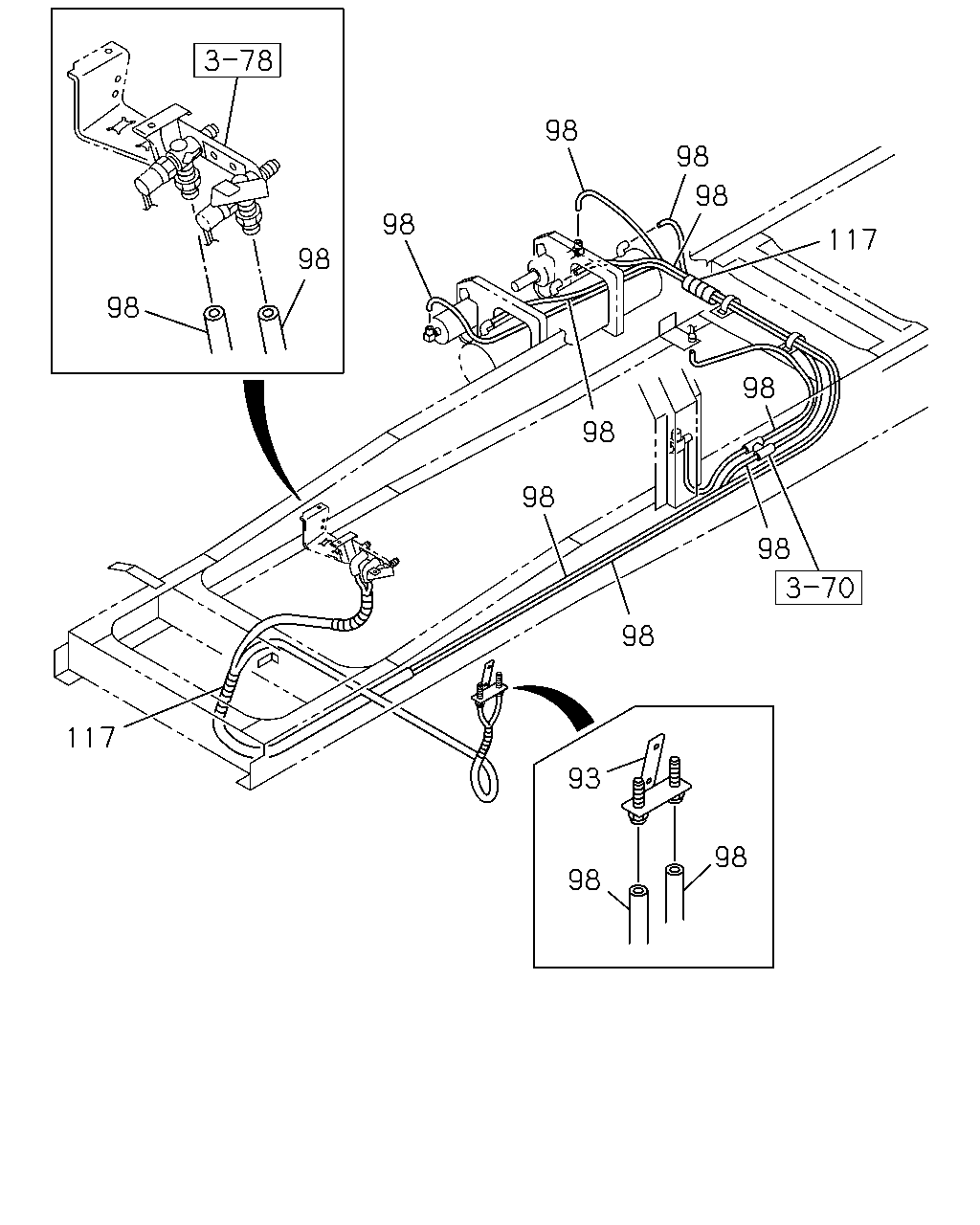

çizim 26881
98 98 98 98 117 98 98 98 98 98 98 98 117 93 98 98
BalonParca AdiParca NoAdetTipApplied Date A B C
93 BRACKET; UNION,TUBE 1-71996-119-0 01 1 9905-0301 ● ●
93 BRACKET; UNION,TUBE 1-71996-119-0 01 1 0302- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0303- ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 03 1 0303- ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0303- ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 04 1 9905-0011 ●
98 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 04 1 9905-0011 ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 04 1 0012-0105 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 04 1 0012-0105 ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 04 1 0106- ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9905-0011 ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0012- ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0012- ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0012- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0012- ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9905-0011 ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0012-0301 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0012-0301 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0012-0301 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0012-0301 ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0302-0302 ● ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0302-0302 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0302-0302 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0302-0302 ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0303- ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0303- ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0303- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0303- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 9905-0011 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0012-0105 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0012-0105 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0106-0301 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0106-0301 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0106-0301 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0302-0302 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0302-0302 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0302-0302 ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0302-0302 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0303- ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0303- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0303- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 9905-0011 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0012-0105 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0012-0105 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0106-0301 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0106-0301 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0106-0301 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0302-0302 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0302-0302 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0302-0302 ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0302-0302 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0303- ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0303- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0303- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 02 1 0302-0302 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 02 1 0303- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 02 1 0302-0302 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 02 1 0303- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0303- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 03 1 9905-0011 ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 03 1 0012- ●
117 TUBE; CORRUGATE
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=32 		1-87410-104-0 03 1 0012- ●
117 TUBE; CORRUGATE
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=2000 ID=32 		1-87410-104-0 03 1 0012- ●
117 TUBE; CORRUGATE
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=32 		1-87410-104-0 03 1 0012- ●
117 TUBE; CORRUGATE
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9908-0011 ●
117 TUBE; CORRUGATE
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0012-0301 ●
117 TUBE; CORRUGATE
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0302-0302 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0302-0302 ●
117 TUBE; CORRUGATE
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0303- ●

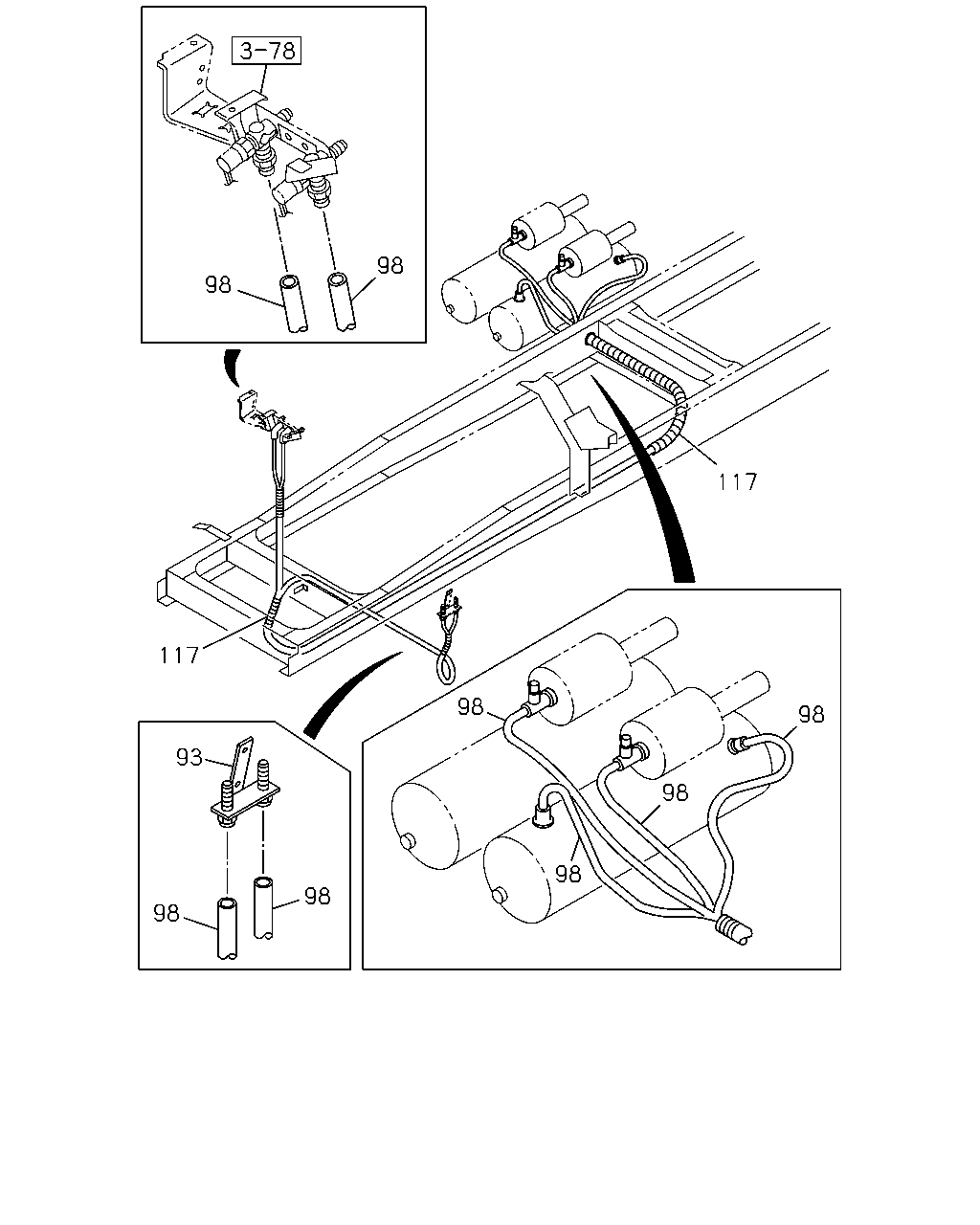

çizim 27054
98 98 117 117 98 98 93 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B C
93 BRACKET; UNION,TUBE 1-71996-119-0 01 1 9905-0301 ● ●
93 BRACKET; UNION,TUBE 1-71996-119-0 01 1 0302- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0303- ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 03 1 0303- ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0303- ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 04 1 9905-0011 ●
98 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 04 1 9905-0011 ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 04 1 0012-0105 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 04 1 0012-0105 ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 04 1 0106- ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9905-0011 ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0012- ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0012- ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0012- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0012- ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9905-0011 ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0012-0301 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0012-0301 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0012-0301 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0012-0301 ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0302-0302 ● ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0302-0302 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0302-0302 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0302-0302 ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0303- ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0303- ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0303- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0303- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 9905-0011 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0012-0105 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0012-0105 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0106-0301 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0106-0301 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0106-0301 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0302-0302 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0302-0302 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0302-0302 ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0302-0302 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0303- ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0303- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=6000 OD=12 		1-87410-071-0 03 1 0303- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 9905-0011 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0012-0105 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0012-0105 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0106-0301 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0106-0301 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0106-0301 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0302-0302 ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0302-0302 ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0302-0302 ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0302-0302 ●
98 TUBE; NYLON
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0303- ●
98 TUBE; NYLON
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0303- ●
98 TUBE; NYLON
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0303- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 02 1 0302-0302 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 02 1 0303- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 02 1 0302-0302 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 02 1 0303- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0303- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 03 1 9905-0011 ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 03 1 0012- ●
117 TUBE; CORRUGATE
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=32 		1-87410-104-0 03 1 0012- ●
117 TUBE; CORRUGATE
PTO CONT<SV6> GARBAGE TRUCK(XR4) SERVICED BY L=2000 ID=32 		1-87410-104-0 03 1 0012- ●
117 TUBE; CORRUGATE
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=32 		1-87410-104-0 03 1 0012- ●
117 TUBE; CORRUGATE
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9908-0011 ●
117 TUBE; CORRUGATE
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0012-0301 ●
117 TUBE; CORRUGATE
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0302-0302 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0302-0302 ●
117 TUBE; CORRUGATE
FIRE FIGHTING TRUCK(RA9) PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0303- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
