◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#78588) — 96 parça

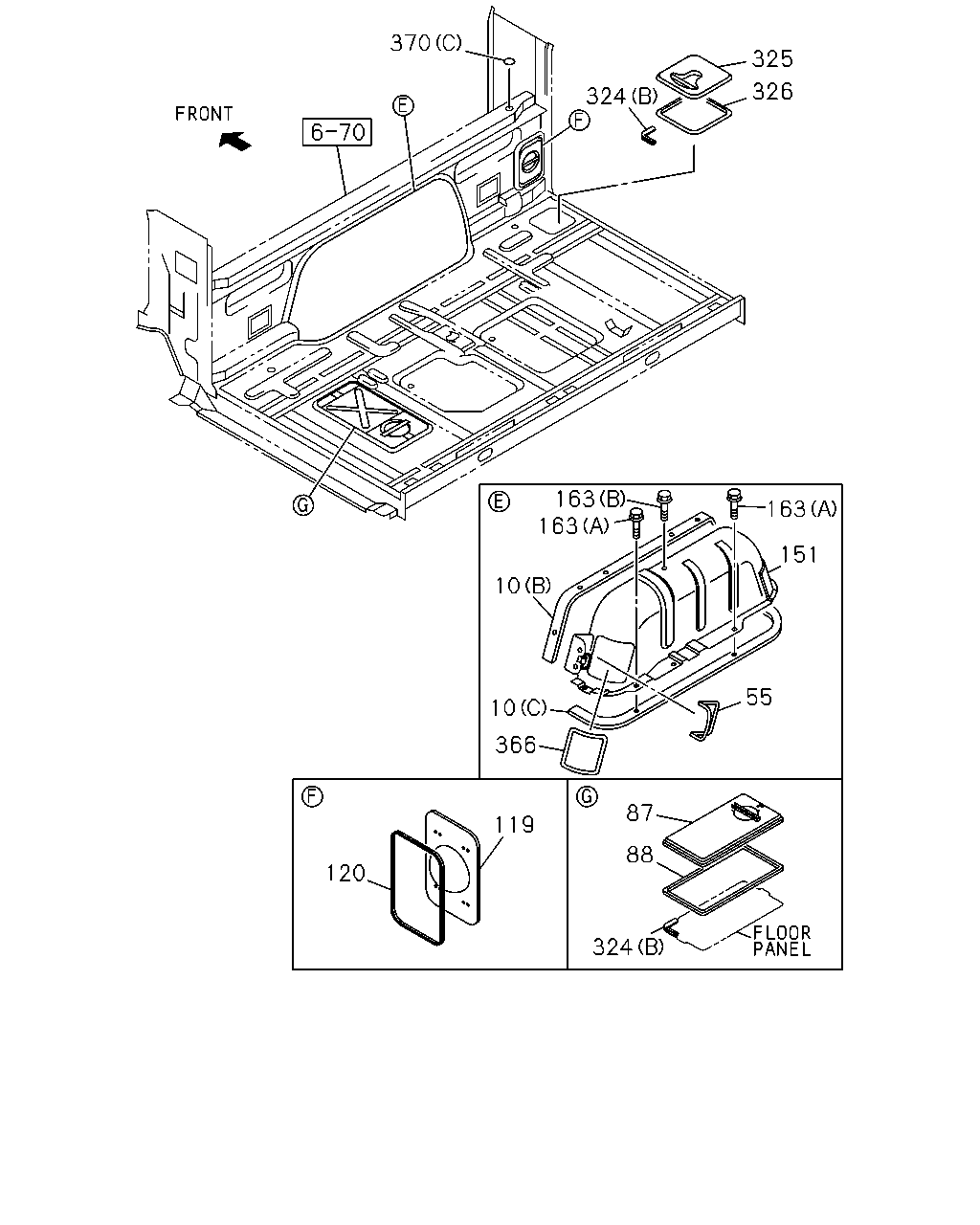

çizim 131851
370 325 326 324 163 163 163 151 10 55 10 366 87 119 88 120 324
BalonParca AdiParca NoAdetTipApplied Date A B
10 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 1112- ●
10 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 1112- ●
10 SEAL; ENG COVER
(B) 		8-98006-847-0 01 1 1112- ●
10 SEAL; ENG COVER
(C) 		8-98006-852-0 01 1 1112- ●
55 SEAL; SUPPORT COVER 8-97583-500-1 01 1 1112- ●
87 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 1112- ●
88 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 1112- ●
119 LID; P/S OIL TANK 8-97853-440-2 01 1 1112- ●
120 SEAL; LID,P/S 8-97853-441-1 01 1 1112- ●
151 COVER ASM; ENG 8-98043-008-4 01 1 1112- ●
163 BOLT; RR,ENG COVER,FRT
(A) M6X16 FLANGE 		0-28650-616-0 11 1 1112- ●
163 BOLT; RR,ENG COVER,FRT
(B) M6X20 FLANGE 		0-28650-620-0 01 1 1112- ●
324 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 02 1 1112- ●
324 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 02 1 1112- ●
324 FINISHER; FLOOR PANEL
(B) L=120 		1-73948-004-0 02 1 1112- ●
325 COVER; LLC 8-97856-974-0 01 1 1112- ●
326 SEAL; COVER 8-97856-975-1 01 1 1112- ●
366 FINISHER; COVER 8-97583-501-0 01 1 1112- ●
370 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1112- ●
370 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> (A) OD=25 BLACK 		1-76798-019-0 01 1 1112- ●
370 SEAL; LOCATION HOLE
(A) OD=25 BLACK 		1-76798-019-0 01 1 1112- ●
370 SEAL; LOCATION HOLE
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1112- ●
370 SEAL; LOCATION HOLE
(C) OD=32 BLACK 		8-98031-126-0 01 1 1112- ●

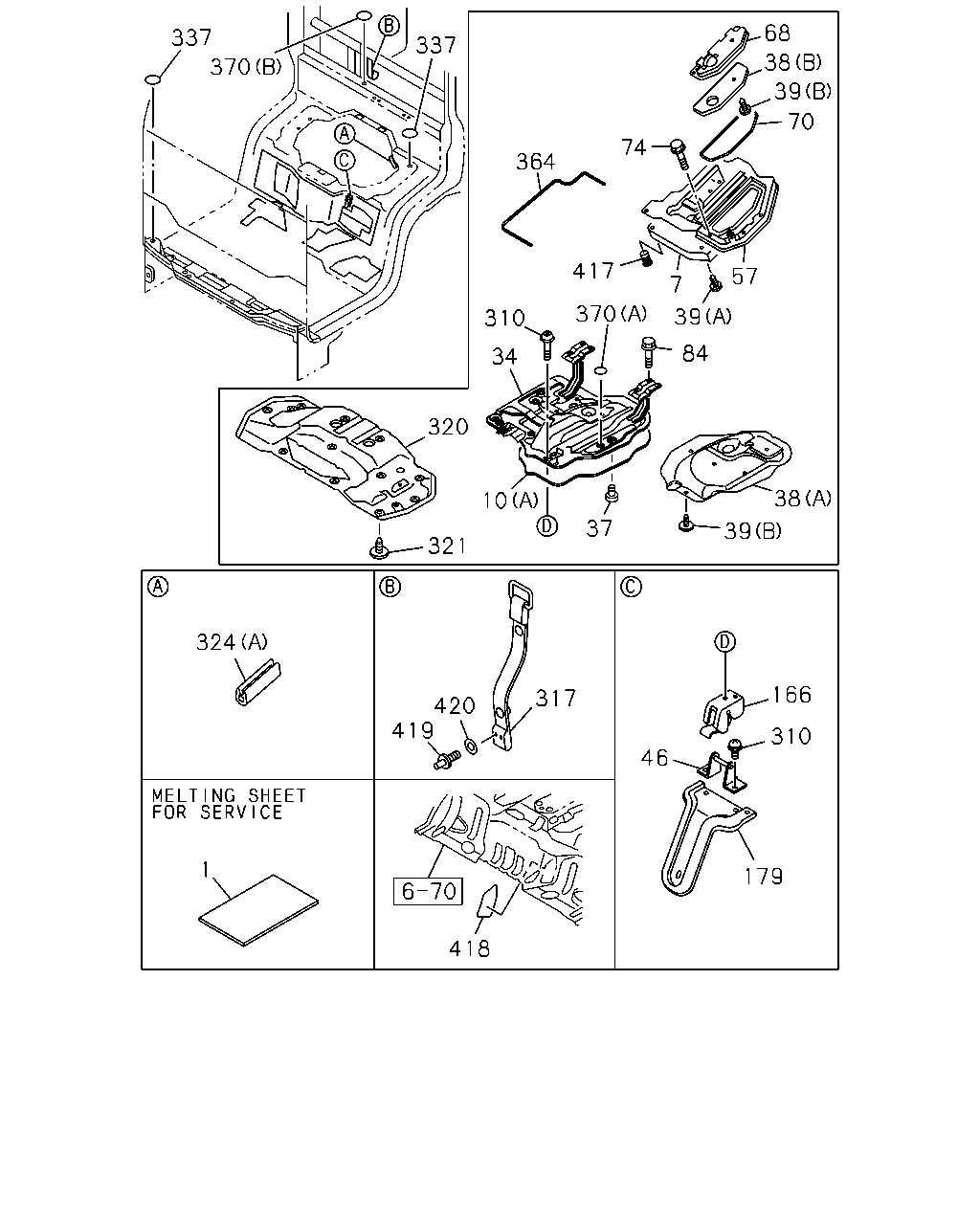

çizim 132373
68 337 337 38 370 39 70 74 364 417 57 7 370 39 310 84 34 320 38 10 37 39 321 324 166 317 420 419 310 46 1 179 418
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1112- ● ●
7 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-97586-179-3 01 1 1112-1408 ●
7 INSULATOR; SUPPORT COVER 8-97586-179-3 01 1 1112-1408 ●
7 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-98250-676-0 01 1 1409- ●
7 INSULATOR; SUPPORT COVER 8-98250-676-0 01 1 1409- ●
10 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 1112- ●
10 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 1112- ●
10 SEAL; ENG COVER
(B) 		8-98006-847-0 01 1 1112- ●
10 SEAL; ENG COVER
(C) 		8-98006-852-0 01 1 1112- ●
34 COVER ASM; ENG,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97589-391-2 01 1 1112- ●
34 COVER ASM; ENG,CAB FLOOR 8-97589-391-2 01 1 1112- ●
37 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> OD=30 T=10 		5-74917-001-2 02 1 1112- ●
37 RUBBER; BUFFER,ENG COVER
OD=30 T=10 		5-74917-001-2 02 1 1112- ●
38 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-97586-169-2 01 1 1112-1408 ●
38 INSULATOR; ENG COVER
(B) 		8-97586-169-2 01 1 1112-1408 ●
38 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-98242-234-0 01 1 1409- ●
38 INSULATOR; ENG COVER
(B) 		8-98242-234-0 01 1 1409- ●
38 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-97586-187-3 01 1 1112-1408 ●
38 INSULATOR; ENG COVER
(A) 		8-97586-187-3 01 1 1112-1408 ●
38 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98250-672-0 01 1 1409- ●
38 INSULATOR; ENG COVER
(A) 		8-98250-672-0 01 1 1409- ●
39 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (B) OD=30 		8-94279-952-0 07 1 1112- ●
39 CLIP; INSULATOR,COVER
(B) OD=30 		8-94279-952-0 07 1 1112- ●
39 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 1112- ●
39 CLIP; INSULATOR,COVER
(A) ID=6.2 L=11.4 		8-97808-623-0 05 1 1112- ●
46 HOOK ASM; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-145-0 02 1 1112- ●
46 HOOK ASM; ENG COVER 8-98040-145-0 02 1 1112- ●
57 COVER ASM; SUPPORT,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97589-396-4 01 1 1112- ●
57 COVER ASM; SUPPORT,CAB FLOOR 8-97589-396-4 01 1 1112- ●
68 COVER ASM; SUB,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-141-0 01 1 1112- ●
68 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 1112- ●
70 SEAL; ENG SUB COVER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97853-050-1 01 1 1112- ●
70 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 1112- ●
74 BOLT; SUPPORT COVER TO FLOOR
INSPECTION ENGINE COVER<8GA> M8X20 FLANGE 		0-28650-820-0 10 1 1112- ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28650-820-0 10 1 1112- ●
84 BOLT; ENG COVER HINGE
INSPECTION ENGINE COVER<8GA> M8X20 FLANGE 		0-28650-820-0 04 1 1112- ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28650-820-0 04 1 1112- ●
166 LOCK; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-152-0 02 1 1112- ●
166 LOCK; ENG COVER 8-98040-152-0 02 1 1112- ●
179 REINFORCEMENT; COVER
INSPECTION ENGINE COVER<8GA> 		8-98048-301-1 01 1 1112- ●
179 REINFORCEMENT; COVER 8-98048-301-1 01 1 1112- ●
310 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> M6X16 FLANGE 		0-28650-616-0 04 1 1112- ●
310 SCREW; ENG COVER HOOK
M6X16 FLANGE 		0-28650-616-0 04 1 1112- ●
310 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> M6X16 		0-38050-616-0 05 1 1112- ●
310 SCREW; ENG COVER HOOK
M6X16 		0-38050-616-0 05 1 1112- ●
317 BAND; ENGINE COVER
INSPECTION ENGINE COVER<8GA> 		8-97585-575-0 01 1 1112- ●
317 BAND; ENGINE COVER 8-97585-575-0 01 1 1112- ●
320 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-97586-164-7 01 1 1112-1408 ●
320 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> IRA 		8-98242-225-0 01 1 1409- ●
321 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> ID=6.2 L=11.4 		8-97808-623-0 15 1 1112- ●
324 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 02 1 1112- ●
324 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 02 1 1112- ●
324 FINISHER; FLOOR PANEL
(B) L=120 		1-73948-004-0 02 1 1112- ●
337 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 1112- ●
337 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 1112- ●
337 SEAL; CLIP HOLE
OD=25 BLACK 		1-76798-019-0 23 1 1112- ●
337 SEAL; CLIP HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1112- ●
337 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 08 1 1112- ● ●
364 FINISHER; ENG COVER SIDE
INSPECTION ENGINE COVER<8GA> L=1100 		8-97892-744-0 01 1 1112- ●
364 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 1112- ●
370 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1112- ●
370 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> (A) OD=25 BLACK 		1-76798-019-0 01 1 1112- ●
370 SEAL; LOCATION HOLE
(A) OD=25 BLACK 		1-76798-019-0 01 1 1112- ●
370 SEAL; LOCATION HOLE
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1112- ●
370 SEAL; LOCATION HOLE
(C) OD=32 BLACK 		8-98031-126-0 01 1 1112- ●
417 NUT; POP
INSPECTION ENGINE COVER<8GA> M6 POP NUT 		8-98013-752-0 01 1 1112- ●
417 NUT; POP
M6 POP NUT 		8-98013-752-0 01 1 1112- ●
418 SEAL; PROTECTOR
IRA 		8-98090-191-1 01 1 1112- ● ●
418 SEAL; PROTECTOR
IRA 		8-98090-192-1 01 1 1112- ● ●
419 RIVET; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98065-262-0 01 1 1112- ●
419 RIVET; ENG COVER 8-98065-262-0 01 1 1112- ●
420 WASHER; ENG COVER
INSPECTION ENGINE COVER<8GA> ID=5.3 OD=16 		0-91614-705-0 01 1 1112- ●
420 WASHER; ENG COVER
ID=5.3 OD=16 		0-91614-705-0 01 1 1112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
