6-75 — MAT AND CARPET (#78587) — 26 parça

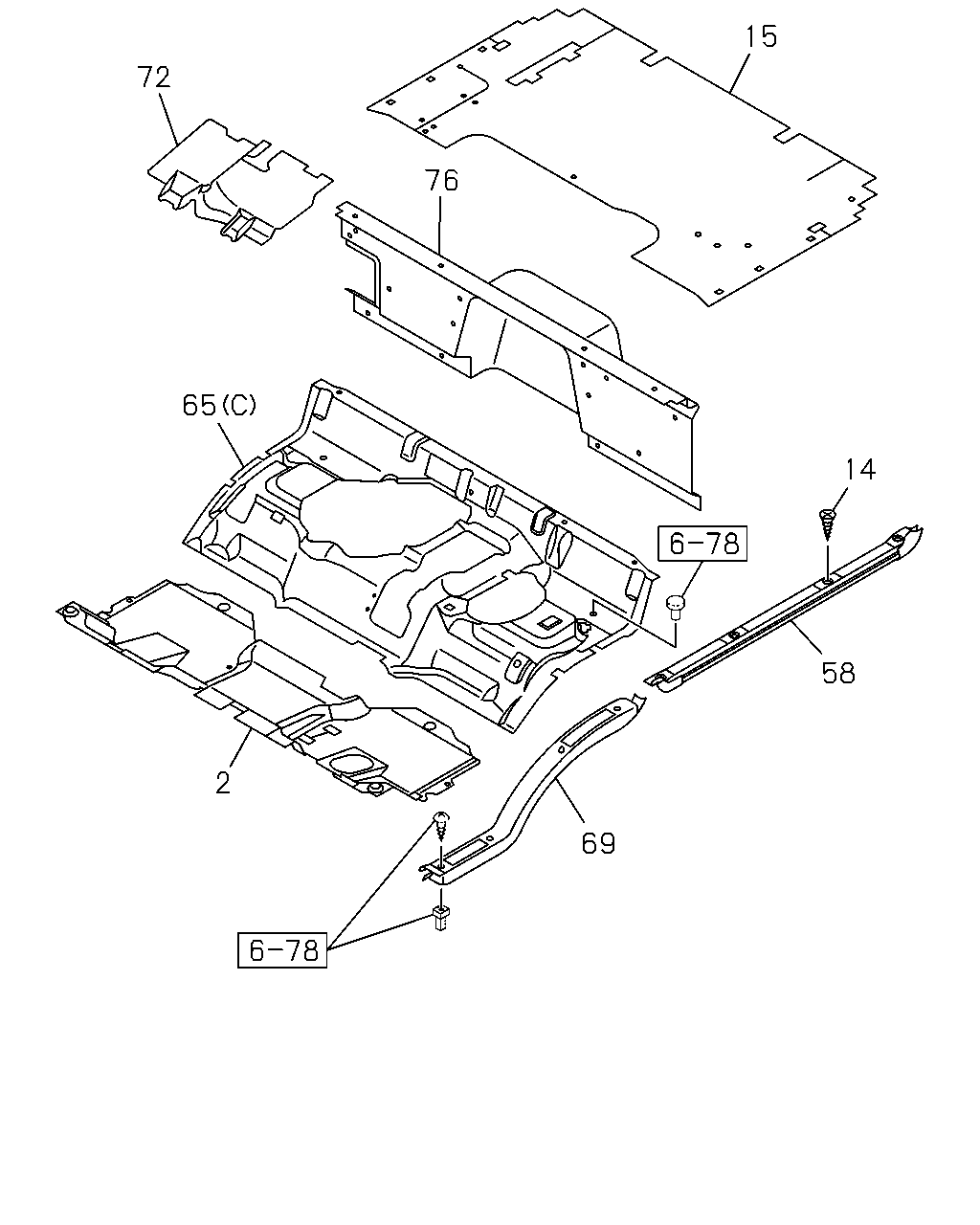

15 72 76 65 14 58 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR GRAY IRA	8-97422-059-0	01	1	1112-	●	●
14	SCREW; PLATE T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1112-		●
15	MAT; FLOOR REAR GRAY	8-97412-602-1	01	1	1112-		●
58	PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	1112-		●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-98112-607-4	01	1	1112-1303	●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-115-0	01	1	1304-	●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-98112-608-4	01	1	1112-1303		●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-116-0	01	1	1304-		●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	1112-1303	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY IRA	8-97425-127-0	01	1	1304-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1112-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1112-	●	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-599-1	01	1	1112-	●
72	MAT; SILENCER,ENG COVER GRAY	8-97417-599-1	01	1	1112-		●
76	MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97412-604-1	01	1	1112-		●

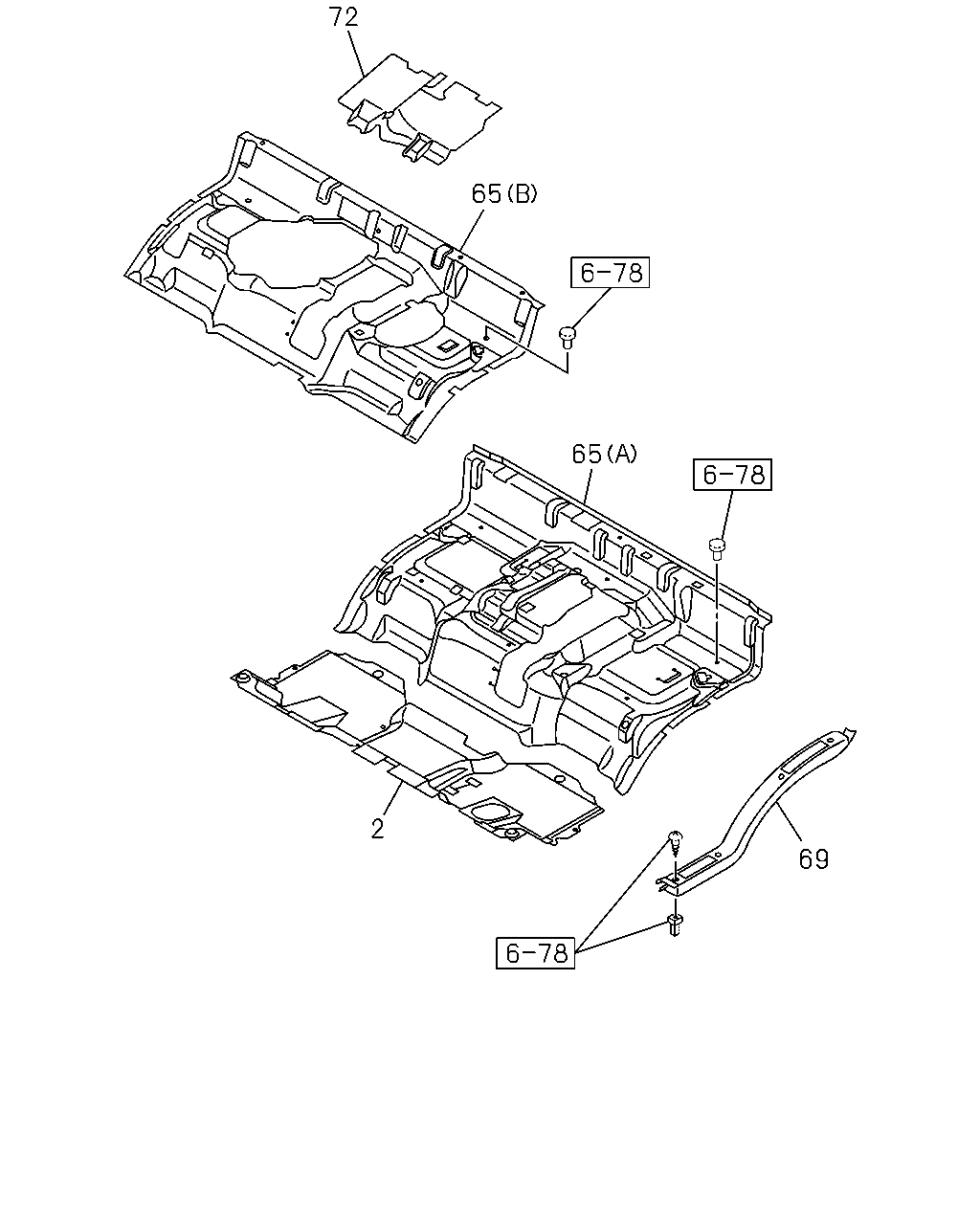

72 65 65 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR GRAY IRA	8-97422-059-0	01	1	1112-	●	●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-98112-607-4	01	1	1112-1303	●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-115-0	01	1	1304-	●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-98112-608-4	01	1	1112-1303		●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-116-0	01	1	1304-		●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	1112-1303	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY IRA	8-97425-127-0	01	1	1304-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1112-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1112-	●	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-599-1	01	1	1112-	●
72	MAT; SILENCER,ENG COVER GRAY	8-97417-599-1	01	1	1112-		●
