Sayfa 6-70 - Isuzu EPC

6-70 — FLOOR PANEL (#78586) — 206 parça

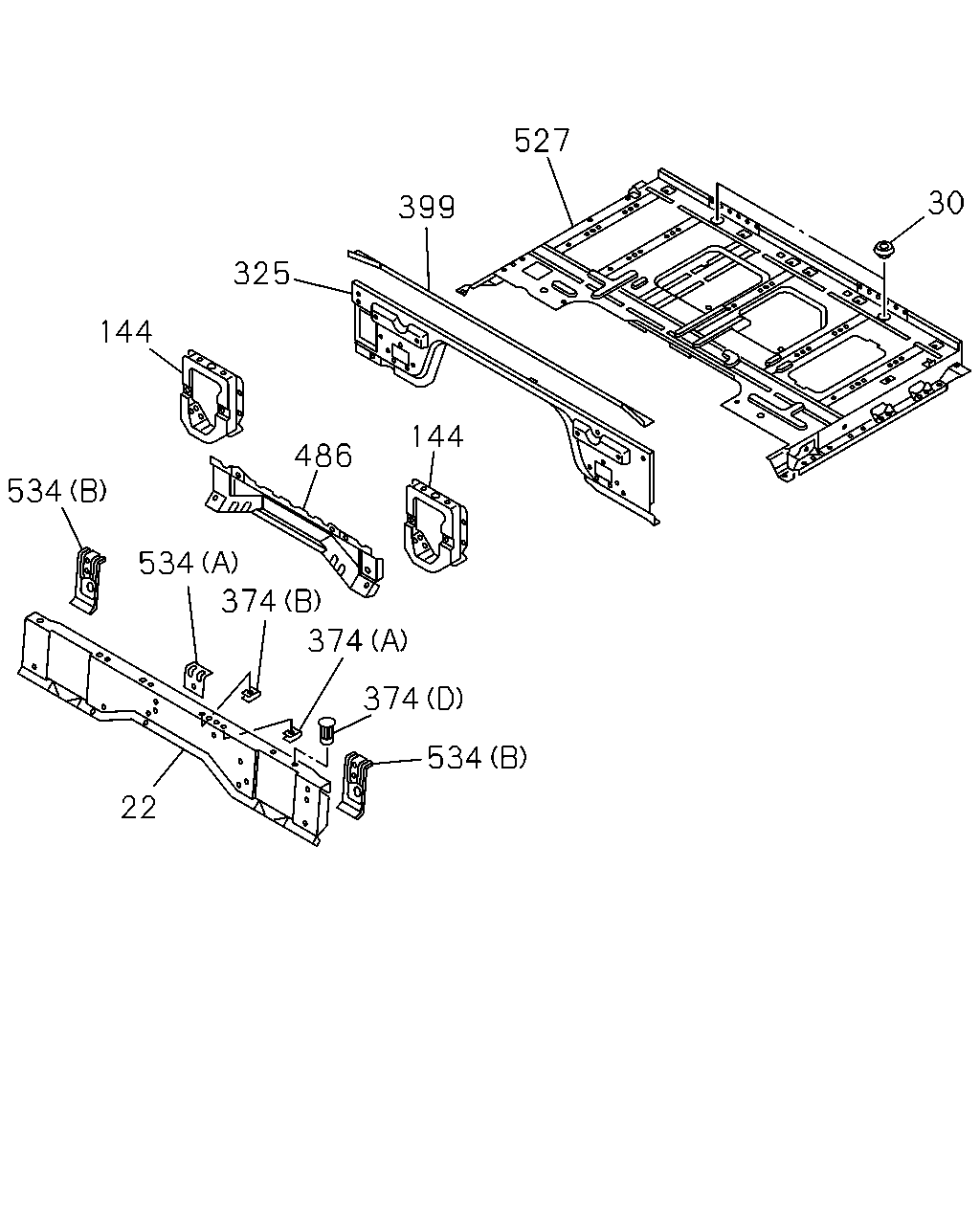

527 30 399 325 144 144 486 534 534 374 374 374 534 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-430-4	01	1	1112-	●
22	FRAME; FLOOR REAR	8-97589-430-4	01	1	1112-		●
22	FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97589-418-4	01	1	1112-	●
30	GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	1112-		●
144	BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-2	02	1	1112-	●
144	BRACKET; MTG,RR	8-98112-244-2	02	1	1112-		●
144	BRACKET; MTG,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97589-544-3	02	1	1112-	●
325	REINFORCEMENT ASM; RR MTG	8-98006-699-3	01	1	1112-		●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8 IRA	1-09984-111-0	04	1	1112-	●
374	NUT; FLOOR (A) M8 IRA	1-09984-111-0	04	1	1112-		●
374	NUT; FLOOR (D) M6 POP NUT	8-98013-752-0	01	1	1112-		●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1112-	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B) M6	1-09984-110-0	02	1	1112-	●
374	NUT; FLOOR (B) M6	1-09984-110-0	02	1	1112-		●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 IRA	1-09984-111-0	01	1	1112-	●
374	NUT; FLOOR (C) M8	9-09114-068-0	03	1	1112-	●
399	PANEL; EXTENSION,RR MTG RAIL	8-97587-702-1	01	1	1112-		●
486	REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98030-615-2	01	1	1112-	●
486	REINFORCEMENT; FRAME FLOOR,REAR	8-98030-615-2	01	1	1112-		●
486	REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-98030-613-2	01	1	1112-	●
527	FLOOR; RR	8-98081-184-3	01	1	1112-		●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) IRA	8-97583-851-3	02	1	1112-	●
534	REINFORCEMENT; SEAT BACK INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B) IRA	8-97583-851-3	02	1	1112-	●
534	REINFORCEMENT; SEAT BACK (B) IRA	8-97583-851-3	02	1	1112-		●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) IRA	8-98019-181-2	01	1	1112-	●
534	REINFORCEMENT; SEAT BACK INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) IRA	8-98019-181-2	01	1	1112-	●
534	REINFORCEMENT; SEAT BACK (A) IRA	8-98019-181-2	01	1	1112-		●

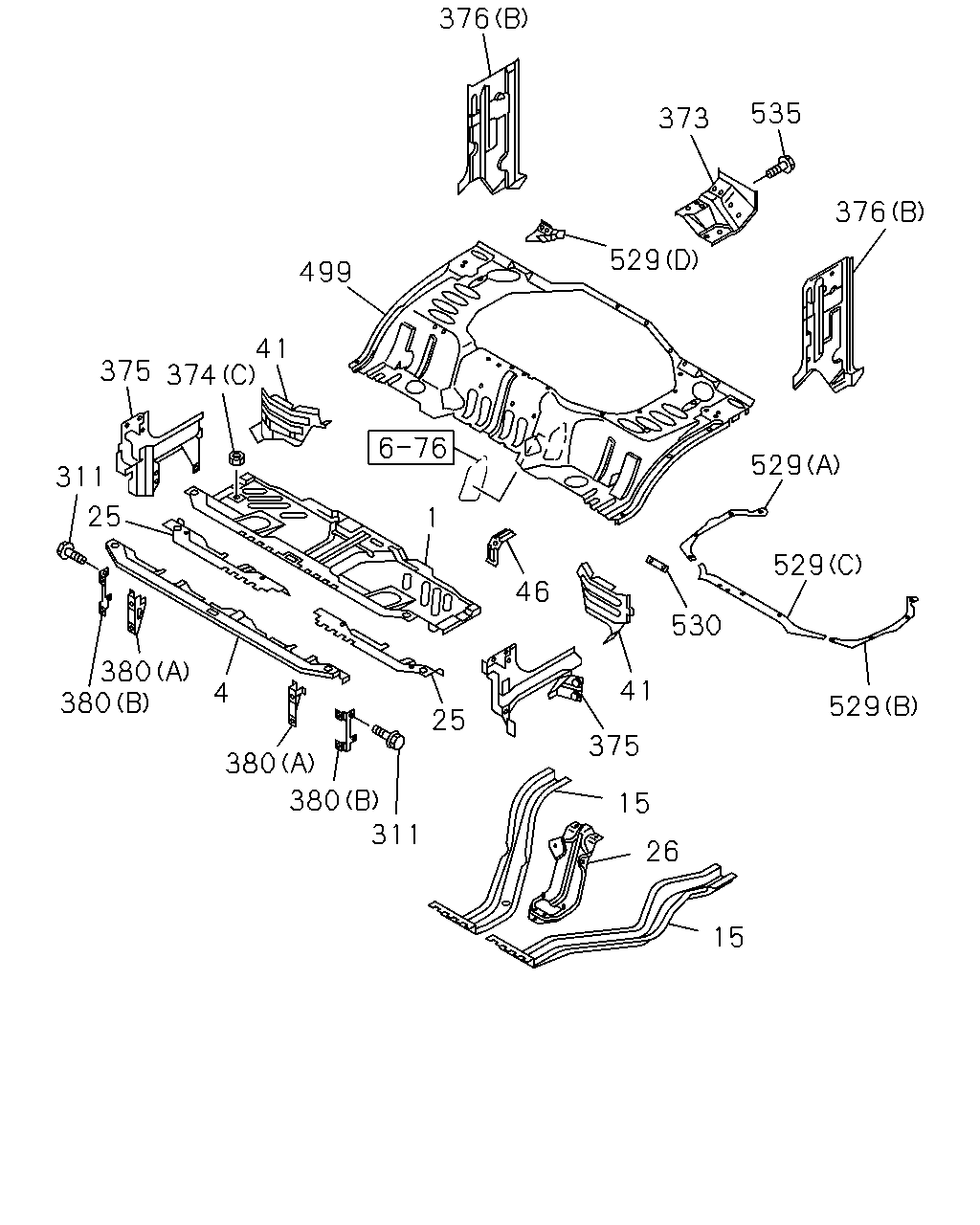

376 535 373 529 376 499 41 374 375 529 311 25 1 529 46 530 380 380 41 4 529 25 375 380 380 311 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97589-407-4	01	1	1112-	●
1	PANEL; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97589-407-4	01	1	1112-	●
1	PANEL; FLOOR IRA	8-97589-407-4	01	1	1112-		●
4	FRAME; FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98107-595-0	01	1	1112-	●
4	FRAME; FLOOR,FRT INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98107-595-0	01	1	1112-	●
4	FRAME; FLOOR,FRT	8-98107-595-0	01	1	1112-		●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98059-497-1	01	1	1112-	●
15	FRAME; UNDER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98059-497-1	01	1	1112-	●
15	FRAME; UNDER	8-98059-497-1	01	1	1112-		●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98059-498-1	01	1	1112-	●
15	FRAME; UNDER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98059-498-1	01	1	1112-	●
15	FRAME; UNDER	8-98059-498-1	01	1	1112-		●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-823-0	01	1	1112-	●
25	REINFORCEMENT; FRAME FLOOR,FRT INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-823-0	01	1	1112-	●
25	REINFORCEMENT; FRAME FLOOR,FRT IRA	8-97583-823-0	01	1	1112-		●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-98107-587-0	01	1	1112-	●
25	REINFORCEMENT; FRAME FLOOR,FRT INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-98107-587-0	01	1	1112-	●
25	REINFORCEMENT; FRAME FLOOR,FRT IRA	8-98107-587-0	01	1	1112-		●
26	PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97589-517-1	01	1	1112-	●
26	PANEL; GEAR CONT REINF INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97589-517-1	01	1	1112-	●
26	PANEL; GEAR CONT REINF IRA	8-97589-517-1	01	1	1112-		●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-880-1	01	1	1112-	●
41	SUPPORT; STEP,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-880-1	01	1	1112-	●
41	SUPPORT; STEP,RR IRA	8-97583-880-1	01	1	1112-		●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-881-1	01	1	1112-	●
41	SUPPORT; STEP,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-881-1	01	1	1112-	●
41	SUPPORT; STEP,RR IRA	8-97583-881-1	01	1	1112-		●
46	BRACKET; FRT SEAT,RR OUTER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-834-0	01	1	1112-	●
46	BRACKET; FRT SEAT,RR OUTER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-834-0	01	1	1112-	●
46	BRACKET; FRT SEAT,RR OUTER IRA	8-97583-834-0	01	1	1112-		●
311	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	04	1	1112-	●	●
373	REINFORCEMENT; SEAT BELT	8-98017-005-2	01	1	1112-		●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-98014-525-2	01	1	1112-	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-98014-526-2	01	1	1112-	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8 IRA	1-09984-111-0	04	1	1112-	●
374	NUT; FLOOR (A) M8 IRA	1-09984-111-0	04	1	1112-		●
374	NUT; FLOOR (D) M6 POP NUT	8-98013-752-0	01	1	1112-		●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1112-	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B) M6	1-09984-110-0	02	1	1112-	●
374	NUT; FLOOR (B) M6	1-09984-110-0	02	1	1112-		●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 IRA	1-09984-111-0	01	1	1112-	●
374	NUT; FLOOR (C) M8	9-09114-068-0	03	1	1112-	●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-882-3	01	1	1112-	●
375	CLOSING; PILLAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-882-3	01	1	1112-	●
375	CLOSING; PILLAR IRA	8-97583-882-3	01	1	1112-		●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-883-2	01	1	1112-	●
375	CLOSING; PILLAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-883-2	01	1	1112-	●
375	CLOSING; PILLAR IRA	8-97583-883-2	01	1	1112-		●
376	CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	1112-		●
376	CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	1112-		●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) IRA	8-97583-888-2	01	1	1112-	●
376	CLOSING; PILLAR,LWR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) IRA	8-97583-888-2	01	1	1112-	●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) IRA	8-97584-618-2	01	1	1112-	●
376	CLOSING; PILLAR,LWR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) IRA	8-97584-618-2	01	1	1112-	●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-384-4	01	1	1112-	●
380	BRACKET; HEAD LAMP INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-97589-384-4	01	1	1112-	●
380	BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	1112-		●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-385-3	01	1	1112-	●
380	BRACKET; HEAD LAMP INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-97589-385-3	01	1	1112-	●
380	BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	1112-		●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1112-	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1112-	●	●
499	PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-426-4	01	1	1112-1207	●
499	PANEL; FLOOR,RR	8-97589-426-4	01	1	1112-1207		●
499	PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98207-188-0	01	1	1208-	●
499	PANEL; FLOOR,RR	8-98207-188-0	01	1	1208-		●
499	PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-409-5	01	1	1112-1207	●
499	PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-98204-799-0	01	1	1208-	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-97589-467-1	01	1	1112-	●
529	RETAINER; FLOOR PANEL (A)	8-97589-467-1	01	1	1112-		●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B)	8-97589-468-1	01	1	1112-	●
529	RETAINER; FLOOR PANEL (B)	8-97589-468-1	01	1	1112-		●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-98006-715-0	01	1	1112-	●
529	RETAINER; FLOOR PANEL (C)	8-98006-715-0	01	1	1112-		●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (D)	8-98031-663-0	01	1	1112-	●
529	RETAINER; FLOOR PANEL (D)	8-98031-663-0	01	1	1112-		●
530	BRACKET; COVER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	1112-	●
530	BRACKET; COVER	8-97589-255-0	01	1	1112-		●
535	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	05	1	1112-		●

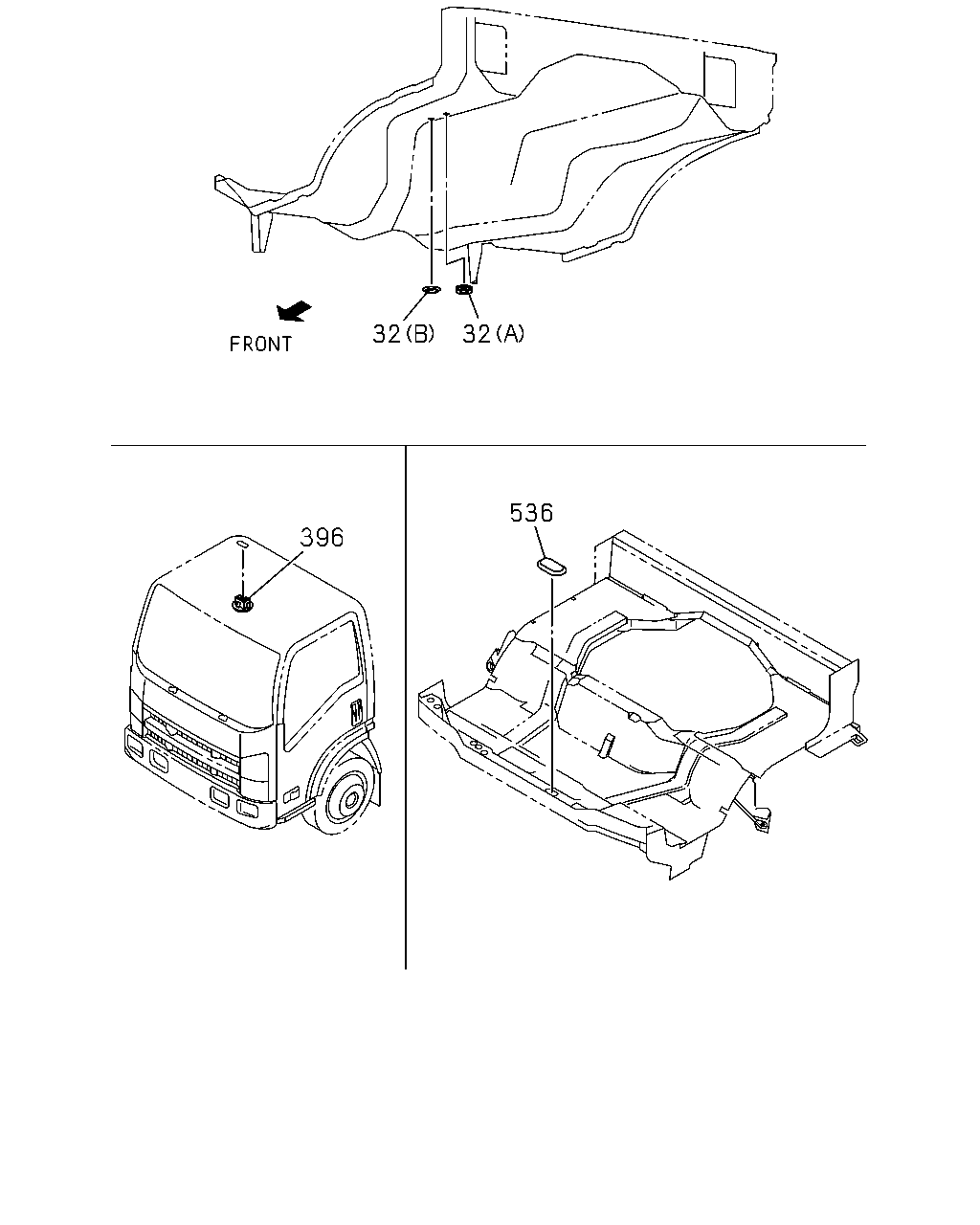

32 32 536 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	GROMMET; FLOOR PANEL,LOCATION HOLE (A) OD=15.0	8-94279-040-0	02	1	1112-	●	●
32	GROMMET; FLOOR PANEL,LOCATION HOLE (B) OD=12.1	8-97898-423-0	02	1	1112-	●	●
396	GROMMET; LOCATION HOLE	8-98054-990-0	02	1	1112-1301	●
396	GROMMET; LOCATION HOLE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98054-990-0	02	1	1302-	●
536	PLUG; CABLE,PTO	8-98029-219-1	01	1	1112-	●	●

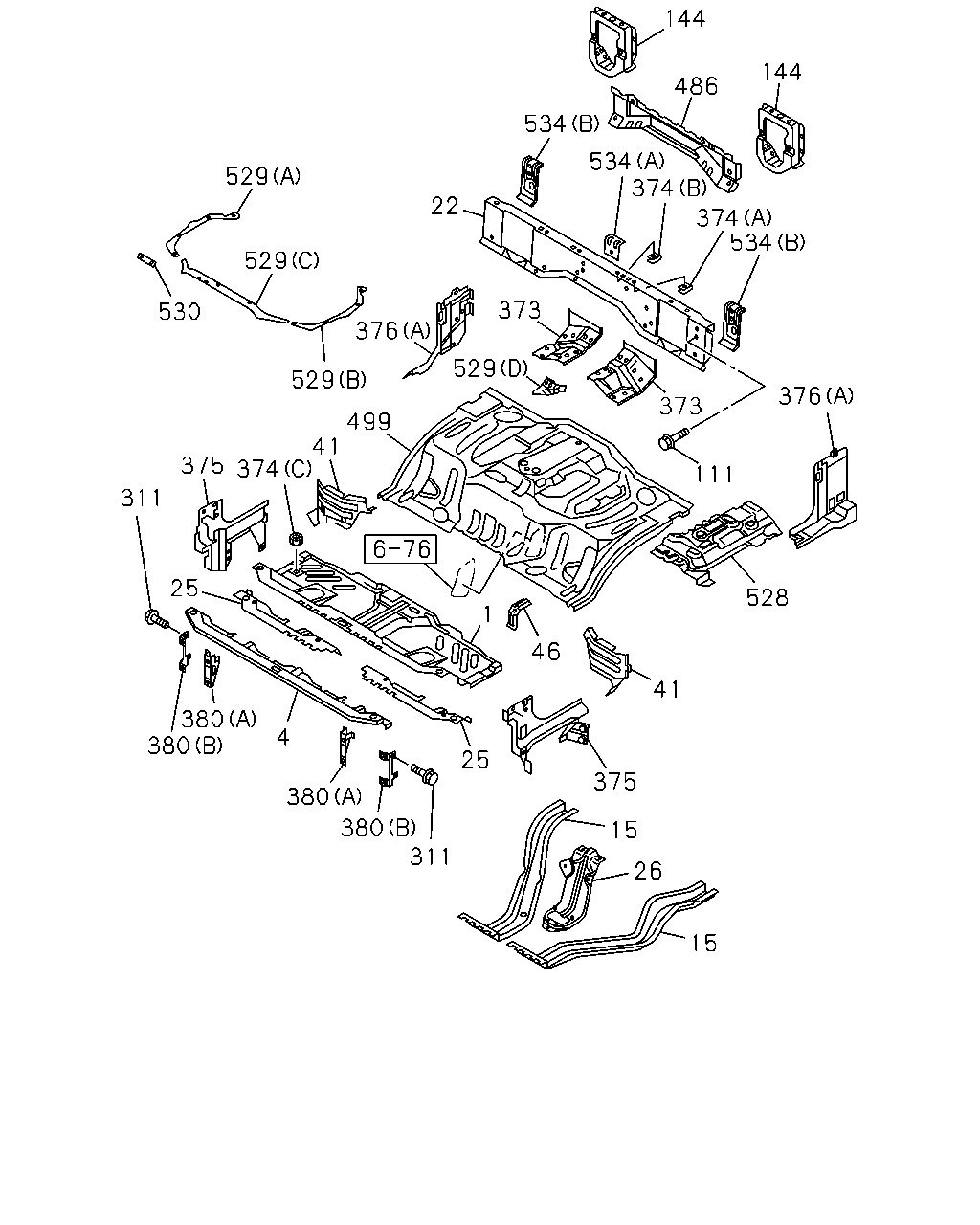

144 144 486 534 534 374 529 22 374 534 529 373 530 376 529 529 376 373 499 41 374 375 111 311 25 528 1 46 41 380 380 4 25 375 380 380 311 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97589-407-4	01	1	1112-	●
1	PANEL; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97589-407-4	01	1	1112-	●
1	PANEL; FLOOR IRA	8-97589-407-4	01	1	1112-		●
4	FRAME; FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98107-595-0	01	1	1112-	●
4	FRAME; FLOOR,FRT INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98107-595-0	01	1	1112-	●
4	FRAME; FLOOR,FRT	8-98107-595-0	01	1	1112-		●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98059-497-1	01	1	1112-	●
15	FRAME; UNDER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98059-497-1	01	1	1112-	●
15	FRAME; UNDER	8-98059-497-1	01	1	1112-		●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98059-498-1	01	1	1112-	●
15	FRAME; UNDER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98059-498-1	01	1	1112-	●
15	FRAME; UNDER	8-98059-498-1	01	1	1112-		●
22	FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-430-4	01	1	1112-	●
22	FRAME; FLOOR REAR	8-97589-430-4	01	1	1112-		●
22	FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97589-418-4	01	1	1112-	●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-823-0	01	1	1112-	●
25	REINFORCEMENT; FRAME FLOOR,FRT INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-823-0	01	1	1112-	●
25	REINFORCEMENT; FRAME FLOOR,FRT IRA	8-97583-823-0	01	1	1112-		●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-98107-587-0	01	1	1112-	●
25	REINFORCEMENT; FRAME FLOOR,FRT INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-98107-587-0	01	1	1112-	●
25	REINFORCEMENT; FRAME FLOOR,FRT IRA	8-98107-587-0	01	1	1112-		●
26	PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97589-517-1	01	1	1112-	●
26	PANEL; GEAR CONT REINF INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97589-517-1	01	1	1112-	●
26	PANEL; GEAR CONT REINF IRA	8-97589-517-1	01	1	1112-		●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-880-1	01	1	1112-	●
41	SUPPORT; STEP,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-880-1	01	1	1112-	●
41	SUPPORT; STEP,RR IRA	8-97583-880-1	01	1	1112-		●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-881-1	01	1	1112-	●
41	SUPPORT; STEP,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-881-1	01	1	1112-	●
41	SUPPORT; STEP,RR IRA	8-97583-881-1	01	1	1112-		●
46	BRACKET; FRT SEAT,RR OUTER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-834-0	01	1	1112-	●
46	BRACKET; FRT SEAT,RR OUTER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-834-0	01	1	1112-	●
46	BRACKET; FRT SEAT,RR OUTER IRA	8-97583-834-0	01	1	1112-		●
111	BOLT; PANEL M8X25 FLANGE	0-28650-825-0	01	1	1112-	●
144	BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-2	02	1	1112-	●
144	BRACKET; MTG,RR	8-98112-244-2	02	1	1112-		●
144	BRACKET; MTG,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97589-544-3	02	1	1112-	●
311	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	04	1	1112-	●	●
373	REINFORCEMENT; SEAT BELT	8-98017-005-2	01	1	1112-		●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-98014-525-2	01	1	1112-	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-98014-526-2	01	1	1112-	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8 IRA	1-09984-111-0	04	1	1112-	●
374	NUT; FLOOR (A) M8 IRA	1-09984-111-0	04	1	1112-		●
374	NUT; FLOOR (D) M6 POP NUT	8-98013-752-0	01	1	1112-		●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1112-	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B) M6	1-09984-110-0	02	1	1112-	●
374	NUT; FLOOR (B) M6	1-09984-110-0	02	1	1112-		●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 IRA	1-09984-111-0	01	1	1112-	●
374	NUT; FLOOR (C) M8	9-09114-068-0	03	1	1112-	●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-882-3	01	1	1112-	●
375	CLOSING; PILLAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-882-3	01	1	1112-	●
375	CLOSING; PILLAR IRA	8-97583-882-3	01	1	1112-		●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97583-883-2	01	1	1112-	●
375	CLOSING; PILLAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IRA	8-97583-883-2	01	1	1112-	●
375	CLOSING; PILLAR IRA	8-97583-883-2	01	1	1112-		●
376	CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	1112-		●
376	CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	1112-		●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) IRA	8-97583-888-2	01	1	1112-	●
376	CLOSING; PILLAR,LWR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) IRA	8-97583-888-2	01	1	1112-	●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) IRA	8-97584-618-2	01	1	1112-	●
376	CLOSING; PILLAR,LWR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) IRA	8-97584-618-2	01	1	1112-	●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-384-4	01	1	1112-	●
380	BRACKET; HEAD LAMP INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-97589-384-4	01	1	1112-	●
380	BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	1112-		●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-385-3	01	1	1112-	●
380	BRACKET; HEAD LAMP INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-97589-385-3	01	1	1112-	●
380	BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	1112-		●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1112-	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1112-	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98030-615-2	01	1	1112-	●
486	REINFORCEMENT; FRAME FLOOR,REAR	8-98030-615-2	01	1	1112-		●
486	REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-98030-613-2	01	1	1112-	●
499	PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-426-4	01	1	1112-1207	●
499	PANEL; FLOOR,RR	8-97589-426-4	01	1	1112-1207		●
499	PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98207-188-0	01	1	1208-	●
499	PANEL; FLOOR,RR	8-98207-188-0	01	1	1208-		●
499	PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-409-5	01	1	1112-1207	●
499	PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-98204-799-0	01	1	1208-	●
528	REINFORCEMENT; PARKING BRAKE MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> IRA	8-97589-410-2	01	1	1112-	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-97589-467-1	01	1	1112-	●
529	RETAINER; FLOOR PANEL (A)	8-97589-467-1	01	1	1112-		●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B)	8-97589-468-1	01	1	1112-	●
529	RETAINER; FLOOR PANEL (B)	8-97589-468-1	01	1	1112-		●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-98006-715-0	01	1	1112-	●
529	RETAINER; FLOOR PANEL (C)	8-98006-715-0	01	1	1112-		●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (D)	8-98031-663-0	01	1	1112-	●
529	RETAINER; FLOOR PANEL (D)	8-98031-663-0	01	1	1112-		●
530	BRACKET; COVER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	1112-	●
530	BRACKET; COVER	8-97589-255-0	01	1	1112-		●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) IRA	8-97583-851-3	02	1	1112-	●
534	REINFORCEMENT; SEAT BACK INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B) IRA	8-97583-851-3	02	1	1112-	●
534	REINFORCEMENT; SEAT BACK (B) IRA	8-97583-851-3	02	1	1112-		●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) IRA	8-98019-181-2	01	1	1112-	●
534	REINFORCEMENT; SEAT BACK INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) IRA	8-98019-181-2	01	1	1112-	●
534	REINFORCEMENT; SEAT BACK (A) IRA	8-98019-181-2	01	1	1112-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
