6-66 — HEAD LINING AND TRIM (#78585) — 126 parça

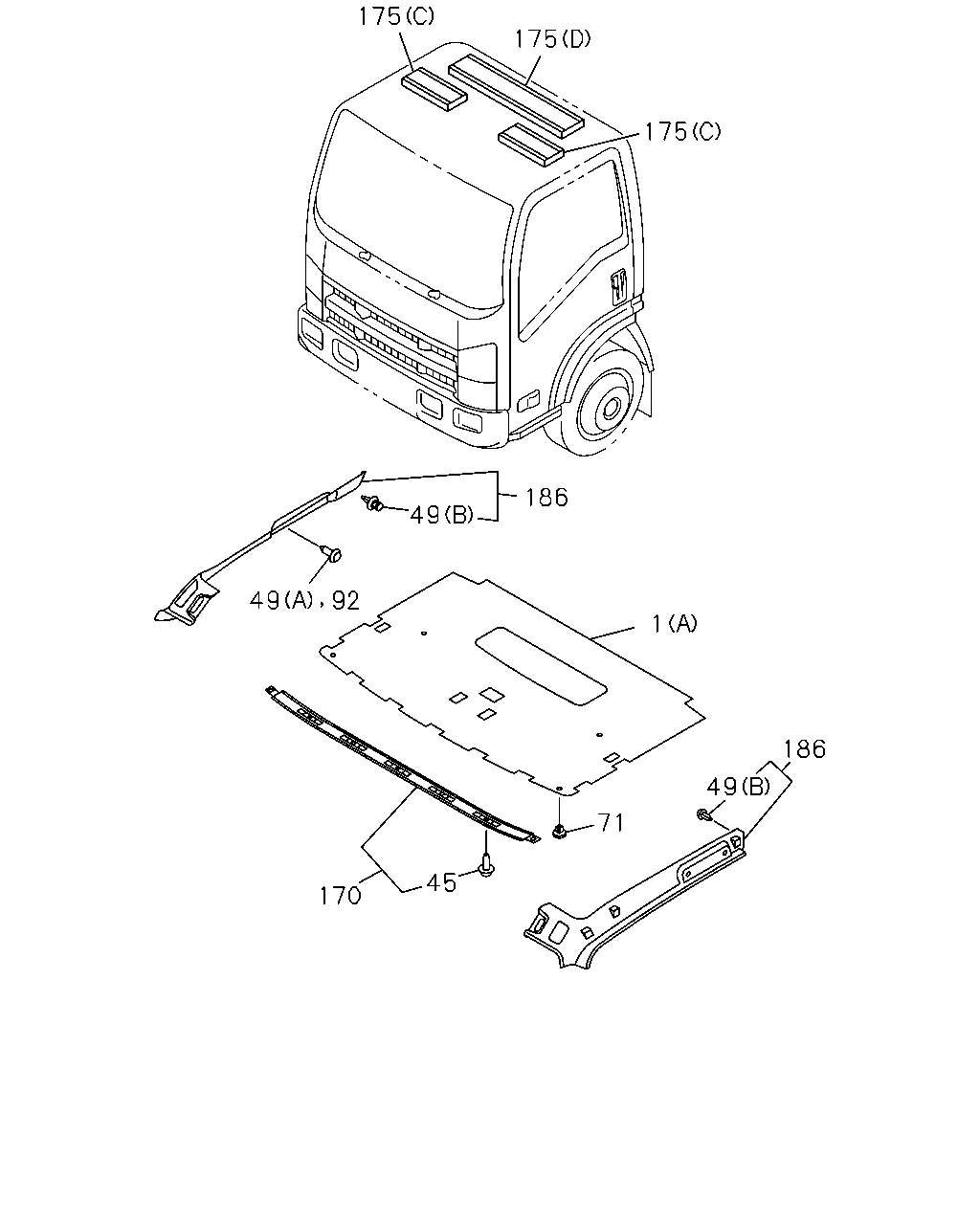

175 175 175 186 49 49 92 1 186 49 71 45 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97411-516-3	01	1	1112-	●
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-270-8	01	1	1112-	●
1	LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1112-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97411-520-0	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97425-061-0	01	1	1212-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-518-0	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-059-0	01	1	1212-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97411-519-1	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY IRA	8-97425-060-0	01	1	1212-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-522-1	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-063-0	01	1	1212-	●
1	LINING; HD HEADER TRAY DRIVER<W56> (C) DARK GRAY	8-97411-523-0	01	1	1112-		●
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-279-3	01	1	1112-		●
1	LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-278-2	01	1	1112-		●
45	CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	1112-	●
45	CLIP; FINISHER	8-98035-592-1	03	1	1112-		●
49	CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	02	1	1112-	●
49	CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1112-		●
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98059-610-0	03	1	1112-1410	●
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98059-610-0	03	1	1112-1410	●
49	CLIP; TRIM COVER (B)	8-98059-610-0	03	1	1112-1410		●
49	CLIP; TRIM COVER (B)	8-98059-610-0	03	1	1112-1410		●
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98059-610-0	02	1	1411-	●
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98059-610-0	02	1	1411-	●
49	CLIP; TRIM COVER (B)	8-98059-610-0	02	1	1411-		●
49	CLIP; TRIM COVER (B)	8-98059-610-0	02	1	1411-		●
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	05	1	1112-	●
71	FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1112-	●
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	20	1	1112-		●
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1112-	●
71	FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1112-	●
92	RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5>,INTERIOR TRIM-FULLTRIMMING<WM3> DARK GRAY	8-97407-768-0	04	1	1112-	●
92	RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1112-		●
170	FINISHER; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-281-5	01	1	1112-	●
170	FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1112-		●
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-299-3	02	1	1112-	●
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98037-300-3	01	1	1112-	●
175	CUSHION; HEAD LINING (F)	8-98037-298-3	03	1	1112-		●
175	CUSHION; HEAD LINING (E)	8-98054-171-3	02	1	1112-		●
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-298-3	01	1	1112-	●
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (A)	8-98082-685-1	02	1	1112-	●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-3	01	1	1112-	●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1112-		●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-3	01	1	1112-	●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1112-		●
186	TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1112-	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1112-		●
186	TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1112-	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1112-		●

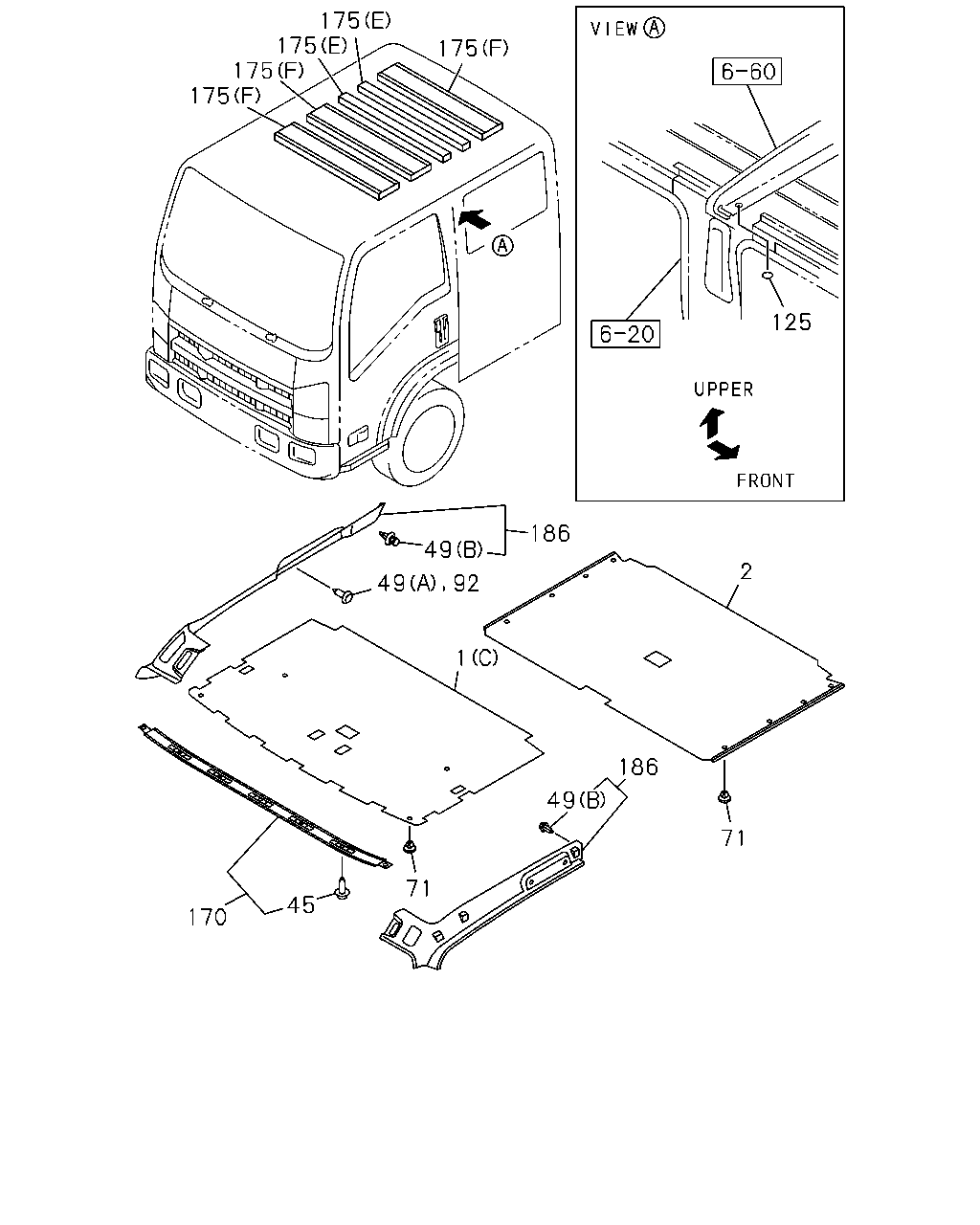

175 175 175 175 175 125 186 49 2 49 92 1 186 49 71 71 45 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97411-516-3	01	1	1112-	●
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-270-8	01	1	1112-	●
1	LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1112-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97411-520-0	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97425-061-0	01	1	1212-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-518-0	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-059-0	01	1	1212-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97411-519-1	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY IRA	8-97425-060-0	01	1	1212-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-522-1	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-063-0	01	1	1212-	●
1	LINING; HD HEADER TRAY DRIVER<W56> (C) DARK GRAY	8-97411-523-0	01	1	1112-		●
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-279-3	01	1	1112-		●
1	LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-278-2	01	1	1112-		●
2	LINING; HD,ROOF RR DARK GRAY	8-97405-280-3	01	1	1112-		●
45	CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	1112-	●
45	CLIP; FINISHER	8-98035-592-1	03	1	1112-		●
49	CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	02	1	1112-	●
49	CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1112-		●
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98059-610-0	03	1	1112-1410	●
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98059-610-0	03	1	1112-1410	●
49	CLIP; TRIM COVER (B)	8-98059-610-0	03	1	1112-1410		●
49	CLIP; TRIM COVER (B)	8-98059-610-0	03	1	1112-1410		●
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98059-610-0	02	1	1411-	●
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98059-610-0	02	1	1411-	●
49	CLIP; TRIM COVER (B)	8-98059-610-0	02	1	1411-		●
49	CLIP; TRIM COVER (B)	8-98059-610-0	02	1	1411-		●
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	05	1	1112-	●
71	FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1112-	●
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	20	1	1112-		●
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1112-	●
71	FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1112-	●
92	RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5>,INTERIOR TRIM-FULLTRIMMING<WM3> DARK GRAY	8-97407-768-0	04	1	1112-	●
92	RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1112-		●
125	SEAL; HOLE BODY COLOR ARC WHITE(729) OD=36 WHITE	1-76778-007-0	02	1	1112-		●
125	SEAL; HOLE BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	1112-		●
170	FINISHER; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-281-5	01	1	1112-	●
170	FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1112-		●
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-299-3	02	1	1112-	●
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98037-300-3	01	1	1112-	●
175	CUSHION; HEAD LINING (F)	8-98037-298-3	03	1	1112-		●
175	CUSHION; HEAD LINING (E)	8-98054-171-3	02	1	1112-		●
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-298-3	01	1	1112-	●
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (A)	8-98082-685-1	02	1	1112-	●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-3	01	1	1112-	●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1112-		●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-3	01	1	1112-	●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1112-		●
186	TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1112-	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1112-		●
186	TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1112-	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1112-		●

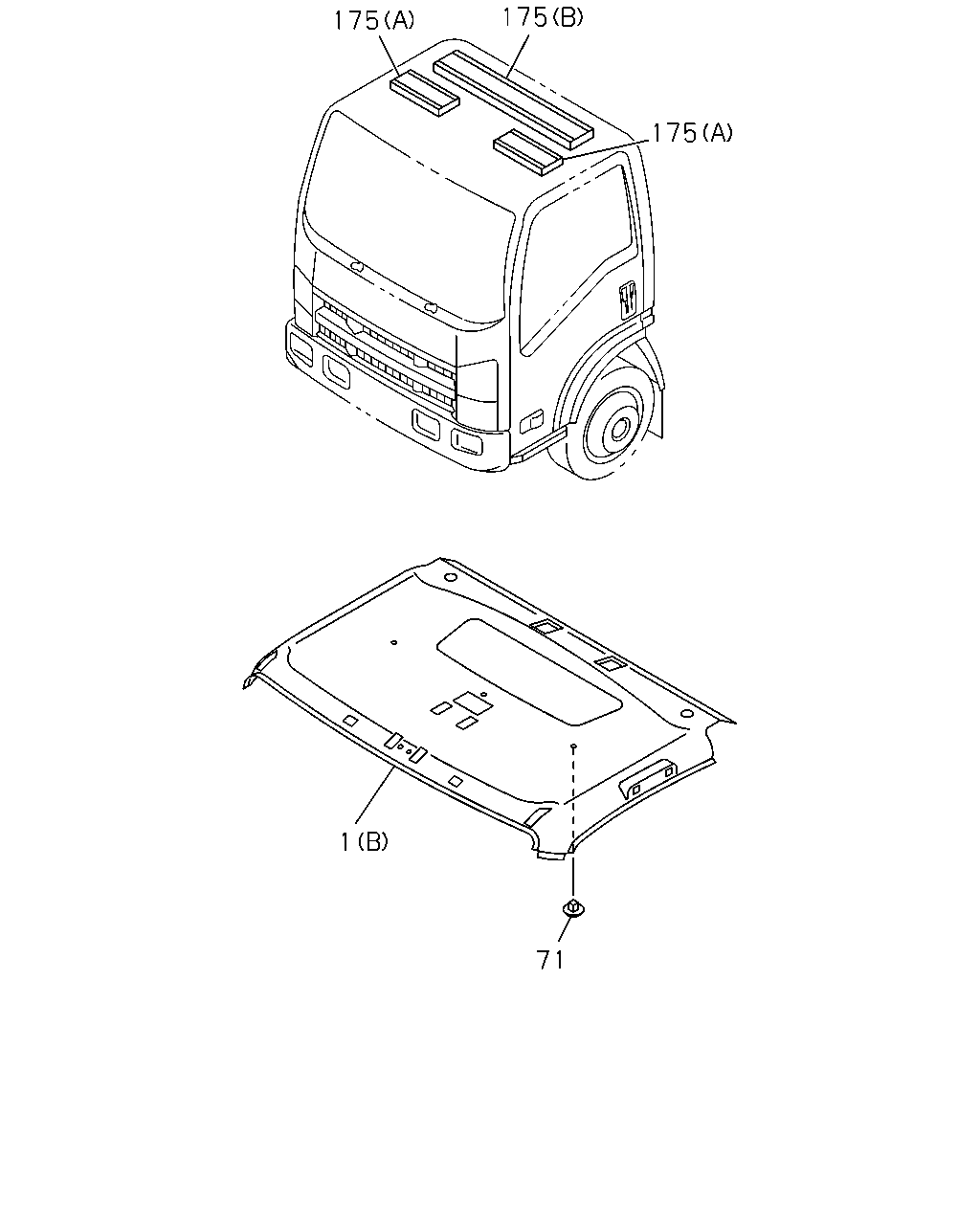

175 175 175 1 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97411-516-3	01	1	1112-	●
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-270-8	01	1	1112-	●
1	LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1112-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97411-520-0	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97425-061-0	01	1	1212-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-518-0	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-059-0	01	1	1212-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97411-519-1	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY IRA	8-97425-060-0	01	1	1212-	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-522-1	01	1	1112-1211	●
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-063-0	01	1	1212-	●
1	LINING; HD HEADER TRAY DRIVER<W56> (C) DARK GRAY	8-97411-523-0	01	1	1112-		●
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-279-3	01	1	1112-		●
1	LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-278-2	01	1	1112-		●
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	05	1	1112-	●
71	FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1112-	●
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	20	1	1112-		●
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1112-	●
71	FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1112-	●
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-299-3	02	1	1112-	●
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98037-300-3	01	1	1112-	●
175	CUSHION; HEAD LINING (F)	8-98037-298-3	03	1	1112-		●
175	CUSHION; HEAD LINING (E)	8-98054-171-3	02	1	1112-		●
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-298-3	01	1	1112-	●
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (A)	8-98082-685-1	02	1	1112-	●
