Isuzu WW
▶
TRUCKS
▶
NPR
▶
51300 - NPR(IRAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

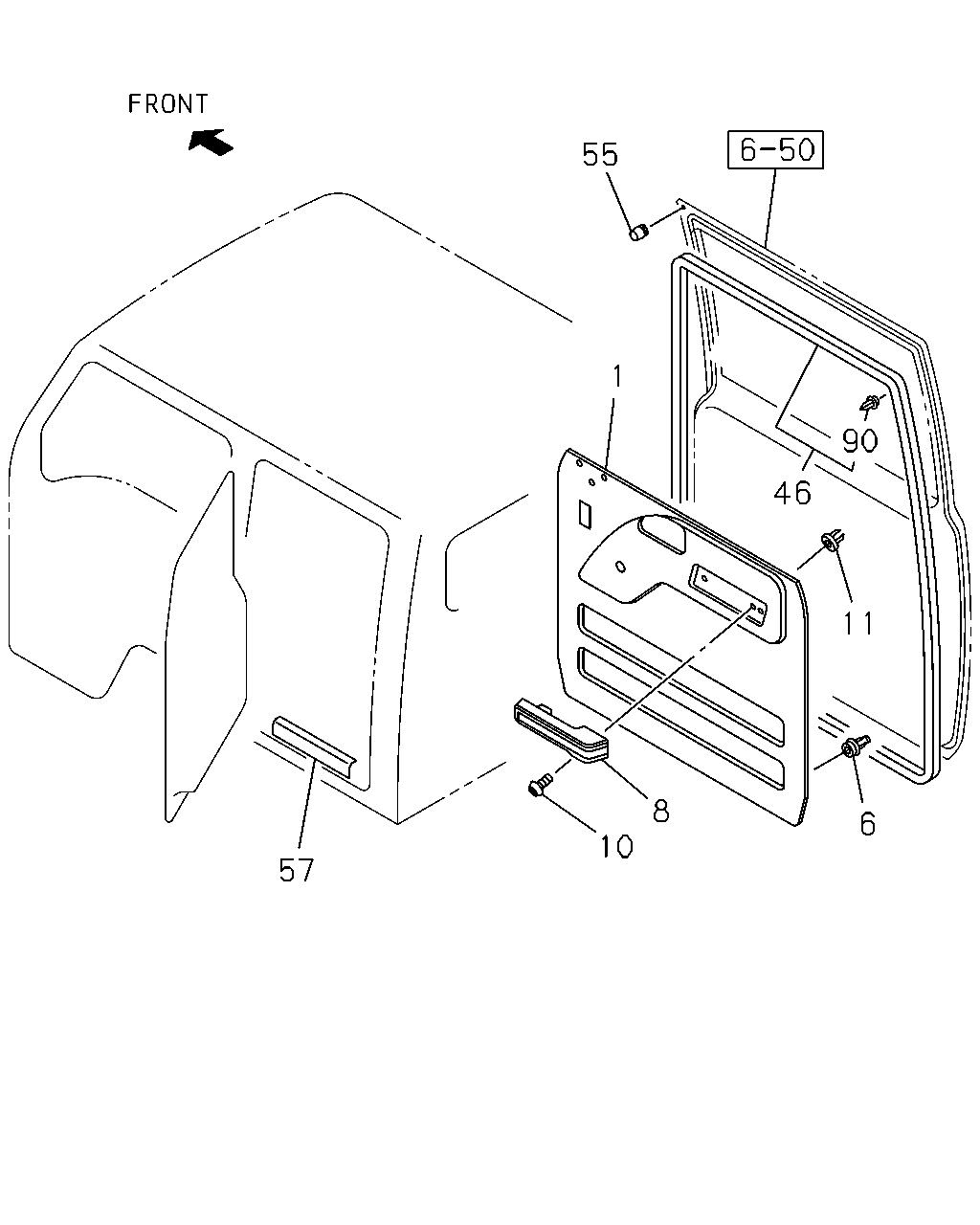

6-55 - REAR DOOR TRIM
▶
6-55 — REAR DOOR TRIM
(#78583) — 13 parça
55
1
90
46
11
8
6
10
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> GRAY
8-97407-840-4
01
1
1112-
1
PAD; TRIM,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> GRAY
8-97407-841-4
01
1
1112-
1
PAD; TRIM,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY
8-97405-322-5
01
1
1112-
1
PAD; TRIM,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY
8-97405-323-5
01
1
1112-
6
CLIP; DOOR PAD
8-94226-492-0
22
1
1112-
8
REST; ARM,RR DOOR
GRAY
8-97405-328-2
01
1
1112-
8
REST; ARM,RR DOOR
GRAY
8-97405-329-2
01
1
1112-
10
SCREW; ARM REST
M6X30 TAPPING
8-98059-872-0
04
1
1112-
11
NUT; ARM REST
SCREW GROMMET
8-06698-938-1
04
1
1112-
46
SEAL; DOOR,UPR,CAB SIDE
8-97587-656-1
02
1
1112-
55
RUBBER; STOPPER,DOOR INNER
8-94358-581-0
04
1
1112-
57
PROTECTOR; STEP RR
8-98027-817-0
02
1
1112-
90
CLIP; SEAL
NATURAL
8-98062-270-0
78
1
1112-
