◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#78582) — 39 parça

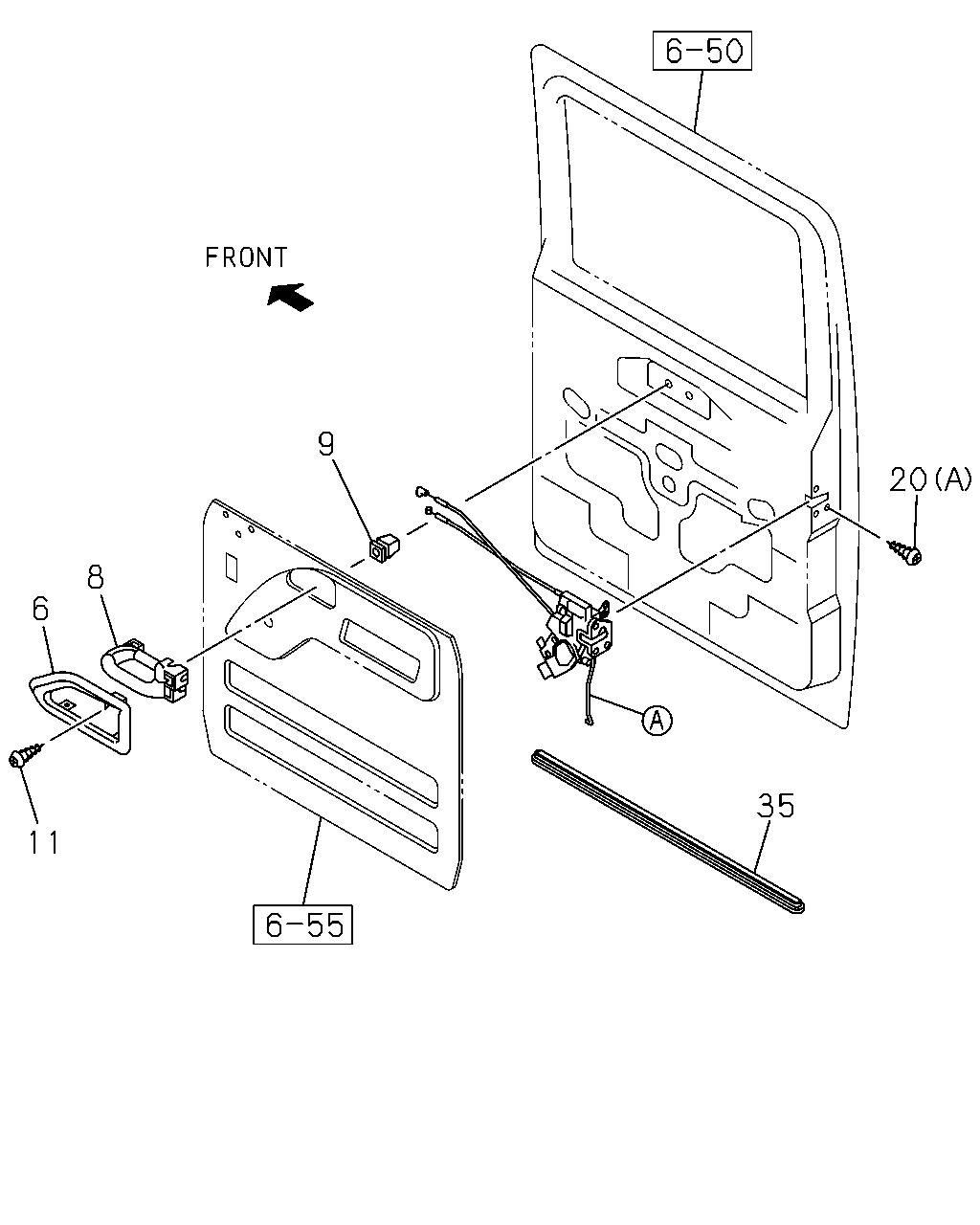

çizim 131259
9 20 8 6 35 11
BalonParca AdiParca NoAdetTipApplied Date
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97405-311-0 01 1 1112-
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97405-312-0 01 1 1112-
8 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97409-816-0 01 1 1112-
8 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97409-817-0 01 1 1112-
9 GROMMET; SCREW,INSIDE HANDLE
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1112-
11 SCREW; INSIDE HANDLE
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1112-
20 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) M6X10 FLANGE 		0-28050-610-0 02 1 1112-
20 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 1112-
35 PLUG; RR DOOR LWR HOLE 8-98009-201-4 02 1 1112-

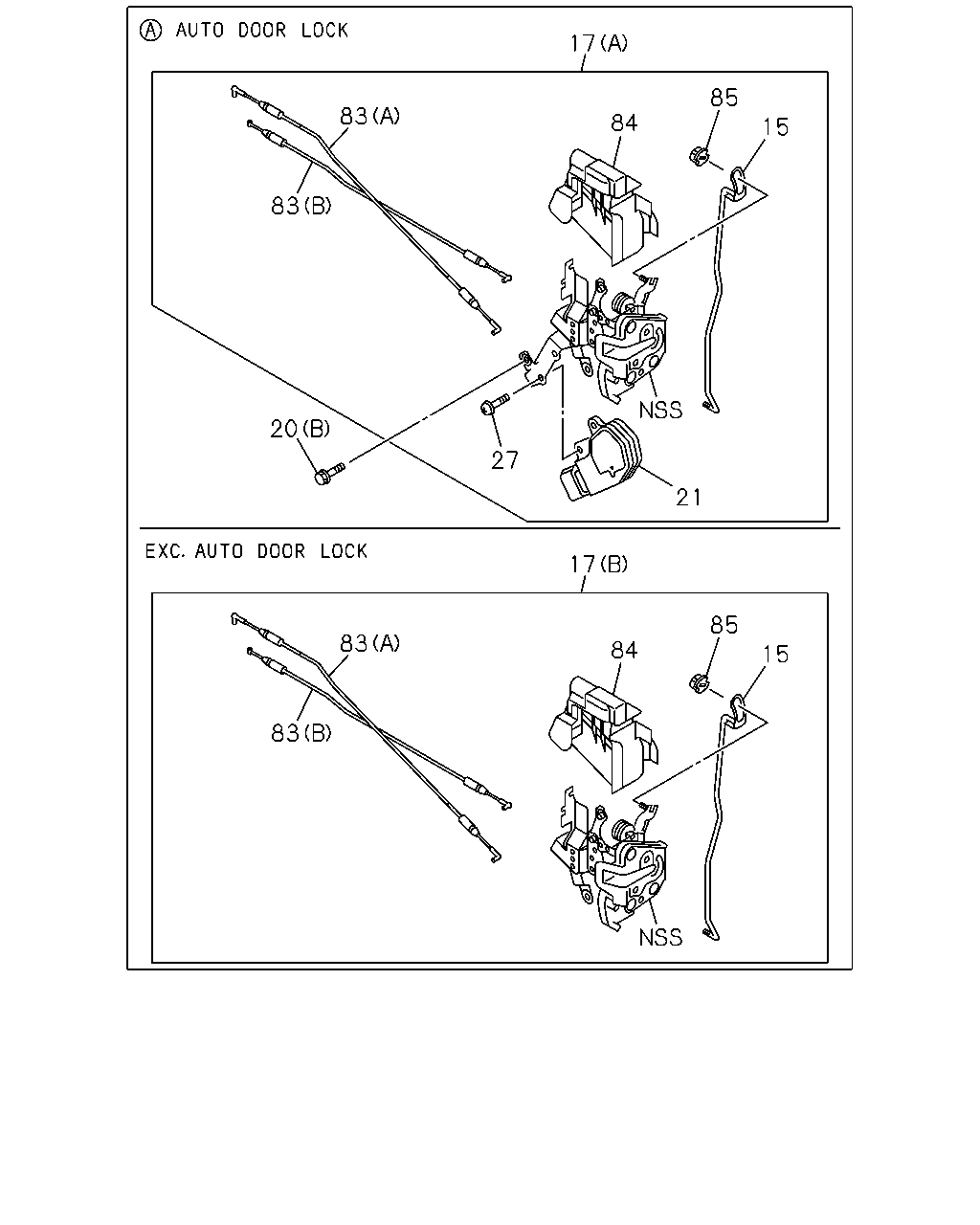

çizim 131489
17 85 83 84 15 83 20 27 21 17 85 83 84 15 83
BalonParca AdiParca NoAdetTipApplied Date
15 LINK; RR DOOR LK 8-98058-335-0 01 1 1112-
15 LINK; RR DOOR LK 8-98058-336-0 01 1 1112-
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> (A) 		8-97587-658-3 01 1 1112-1203
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98202-461-0 01 1 1204-
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> (A) 		8-97587-659-3 01 1 1112-1203
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98202-462-0 01 1 1204-
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98006-865-2 01 1 1112-
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98006-867-2 01 1 1112-
20 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) M6X10 FLANGE 		0-28050-610-0 02 1 1112-
20 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 1112-
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-98058-231-0 01 1 1112-
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> IRA 		8-98089-562-0 01 1 1112-
27 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> IRA 		8-97310-549-0 04 1 1112-
83 CABLE ASM; LOCK CONTROL
(A) 		8-98058-342-0 01 1 1112-
83 CABLE ASM; LOCK CONTROL
(A) 		8-98058-344-0 01 1 1112-
83 CABLE ASM; LOCK CONTROL
(B) 		8-98058-345-0 02 1 1112-
84 COVER; DOOR LOCK 8-98058-238-0 01 1 1112-
84 COVER; DOOR LOCK 8-98058-239-0 01 1 1112-
85 SNAP; RR DOOR LOCK
AUTO DOOR LOCK<AU4> NATURAL 		8-98058-226-0 01 1 1112-
85 SNAP; RR DOOR LOCK
AUTO DOOR LOCK<AU4> BLUE 		8-98058-227-0 01 1 1112-
85 SNAP; RR DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> NATURAL 		8-98058-226-0 02 1 1112-
85 SNAP; RR DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> BLUE 		8-98058-227-0 02 1 1112-
çizim 183550
3 37 14 1 30 32
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,RR DOOR 8-98040-991-2 01 1 1112-
1 HANDLE; OUTSIDE,RR DOOR 8-98040-992-2 01 1 1112-
3 BOLT; DOOR OUTSIDE HANDLE
M6X10 FLANGE 		0-28050-610-0 04 1 1112-
14 HOLDER; DOOR LK ROD
WHITE 		8-97333-303-0 01 1 1112-
14 HOLDER; DOOR LK ROD
BLACK 		8-98095-813-0 01 1 1112-
30 STRIKER; RR DOOR 8-98029-173-2 02 1 1112-
32 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1112-
37 GROMMET; RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-94279-724-0 04 1 1112-
