3-70 — BRAKE PIPING; AIR,AIR MASTER (#7858) — 165 parça

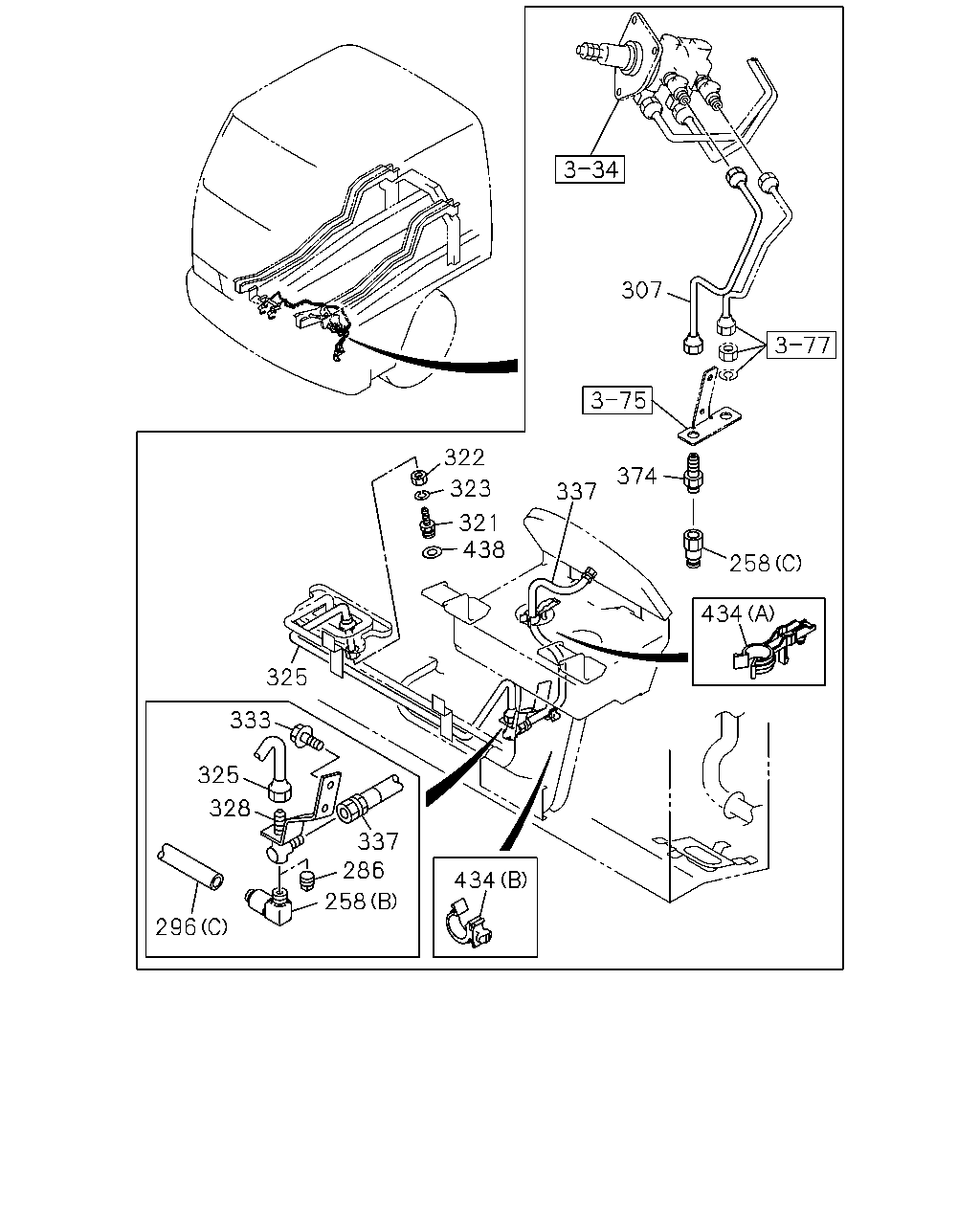

çizim 26576
307 322 374 323 337 321 438 258 434 325 333 325 328 337 286 434 258 296
BalonParca AdiParca NoAdetTipApplied Date A B C
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 9905-0301 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0302- ● ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9905-0007 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0301 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0302- ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP D/SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9905-0301 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP D/SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0302-0302 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0302-0302 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP D/SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
(B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ●
286 PLUG; AIR PIPE 9-09204-510-0 01 1 9905- ●
286 PLUG; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> 		9-09204-510-0 01 1 9905- ●
296 TUBE; NYLON
PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9905-9907 ●
296 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9905-9907 ●
296 TUBE; NYLON
PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-0212 ●
296 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-0212 ●
296 TUBE; NYLON
PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9905- ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9905-0212 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0301-0301 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0302- ● ●
296 TUBE; NYLON
AIR SUSP D/SEAT<A56> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9905-0001 ●
296 TUBE; NYLON
AIR SUSP D/SEAT<A56> (C) L=1200 OD=6 		1-09366-256-1 01 1 0002-0301 ●
296 TUBE; NYLON
AIR SUSP D/SEAT<A56> (C) L=1200 OD=6 		1-09366-256-1 01 1 0302- ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-1 01 1 0302- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=434 		1-49116-435-1 01 1 9905-0301 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=434 		1-49116-435-1 01 1 0302- ● ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 9905-0301 ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0302- ● ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9905-0301 ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0302- ● ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9905-0301 ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0302-0603 ● ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
L=791 		1-49116-077-0 01 1 9905-0301 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
L=791 		1-49116-077-0 01 1 0302- ● ● ●
328 UNION; AIR PIPE 1-47470-473-0 01 1 9905-0301 ● ●
328 UNION; AIR PIPE 1-47470-473-0 01 1 0302- ● ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0301 ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302- ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 9905-0301 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0302-0605 ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606- ● ● ●
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 9905-0301 ● ●
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 0302- ● ● ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 9905- ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 9905-0301 ● ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 0302- ● ● ●
434 CLIP
(B) 		8-94297-486-0 02 1 9905-0301 ● ●
434 CLIP
(B) 		8-94297-486-0 02 1 0302- ● ● ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 02 1 9905-0301 ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 02 1 0302- ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9905-0301 ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0302- ● ● ●

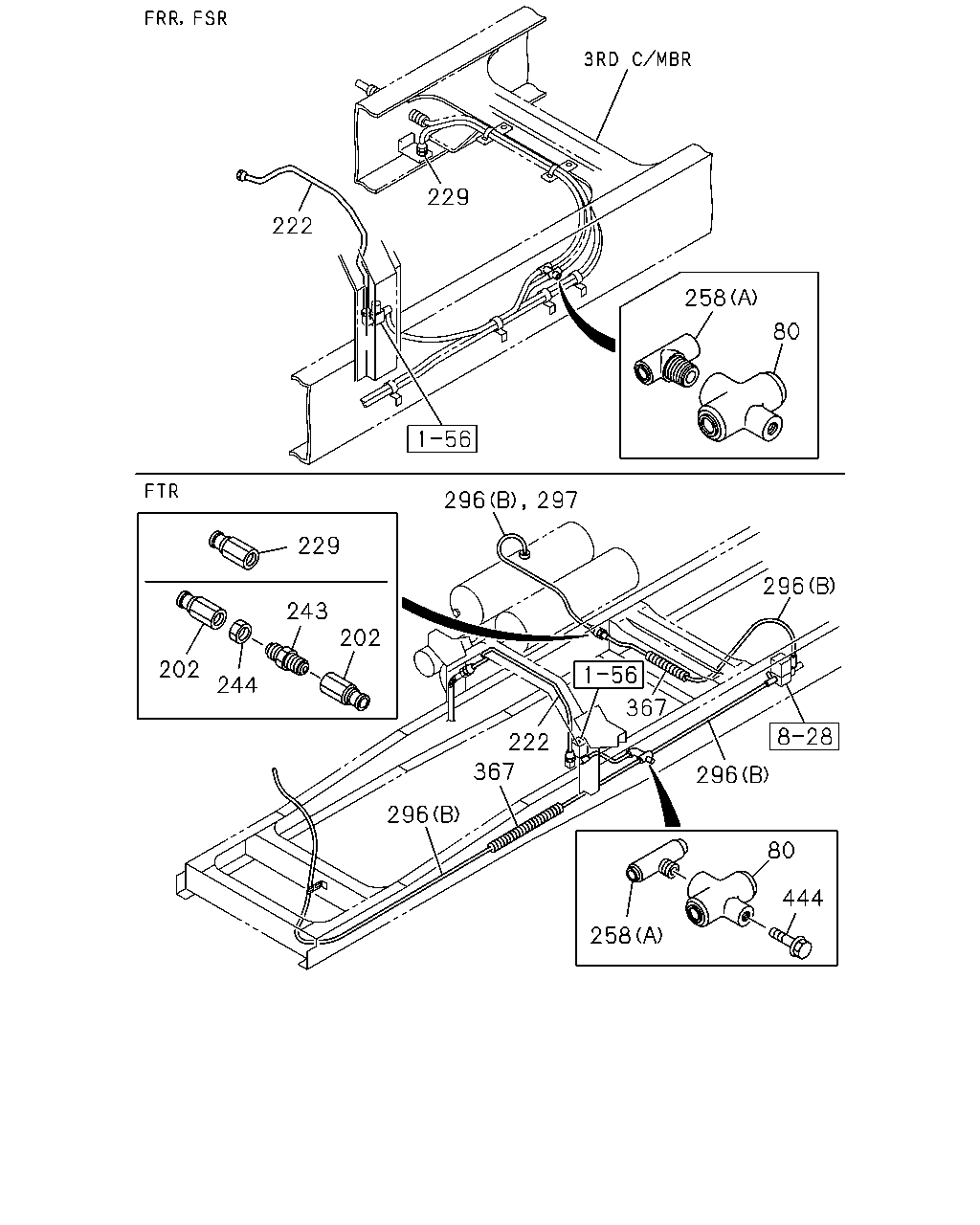

çizim 26861
229 222 258 80 296 297 229 296 243 202 202 244 367 222 367 296 296 80 444 258
BalonParca AdiParca NoAdetTipApplied Date A B C
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9905-0301 ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0302- ● ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0302- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1036 SERVICED BY L=1100 		1-47428-815-0 01 1 0302- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1061 SERVICED BY L=1100 		1-47426-351-0 01 1 9905- ● ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9905-0007 ● ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0301 ● ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0302- ● ● ●
243 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 0302-0607 ●
243 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 0608- ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0302- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 9905-0301 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0302- ● ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9905-0007 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0301 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0302- ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP D/SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9905-0301 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP D/SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0302-0302 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0302-0302 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP D/SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
(B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ●
296 TUBE; NYLON
PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9905-9907 ●
296 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9905-9907 ●
296 TUBE; NYLON
PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-0212 ●
296 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-0212 ●
296 TUBE; NYLON
PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9905- ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9905-0212 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0301-0301 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0302- ● ●
296 TUBE; NYLON
AIR SUSP D/SEAT<A56> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9905-0001 ●
296 TUBE; NYLON
AIR SUSP D/SEAT<A56> (C) L=1200 OD=6 		1-09366-256-1 01 1 0002-0301 ●
296 TUBE; NYLON
AIR SUSP D/SEAT<A56> (C) L=1200 OD=6 		1-09366-256-1 01 1 0302- ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-1 01 1 0302- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0302- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0302- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●

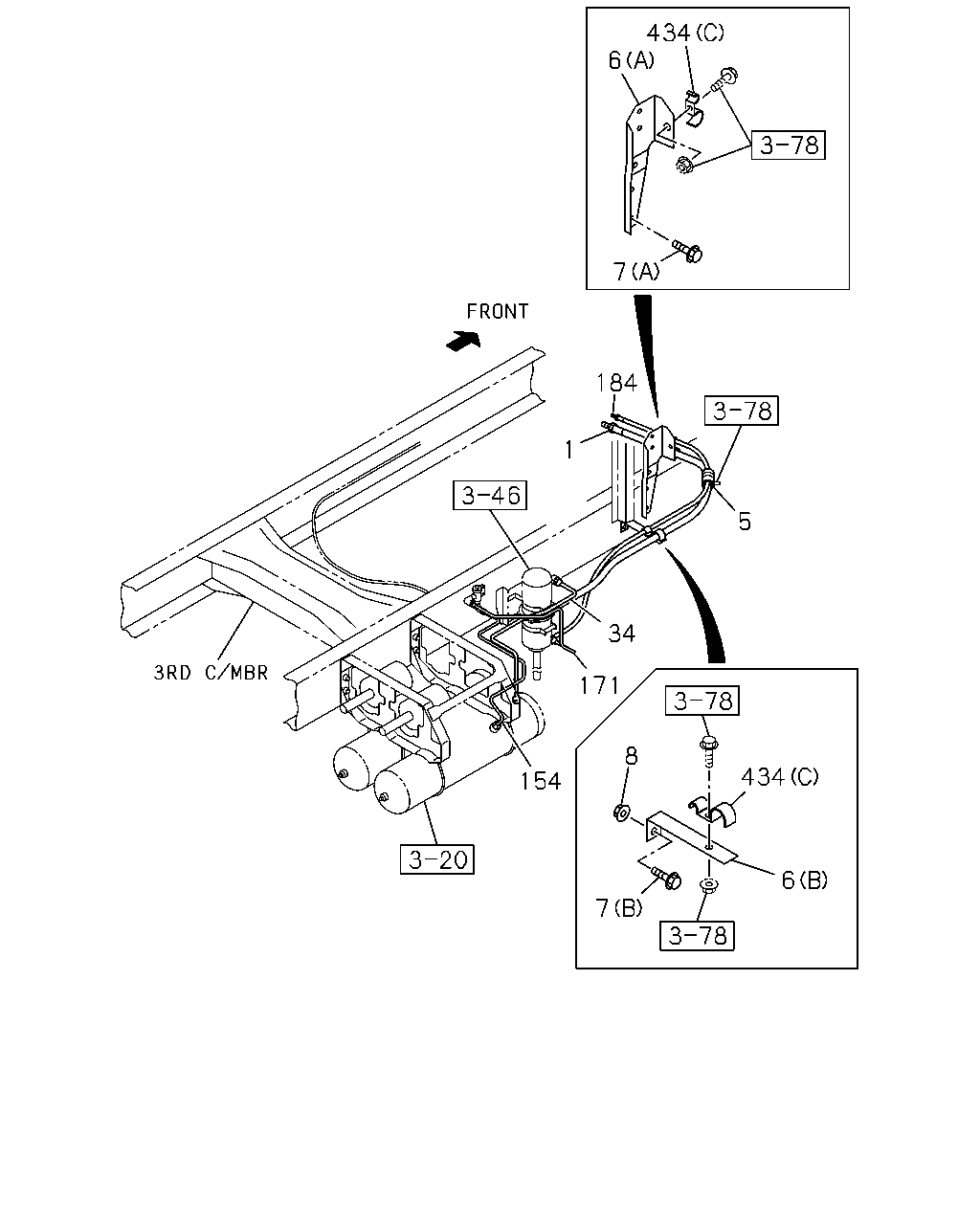

çizim 26935
434 6 7 184 1 5 34 171 8 434 154 6 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK 1-09363-750-0 01 1 0302- ●
1 HOSE; FLEX,AIR TANK 1-09363-706-0 01 1 9905- ●
1 HOSE; FLEX,AIR TANK 1-09363-749-0 01 1 9905- ●
5 SLEEVE; FLEX HOSE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 9905-0301 ●
5 SLEEVE; FLEX HOSE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0302- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47478-402-0 01 1 9905-0301 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47478-402-0 01 1 0302- ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47478-140-0 01 1 9905-0301 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47478-140-0 01 1 0302- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0302-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9905-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9905-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 01 1 9905-0301 ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
34 PIPE; AIR 1-49118-294-0 01 1 0302- ●
34 PIPE; AIR 1-49119-742-0 01 1 9905- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 0302- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49119-743-0 01 1 9905- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-157-0 01 1 0302- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49119-744-0 01 1 9905- ●
184 HOSE; FLEX,AIR GOV
L=1050 		1-09363-729-0 01 1 0302- ●
184 HOSE; FLEX,AIR GOV
L=660 		1-09363-719-0 01 1 9905- ●
184 HOSE; FLEX,AIR GOV
L=1000 		1-09363-698-0 01 1 9905- ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 9905- ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 9905-0301 ● ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 0302- ● ● ●
434 CLIP
(B) 		8-94297-486-0 02 1 9905-0301 ● ●
434 CLIP
(B) 		8-94297-486-0 02 1 0302- ● ● ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 02 1 9905-0301 ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 02 1 0302- ● ●

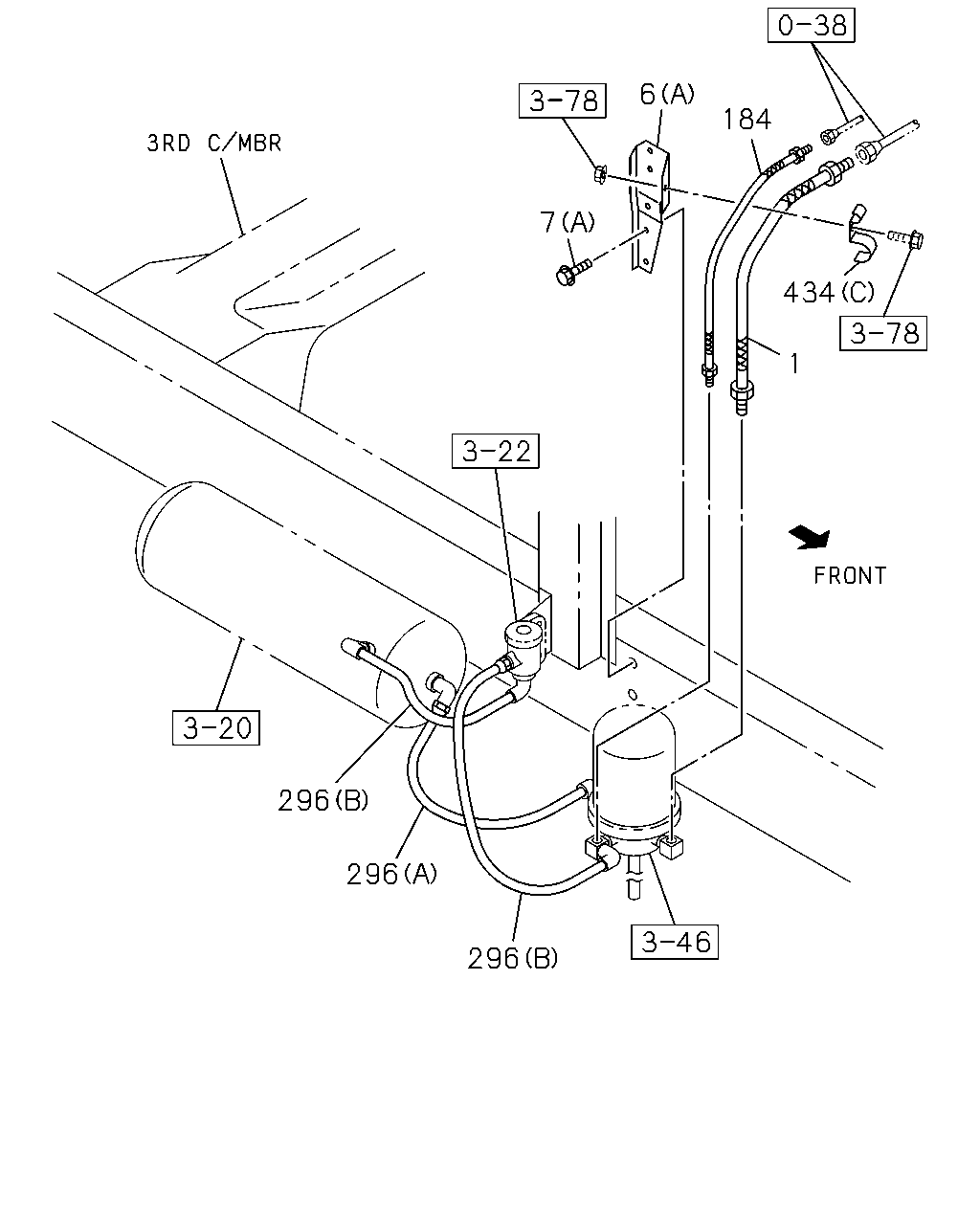

çizim 99068
6 184 7 434 1 296 296 296
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK 1-09363-750-0 01 1 0302- ●
1 HOSE; FLEX,AIR TANK 1-09363-706-0 01 1 9905- ●
1 HOSE; FLEX,AIR TANK 1-09363-749-0 01 1 9905- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47478-402-0 01 1 9905-0301 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47478-402-0 01 1 0302- ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47478-140-0 01 1 9905-0301 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47478-140-0 01 1 0302- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0302-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9905-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9905-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
184 HOSE; FLEX,AIR GOV
L=1050 		1-09363-729-0 01 1 0302- ●
184 HOSE; FLEX,AIR GOV
L=660 		1-09363-719-0 01 1 9905- ●
184 HOSE; FLEX,AIR GOV
L=1000 		1-09363-698-0 01 1 9905- ●
296 TUBE; NYLON
PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9905-9907 ●
296 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9905-9907 ●
296 TUBE; NYLON
PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-0212 ●
296 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-0212 ●
296 TUBE; NYLON
PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9905- ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9905-0212 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0301-0301 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0302- ● ●
296 TUBE; NYLON
AIR SUSP D/SEAT<A56> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9905-0001 ●
296 TUBE; NYLON
AIR SUSP D/SEAT<A56> (C) L=1200 OD=6 		1-09366-256-1 01 1 0002-0301 ●
296 TUBE; NYLON
AIR SUSP D/SEAT<A56> (C) L=1200 OD=6 		1-09366-256-1 01 1 0302- ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-1 01 1 0302- ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 9905- ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 9905-0301 ● ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 0302- ● ● ●
434 CLIP
(B) 		8-94297-486-0 02 1 9905-0301 ● ●
434 CLIP
(B) 		8-94297-486-0 02 1 0302- ● ● ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 02 1 9905-0301 ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 02 1 0302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
