6-47 — MUD GUARD AND INSULATOR (#78579) — 67 parça

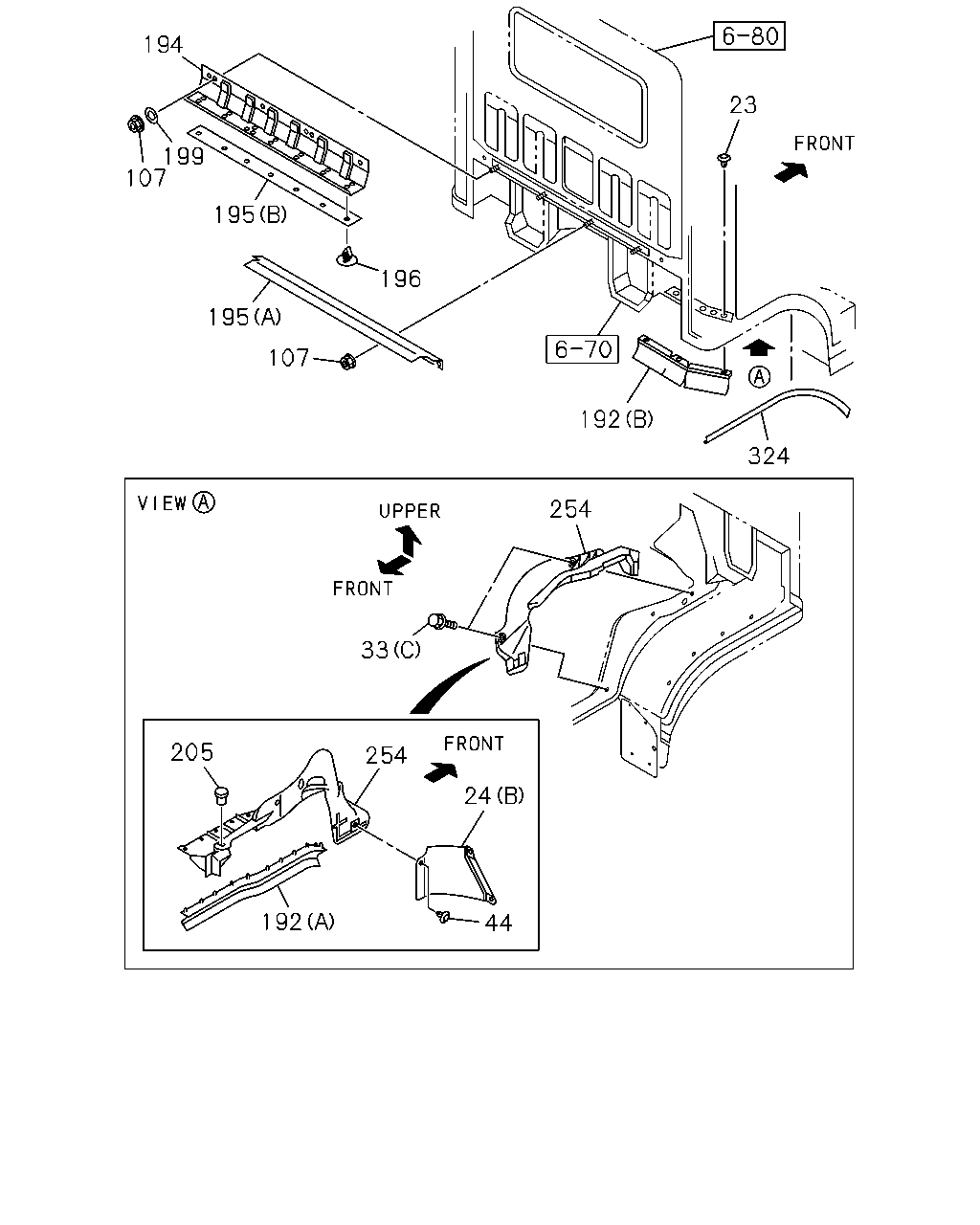

194 23 199 107 195 196 195 107 192 324 254 33 205 254 24 192 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	06	1	1112-	●	●
24	PLATE; MUD COVER (A) IRA	8-98004-031-1	02	1	1112-	●	●
24	PLATE; MUD COVER (B) IRA	8-98154-258-0	02	1	1112-	●	●
33	BOLT; MUD COVER (A) M6X20 FLANGE	0-28050-620-0	08	1	1112-1209	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE IRA	8-98227-381-0	08	1	1210-	●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1112-	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1112-	●	●
44	CLIP; ANCHOR OD=16 L=11 IRA	1-76378-155-0	06	1	1112-	●	●
107	NUT; HEAT PROTECTOR RR BODY FLAT BED<RS6> M6 FLANGE	8-94279-514-0	04	1	1112-	●
107	NUT; HEAT PROTECTOR M6 FLANGE	8-94279-514-0	04	1	1112-		●
192	SEAL; MUD COVER (A)	8-98022-755-1	01	1	1112-	●	●
192	SEAL; MUD COVER (A)	8-98022-756-1	01	1	1112-	●	●
192	SEAL; MUD COVER (B)	8-98022-782-3	02	1	1112-	●	●
194	BRACKET; HEAT PROTECTOR	8-98065-107-0	01	1	1112-		●
195	PROTECTOR; HEAT (B)	8-94272-528-1	01	1	1112-		●
195	PROTECTOR; HEAT RR BODY FLAT BED<RS6> (A)	8-98028-224-1	01	1	1112-	●
196	CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	1112-		●
199	WASHER; PL,HEAT PROTECTOR	8-94292-135-0	04	1	1112-		●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1112-	●	●
254	COVER; MUD,VALANCE	8-98022-750-3	01	1	1112-	●	●
254	COVER; MUD,VALANCE	8-98022-751-3	01	1	1112-	●	●
324	PROTECTOR; FRT FENDER IRA	8-98022-786-2	02	1	1112-	●	●

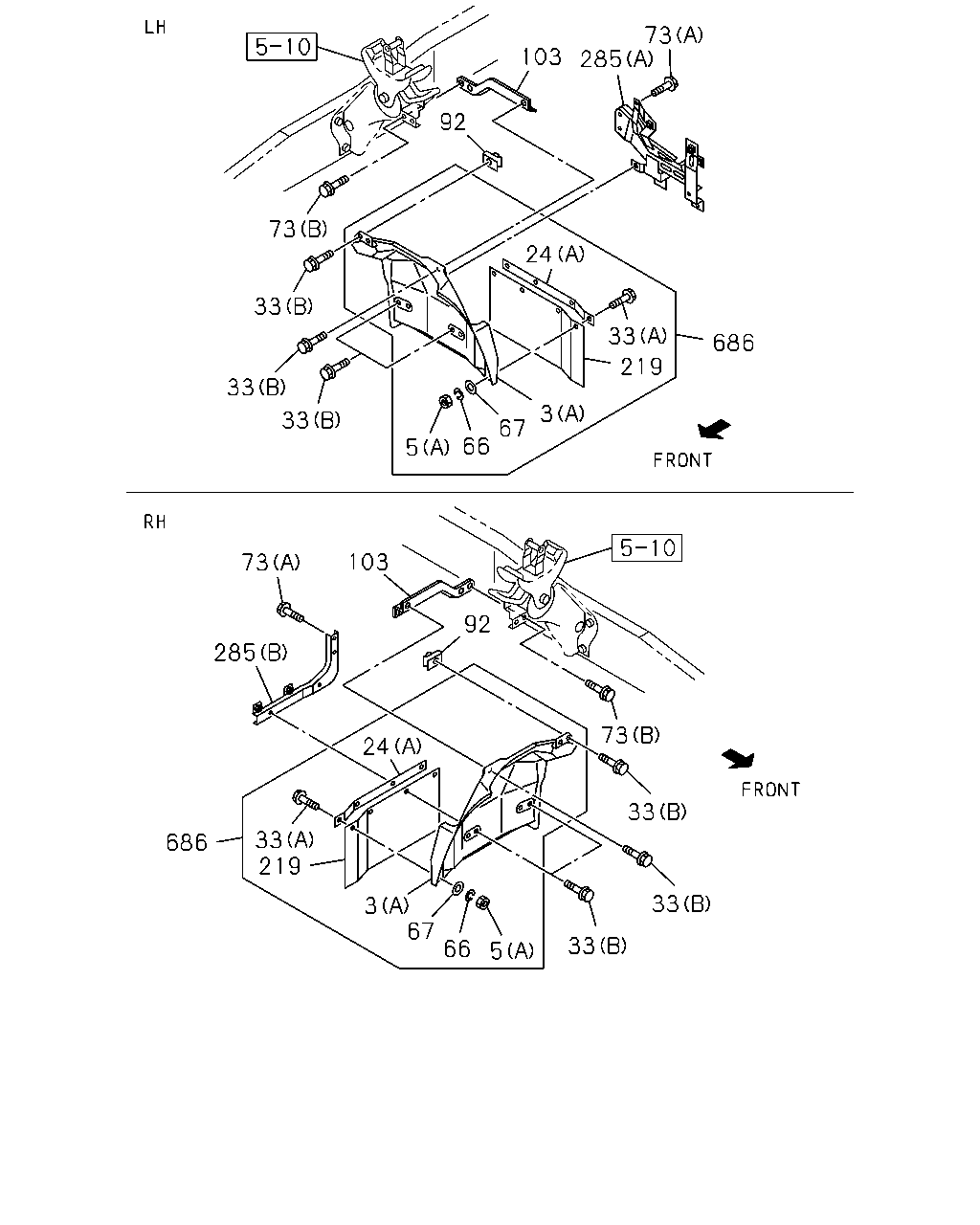

73 103 285 92 73 24 33 33 686 219 33 3 33 67 66 5 103 73 92 285 73 24 33 33 219 686 33 3 67 66 33 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GUARD; MUD,RR RR BODY FLAT BED<RS6> (B) H=440 B=430	8-97214-177-1	02	1	1112-	●
3	GUARD; MUD,RR (A) IRA	8-98004-029-5	01	1	1112-	●	●
3	GUARD; MUD,RR (A) IRA	8-98004-030-4	01	1	1112-	●	●
5	NUT; FLAP RUBBER (A) M6	0-91110-506-0	08	1	1112-1209	●	●
5	NUT; FLAP RUBBER (A) M6 IRA	8-98227-380-0	08	1	1210-	●	●
5	NUT; FLAP RUBBER (B) M6 FLANGE	0-91180-106-0	02	1	1112-		●
24	PLATE; MUD COVER (A) IRA	8-98004-031-1	02	1	1112-	●	●
24	PLATE; MUD COVER (B) IRA	8-98154-258-0	02	1	1112-	●	●
33	BOLT; MUD COVER (A) M6X20 FLANGE	0-28050-620-0	08	1	1112-1209	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE IRA	8-98227-381-0	08	1	1210-	●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1112-	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1112-	●	●
66	WASHER; LK ID=6.1	0-91510-606-0	08	1	1112-1209	●	●
67	WASHER; PL ID=6.4	0-91610-606-0	08	1	1112-1209	●	●
73	BOLT; MUD COVER BRKT (B) M8X25 FLANGE	0-28650-825-0	04	1	1112-	●	●
73	BOLT; MUD COVER BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1112-	●	●
92	NUT; MUD COVER M8 SPIRE NUT IRA	8-98039-860-2	02	1	1112-	●	●
103	BRACKET ASM; RR MUD FLAP IRA	8-98001-315-2	01	1	1112-	●	●
103	BRACKET ASM; RR MUD FLAP IRA	8-98001-319-2	01	1	1112-	●	●
219	FLAP; MUD GUARD IRA	8-98004-033-1	02	1	1112-	●	●
285	BRACKET; MUD COVER (A) IRA	8-98001-314-2	01	1	1112-	●	●
285	BRACKET; MUD COVER (B) IRA	8-98001-320-3	01	1	1112-	●	●
686	FLAP ASM; MUD IRA	8-97387-750-7	01	1	1112-	●	●
686	FLAP ASM; MUD IRA	8-97387-751-6	01	1	1112-	●	●

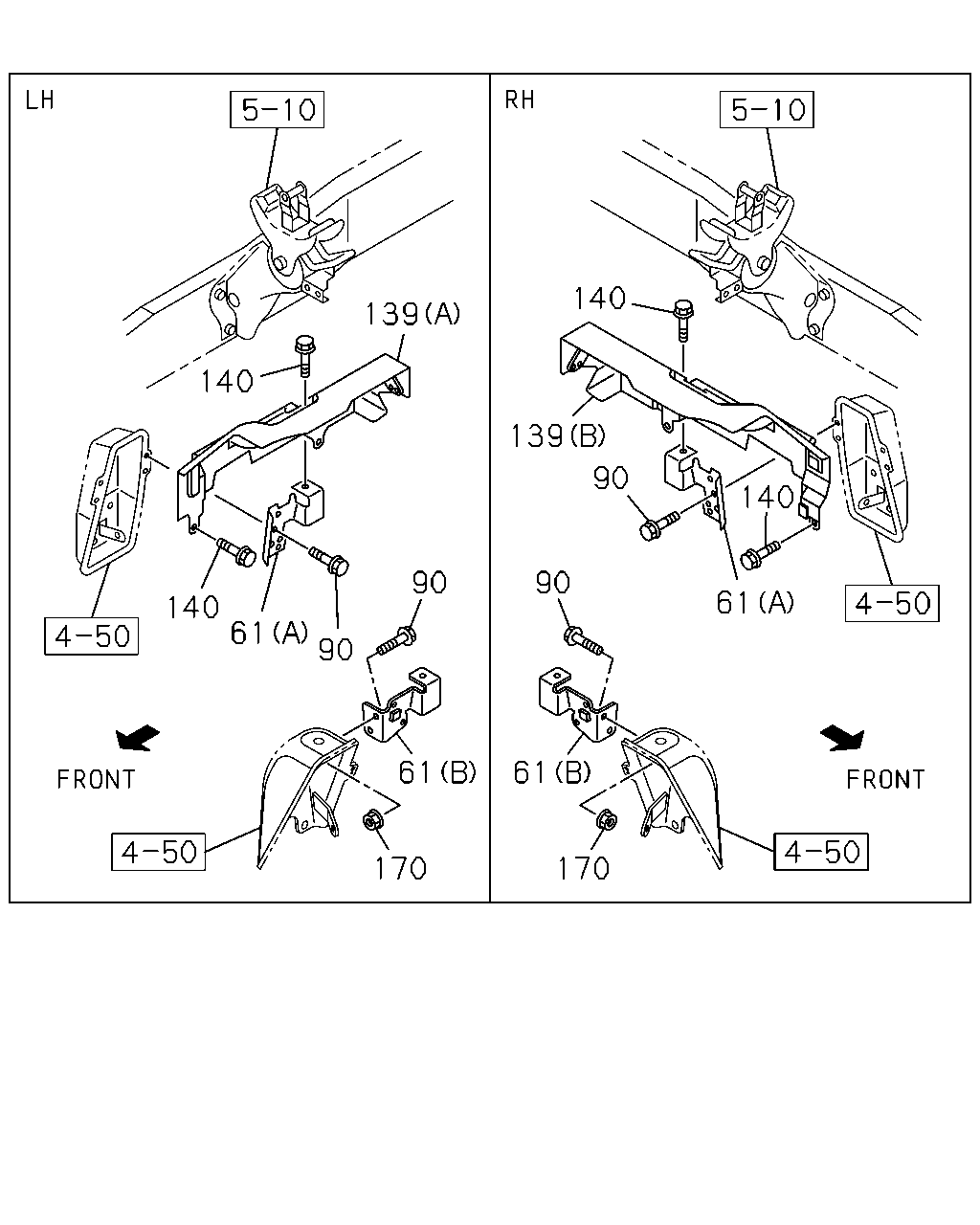

140 139 140 139 90 140 90 90 61 140 61 90 61 61 170 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-993-0	01	1	1112-	●
61	BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-994-0	01	1	1112-	●
61	BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-465-1	01	1	1112-	●
61	BRACKET; COVER (A)	8-98040-465-1	01	1	1112-		●
61	BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-466-1	01	1	1112-	●
61	BRACKET; COVER (A)	8-98040-466-1	01	1	1112-		●
90	BOLT; COVER M8X25 FLANGE	0-28650-825-0	04	1	1112-	●	●
139	PANEL; SIDE (B) IRA	8-98043-920-2	01	1	1112-	●	●
139	PANEL; SIDE (A) IRA	8-98115-458-1	01	1	1112-	●	●
140	BOLT; SIDE PANEL M8X35 W/LK&PL WASHER IRA	1-09030-094-0	06	1	1112-	●	●
170	NUT; COVER FRONT WIDE TREAD<7GV> M8 FLANGE	0-91180-108-0	04	1	1112-	●

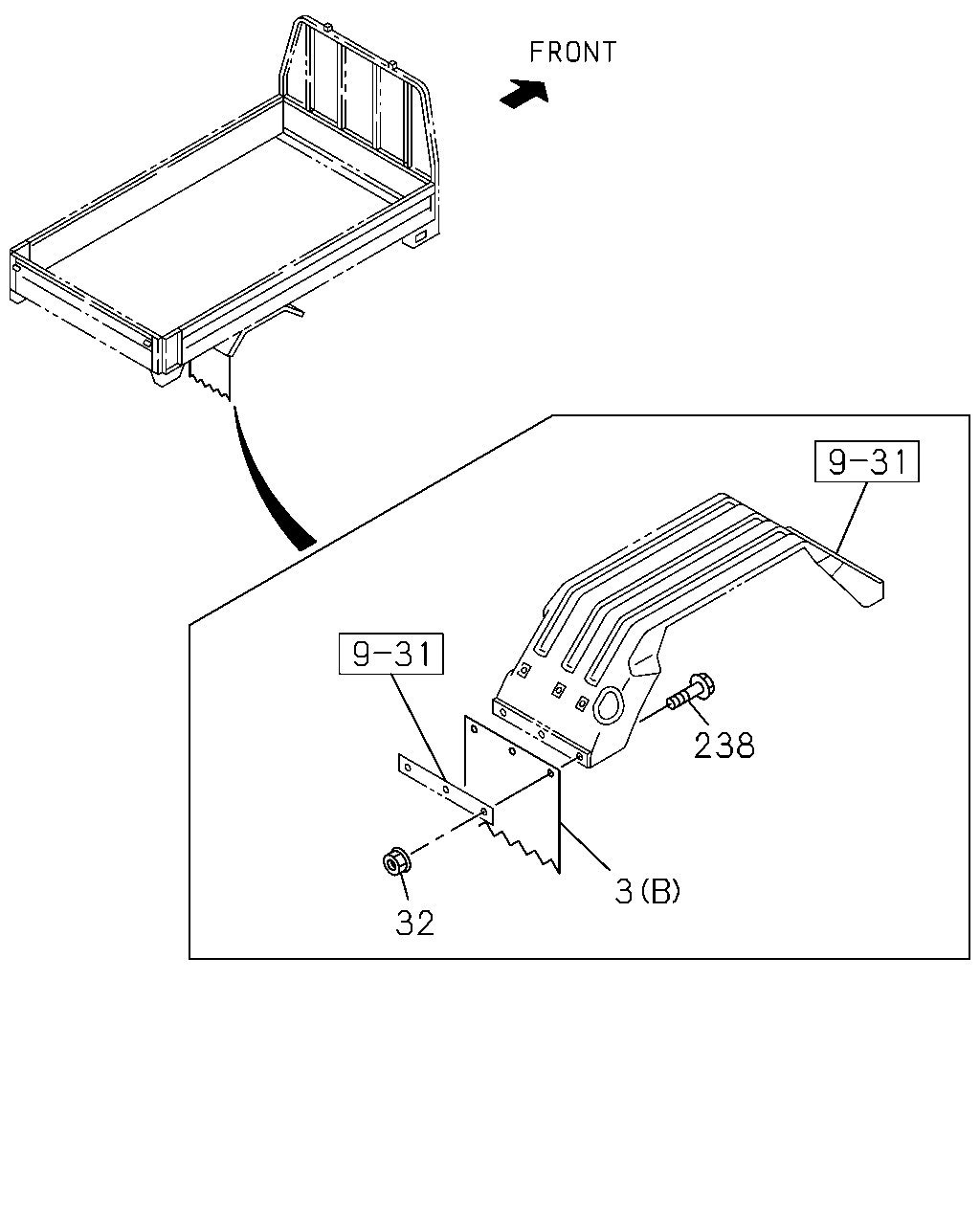

238 3 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GUARD; MUD,RR RR BODY FLAT BED<RS6> (B) H=440 B=430	8-97214-177-1	02	1	1112-	●
3	GUARD; MUD,RR (A) IRA	8-98004-029-5	01	1	1112-	●	●
3	GUARD; MUD,RR (A) IRA	8-98004-030-4	01	1	1112-	●	●
32	NUT; MUD GUARD RR BODY FLAT BED<RS6> M6 FLANGE	8-97065-431-0	06	1	1112-	●
238	SCREW; MUD GUARD RR BODY FLAT BED<RS6> M6X16 FLANGE	8-98098-459-0	06	1	1112-	●

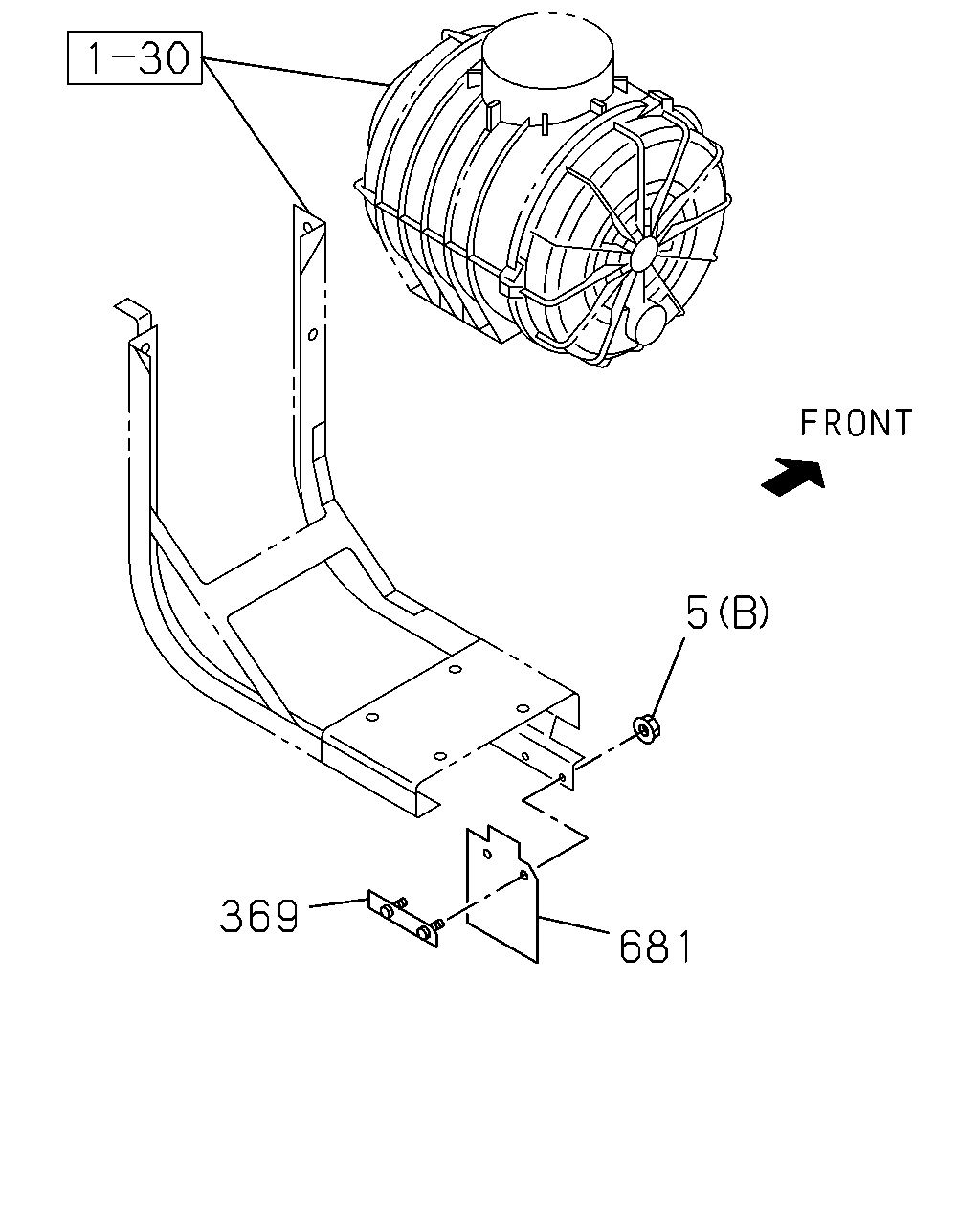

5 369 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	NUT; FLAP RUBBER (A) M6	0-91110-506-0	08	1	1112-1209	●	●
5	NUT; FLAP RUBBER (A) M6 IRA	8-98227-380-0	08	1	1210-	●	●
5	NUT; FLAP RUBBER (B) M6 FLANGE	0-91180-106-0	02	1	1112-		●
369	PLATE	8-98061-674-0	01	1	1112-		●
681	FLAP; AIR CLEANER	8-98061-671-0	01	1	1112-		●
