◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#78578) — 27 parça

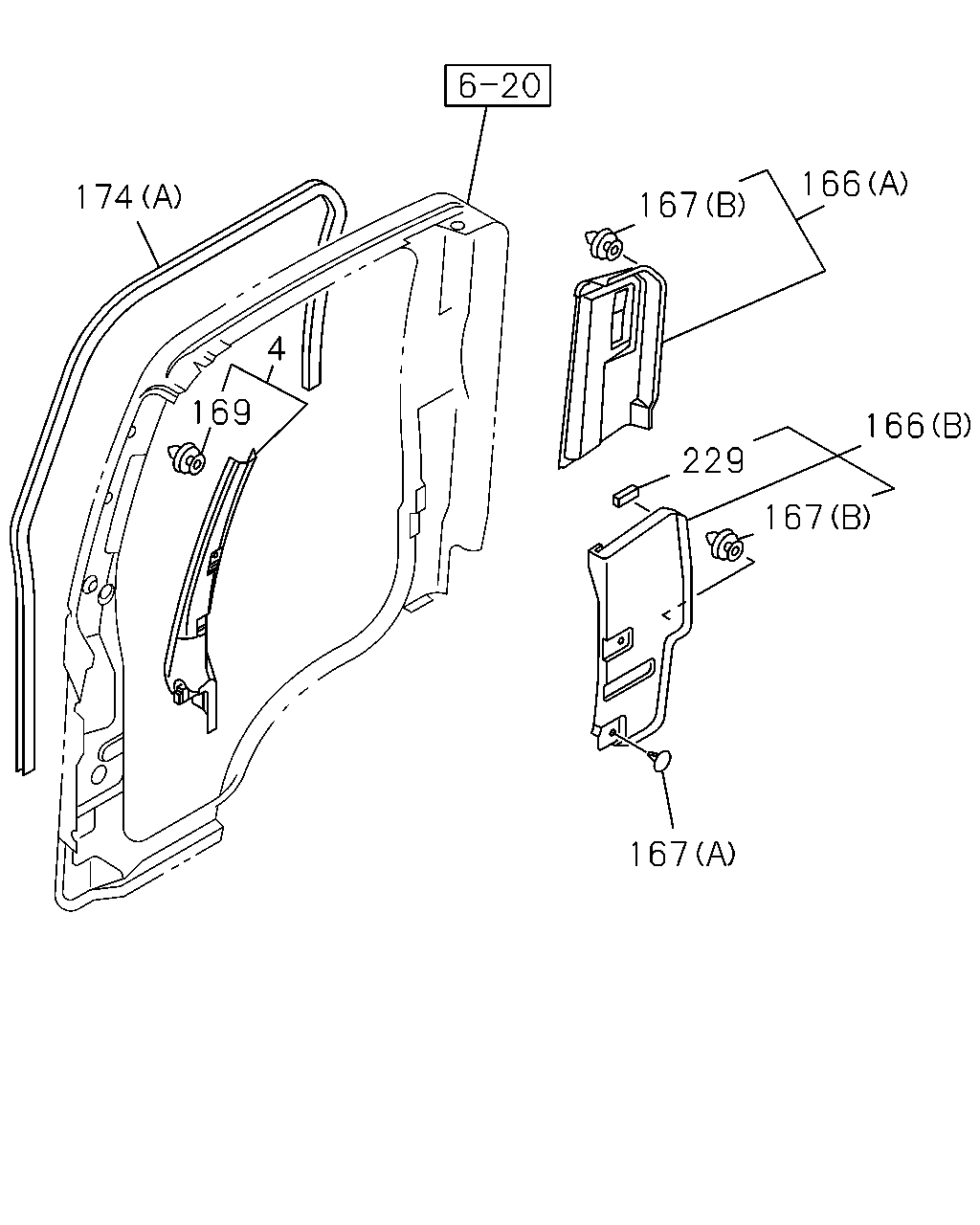

çizim 131391
166 174 167 4 169 166 229 167 167
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1112- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1112- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97405-297-2 01 1 1112- ●
166 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-796-1 01 1 1112- ●
166 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-900-0 01 1 1112- ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97412-727-0 01 1 1112- ●
167 CLIP; TRIM,RR PILLAR
(A) GRAY 		8-97406-421-0 04 1 1112- ●
167 CLIP; TRIM,RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98059-610-0 04 1 1112- ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 06 1 1112- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1112- ● ●
174 FINISHER; BODY SIDE
(B) L=3159 		8-98154-667-0 01 1 1112- ●
174 FINISHER; BODY SIDE
(B) L=3159 		8-98154-668-0 01 1 1112- ●
174 FINISHER; BODY SIDE
(A) L=2609 IRA 		8-98154-665-0 01 1 1112- ●
174 FINISHER; BODY SIDE
(A) L=2609 IRA 		8-98154-666-0 01 1 1112- ●
229 SEAL 8-98081-818-0 01 1 1112- ●

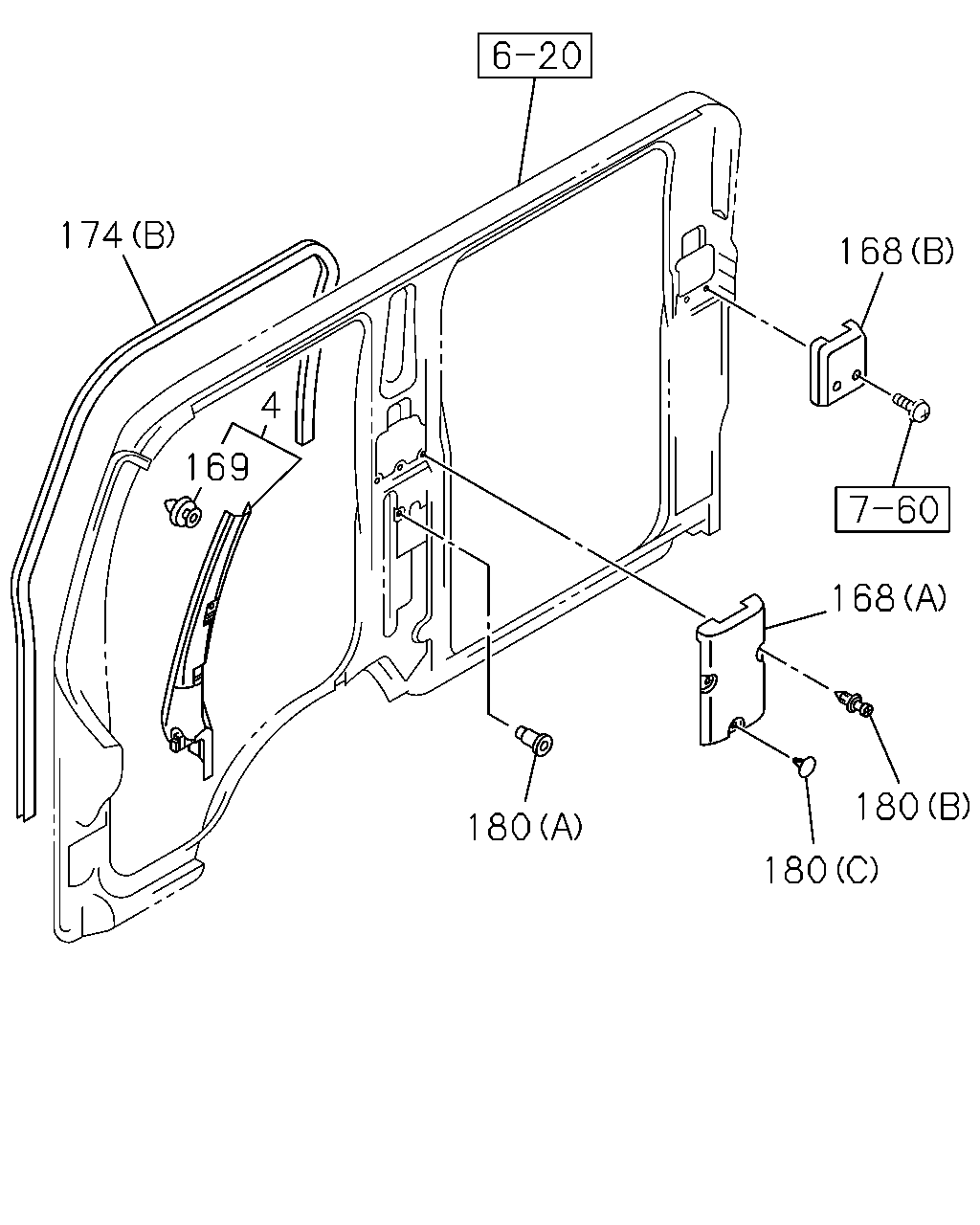

çizim 131674
174 168 4 169 168 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1112- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1112- ● ●
168 COVER; SEAT BELT RETRACTOR
(A) GRAY 		8-97405-191-2 02 1 1112- ●
168 COVER; SEAT BELT RETRACTOR
(B) GRAY 		8-97405-192-3 02 1 1112- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1112- ● ●
174 FINISHER; BODY SIDE
(B) L=3159 		8-98154-667-0 01 1 1112- ●
174 FINISHER; BODY SIDE
(B) L=3159 		8-98154-668-0 01 1 1112- ●
174 FINISHER; BODY SIDE
(A) L=2609 IRA 		8-98154-665-0 01 1 1112- ●
174 FINISHER; BODY SIDE
(A) L=2609 IRA 		8-98154-666-0 01 1 1112- ●
180 FASTENER; COVER
(A) 		8-97319-495-0 02 1 1112- ●
180 FASTENER; COVER
(B) GRAY 		8-97405-246-0 04 1 1112- ●
180 FASTENER; COVER
(C) GRAY 		8-97405-247-0 02 1 1112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
