Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#78571) — 52 parça

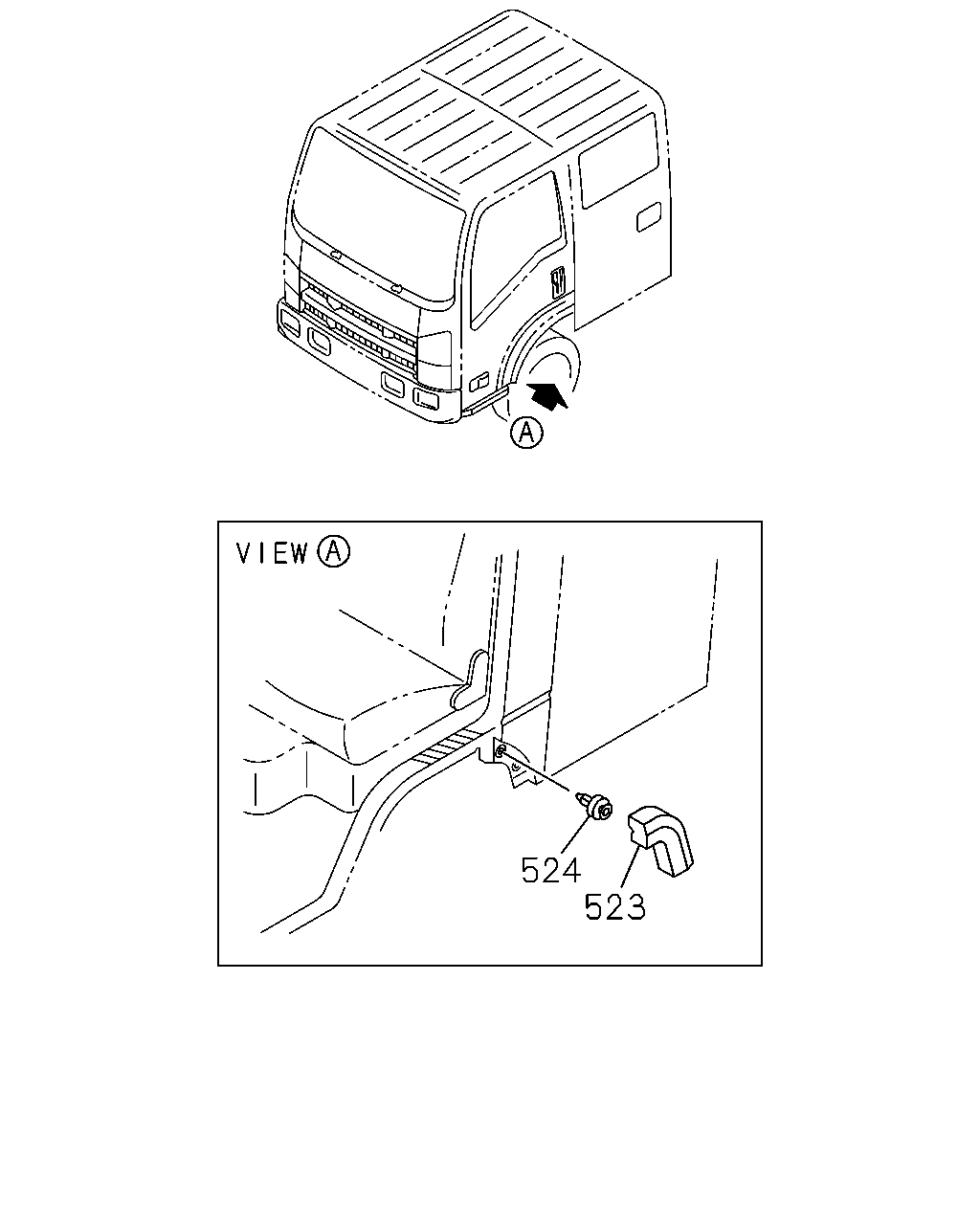

524 523

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
523	COVER; FENDER RR	8-97410-295-2	01	1	1112-	●
523	COVER; FENDER RR	8-97410-296-2	01	1	1112-	●
524	CLIP; FENDER COVER OD=8.5 GRAY	8-97893-482-0	06	1	1112-	●

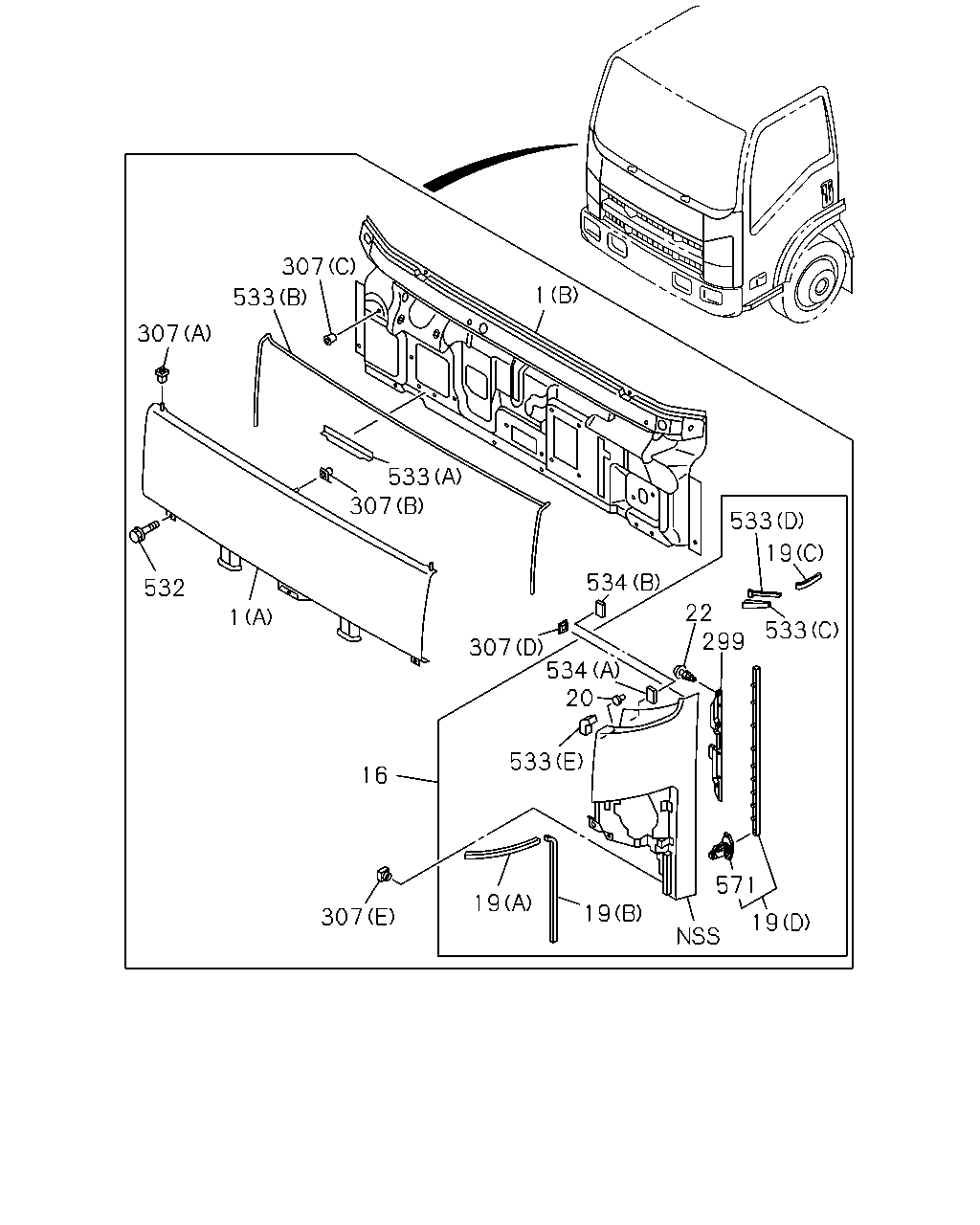

307 1 533 307 533 307 533 19 534 532 22 299 1 533 307 534 20 533 16 571 19 19 307 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL ASM; FRT PTO MANUAL CONTROL(6WC) (B)	8-98182-393-0	01	1	1112-	●	●
1	PANEL ASM; FRT (A) IRA	8-98122-695-0	01	1	1112-	●	●
1	PANEL ASM; FRT EXC. PTO MANUAL CONTROL(6WC) (B) IRA	8-98182-391-0	01	1	1112-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) BLUE IRA	8-97415-715-9	01	1	1112-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) BLUE IRA	8-97415-716-9	01	1	1112-	●	●
16	PANEL; FRONT,SIDE BODY COLOR QUICK SILVER MET(998) LIGHT GRAY IRA	8-97414-635-9	01	1	1112-		●
16	PANEL; FRONT,SIDE BODY COLOR QUICK SILVER MET(998) LIGHT GRAY IRA	8-97414-636-9	01	1	1112-		●
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) BLUE IRA	8-97409-870-9	01	1	1112-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) BLUE IRA	8-97409-872-9	01	1	1112-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) WHITE IRA	8-97406-039-9	01	1	1112-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) WHITE IRA	8-97406-040-9	01	1	1112-	●	●
19	SEAL; FRT SIDE PANEL (A) IRA	8-98035-268-0	02	1	1112-	●	●
19	SEAL; FRT SIDE PANEL (B) IRA	8-98062-215-0	02	1	1112-	●	●
19	SEAL; FRT SIDE PANEL (C)	8-98038-608-0	02	1	1112-	●	●
19	SEAL; FRT SIDE PANEL (D) IRA	8-98028-749-3	01	1	1112-	●	●
19	SEAL; FRT SIDE PANEL (D) IRA	8-98028-750-3	01	1	1112-	●	●
20	CLIP; FRT PANEL SIDE	8-97410-739-0	04	1	1112-	●	●
22	SCREW; FRT PANEL SIDE M4X10 TAPPING W/PL WASHER	0-74360-410-0	06	1	1112-	●	●
299	COVER; FRT PANEL SIDE IRA	8-98028-144-1	01	1	1112-	●	●
299	COVER; FRT PANEL SIDE IRA	8-98028-145-1	01	1	1112-	●	●
307	GROMMET; FRT PANEL (D)	8-97410-738-0	02	1	1112-	●	●
307	GROMMET; FRT PANEL (E)	8-98021-300-1	04	1	1112-	●	●
307	GROMMET; FRT PANEL (A) IRA	8-98021-968-0	01	1	1112-	●	●
307	GROMMET; FRT PANEL (A) IRA	8-98021-969-0	01	1	1112-	●	●
307	GROMMET; FRT PANEL (B) IRA	8-98023-229-1	01	1	1112-	●	●
307	GROMMET; FRT PANEL (C) OD=20	8-98034-363-1	04	1	1112-	●	●
532	BOLT; FRT PANEL M6X16 W/LK&PL WASHER	0-52010-616-0	04	1	1112-	●	●
533	SEAL; FRT PANEL (A)	8-98049-007-0	01	1	1112-	●	●
533	SEAL; FRT PANEL (B)	8-98021-964-4	01	1	1112-1506	●	●
533	SEAL; FRT PANEL (B) IRA	8-98309-764-0	01	1	1507-	●	●
533	SEAL; FRT PANEL (C) IRA	8-98043-509-0	01	1	1112-	●	●
533	SEAL; FRT PANEL (C) IRA	8-98043-510-0	01	1	1112-	●	●
533	SEAL; FRT PANEL (D)	8-98043-511-1	02	1	1112-	●	●
533	SEAL; FRT PANEL (E) IRA	8-98064-939-0	02	1	1112-	●	●
534	FASTENER (A) 40X25 IRA	8-98089-412-1	02	1	1112-	●	●
534	FASTENER (B) 40X25 IRA	8-98089-411-1	02	1	1112-	●	●
571	CLIP; SEAL NATURAL	8-98027-457-0	20	1	1112-	●	●

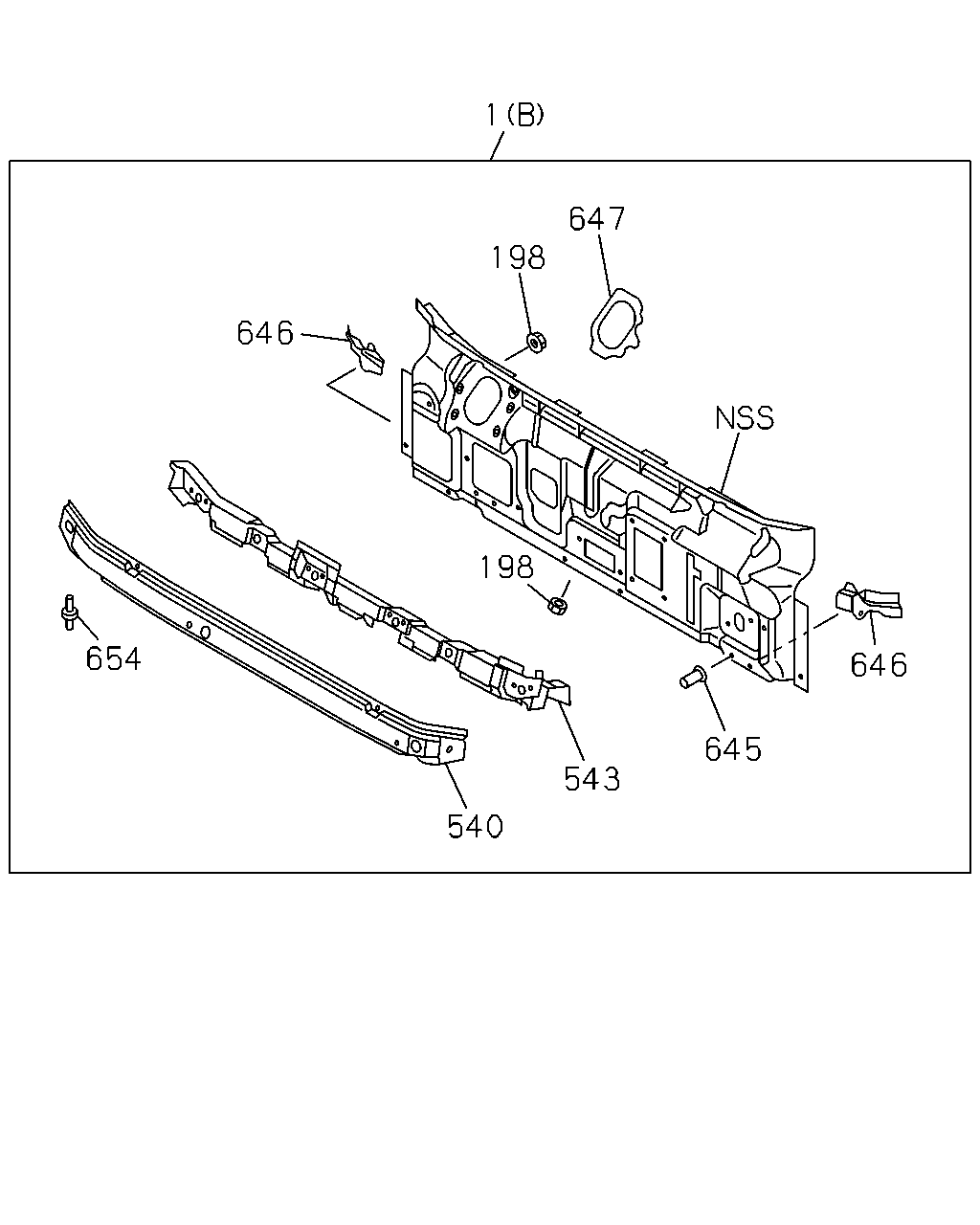

1 647 198 646 198 654 646 645 543 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL ASM; FRT PTO MANUAL CONTROL(6WC) (B)	8-98182-393-0	01	1	1112-	●	●
1	PANEL ASM; FRT (A) IRA	8-98122-695-0	01	1	1112-	●	●
1	PANEL ASM; FRT EXC. PTO MANUAL CONTROL(6WC) (B) IRA	8-98182-391-0	01	1	1112-	●	●
198	NUT; PANEL PTO MANUAL CONTROL(6WC) M6	9-09114-086-0	08	1	1112-	●	●
198	NUT; PANEL EXC. PTO MANUAL CONTROL(6WC) M6	9-09114-086-0	06	1	1112-	●	●
540	PANEL; FRONT,OUTER IRA	8-97585-964-0	01	1	1112-	●	●
543	CLOSING; FRT MTG RAIL IRA	8-98008-131-4	01	1	1112-	●	●
645	STUD; FRT PANEL M6X12	8-98013-112-0	06	1	1112-	●	●
646	REINFORCEMENT; DASH IRA	8-98023-098-1	01	1	1112-	●	●
646	REINFORCEMENT; DASH IRA	8-98023-099-1	01	1	1112-	●	●
647	REINFORCEMENT; WIPER MOTOR IRA	8-98006-327-0	01	1	1112-	●	●
654	PIN; FRT PANEL IRA	8-98021-967-2	02	1	1112-	●	●
