◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#78570) — 19 parça

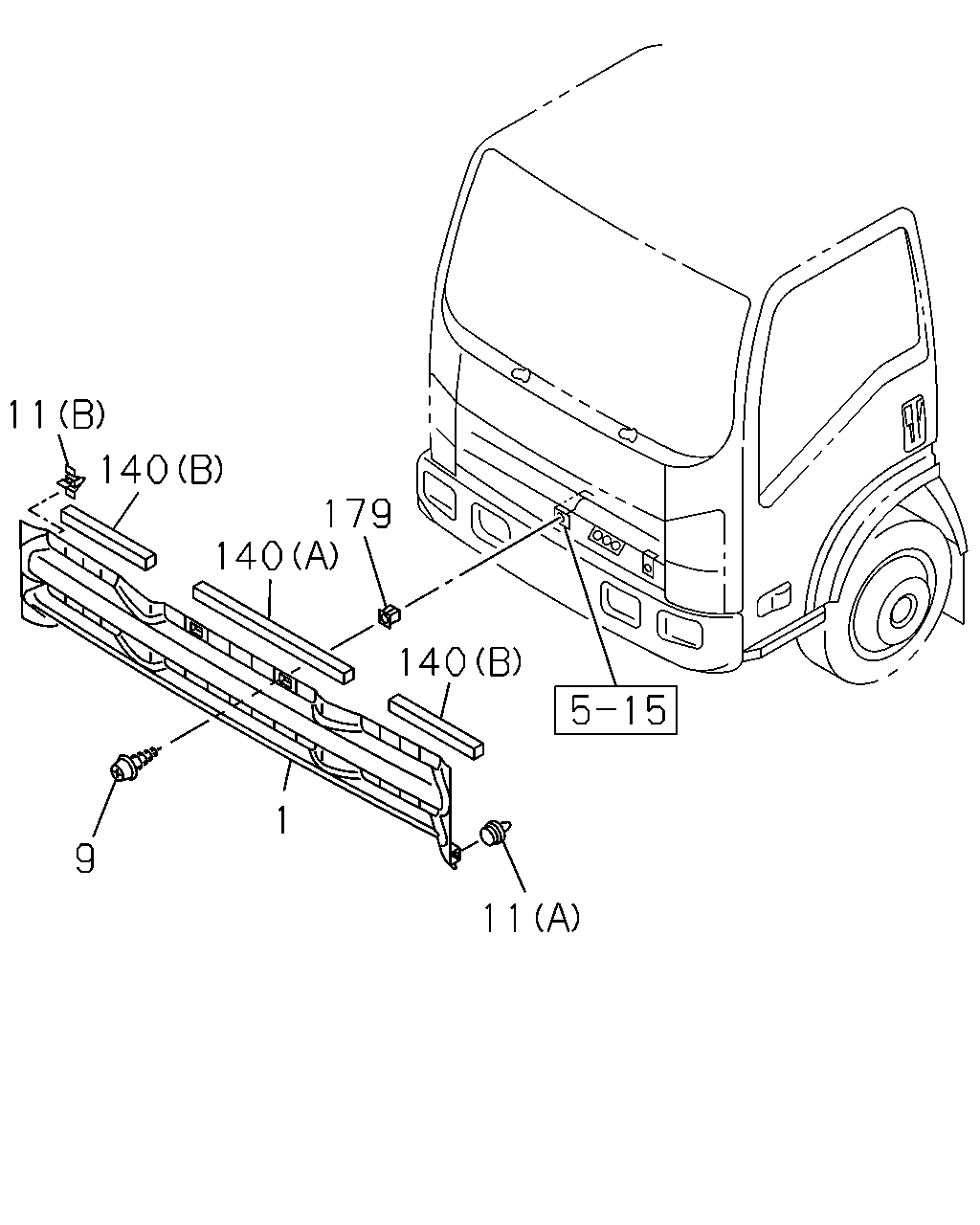

çizim 126782
11 140 179 140 140 1 9 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE IRA 		8-97412-398-4 01 1 1112- ● ●
1 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY IRA 		8-97407-293-4 01 1 1112- ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE IRA 		8-97407-292-4 01 1 1112- ● ●
1 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> IRA 		8-98025-468-4 01 1 1112- ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE IRA 		8-97407-294-4 01 1 1112- ● ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1112- ● ●
11 CLIP; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB> (A) 		8-97581-651-2 02 1 1112- ● ●
11 CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) 		8-97581-651-2 02 1 1112- ●
11 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> (A) 		8-97581-651-2 02 1 1112- ●
11 CLIP; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB> (B) 		8-98025-698-0 05 1 1112- ● ●
11 CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		8-98025-698-0 05 1 1112- ●
11 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		8-98025-698-0 05 1 1112- ●
140 SEAL; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB> (A) IRA 		8-98054-280-0 01 1 1112- ● ●
140 SEAL; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) IRA 		8-98054-280-0 01 1 1112- ●
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> (A) IRA 		8-98054-280-0 01 1 1112- ●
140 SEAL; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB> (B) IRA 		8-98054-281-0 02 1 1112- ● ●
140 SEAL; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) IRA 		8-98054-281-0 02 1 1112- ●
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) IRA 		8-98054-281-0 02 1 1112- ●
179 RETAINER; GRILLE,RAD
D=7X7 L=7.5 		8-94291-927-0 01 1 1112- ● ●
