3-58 — FIXING PARTS; OIL PIPING (#7857) — 110 parça

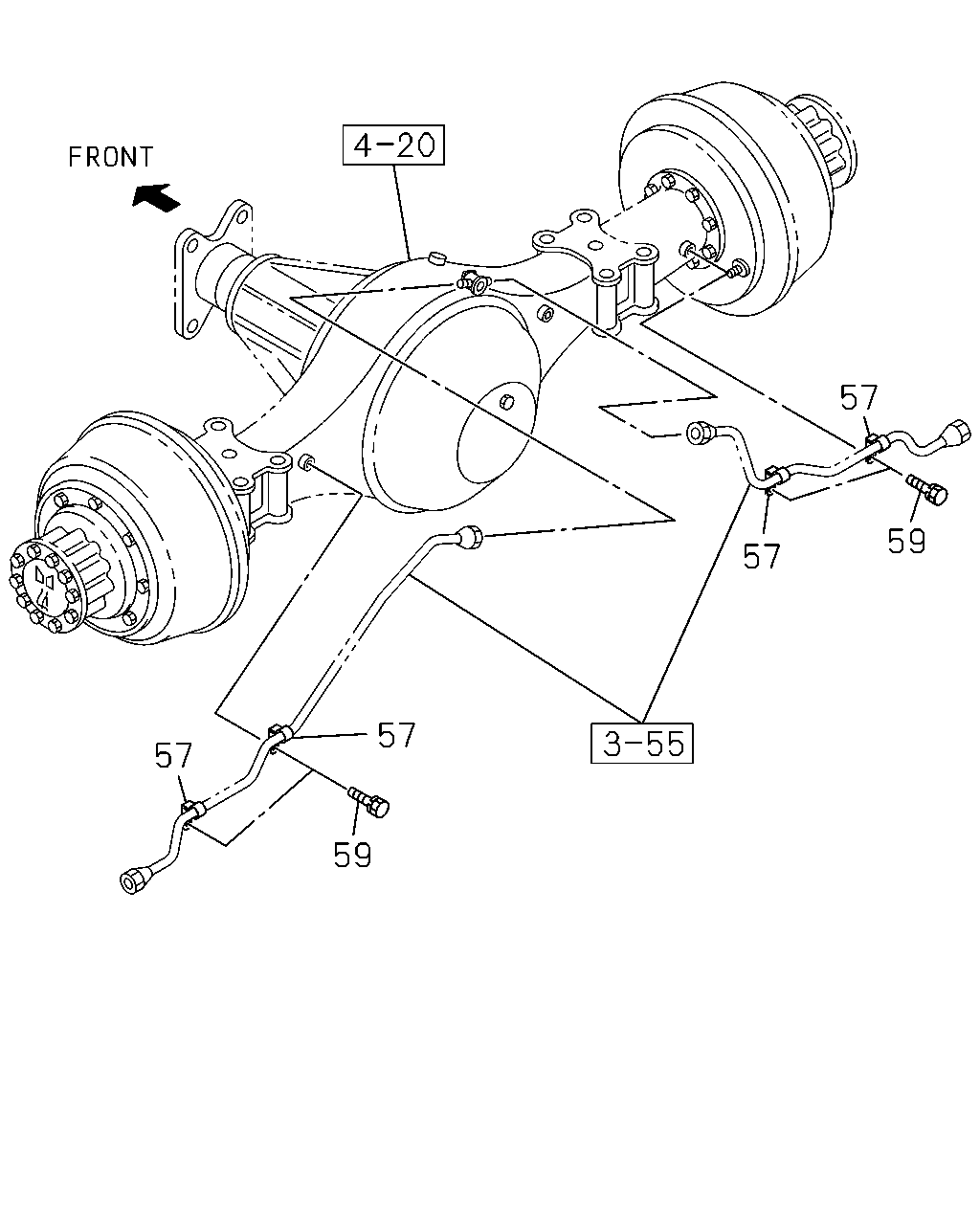

57 59 57 57 57 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9905-0301	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	0302-0606	●	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	04	1	0607-	●	●	●
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9905-9911	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	04	1	9912-0301	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	04	1	0302-0512	●	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	04	1	0601-	●	●	●

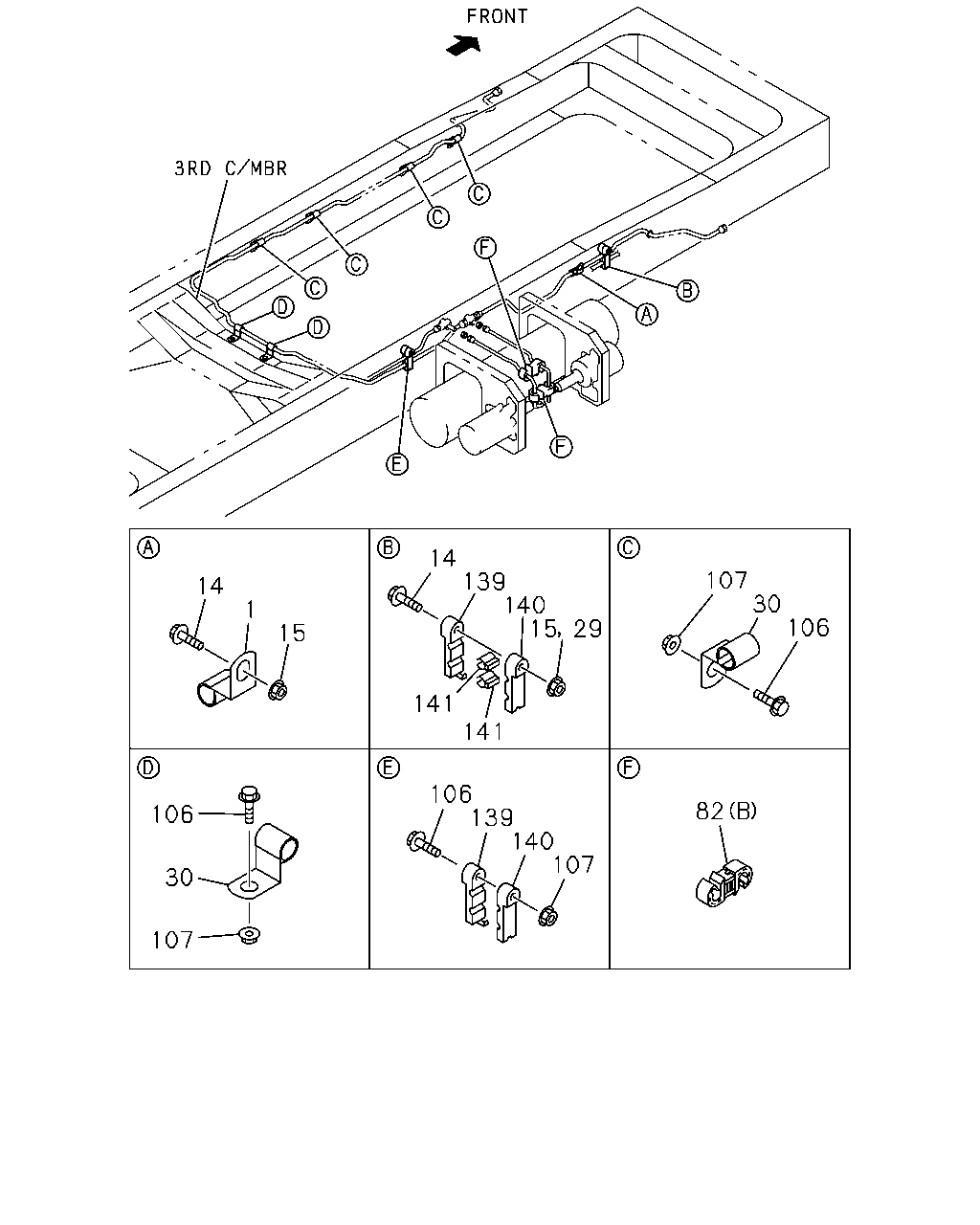

14 139 140 15 107 30 106 14 1 29 15 141 141 106 139 140 107 82 106 30 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0301	●
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20	1-09700-603-0	01	1	0302-	●		●
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20	1-09700-603-0	03	1	9905-		●
14	BOLT; CLIP,OIL PIPE M8X60 FLANGE	0-28080-860-0	01	1	0302-0512			●
14	BOLT; CLIP,OIL PIPE M8X60 FLANGE	0-28050-860-0	01	1	0601-			●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9905-0301	●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0302-0512	●		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-	●		●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	01	1	9905-0301	●	●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	01	1	0302-0512	●	●	●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●	●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9905-0512		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0302-0602			●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-			●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-0602	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9905-0602		●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-		●
29	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-0301		●
29	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0302-0602		●	●
29	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
30	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	0302-			●
30	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	06	1	9905-	●	●
82	CLIP; OIL PIPE (C) ID=7 L=20	9-09524-635-0	01	1	0302-0606			●
82	CLIP; OIL PIPE (C) ID=7 L=20	0-95234-635-0	01	1	0607-			●
82	CLIP; OIL PIPE (B) ID=6.35 & 6.35	1-09709-273-1	02	1	9905-	●
82	CLIP; OIL PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-		●
82	CLIP; OIL PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	9905-0301		●
82	CLIP; OIL PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	0302-		●	●
106	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	01	1	9905-0512	●
106	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28050-850-0	01	1	0601-	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-0512	●	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9905-0301	●	●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	0302-0512	●	●	●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0302-0602			●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-			●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	07	1	9905-0602	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	07	1	0603-	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	9905-0602		●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-		●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	9905-	●	●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0302-			●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	9905-	●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	9905-	●	●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	04	1	0302-			●
140	CLIP; LWR ID=6 & 6	1-09709-244-0	01	1	9905-	●
141	COLLAR ID=6	1-47459-010-0	02	1	9905-	●	●
141	COLLAR ID=8	1-47459-011-0	02	1	9905-	●	●
141	COLLAR ID=6	1-47459-010-0	04	1	0302-			●
141	COLLAR ID=8	1-47459-011-0	04	1	0302-			●

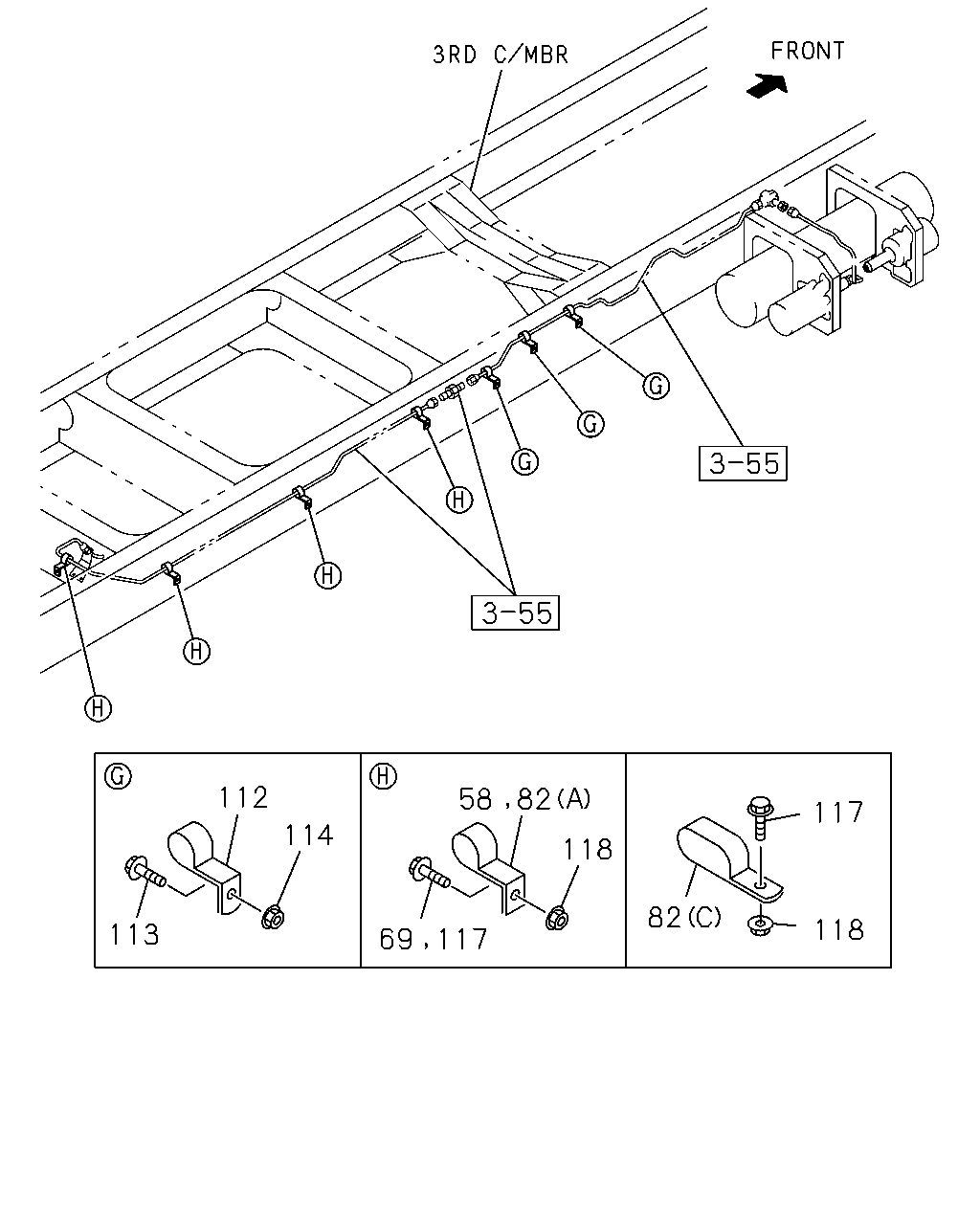

112 58 82 117 114 118 82 118 113 69 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	9905-0301	●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	0302-	●	●	●
69	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9905-0301		●
69	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0302-0512		●	●
69	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-		●	●
82	CLIP; OIL PIPE (C) ID=7 L=20	9-09524-635-0	01	1	0302-0606			●
82	CLIP; OIL PIPE (C) ID=7 L=20	0-95234-635-0	01	1	0607-			●
82	CLIP; OIL PIPE (B) ID=6.35 & 6.35	1-09709-273-1	02	1	9905-	●
82	CLIP; OIL PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-		●
82	CLIP; OIL PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	9905-0301		●
82	CLIP; OIL PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	0302-		●	●
112	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	9905-0301	●
112	CLIP; OIL PIPE WB 4200MM(42W) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-0301		●
112	CLIP; OIL PIPE WB 3700MM(37W) ID=6 H=20 L=20	1-09700-603-0	02	1	0302-	●
112	CLIP; OIL PIPE WB 4200MM(42W) ID=6 H=20 L=20	1-09700-603-0	02	1	0302-		●	●
112	CLIP; OIL PIPE WB 4800MM(48W) ID=6 H=20 L=20	1-09700-603-0	03	1	9905-		●
112	CLIP; OIL PIPE WB 5500MM(55W) ID=6 H=20 L=20	1-09700-603-0	05	1	9905-		●
113	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0302-0512			●
113	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-0301	●
113	BOLT; CLIP,OIL PIPE WB 4200MM(42W) M8X25 FLANGE	0-28680-825-0	02	1	9905-0301		●
113	BOLT; CLIP,OIL PIPE WB 3700MM(37W) M8X25 FLANGE	0-28680-825-0	02	1	0302-0512	●
113	BOLT; CLIP,OIL PIPE WB 4200MM(42W) M8X25 FLANGE	0-28680-825-0	02	1	0302-0512		●
113	BOLT; CLIP,OIL PIPE WB 3700MM(37W) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
113	BOLT; CLIP,OIL PIPE WB 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
113	BOLT; CLIP,OIL PIPE WB 4800MM(48W) M8X25 FLANGE	0-28680-825-0	03	1	9905-0512		●
113	BOLT; CLIP,OIL PIPE WB 4800MM(48W) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
113	BOLT; CLIP,OIL PIPE WB 5500MM(55W) M8X30 FLANGE	0-28680-830-0	05	1	9905-0512		●
113	BOLT; CLIP,OIL PIPE WB 5500MM(55W) M8X30 FLANGE	0-28650-830-0	05	1	0601-		●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-0301	●
114	NUT; CLIP,OIL PIPE WB 4200MM(42W) M8 FLANGE	0-91150-108-0	02	1	9905-0301		●
114	NUT; CLIP,OIL PIPE WB 3700MM(37W) M8 FLANGE	0-91150-108-0	02	1	0302-0602	●
114	NUT; CLIP,OIL PIPE WB 4200MM(42W) M8 FLANGE	0-91150-108-0	02	1	0302-0602		●	●
114	NUT; CLIP,OIL PIPE WB 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	0603-	●
114	NUT; CLIP,OIL PIPE WB 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
114	NUT; CLIP,OIL PIPE WB 4800MM(48W) M8 FLANGE	0-91150-108-0	03	1	9905-0602		●
114	NUT; CLIP,OIL PIPE WB 4800MM(48W) M8 FLANGE	0-91150-108-0	03	1	9905-0602		●
114	NUT; CLIP,OIL PIPE WB 4800MM(48W) M8 FLANGE	0-91180-108-0	03	1	0603-		●
114	NUT; CLIP,OIL PIPE WB 4800MM(48W) M8 FLANGE	0-91180-108-0	03	1	0603-		●
114	NUT; CLIP,OIL PIPE WB 5500MM(55W) M8 FLANGE	0-91150-108-0	05	1	9905-0602		●
114	NUT; CLIP,OIL PIPE WB 5500MM(55W) M8 FLANGE	0-91180-108-0	05	1	0603-		●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9905-0301	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0302-0512	●	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9905-0301	●	●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0302-0512	●	●	●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9905-0301	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0302-0602	●	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
