Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#78566) — 68 parça

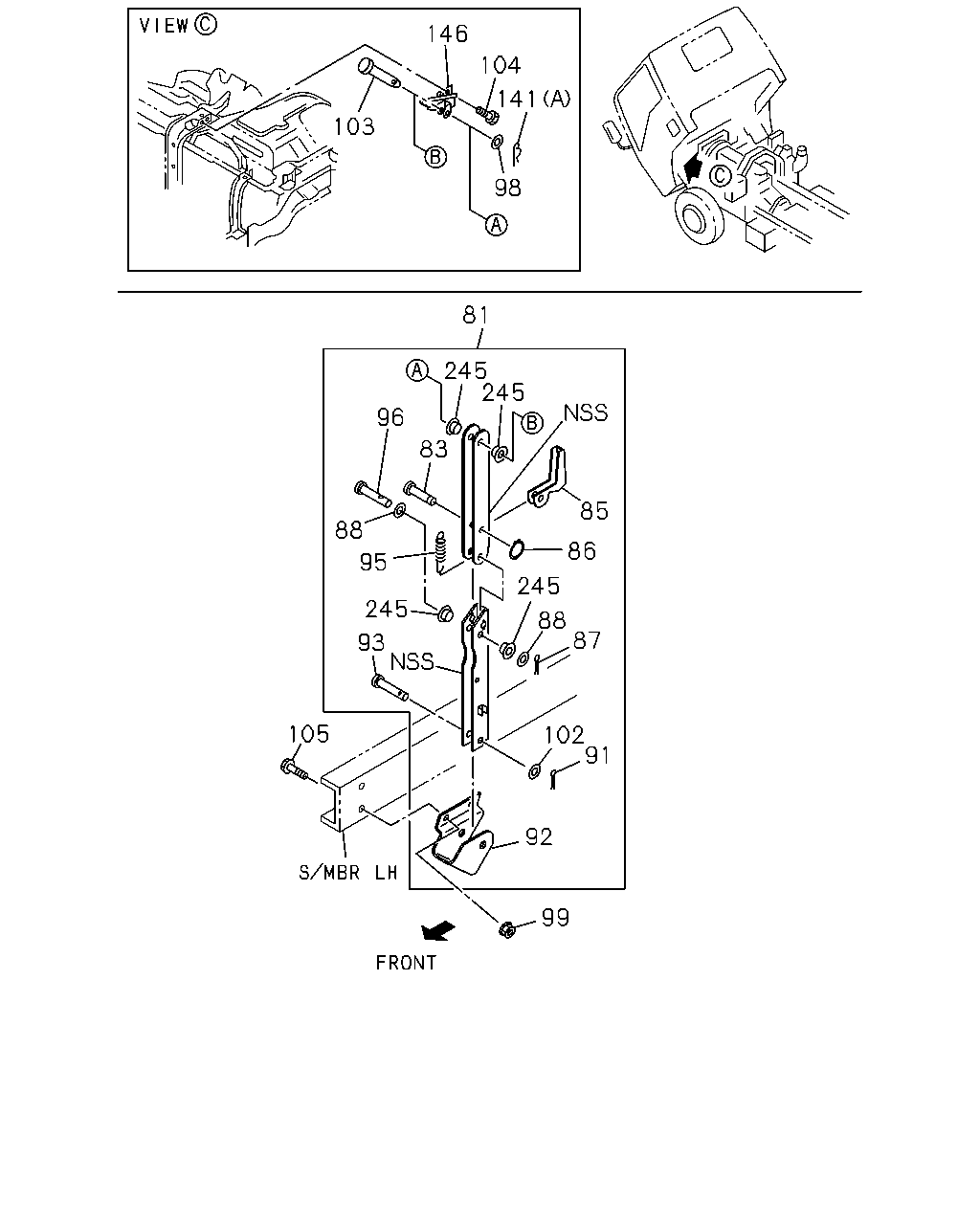

146 104 141 103 98 81 245 245 96 83 85 88 86 95 245 245 88 87 93 105 102 91 92 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> IRA	8-98159-857-0	01	1	1112-	●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> IRA	8-98122-493-0	01	1	1112-	●
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1112-	●
86	RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> ID=6	0-91805-506-0	01	1	1112-	●
87	PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> OD=2.8 L=20 IRA	0-81123-020-0	01	1	1112-	●
88	WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1112-	●
91	PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> OD=3.7 L=20 IRA	0-81124-020-0	01	1	1112-	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> IRA	8-98011-317-0	01	1	1112-	●
93	PIN; CAB STAY MANUAL TILT CAB<RWZ> IRA	8-98122-498-0	01	1	1112-	●
95	SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1112-	●
96	PIN; JOINT MANUAL TILT CAB<RWZ> IRA	8-98123-513-0	01	1	1112-	●
98	WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 T=2.0	1-09985-183-0	01	1	1112-	●
99	NUT; CAB STAY MANUAL TILT CAB<RWZ> M10 FLANGE	0-91180-110-0	02	1	1112-	●
102	WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> ID=12.5 OD=26	0-91610-612-0	01	1	1112-	●
103	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1112-	●
104	BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28660-820-0	03	1	1112-	●
105	BOLT; CAB STAY MANUAL TILT CAB<RWZ> M10X30 FLANGE	0-28651-030-0	02	1	1112-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6 IRA	1-09987-142-0	01	1	1112-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1112-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1112-	●
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	1112-	●
245	BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1112-	●

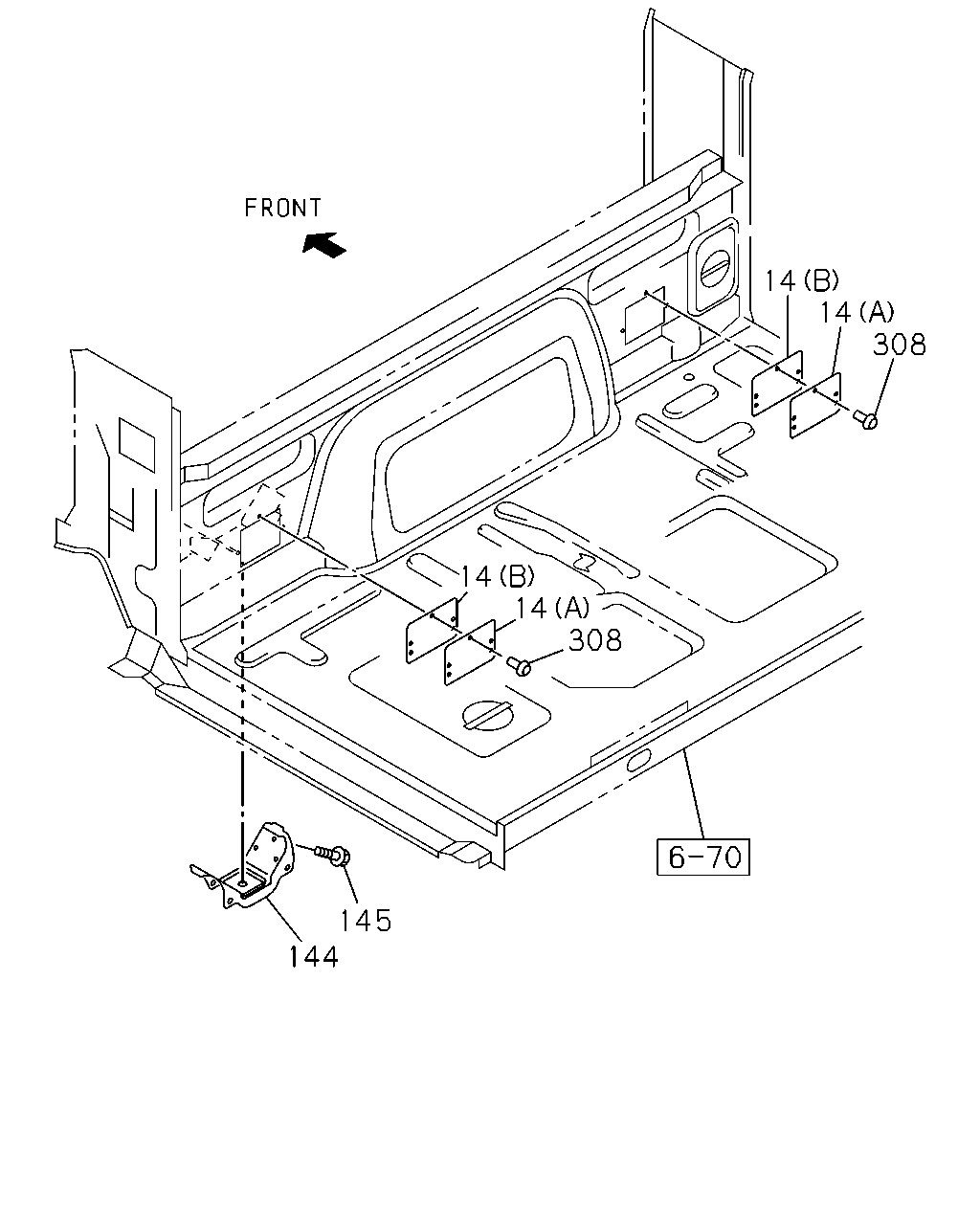

14 14 308 14 14 308 145 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	COVER; MTG,CAB (A) BLACK L=125	8-94273-738-3	02	1	1112-		●
14	COVER; MTG,CAB (B) BLACK L=124	8-98132-457-0	02	1	1112-		●
144	BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1112-	●
144	BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1112-		●
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1112-	●
145	BOLT; CAB RR MTG BRKT M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1112-		●
308	RIVET; COVER D6X12.5	8-94146-425-0	06	1	1112-		●

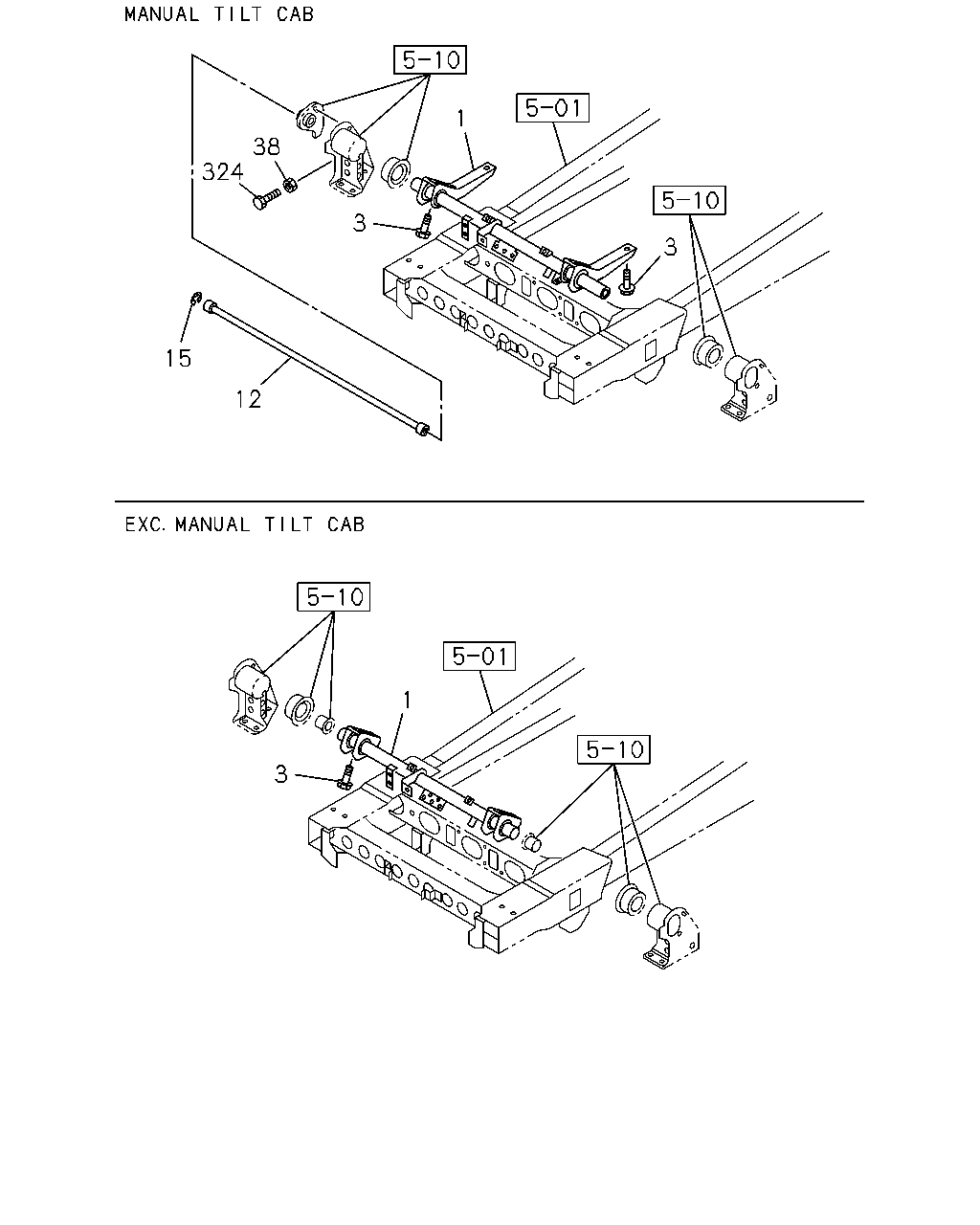

1 38 324 3 3 15 12 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-98088-216-0	01	1	1112-	●
1	LEVER; TORSION BAR	8-98088-216-0	01	1	1112-		●
1	LEVER; TORSION BAR MANUAL TILT CAB<RWZ> IRA	8-98088-215-1	01	1	1112-	●
3	BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	1112-	●
3	BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	1112-		●
3	BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	1112-	●
12	BAR; TORSION,UPR MANUAL TILT CAB<RWZ> IRA	8-98166-029-0	01	1	1112-	●
15	RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	1112-	●
38	NUT; LK MANUAL TILT CAB<RWZ> M14 IRA	8-98039-988-0	01	1	1112-	●
324	BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	1112-	●

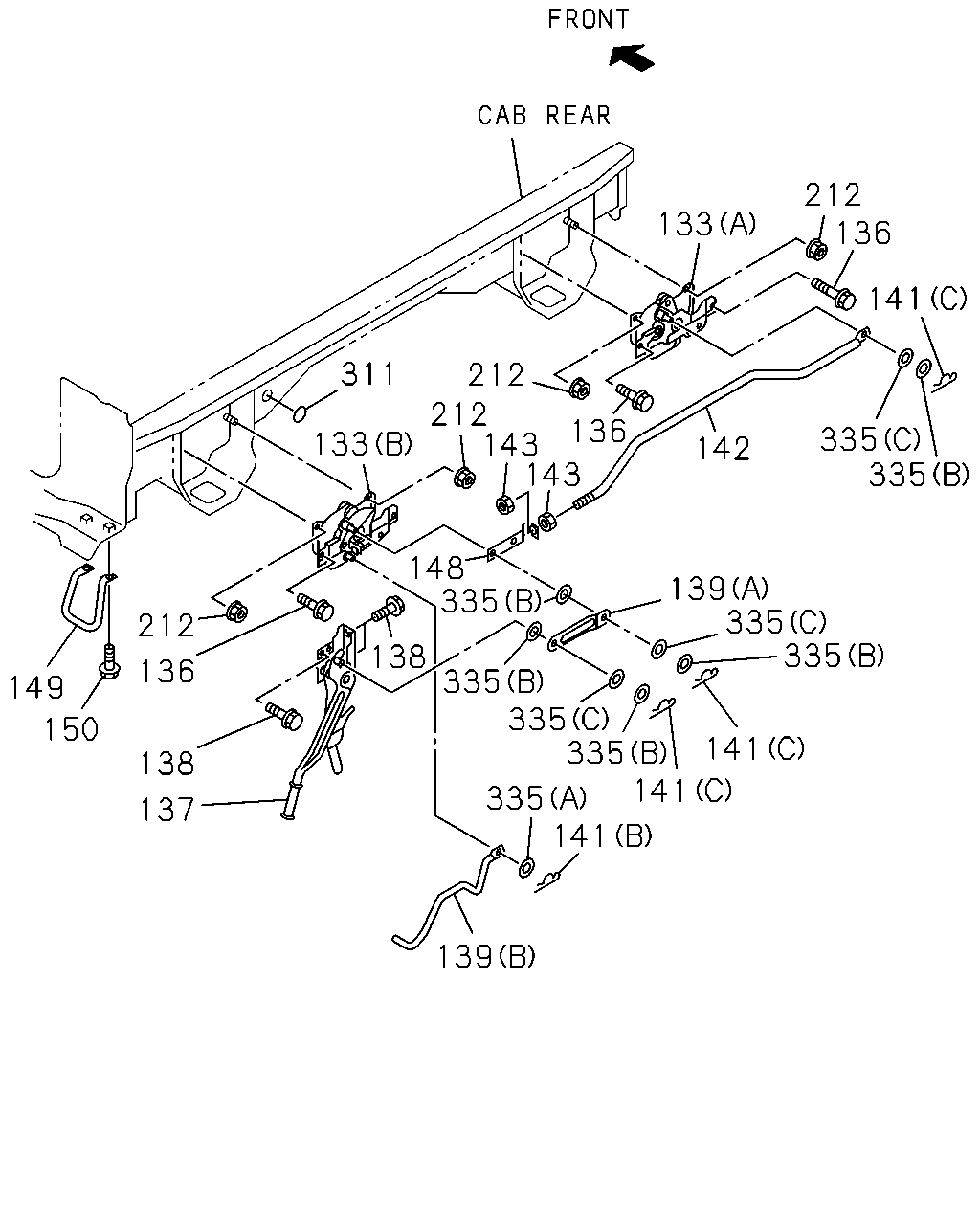

212 136 133 141 311 212 212 143 143 136 335 335 133 142 148 335 139 335 335 212 138 136 335 335 335 141 149 150 141 138 335 141 137 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1112-	●
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1112-	●
136	BOLT; CAB LK MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	04	1	1112-	●
137	CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97584-469-3	01	1	1112-	●
138	BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	03	1	1112-	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1112-	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-202-0	01	1	1112-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6 IRA	1-09987-142-0	01	1	1112-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1112-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1112-	●
142	ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-633-0	01	1	1112-	●
143	NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> M10	0-91110-510-0	02	1	1112-	●
148	JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1112-	●
149	HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1112-	●
150	BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> M8X25 FLANGE	0-28650-825-0	02	1	1112-	●
212	NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 FLANGE	0-91180-108-0	04	1	1112-	●
311	SEAL; CAB LOCK OD=32 BLACK	8-98031-126-0	01	1	1112-	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) ID=12.5 OD=22	0-91610-512-0	05	1	1112-	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) ID=8.4 OD=14	5-09550-002-0	01	1	1112-	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1112-	●

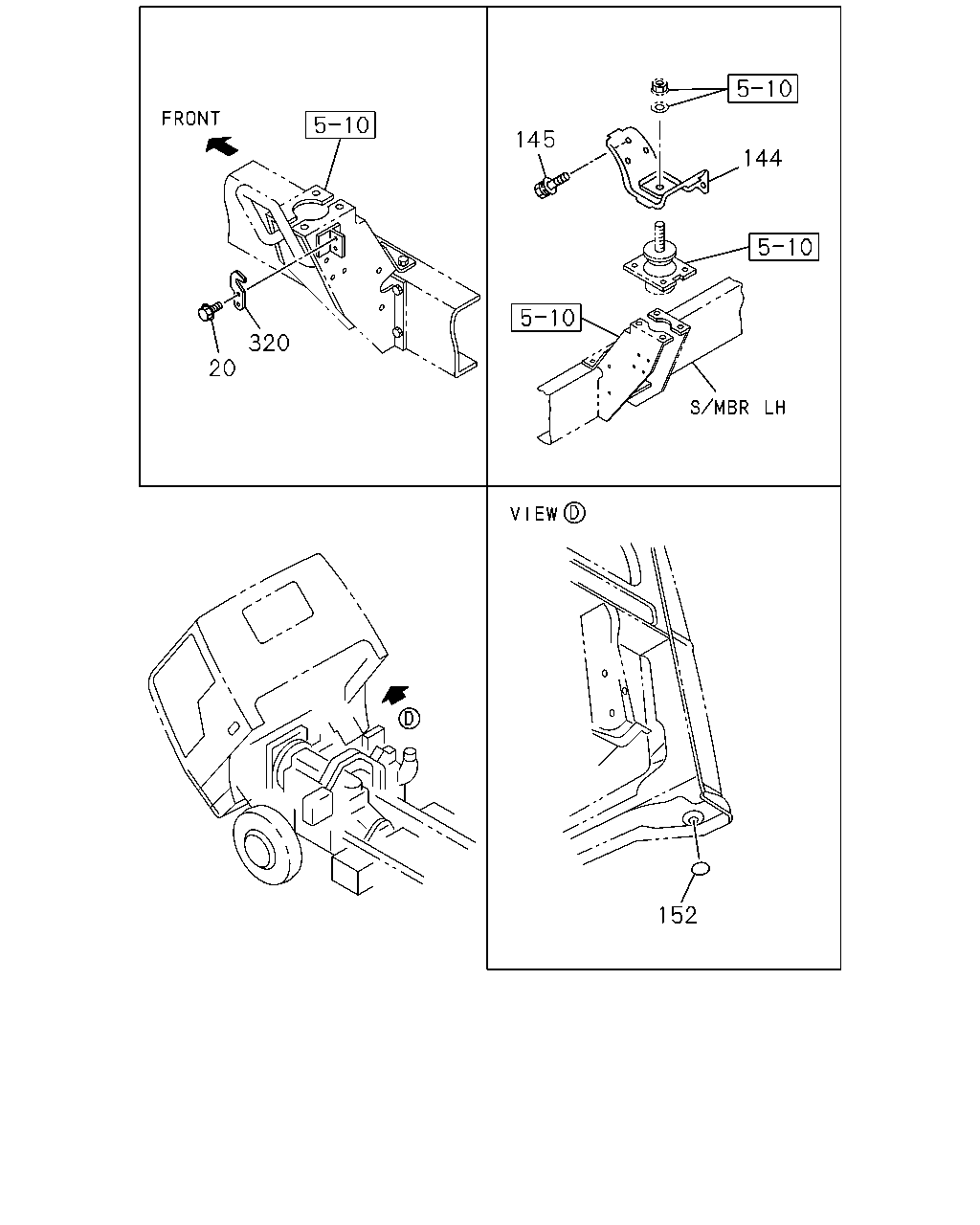

145 144 320 20 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT M12X40 FLANGE	0-28651-240-0	04	1	1112-1301	●
20	BOLT MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	04	1	1302-	●
144	BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1112-	●
144	BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1112-		●
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1112-	●
145	BOLT; CAB RR MTG BRKT M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1112-		●
152	GROMMET; DUMMY HOLE,CAB TILT LOCK EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK	1-76798-019-0	02	1	1112-	●
320	ANCHOR; CAB RR IRA	8-98089-546-0	02	1	1112-1301	●
320	ANCHOR; CAB RR MANUAL TILT CAB<RWZ> IRA	8-98089-546-0	02	1	1302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
