5-10 — CAB MOUNTING; FRAME SIDE (#78565) — 88 parça

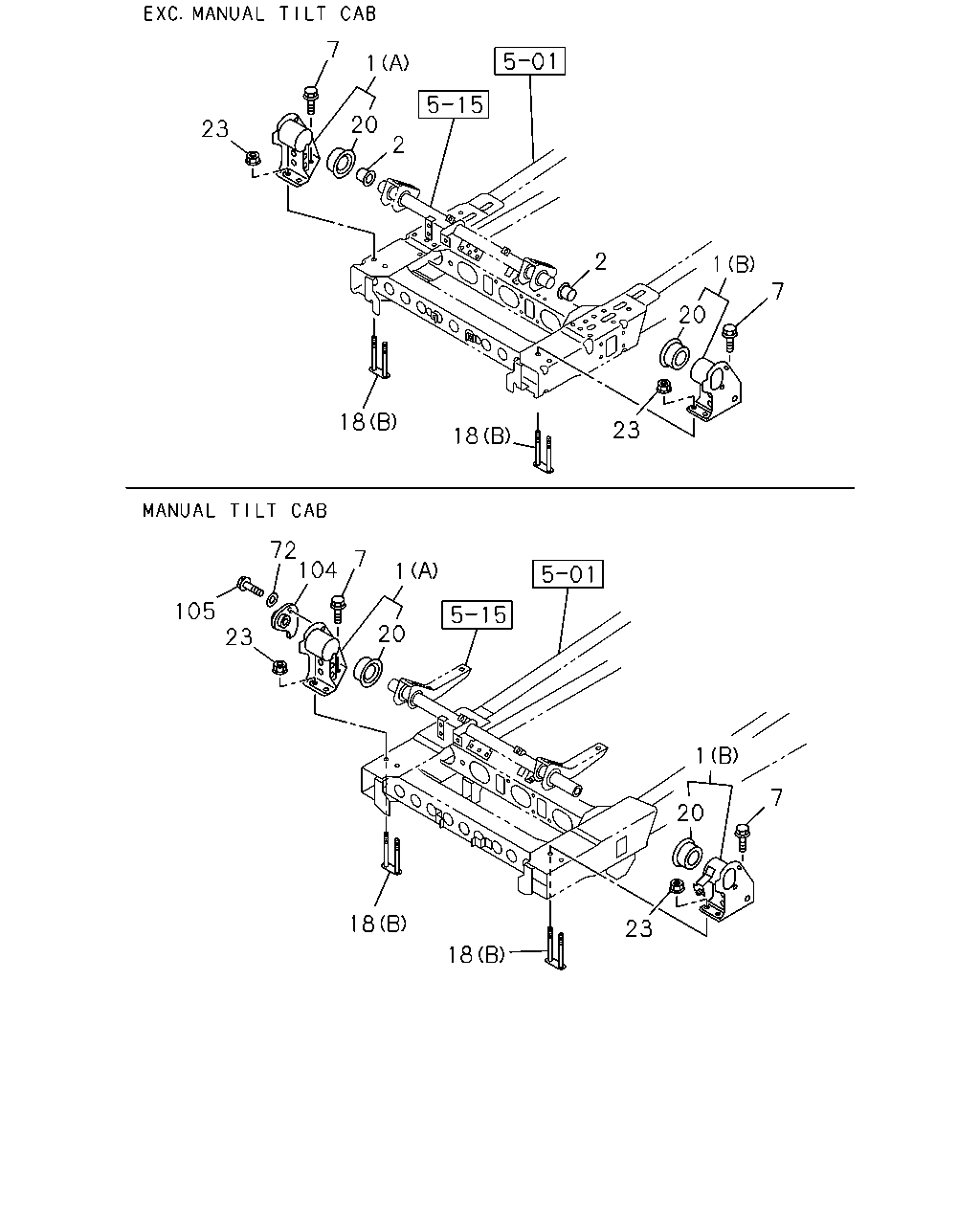

7 1 20 23 2 2 1 7 20 18 23 18 72 104 7 1 105 20 23 1 7 20 18 23 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ> (A)	8-98074-799-0	01	1	1112-	●
1	BRACKET; CAB MTG (B)	8-98074-800-0	01	1	1112-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> (A)	8-98074-798-0	01	1	1112-	●
1	BRACKET; CAB MTG (A)	8-98074-798-0	01	1	1112-		●
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	1112-	●
2	BUSHING; TORSION BAR	8-97061-514-0	02	1	1112-		●
7	BOLT; BRKT,CAB TILT M14X40 FLANGE IRA	0-28661-440-0	02	1	1112-	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1112-	●	●
18	PLATE; MTG BRKT FIX (B) IRA	8-98029-285-1	02	1	1112-	●	●
20	RUBBER; MTG,CAB BRKT IRA	8-98007-037-1	02	1	1112-	●	●
23	NUT; MTG BRKT M14 IRA	8-98039-989-0	04	1	1112-	●	●
72	WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	1112-	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ> IRA	8-98006-455-1	01	1	1112-	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	1112-	●

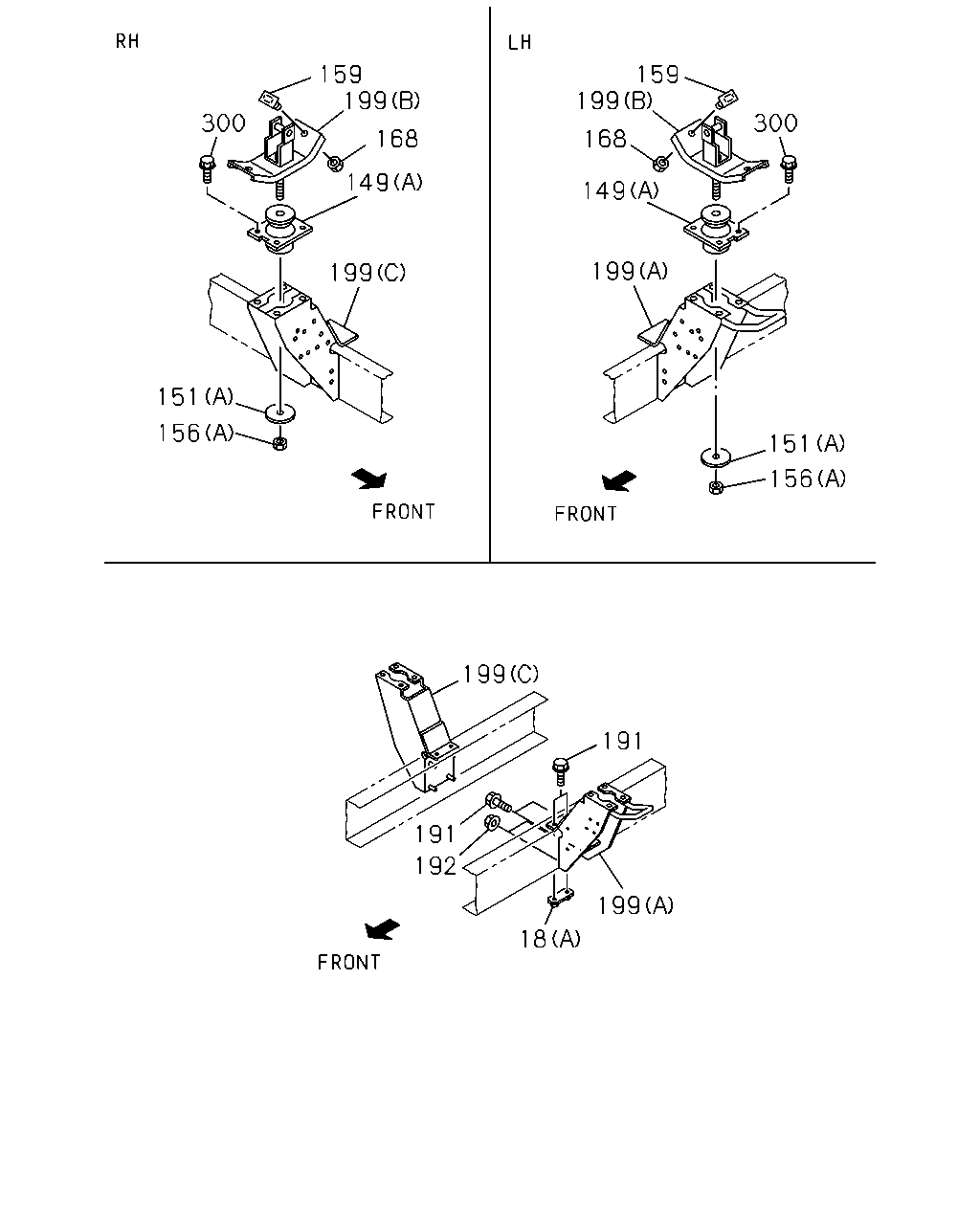

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 191 191 192 199 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1112-	●	●
18	PLATE; MTG BRKT FIX (B) IRA	8-98029-285-1	02	1	1112-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1112-	●
149	RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1112-		●
149	RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	1112-		●
149	RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	1112-		●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62 IRA	8-98021-561-1	02	1	1112-	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1112-	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1112-		●
151	WASHER; CAB MTG,RR UPR (C) ID=15 OD=36	0-91614-714-0	02	1	1112-		●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1112-		●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1112-	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1112-	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1112-		●
156	NUT; CAB MTG RR (C) M14	0-91110-514-0	04	1	1112-		●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	1112-	●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	1112-	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE	0-91180-108-0	04	1	1112-	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	1112-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	1112-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98024-778-1	01	1	1112-	●
199	BRACKET; CAB RR MTG (D)	8-98024-778-1	01	1	1112-		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1112-	●
199	BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	1112-		●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C) IRA	8-98024-776-4	01	1	1112-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A) IRA	8-98024-777-4	01	1	1112-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B) IRA	8-98036-883-0	02	1	1112-	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	1112-	●	●

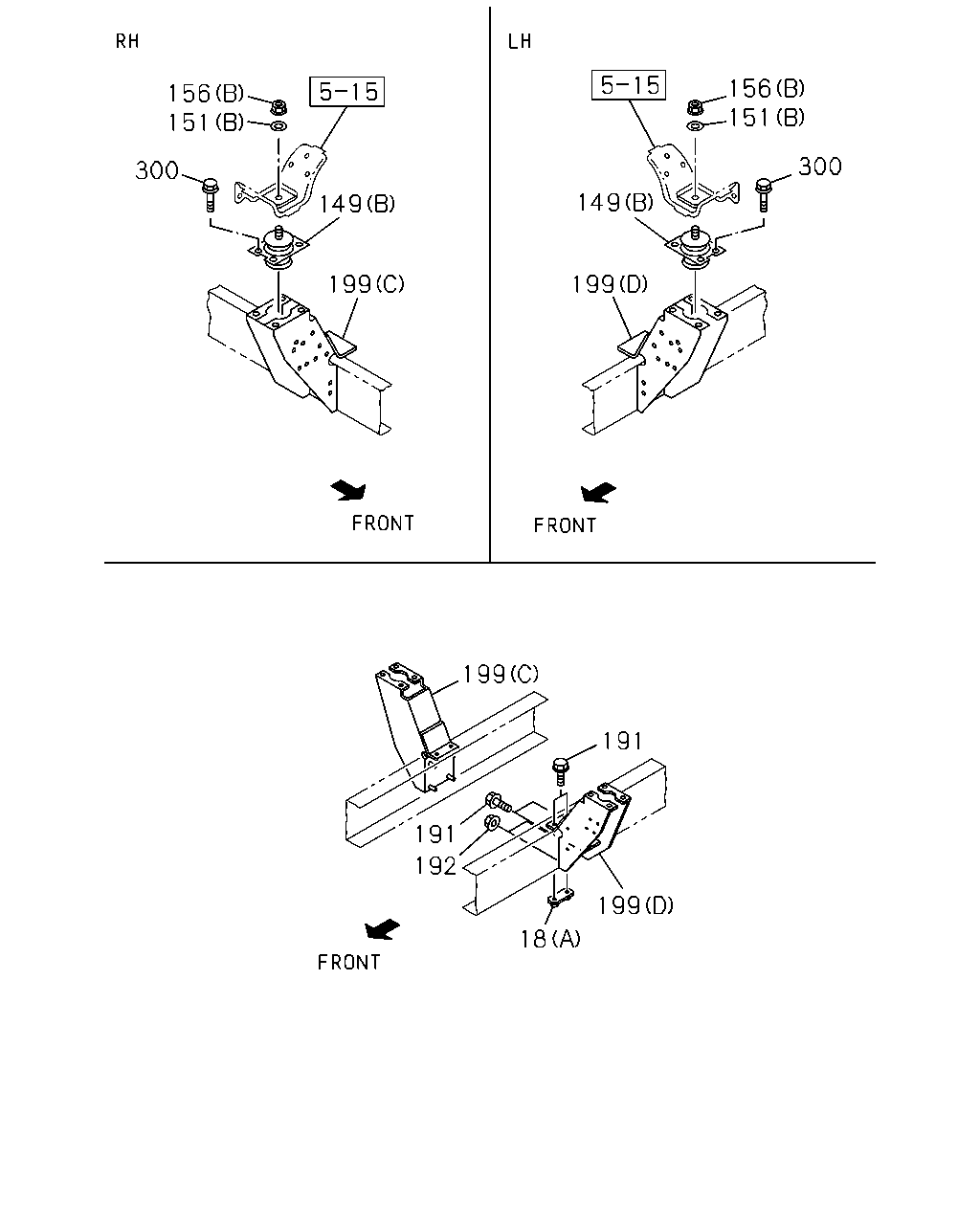

156 151 156 151 300 300 149 149 199 199 199 191 191 192 199 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1112-	●	●
18	PLATE; MTG BRKT FIX (B) IRA	8-98029-285-1	02	1	1112-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1112-	●
149	RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1112-		●
149	RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	1112-		●
149	RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	1112-		●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62 IRA	8-98021-561-1	02	1	1112-	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1112-	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1112-		●
151	WASHER; CAB MTG,RR UPR (C) ID=15 OD=36	0-91614-714-0	02	1	1112-		●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1112-		●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1112-	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1112-	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1112-		●
156	NUT; CAB MTG RR (C) M14	0-91110-514-0	04	1	1112-		●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	1112-	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	1112-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	1112-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98024-778-1	01	1	1112-	●
199	BRACKET; CAB RR MTG (D)	8-98024-778-1	01	1	1112-		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1112-	●
199	BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	1112-		●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C) IRA	8-98024-776-4	01	1	1112-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A) IRA	8-98024-777-4	01	1	1112-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B) IRA	8-98036-883-0	02	1	1112-	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	1112-	●	●

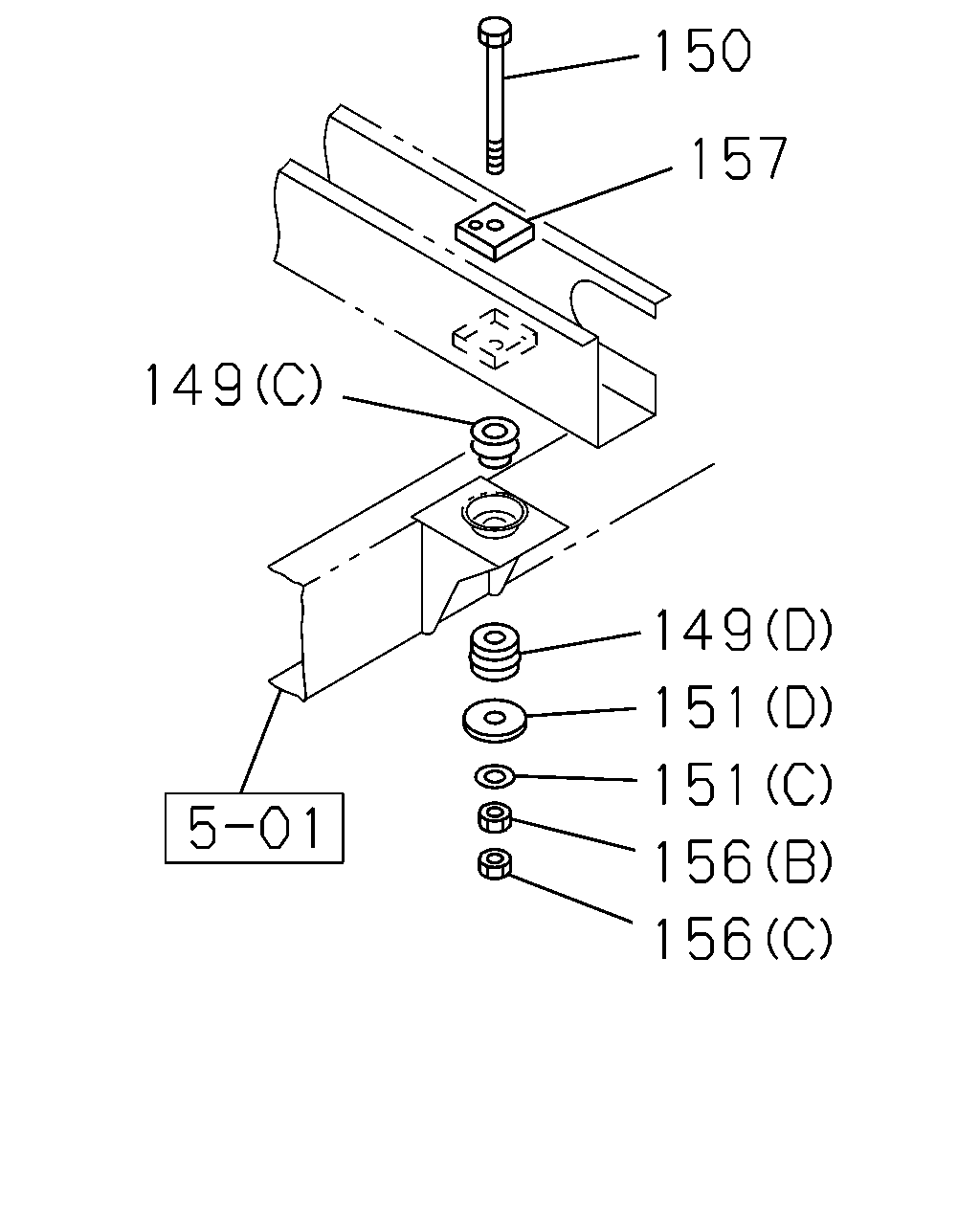

150 157 149 149 151 151 156 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1112-	●
149	RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1112-		●
149	RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	1112-		●
149	RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	1112-		●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62 IRA	8-98021-561-1	02	1	1112-	●
150	BOLT; CAB MTG RR M14X110	8-97365-192-0	02	1	1112-		●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1112-	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1112-		●
151	WASHER; CAB MTG,RR UPR (C) ID=15 OD=36	0-91614-714-0	02	1	1112-		●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1112-		●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1112-	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1112-	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1112-		●
156	NUT; CAB MTG RR (C) M14	0-91110-514-0	04	1	1112-		●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	1112-	●
157	RUBBER; MTG,CAB,TOP RR	8-97256-685-0	02	1	1112-		●

141 140 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
140	NUT; BRKT MANUAL TILT CAB<RWZ> M8 FLANGE	0-91180-108-0	04	1	1112-	●
141	BOLT; BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	04	1	1112-	●
419	BRACKET; HOOK,SEAT BELT ANCHOR MANUAL TILT CAB<RWZ> IRA	8-97857-422-4	01	1	1112-	●
419	BRACKET; HOOK,SEAT BELT ANCHOR MANUAL TILT CAB<RWZ> IRA	8-97857-423-4	01	1	1112-	●
