Isuzu WW
▶
TRUCKS
▶
NPR
▶
51300 - NPR(IRAN)
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#78564) — 100 parça
Tümü
A - NPR6SN
B - NPR6WN
◀

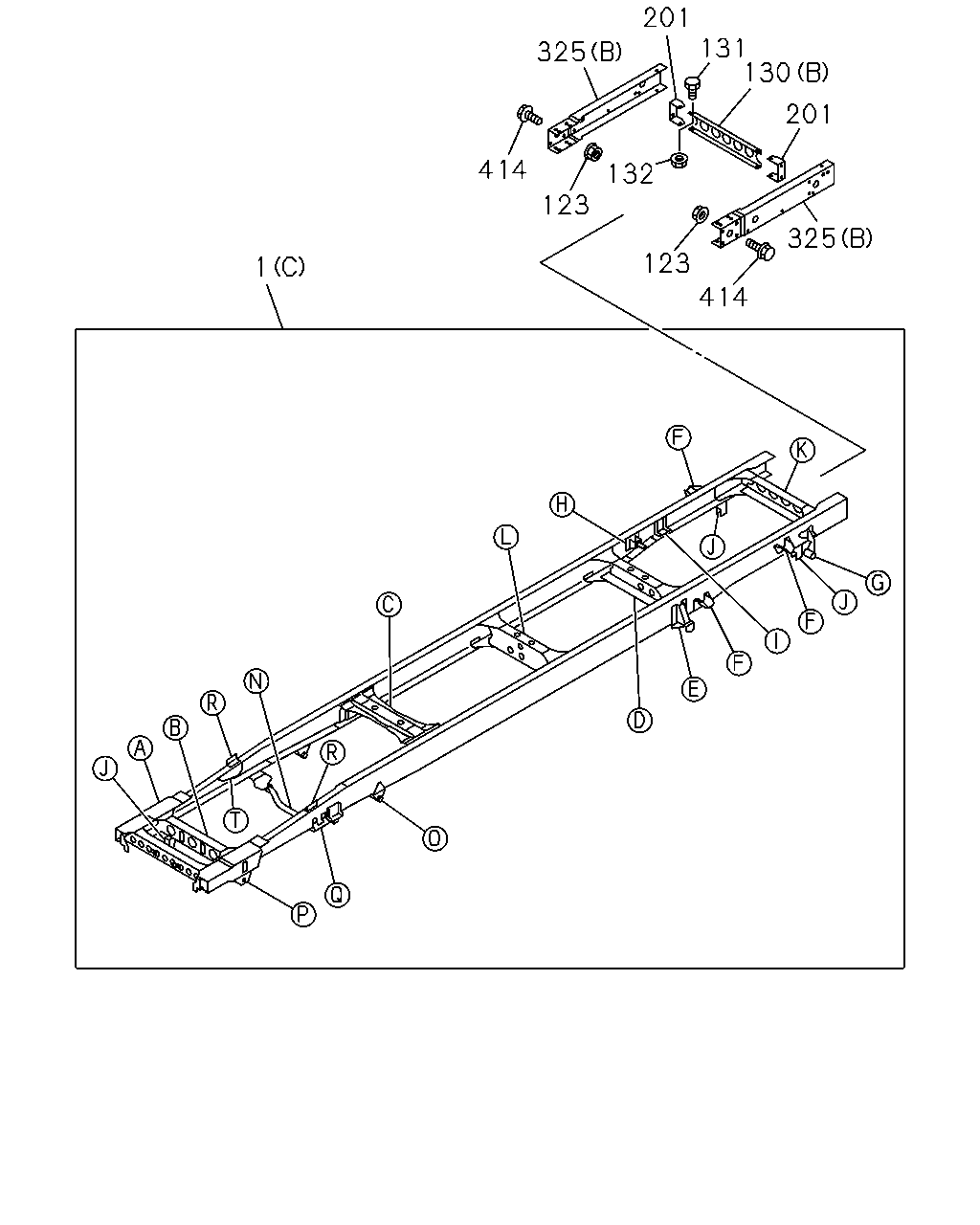

[501A] FRAME ASM(NO.2) (22 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (13 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (16 parça)

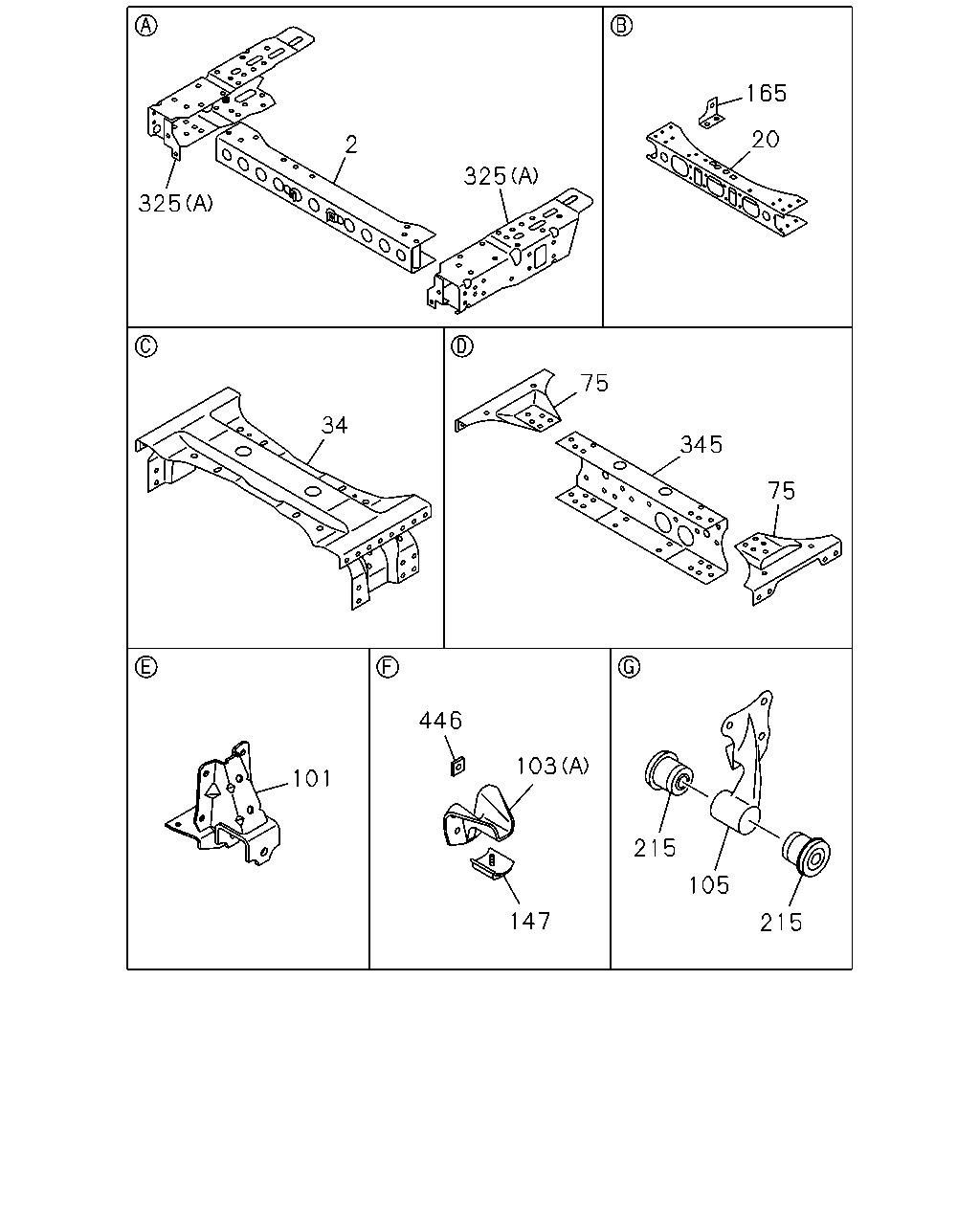

[501A] CROSS MEMBER AND BRACKET(NO.1) (26 parça)
[501A] RIVET,BOLT,NUT (16 parça)

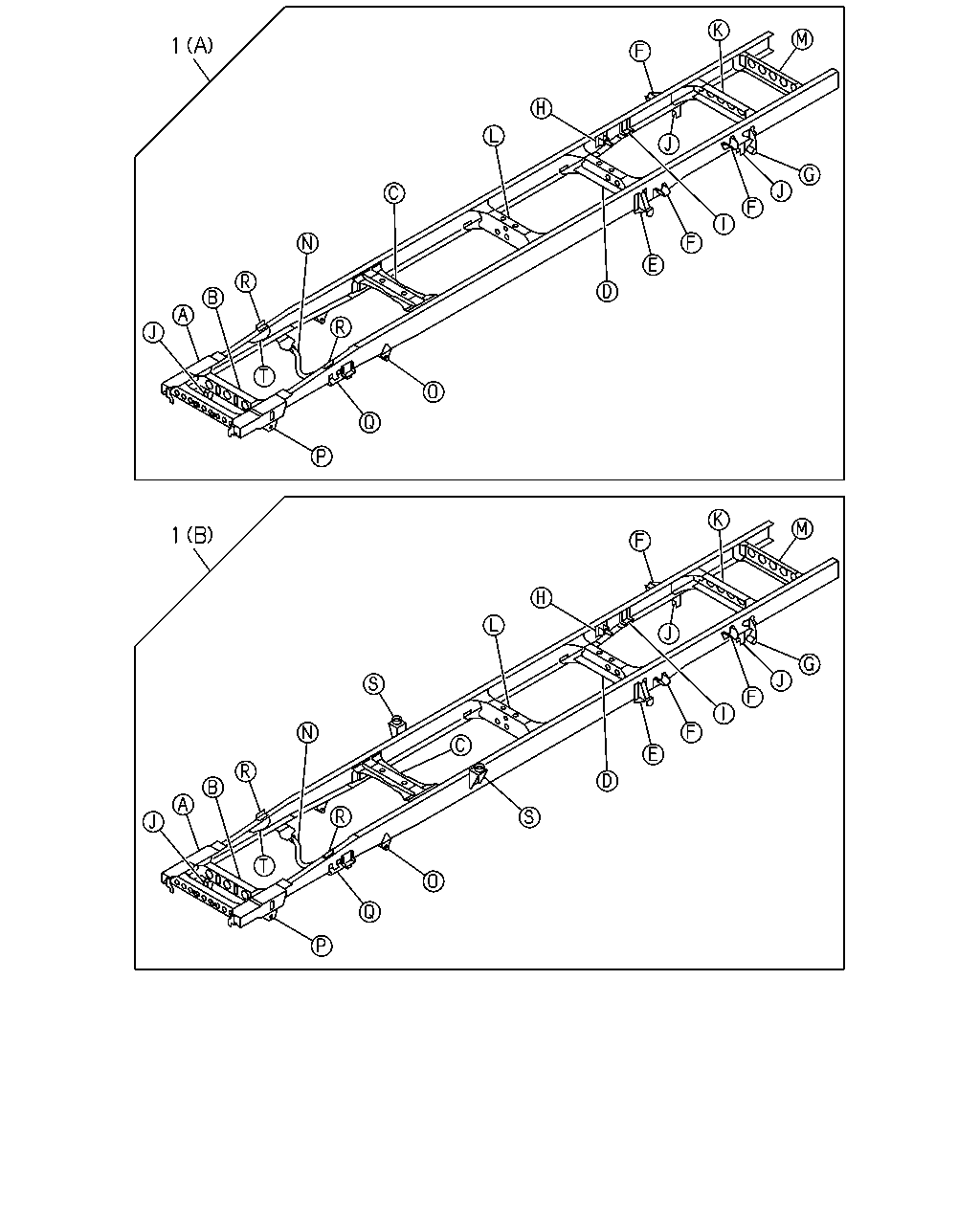

[501A] FRAME ASM(NO.1) (7 parça)
▶
1
123
123
414
414
325
201
130
131
201
325
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FRAME ASM
WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)
8-98196-577-0
01
1
1112-
●
1
FRAME ASM
WHEEL BASE 4400MM(44W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) IRA
8-98134-378-1
01
1
1112-1307
●
1
FRAME ASM
WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) IRA
8-98134-378-1
01
1
1308-
●
1
FRAME ASM
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)
8-98196-576-0
01
1
1112-
●
1
FRAME ASM
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)
8-98153-911-2
01
1
1112-
●
1
FRAME ASM
WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) IRA
8-98071-641-4
01
1
1112-
●
1
FRAME ASM
WHEEL BASE 3800MM(38W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98157-952-1
01
1
1112-
●
123
NUT
WHEEL BASE 4400MM(44W) M12
8-97360-126-0
16
1
1112-
●
130
MEMBER; CROSS,END
WHEEL BASE 4400MM(44W) (B)
8-97205-394-0
01
1
1112-
●
130
MEMBER; CROSS,END
WHEEL BASE 3800MM(38W) (A)
8-97080-872-0
01
1
1112-
●
130
MEMBER; CROSS,END
(A)
8-97080-872-0
01
1
1112-
●
131
BOLT; END C/MBR
WHEEL BASE 4400MM(44W) M10X25 FLANGE
0-28661-025-0
08
1
1112-
●
132
NUT; END C/MBR
WHEEL BASE 4400MM(44W) M10 FLANGE
0-91180-110-0
08
1
1112-
●
201
GUSSET; C/MBR
8-97096-871-0
02
1
1112-
●
●
325
EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) IRA
8-97128-752-3
01
1
1112-
●
325
EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) IRA
8-97128-753-3
01
1
1112-
●
325
EXTENSION; FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98073-350-0
01
1
1112-
●
●
325
EXTENSION; FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98073-351-1
01
1
1112-
●
●
325
EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98073-346-0
01
1
1112-
●
●
325
EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98073-347-1
01
1
1112-
●
●
414
BOLT
WHEEL BASE 4400MM(44W) M12X30 FLANGE
0-28661-230-0
12
1
1112-
●
414
BOLT
WHEEL BASE 4400MM(44W) M12X40 FLANGE
0-28661-240-0
04
1
1112-
●
51
51
42
24
140
141
141
43
103
31
39
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
BRACKET; FRT SPR,FRT
8-98015-274-0
02
1
1112-
●
●
31
BUSHING; FRT SPR,RR
8-97184-699-1
04
1
1112-
●
●
39
BRACKET; FRT SPR,RR
8-98014-125-0
02
1
1112-
●
●
42
MEMBER; CROSS,ENG MTG
IRA
8-98032-389-0
01
1
1112-
●
●
43
BRACKET; CAB MTG,RR
8-98061-560-1
01
1
1112-
●
43
BRACKET; CAB MTG,RR
8-98061-561-1
01
1
1112-
●
51
BRACKET; ENG SUPPORT,OUTER
8-98034-961-0
02
1
1112-
●
●
103
STOPPER; SUB SPR
(B) IRA
8-97079-659-1
02
1
1112-
●
●
103
STOPPER; SUB SPR
(A)
8-97223-748-0
04
1
1112-
●
●
140
BRACKET; S/ABS,RR
(A) IRA
8-97080-884-1
02
1
1112-
●
●
140
BRACKET; S/ABS,RR
(B)
8-97302-511-0
02
1
1112-
●
●
141
STIFFENER
IRA
8-98064-354-2
01
1
1112-
●
●
141
STIFFENER
IRA
8-98064-355-2
01
1
1112-
●
●
140
196
74
344
74
201
130
201
198
139
198
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
74
GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER
8-98000-583-0
02
1
1112-
●
●
74
GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER
8-98000-584-0
02
1
1112-
●
●
130
MEMBER; CROSS,END
WHEEL BASE 4400MM(44W) (B)
8-97205-394-0
01
1
1112-
●
130
MEMBER; CROSS,END
WHEEL BASE 3800MM(38W) (A)
8-97080-872-0
01
1
1112-
●
130
MEMBER; CROSS,END
(A)
8-97080-872-0
01
1
1112-
●
139
MEMBER; CROSS,6TH
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-97107-384-0
01
1
1112-
●
●
139
MEMBER; CROSS,6TH
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-97326-394-0
01
1
1112-
●
●
140
BRACKET; S/ABS,RR
(A) IRA
8-97080-884-1
02
1
1112-
●
●
140
BRACKET; S/ABS,RR
(B)
8-97302-511-0
02
1
1112-
●
●
196
BRACKET; STAB TO FRAME
WHEEL BASE 4400MM(44W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98033-523-0
02
1
1112-1307
●
196
BRACKET; STAB TO FRAME
WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98033-523-0
02
1
1308-
●
196
BRACKET; STAB TO FRAME
WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98033-523-0
04
1
1112-
●
198
GUSSET; 6TH C/MBR
8-98014-079-1
02
1
1112-
●
●
201
GUSSET; C/MBR
8-97096-871-0
02
1
1112-
●
●
217
BRACKET; HELPER RUBBER,RR SPRING
8-97202-417-0
02
1
1112-
●
●
344
MEMBER; CROSS,4TH
8-97175-993-3
01
1
1112-
●
●
165
20
2
325
325
75
34
345
75
446
103
101
215
105
147
215
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
IRA
8-97387-866-5
01
1
1112-
●
●
20
MEMBER; CROSS,2ND
8-98014-074-7
01
1
1112-
●
●
34
MEMBER; CROSS,3RD
8-98074-639-4
01
1
1112-
●
●
75
GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER
8-98000-583-0
02
1
1112-
●
●
75
GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER
8-98000-584-0
02
1
1112-
●
●
101
BRACKET; RR SPR,FRT
IRA
8-97042-245-1
02
1
1112-
●
●
103
STOPPER; SUB SPR
(B) IRA
8-97079-659-1
02
1
1112-
●
●
103
STOPPER; SUB SPR
(A)
8-97223-748-0
04
1
1112-
●
●
105
BRACKET; RR SPR,RR
8-98032-488-0
01
1
1112-
●
●
105
BRACKET; RR SPR,RR
8-98032-489-0
01
1
1112-
●
●
147
RUBBER; SUB SPRING
8-97254-387-0
04
1
1112-
●
●
165
BRACKET; RAD STAY
8-98000-886-0
01
1
1112-
●
●
215
BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
1112-
●
●
325
EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) IRA
8-97128-752-3
01
1
1112-
●
325
EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) IRA
8-97128-753-3
01
1
1112-
●
325
EXTENSION; FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98073-350-0
01
1
1112-
●
●
325
EXTENSION; FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98073-351-1
01
1
1112-
●
●
325
EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98073-346-0
01
1
1112-
●
●
325
EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98073-347-1
01
1
1112-
●
●
345
MEMBER; CROSS,5TH
8-97175-993-3
01
1
1112-
●
●
446
STIFFENER; SPRING STOPPER
WHEEL BASE 4400MM(44W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-97122-173-0
02
1
1112-1307
●
446
STIFFENER; SPRING STOPPER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-97122-173-0
02
1
1112-1307
●
446
STIFFENER; SPRING STOPPER
8-97122-173-0
02
1
1112-1307
●
446
STIFFENER; SPRING STOPPER
WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-97122-173-0
02
1
1308-
●
446
STIFFENER; SPRING STOPPER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-97122-173-0
02
1
1308-
●
446
STIFFENER; SPRING STOPPER
8-97122-173-0
02
1
1308-
●
376
376
376
376
376
376
376
376
376
376
376
176
176
296
118
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
67
NUT; C/MBR
M10 FLANGE
0-91180-210-0
18
1
1112-
●
●
118
NUT; STOPPER
M8 LOCK NUT IRA
0-91370-008-0
02
1
1112-
●
●
176
BOLT; C/MBR,ENG MTG
(B) M10X30 FLANGE
0-28051-030-0
04
1
1112-
●
●
176
BOLT; C/MBR,ENG MTG
(A) M10X25 FLANGE
0-28651-025-0
04
1
1112-
●
●
296
BOLT; 3RD C/MBR
M10X30 FLANGE
0-28651-030-0
16
1
1112-
●
●
376
RIVET; FRAME
(A) D8X24 TAPER END
9-06750-824-0
AR
1
1112-
●
●
376
RIVET; FRAME
(B) D10X24 TAPER END
9-06751-024-0
AR
1
1112-
●
●
376
RIVET; FRAME
(C) D10X26 TAPER END IRA
9-06751-026-0
AR
1
1112-
●
●
376
RIVET; FRAME
(D) D10X28 TAPER END IRA
9-06751-028-0
AR
1
1112-
●
●
376
RIVET; FRAME
(E) D10X32 TAPER END IRA
9-06751-032-0
AR
1
1112-
●
●
376
RIVET; FRAME
(F) D10X36 TAPER END IRA
9-06751-036-0
AR
1
1112-
●
●
376
RIVET; FRAME
(G) D11X26 TAPER END IRA
9-06751-126-0
AR
1
1112-
●
●
376
RIVET; FRAME
(H) D11X30 TAPER END IRA
9-06751-130-0
AR
1
1112-
●
●
376
RIVET; FRAME
(I) D12X30 TAPER END IRA
9-06751-230-0
AR
1
1112-
●
●
376
RIVET; FRAME
(J) D12X36 TAPER END IRA
9-06751-236-0
AR
1
1112-
●
●
376
RIVET; FRAME
(K) D12X40 TAPER END IRA
9-06751-240-0
AR
1
1112-
●
●
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FRAME ASM
WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)
8-98196-577-0
01
1
1112-
●
1
FRAME ASM
WHEEL BASE 4400MM(44W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) IRA
8-98134-378-1
01
1
1112-1307
●
1
FRAME ASM
WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) IRA
8-98134-378-1
01
1
1308-
●
1
FRAME ASM
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)
8-98196-576-0
01
1
1112-
●
1
FRAME ASM
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)
8-98153-911-2
01
1
1112-
●
1
FRAME ASM
WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) IRA
8-98071-641-4
01
1
1112-
●
1
FRAME ASM
WHEEL BASE 3800MM(38W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98157-952-1
01
1
1112-
●
