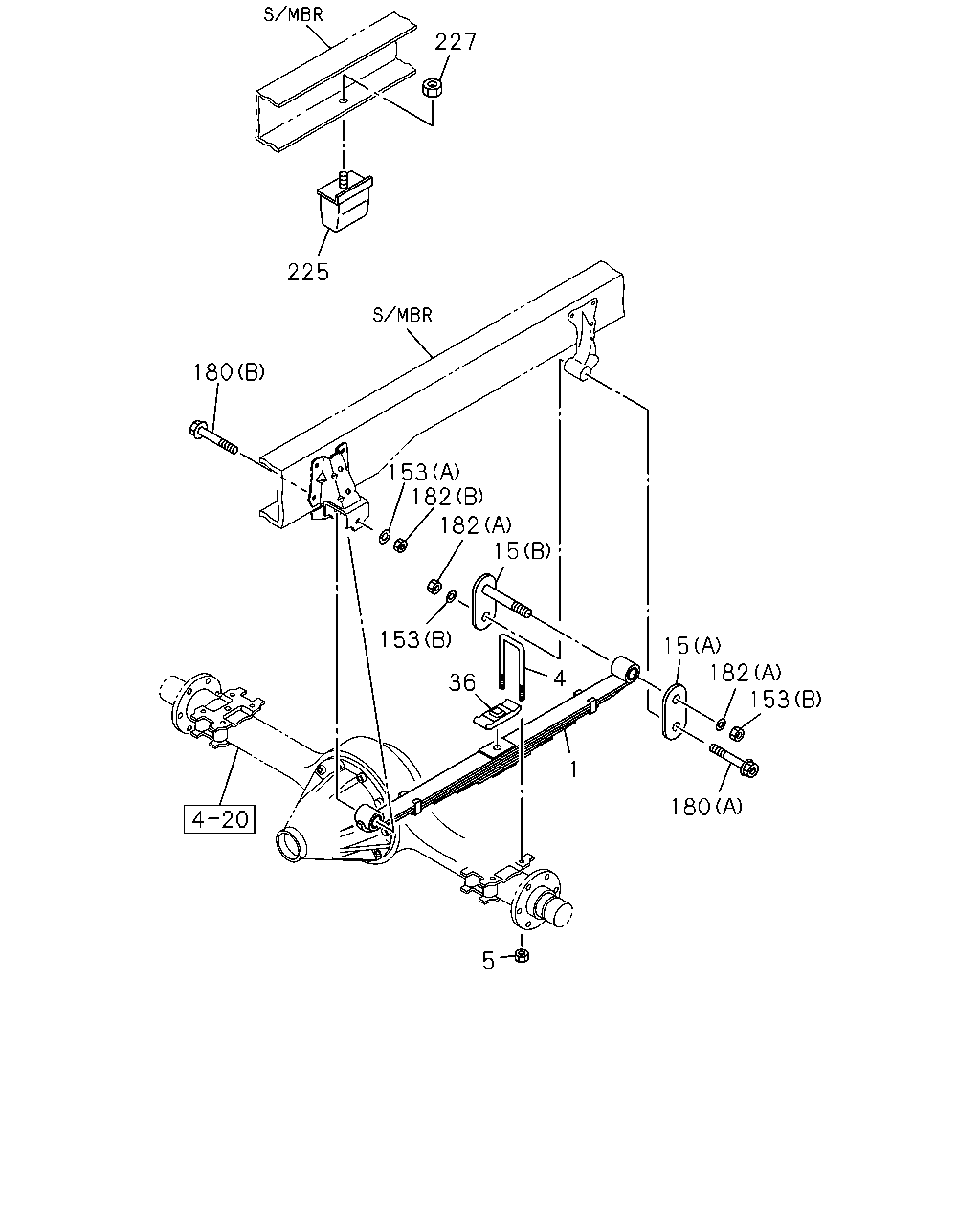

4-60 — REAR SUSPENSION (#78560) — 17 parça

227 225 180 153 182 182 15 153 15 182 153 4 36 1 180 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF IRA	8-98079-902-0	02	1	1112-	●	●
4	U-BOLT; RR SPR L=345 IRA	1-51371-195-2	04	1	1112-	●	●
5	NUT; U-BOLT,RR SPR M18 FLANGE IRA	1-09440-039-1	08	1	1112-	●	●
15	SHACKLE; RR SPR (A)	8-94118-511-3	02	1	1112-	●	●
15	SHACKLE; RR SPR (B)	8-97360-011-0	02	1	1112-	●	●
36	SEAT; HELPER RUBBER,RR SPR	1-51372-059-0	02	1	1112-	●	●
153	WASHER; PL,SPRING PIN (A) ID=19	8-97360-119-0	02	1	1112-	●	●
153	WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> (B) ID=16.5	8-98011-489-0	04	1	1112-	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97360-110-0	02	1	1112-	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	1112-	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	8-98011-487-0	02	1	1112-	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	1112-	●	●
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97360-125-0	04	1	1112-	●	●
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (A) M16	0-91110-516-0	04	1	1112-	●	●
182	NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	1112-	●	●
225	RUBBER; CUSHION,RR SPR	8-98187-342-0	02	1	1112-	●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-112-0	02	1	1112-	●	●
