◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#7856) — 51 parça

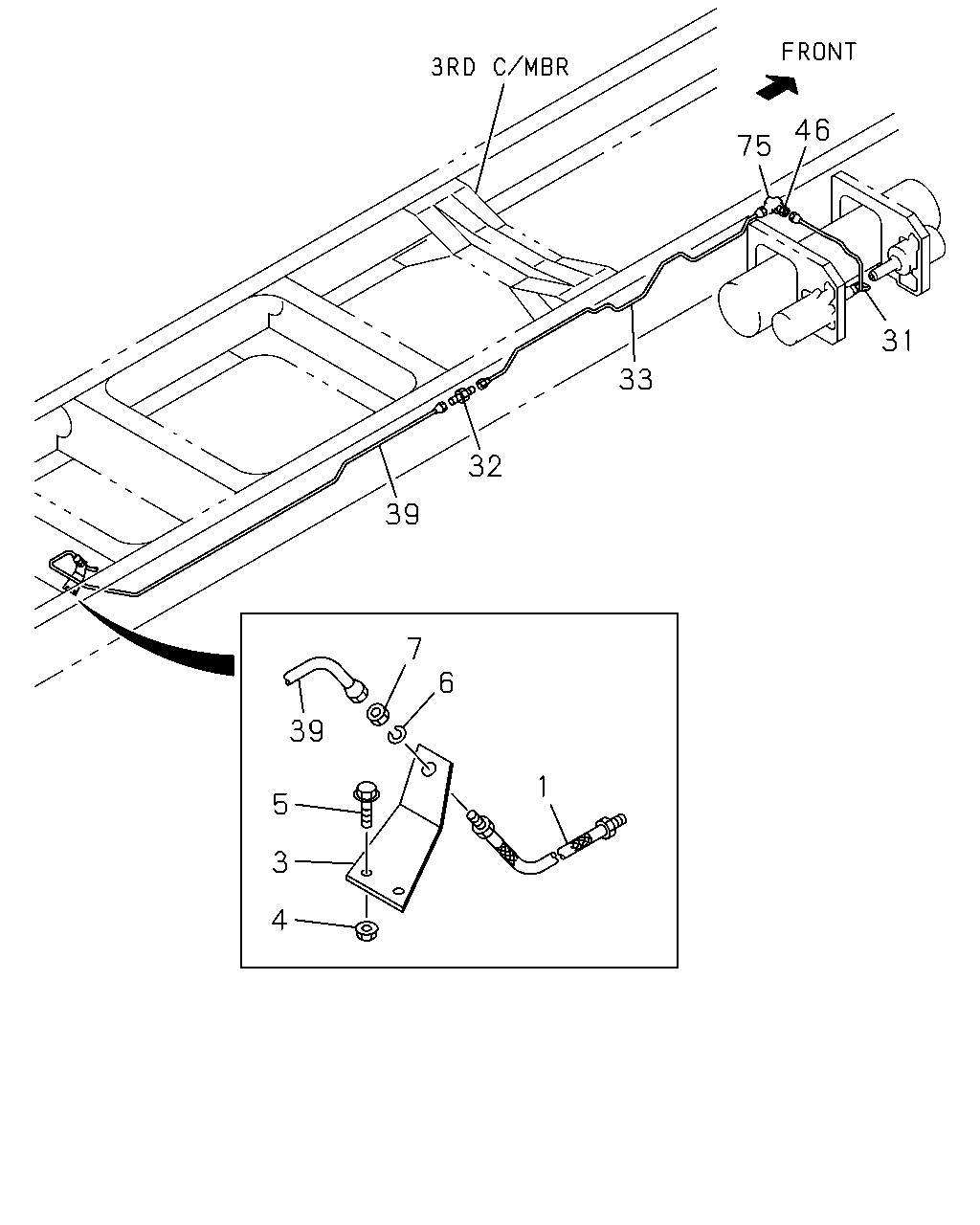

çizim 26799
46 75 31 33 32 39 7 6 39 1 5 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
L=700 		0-05312-700-0 01 1 0302- ●
1 HOSE; FLEX,RR BRK
L=610 		0-05313-610-0 01 1 9905-0511 ● ●
1 HOSE; FLEX,RR BRK
L=610 		0-05213-610-0 01 1 0512- ● ●
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 9905-0301 ● ●
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 0302- ● ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91150-108-0 02 1 9905-0301 ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ● ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28680-825-0 02 1 9905-0301 ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28680-825-0 02 1 0302-0512 ● ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9905-0301 ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0302-0603 ● ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 9905-0301 ● ●
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0302- ● ● ●
31 PIPE; OIL,AIR MASTER TO UNION
L=405 		1-49161-102-0 01 1 0302-0302 ●
31 PIPE; OIL,AIR MASTER TO UNION
L=393 		1-49166-976-0 01 1 0303- ●
31 PIPE; OIL,AIR MASTER TO UNION
L=645 		1-49164-199-0 01 1 9905-9906 ●
31 PIPE; OIL,AIR MASTER TO UNION
L=652 		1-49164-689-0 01 1 9907-9912 ●
31 PIPE; OIL,AIR MASTER TO UNION
L=665 		1-49165-102-0 01 1 0001-0301 ●
31 PIPE; OIL,AIR MASTER TO UNION
L=665 		1-49165-102-0 01 1 0302- ●
31 PIPE; OIL,AIR MASTER TO UNION
L=413 		1-49161-588-0 01 1 9905- ●
32 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 9905-0301 ● ●
32 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 0302-0607 ● ● ●
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 0608- ● ● ●
33 PIPE; OIL,UNION TO UNION
L=1061 SERVICED BY L=1100 		1-47426-351-0 01 1 0302-0302 ●
33 PIPE; OIL,UNION TO UNION
L=1051 SERVICED BY L=1100 		1-47426-351-0 01 1 0303- ●
33 PIPE; OIL,UNION TO UNION
L=1543 SERVICED BY L=1620 		1-47426-356-0 01 1 9905-9907 ●
33 PIPE; OIL,UNION TO UNION
L=1561 SERVICED BY L=1620 		1-47426-356-0 01 1 9908- ●
33 PIPE; OIL,UNION TO UNION
WB 4200MM(42W) L=884 		1-49162-473-0 01 1 9905- ●
33 PIPE; OIL,UNION TO UNION
WB 4800MM(48W) L=1484 SERVICED BY L=1500 		1-47426-355-0 01 1 9905- ●
33 PIPE; OIL,UNION TO UNION
WB 5500MM(55W) L=2184 SERVICED BY L=2200 		1-47426-360-0 01 1 9905- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2108 SERVICED BY L=2200 		1-47426-360-0 01 1 0302- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2040 SERVICED BY L=2200 		1-47426-360-0 01 1 9905- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2005 SERVICED BY L=2200 		1-47426-360-0 01 1 9905- ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9905-0301 ● ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0302- ● ● ●
75 UNION; OIL PIPE
M12 ELBOW 		9-09225-206-1 01 1 9905-0301 ● ●
75 UNION; OIL PIPE
M12 ELBOW 		9-09225-206-1 01 1 0302-0607 ● ● ●
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608- ● ● ●

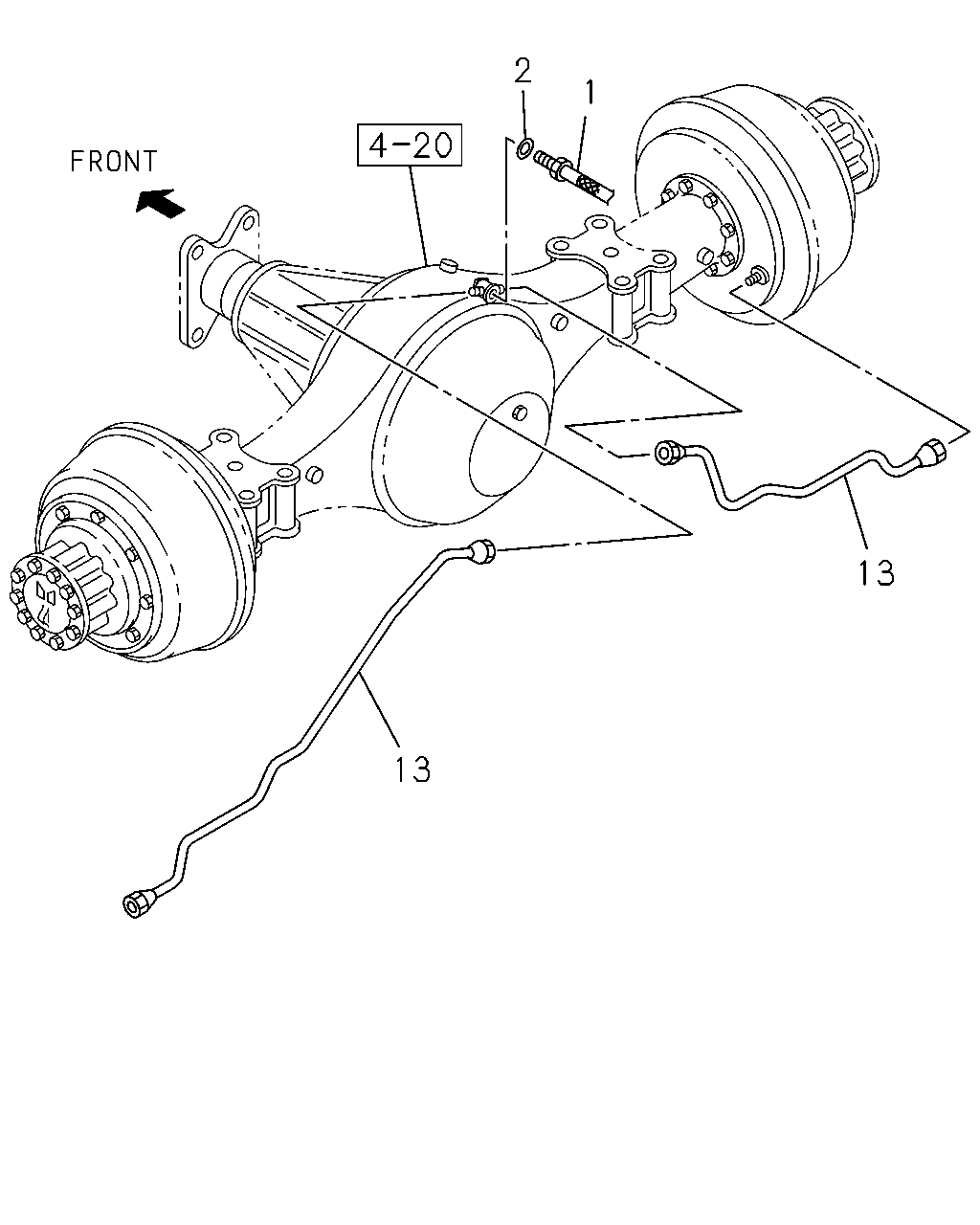

çizim 99250
2 1 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
L=700 		0-05312-700-0 01 1 0302- ●
1 HOSE; FLEX,RR BRK
L=610 		0-05313-610-0 01 1 9905-0511 ● ●
1 HOSE; FLEX,RR BRK
L=610 		0-05213-610-0 01 1 0512- ● ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 0302- ●
13 PIPE; BRK,RR AXLE
L=938 		1-47428-958-0 01 1 0302- ●
13 PIPE; BRK,RR AXLE
L=1215 		1-47428-959-0 01 1 0302- ●
13 PIPE; BRK,RR AXLE
L=675 		1-47427-105-0 01 1 9905- ●
13 PIPE; BRK,RR AXLE
L=847 		1-47427-106-0 01 1 9905- ●
13 PIPE; BRK,RR AXLE
L=685 		1-47427-107-0 01 1 9905- ●
13 PIPE; BRK,RR AXLE
L=858 		1-47427-108-0 01 1 9905- ●
