4-36 — POWER STEERING CONTROL; ENGINE SIDE (#78555) — 17 parça

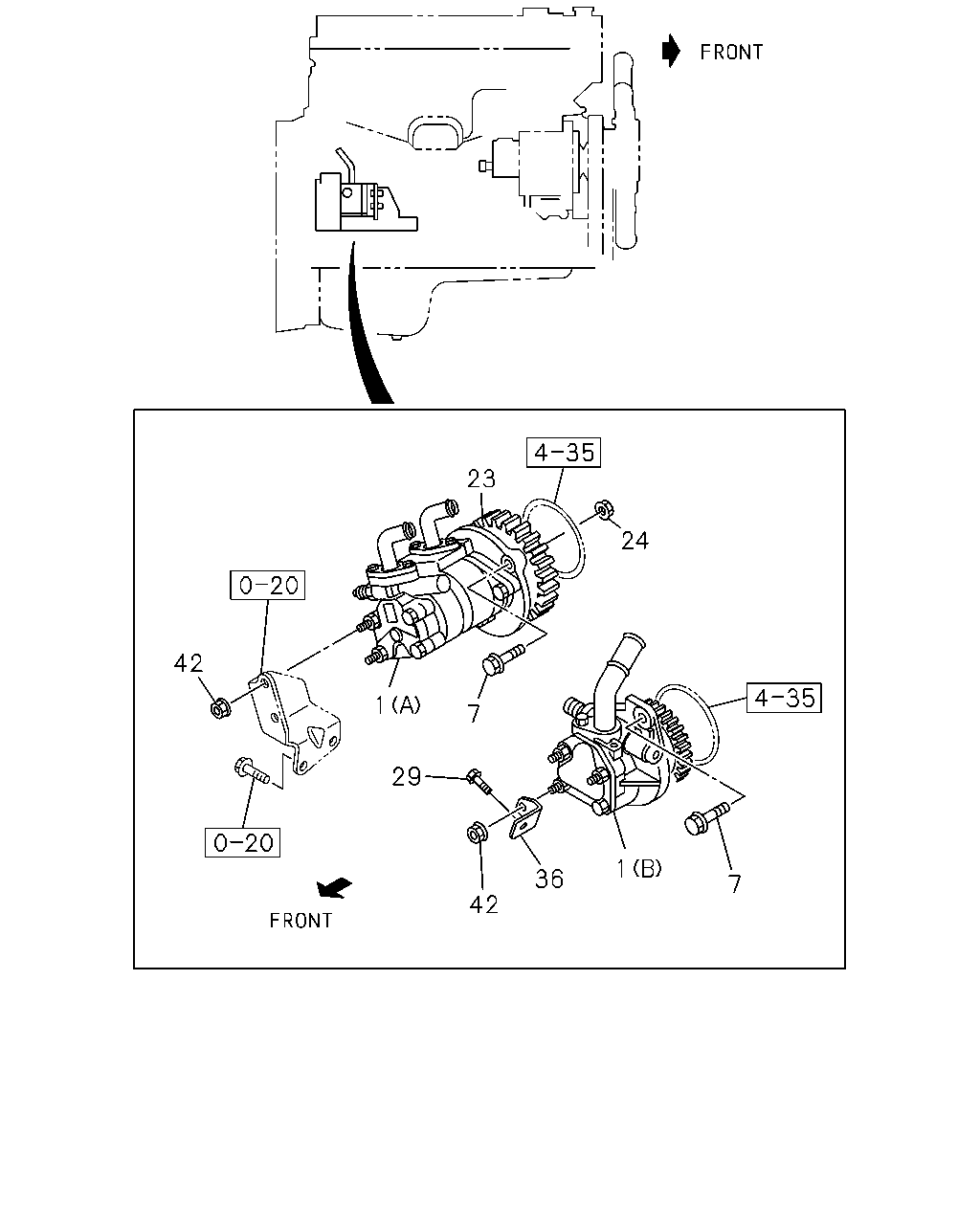

çizim 124386
23 24 7 1 36 42 29 7 1 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98006-793-4 01 1 1302- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		8-98055-007-2 01 1 1112-1301 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98055-007-2 01 1 1302- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		8-98055-007-2 01 1 1302- ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 02 1 1112- ● ●
23 GEAR; OIL PUMP 8-97114-550-1 01 1 1112-1301 ● ●
23 GEAR; OIL PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 1302- ●
23 GEAR; OIL PUMP 8-97114-550-1 01 1 1302- ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-212-0 01 1 1112-1301 ● ●
24 NUT; GEAR,P/S PUMP
HYDRO BRAKE BOOSTER(7QQ) M12 FLANGE 		0-91180-212-0 01 1 1302- ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-212-0 01 1 1302- ●
29 BOLT; BRKT,POWER STRG
EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 1302- ●
36 BRACKET; PLATE,P/S PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 1302- ●
42 NUT; ADJ PLATE
EXC. HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 02 1 1302- ●
42 NUT; ADJ PLATE
M8 FLANGE 		0-91180-108-0 01 1 1112-1301 ● ●
42 NUT; ADJ PLATE
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 01 1 1302- ●
42 NUT; ADJ PLATE
M8 FLANGE 		0-91180-108-0 01 1 1302- ●
