Isuzu WW
▶
TRUCKS
▶
NPR
▶
51300 - NPR(IRAN)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

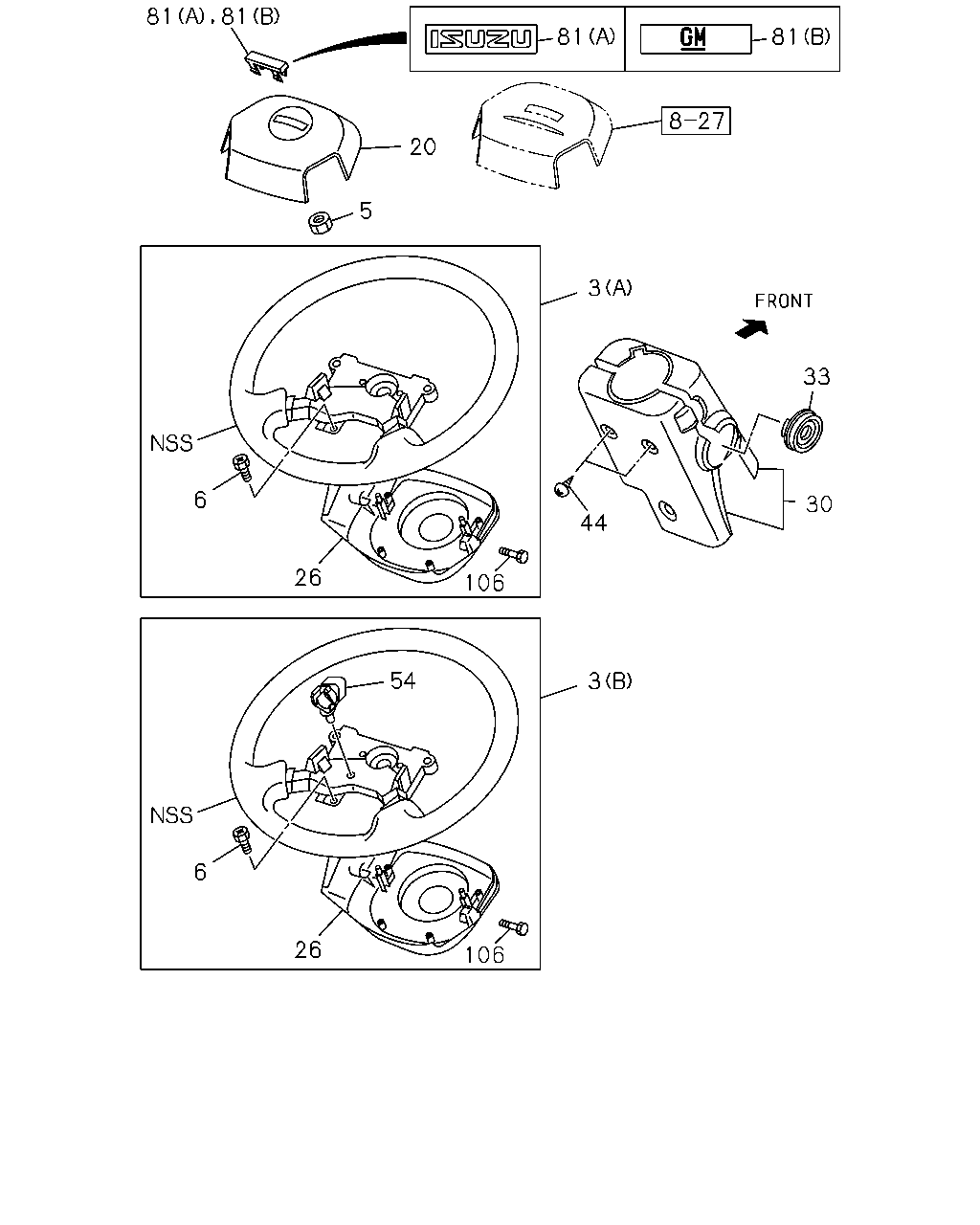

4-30 — STEERING WHEEL AND COWL
(#78551) — 15 parça
Tümü
A - NPR6SN
B - NPR6WN
30
33
3
44
106
3
54
26
6
6
26
106
5
20
81
81
81
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY
8-97421-977-0
01
1
1112-1210
●
●
3
WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY
8-97423-997-0
01
1
1211-
●
●
3
WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY
8-97412-556-1
01
1
1112-
●
●
5
NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1112-
●
●
6
SCREW; HORN SPR CONTACT
M4X12
8-97167-588-0
04
1
1112-
●
●
20
SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97405-985-1
01
1
1112-
●
●
26
COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97421-978-0
01
1
1112-
●
●
26
COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97409-275-2
01
1
1112-
●
●
30
COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1112-
●
●
33
COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
1112-
●
●
44
SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1112-
●
●
54
CLIP; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98165-703-0
01
1
1211-
●
●
81
EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY
8-97405-986-0
01
1
1112-
●
●
81
EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY
8-97405-987-0
01
1
1112-
●
●
106
BOLT; TORX
8-98231-397-0
02
1
1112-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
