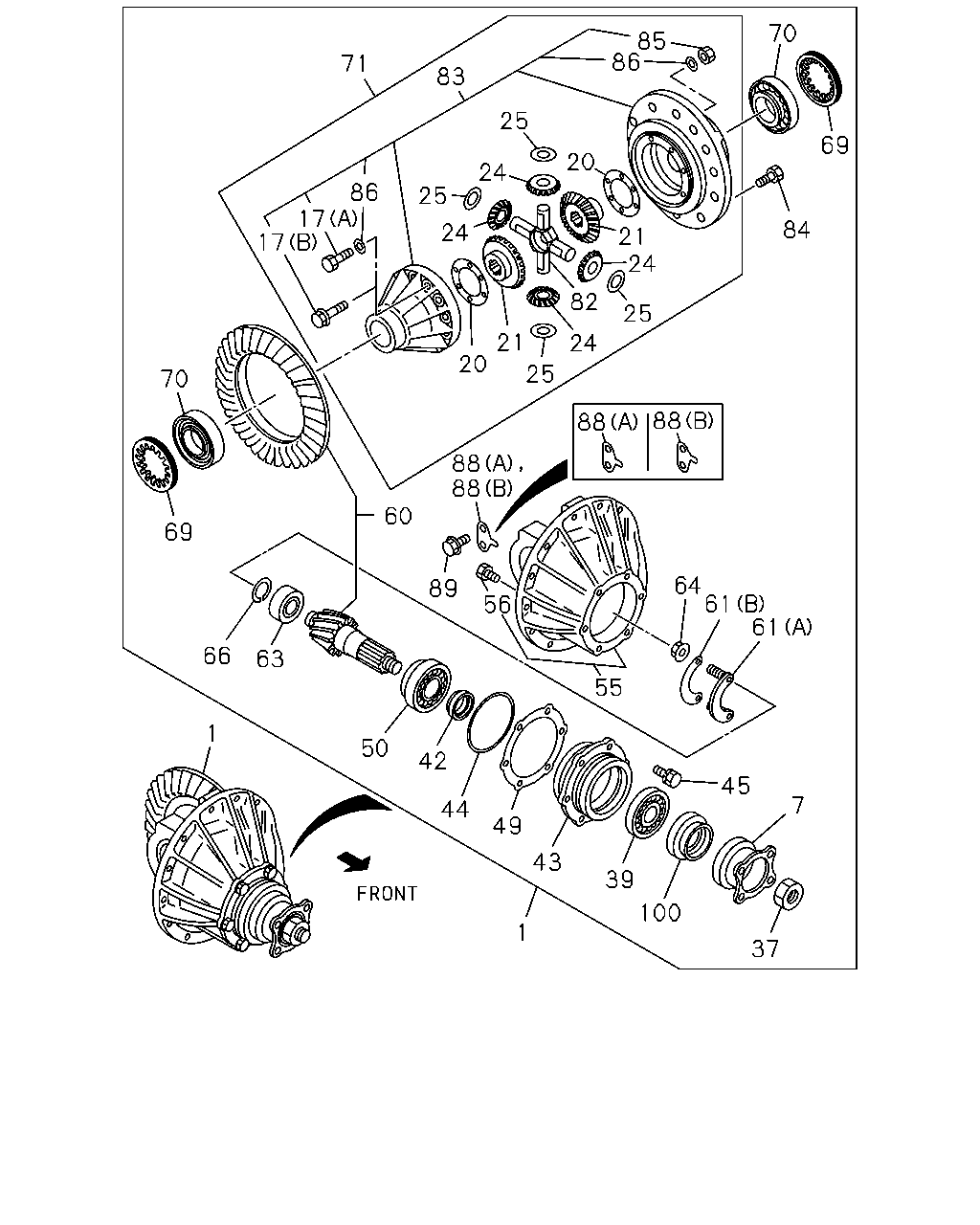

4-25 — REAR FINAL DRIVE (#78550) — 62 parça

1 1 37 100 39 43 49 44 42 50 63 66 69 70 45 7 61 61 64 55 56 89 88 88 60 88 88 25 21 20 24 25 24 21 82 20 25 24 24 25 83 86 17 17 71 84 69 70 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	1112-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97388-704-0	01	1	1112-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97388-703-0	01	1	1112-	●	●
7	FLANGE; FINAL	8-97047-095-2	01	1	1112-	●	●
17	BOLT; DIFF CAGE SETTING (A) M12X90	8-97047-295-0	12	1	1112-1208	●	●
17	BOLT; DIFF CAGE SETTING (B) M12X90	8-98219-448-0	12	1	1209-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1112-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1112-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1112-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1112-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1112-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1112-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1112-	●	●
21	GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1112-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1112-	●	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	1112-	●	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1112-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1112-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1112-	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1112-	●	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	1112-	●	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	1112-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	1112-1209	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1112-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1112-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1112-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1112-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	1112-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1112-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1112-	●	●
55	CARRIER; DIFF	8-97094-637-0	01	1	1112-	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1112-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1112-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	1112-1505	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97061-850-0	01	1	1112-1505	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-98092-146-0	01	1	1506-	●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1112-	●	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1112-	●	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1112-	●	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1112-	●	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	1112-	●	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1112-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1112-	●	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1112-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1)	8-97047-100-4	01	1	1112-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97047-099-4	01	1	1112-	●	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1112-1309	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-	●	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-97047-117-2	01	1	1112-1208	●	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-98219-707-0	01	1	1209-	●	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97047-101-2	01	1	1112-1208	●	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-98219-705-0	01	1	1209-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1112-	●	●
85	NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	1112-	●	●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	1112-1208	●	●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	1112-	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1112-	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	04	1	1112-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1112-	●	●
