◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#7855) — 148 parça

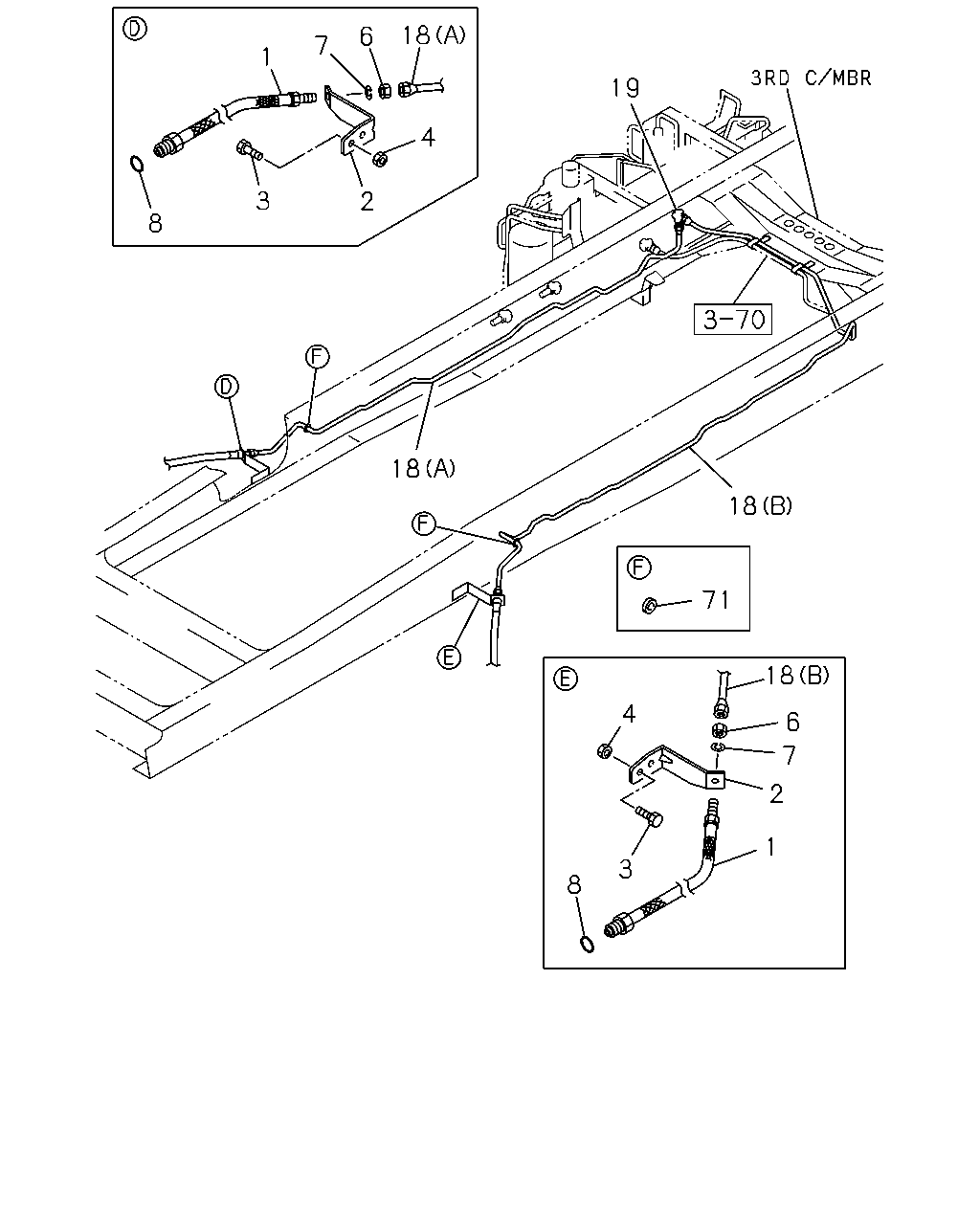

çizim 26800
18 6 7 1 19 4 3 2 8 18 18 71 18 4 6 7 2 1 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK
L=650 		0-05312-650-0 02 1 0302- ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05313-530-0 02 1 9905-0511 ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05213-530-0 02 1 0512- ●
1 HOSE; FLEX,FRT BRK
L=550 		0-05312-550-0 02 1 9905- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-817-0 02 1 0302- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-497-1 02 1 9905- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-295-1 02 1 9905- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 9905-0301 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 0302-0512 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91150-108-0 04 1 9905-0602 ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 9905-0301 ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0302- ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 9905-0301 ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0302-0603 ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		0-91510-512-0 02 1 0604- ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 9905-0301 ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 0302- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2712 SERVICED BY L=2900 		1-47426-364-0 01 1 0302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1943 SERVICED BY L=2000 		1-47426-359-0 01 1 0302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47426-354-0 01 1 9905- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3298 SERVICED BY L=3400 		1-47426-366-0 01 1 9905-9907 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3317 SERVICED BY L=3400 		1-47426-366-0 01 1 9908- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1923 SERVICED BY L=2000 		1-47426-359-0 01 1 9905-9908 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1929 SERVICED BY L=2000 		1-47426-359-0 01 1 9909- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2595 SERVICED BY L=2650 		1-47426-363-0 01 1 9905- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 9905-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 9905-0301 ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 0302-0607 ● ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 9905-0301 ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0302- ● ● ●

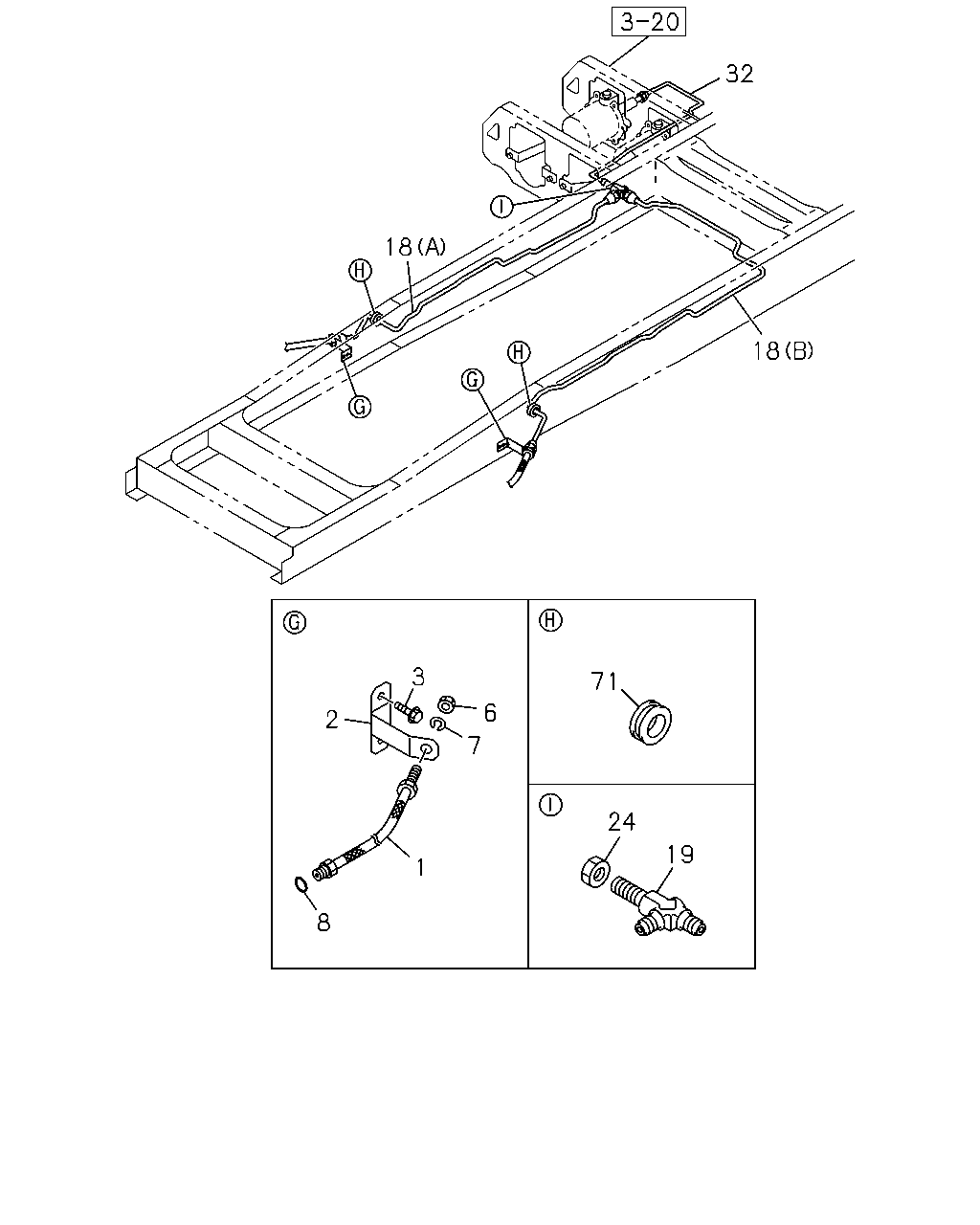

çizim 26801
32 18 18 3 71 6 2 7 24 19 1 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK
L=650 		0-05312-650-0 02 1 0302- ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05313-530-0 02 1 9905-0511 ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05213-530-0 02 1 0512- ●
1 HOSE; FLEX,FRT BRK
L=550 		0-05312-550-0 02 1 9905- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-817-0 02 1 0302- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-497-1 02 1 9905- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-295-1 02 1 9905- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 9905-0301 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 0302-0512 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 9905-0301 ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0302- ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 9905-0301 ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0302-0603 ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		0-91510-512-0 02 1 0604- ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 9905-0301 ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 0302- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2712 SERVICED BY L=2900 		1-47426-364-0 01 1 0302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1943 SERVICED BY L=2000 		1-47426-359-0 01 1 0302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47426-354-0 01 1 9905- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3298 SERVICED BY L=3400 		1-47426-366-0 01 1 9905-9907 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3317 SERVICED BY L=3400 		1-47426-366-0 01 1 9908- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1923 SERVICED BY L=2000 		1-47426-359-0 01 1 9905-9908 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1929 SERVICED BY L=2000 		1-47426-359-0 01 1 9909- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2595 SERVICED BY L=2650 		1-47426-363-0 01 1 9905- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 9905-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 9905-0301 ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 0302-0607 ● ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9905-0301 ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0302- ● ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1218 SERVICED BY L=1200 		1-47426-352-0 01 1 0302-0302 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1176 SERVICED BY L=1200 		1-47426-352-0 01 1 0303- ●
32 PIPE; OIL,AIR MASTER TO UNION
L=604 		1-49164-198-0 01 1 9905-9906 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=605 		1-49164-688-0 01 1 9907- ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1107 SERVICED BY L=1200 		1-47426-352-0 01 1 9905-9910 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1105 		1-49164-715-0 01 1 9911- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 9905-0301 ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0302- ● ● ●

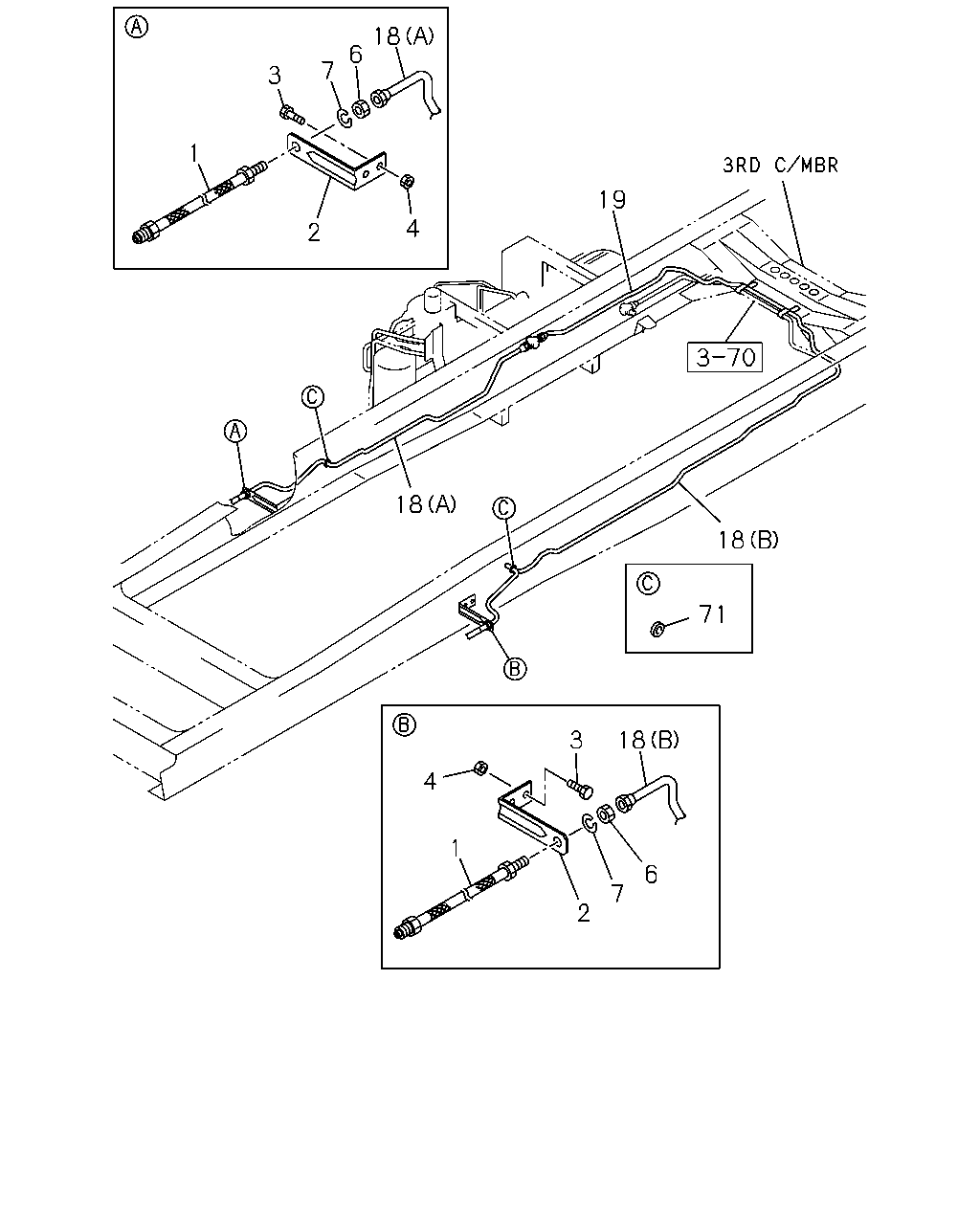

çizim 26982
18 6 7 3 1 19 4 2 18 18 71 3 18 4 1 6 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK
L=650 		0-05312-650-0 02 1 0302- ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05313-530-0 02 1 9905-0511 ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05213-530-0 02 1 0512- ●
1 HOSE; FLEX,FRT BRK
L=550 		0-05312-550-0 02 1 9905- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-817-0 02 1 0302- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-497-1 02 1 9905- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-295-1 02 1 9905- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 9905-0301 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 0302-0512 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91150-108-0 04 1 9905-0602 ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 9905-0301 ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0302- ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 9905-0301 ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0302-0603 ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		0-91510-512-0 02 1 0604- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2712 SERVICED BY L=2900 		1-47426-364-0 01 1 0302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1943 SERVICED BY L=2000 		1-47426-359-0 01 1 0302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47426-354-0 01 1 9905- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3298 SERVICED BY L=3400 		1-47426-366-0 01 1 9905-9907 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3317 SERVICED BY L=3400 		1-47426-366-0 01 1 9908- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1923 SERVICED BY L=2000 		1-47426-359-0 01 1 9905-9908 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1929 SERVICED BY L=2000 		1-47426-359-0 01 1 9909- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2595 SERVICED BY L=2650 		1-47426-363-0 01 1 9905- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 9905-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 9905-0301 ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 0302-0607 ● ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 9905-0301 ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0302- ● ● ●

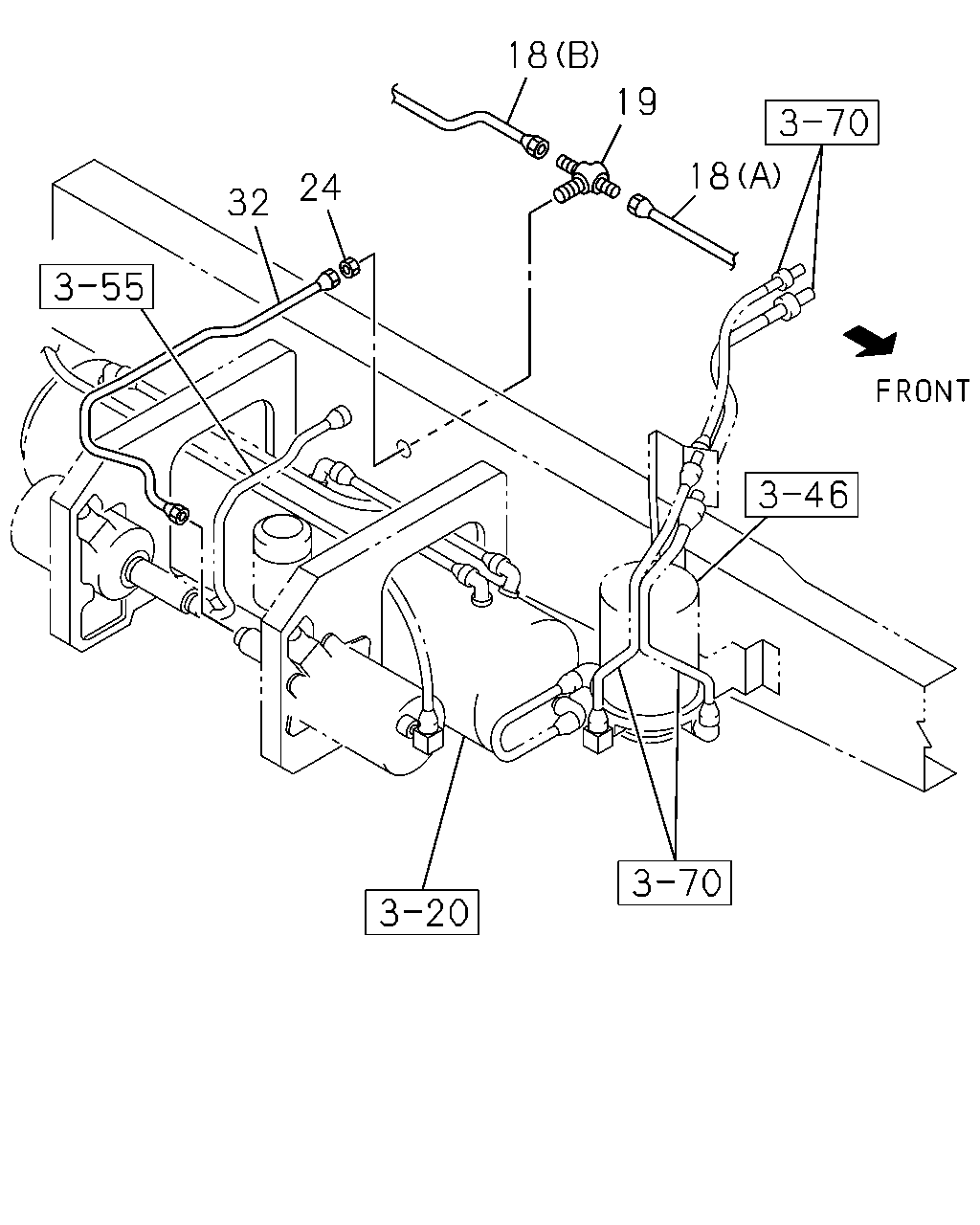

çizim 27026
18 19 18 24 32
BalonParca AdiParca NoAdetTipApplied Date A B C
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2712 SERVICED BY L=2900 		1-47426-364-0 01 1 0302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1943 SERVICED BY L=2000 		1-47426-359-0 01 1 0302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47426-354-0 01 1 9905- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3298 SERVICED BY L=3400 		1-47426-366-0 01 1 9905-9907 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3317 SERVICED BY L=3400 		1-47426-366-0 01 1 9908- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1923 SERVICED BY L=2000 		1-47426-359-0 01 1 9905-9908 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1929 SERVICED BY L=2000 		1-47426-359-0 01 1 9909- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2595 SERVICED BY L=2650 		1-47426-363-0 01 1 9905- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 9905-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 9905-0301 ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 0302-0607 ● ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9905-0301 ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0302- ● ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1218 SERVICED BY L=1200 		1-47426-352-0 01 1 0302-0302 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1176 SERVICED BY L=1200 		1-47426-352-0 01 1 0303- ●
32 PIPE; OIL,AIR MASTER TO UNION
L=604 		1-49164-198-0 01 1 9905-9906 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=605 		1-49164-688-0 01 1 9907- ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1107 SERVICED BY L=1200 		1-47426-352-0 01 1 9905-9910 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1105 		1-49164-715-0 01 1 9911- ●

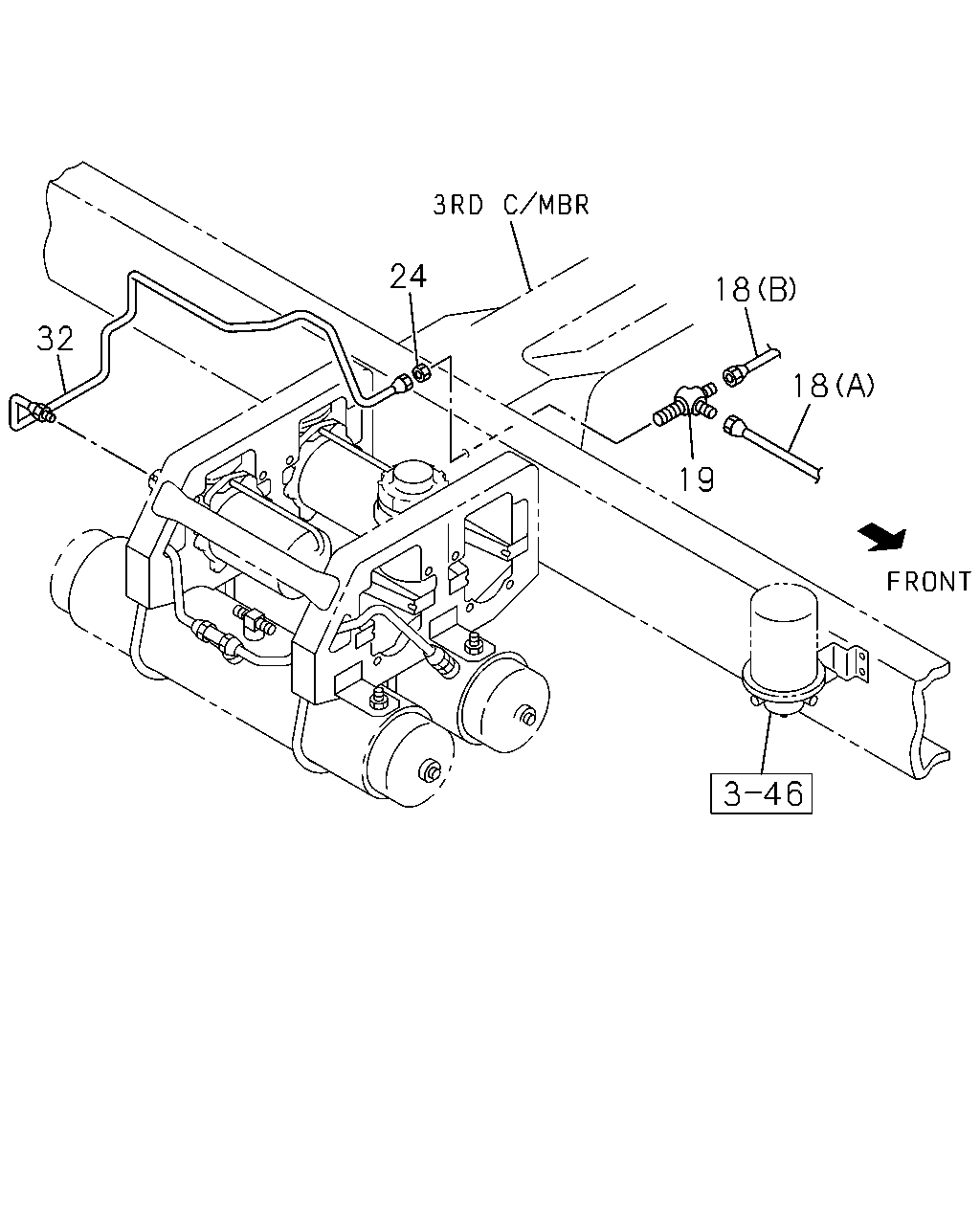

çizim 99009
24 18 32 18 19
BalonParca AdiParca NoAdetTipApplied Date A B C
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2712 SERVICED BY L=2900 		1-47426-364-0 01 1 0302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1943 SERVICED BY L=2000 		1-47426-359-0 01 1 0302- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47426-354-0 01 1 9905- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3298 SERVICED BY L=3400 		1-47426-366-0 01 1 9905-9907 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3317 SERVICED BY L=3400 		1-47426-366-0 01 1 9908- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1923 SERVICED BY L=2000 		1-47426-359-0 01 1 9905-9908 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1929 SERVICED BY L=2000 		1-47426-359-0 01 1 9909- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2595 SERVICED BY L=2650 		1-47426-363-0 01 1 9905- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 9905-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 9905-0301 ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 0302-0607 ● ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9905-0301 ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0302- ● ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1218 SERVICED BY L=1200 		1-47426-352-0 01 1 0302-0302 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1176 SERVICED BY L=1200 		1-47426-352-0 01 1 0303- ●
32 PIPE; OIL,AIR MASTER TO UNION
L=604 		1-49164-198-0 01 1 9905-9906 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=605 		1-49164-688-0 01 1 9907- ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1107 SERVICED BY L=1200 		1-47426-352-0 01 1 9905-9910 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1105 		1-49164-715-0 01 1 9911- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
