◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#78547) — 51 parça

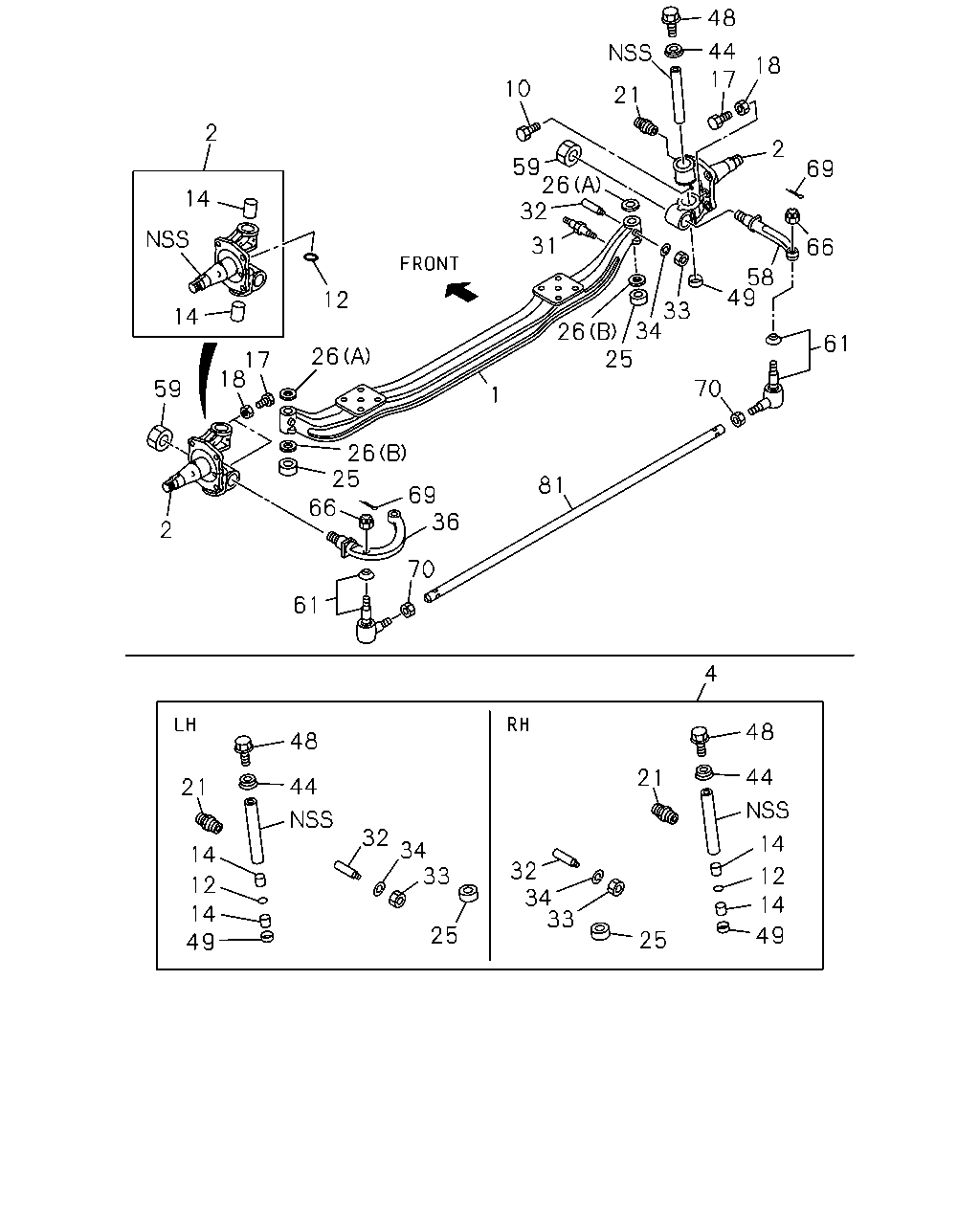

çizim 183628
48 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 25 14 61 26 17 18 70 59 1 26 25 81 69 36 66 2 70 61 4 48 48 21 44 44 21 32 14 34 33 14 32 34 33 12 12 14 14 49 25 49 25 26 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT
FRONT WIDE TREAD<7GV> 		8-98141-521-1 01 1 1112- ●
1 AXLE; FRT
EXC. FRONT WIDE TREAD<7GV> 		8-98038-384-3 01 1 1112- ●
1 AXLE; FRT 8-98038-384-3 01 1 1112- ●
2 KNUCKLE; FRT AXLE 8-98009-941-1 01 1 1112- ● ●
2 KNUCKLE; FRT AXLE 8-98009-942-1 01 1 1112- ● ●
4 KING PIN KIT 5-87832-219-2 01 1 1112-1402 ● ●
4 KING PIN KIT 5-87832-220-2 01 1 1403- ● ●
10 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1112- ● ●
12 GASKET; KNUCKLE 8-98084-500-0 02 1 1112- ● ●
14 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1112- ● ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1112- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		0-91111-512-0 03 1 1112- ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT 		0-90301-406-0 04 1 1112- ● ●
25 BEARING; THRUST,KING PIN
OD=54 ID=30.2 T=13.8 		8-94248-883-2 02 1 1112-1402 ● ●
25 BEARING; THRUST,KING PIN
OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1403- ● ●
25 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1403- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1112- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1112- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1112- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1112- ● ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 02 1 1112-1402 ● ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 01 1 1403- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1112- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1112- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1112- ● ●
31 PIN; S/ABS,LWR
EXC. FRONT WIDE TREAD<7GV> 		8-97145-460-0 02 1 1112- ●
31 PIN; S/ABS,LWR 8-97145-460-0 02 1 1112- ●
32 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1112- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1112- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1112- ● ●
36 ARM; KNUCKLE
FRONT WIDE TREAD<7GV> 		8-98135-280-2 01 1 1112- ●
36 ARM; KNUCKLE
EXC. FRONT WIDE TREAD<7GV> 		8-97210-771-5 01 1 1112- ●
36 ARM; KNUCKLE 8-97210-771-5 01 1 1112- ●
44 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1112- ● ●
48 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1112- ● ●
49 CAP; KNUCKLE 8-97360-024-0 02 1 1112- ● ●
58 ARM; TIE ROD 8-97147-636-2 01 1 1112- ● ●
59 NUT; TIE ROD ARM 8-97360-123-0 02 1 1112- ● ●
61 ROD END; TIE ROD 8-97142-100-1 01 1 1112-1310 ● ●
61 ROD END; TIE ROD 8-97107-348-2 01 1 1311- ● ●
61 ROD END; TIE ROD 8-97142-101-1 01 1 1112-1310 ● ●
61 ROD END; TIE ROD 8-97107-349-2 01 1 1311- ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 1112-1204 ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 IRA 		0-81124-020-0 02 1 1112- ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1112-1310 ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1311- ● ●
70 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1112- ● ●
81 ROD; TIE
FRONT WIDE TREAD<7GV> 		8-98137-615-0 01 1 1112- ●
81 ROD; TIE
EXC. FRONT WIDE TREAD<7GV> 		8-97061-869-0 01 1 1112- ●
81 ROD; TIE 8-97061-869-0 01 1 1112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
