4-01 — PROPELLER SHAFT (#78546) — 27 parça

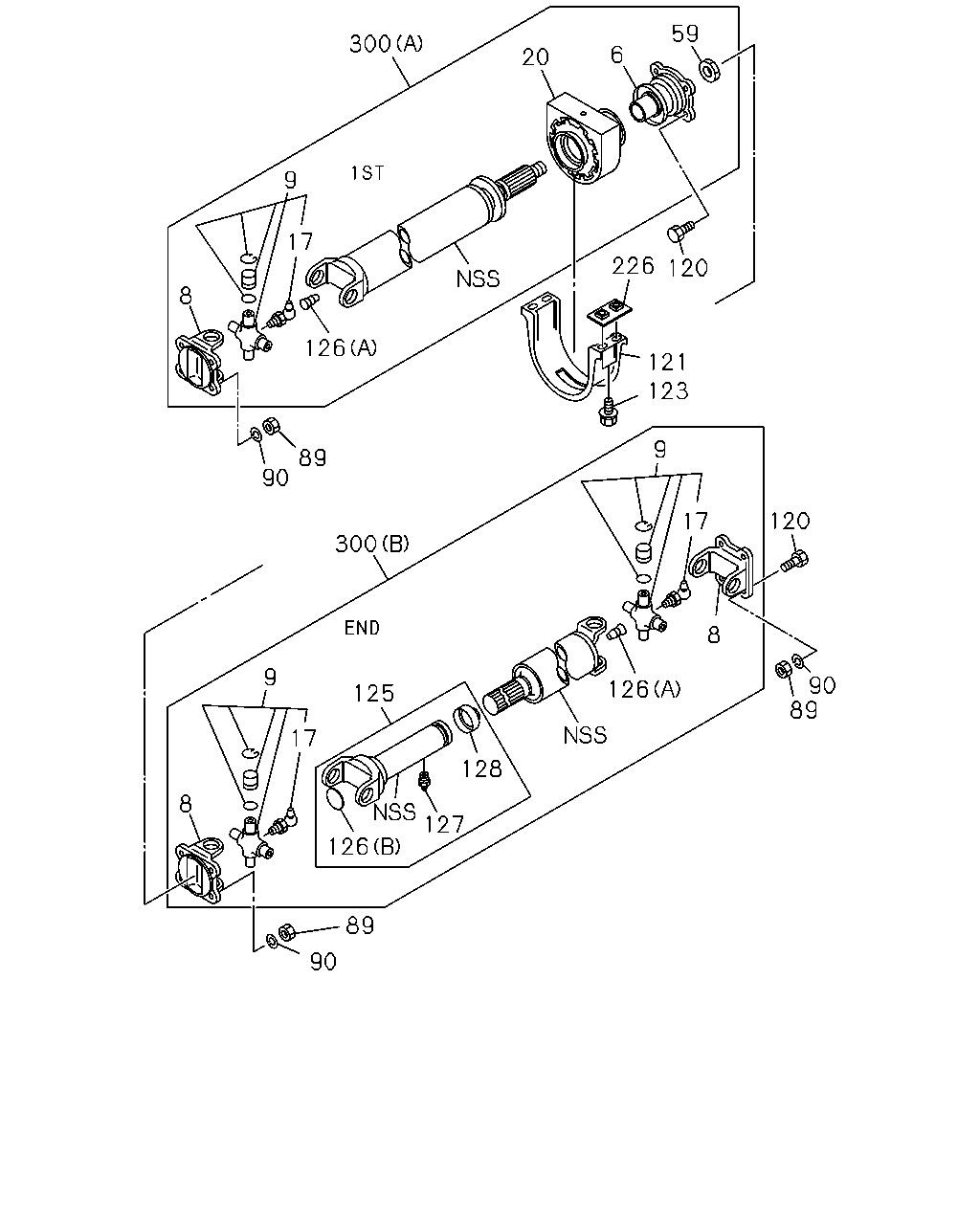

çizim 122798
59 300 6 20 9 17 226 120 8 126 121 123 9 89 90 120 17 300 8 9 90 89 126 125 17 128 127 8 126 89 90
BalonParca AdiParca NoAdetTipApplied Date A B
6 COUPLING ASM; DRIVER,PROP SHAFT 8-98020-796-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
D=80 IRA 		1-37211-037-4 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
D=80 IRA 		1-37211-037-4 02 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
IRA 		8-98020-789-1 01 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
IRA 		8-98020-789-1 02 1 1112- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW IRA 		0-90301-610-0 01 1 1112- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW IRA 		0-90301-610-0 02 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-880-0 01 1 1112- ● ●
59 NUT; RET TO SUPPORT
M30 		8-97160-857-0 01 1 1112- ● ●
89 NUT; YOKE TO RR AXLE
M12 		8-97365-450-1 12 1 1112- ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=12.2 		0-91510-812-0 12 1 1112- ● ●
120 BOLT; YOKE TO RR AXLE
M12X35 		8-97365-451-1 08 1 1112- ● ●
121 RETAINER; CUSHION RUBBER 8-97035-623-1 01 1 1112- ● ●
123 BOLT; RET
M10X25 W/LK&PL WASHER 		0-50641-025-0 04 1 1112- ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
L=224 IRA 		8-98044-229-0 01 1 1112- ● ●
126 PLUG; SPLINED YOKE
(B) IRA 		8-94366-900-0 01 1 1112- ● ●
126 PLUG; SPLINED YOKE
(A) IRA 		1-09600-023-0 01 1 1112- ● ●
126 PLUG; SPLINED YOKE
(A) IRA 		1-09600-023-0 01 1 1112- ● ●
127 NIPPLE; GREASE,SPLINED YOKE
M6 STRAIGHT 		0-90301-406-0 01 1 1112- ● ●
128 SEAL; SLEEVE
IRA 		8-97145-746-0 01 1 1112- ● ●
226 PLATE; LK,CENTER BRG 8-97371-572-0 02 1 1112- ● ●
300 SHAFT ASM; PROP,RR
WHEEL BASE 4400MM(44W) (A) L=1367 		8-98019-423-1 01 1 1112- ●
300 SHAFT ASM; PROP,RR
WHEEL BASE 4400MM(44W) (B) L=1302 IRA 		8-98024-925-1 01 1 1112- ●
300 SHAFT ASM; PROP,RR
WHEEL BASE 3800MM(38W) (B) L=1011 		8-98040-477-1 01 1 1112- ●
300 SHAFT ASM; PROP,RR
(B) L=1011 		8-98040-477-1 01 1 1112- ●
300 SHAFT ASM; PROP,RR
WHEEL BASE 3800MM(38W) (A) L=1127 		8-98040-793-1 01 1 1112- ●
300 SHAFT ASM; PROP,RR
(A) L=1127 		8-98040-793-1 01 1 1112- ●
