Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#78545) — 362 parça

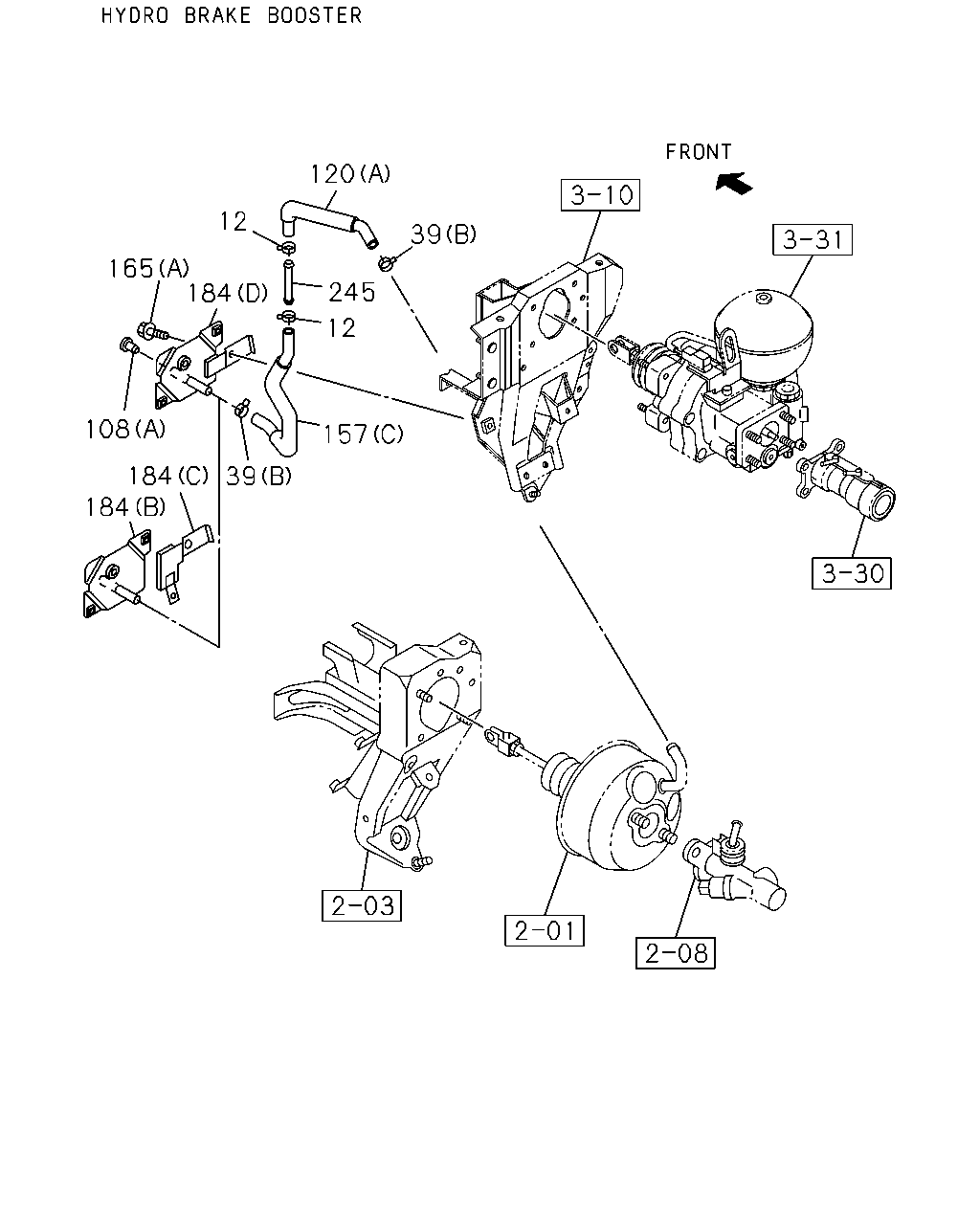

120 39 245 12 12 184 165 157 39 108 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	06	1	1302-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1112-1301	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1112-1301	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1302-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1302-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1302-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	04	1	1302-	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	1112-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1112-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1112-1301	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-98008-098-0	02	1	1112-1205	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1206-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1302-		●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1112-1301	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1302-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1302-		●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1112-1301	●	●
108	GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1302-	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1302-		●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1112-	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1112-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-856-2	01	1	1302-	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-857-3	01	1	1112-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	1302-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	1302-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1112-	●	●
165	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1112-	●	●
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1112-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-541-0	01	1	1312-	●
184	BRACKET; UNION FIX (C)	8-98255-541-0	01	1	1312-		●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (H)	8-98183-468-1	01	1	1302-	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-465-1	01	1	1302-1311	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-536-0	01	1	1312-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-469-1	01	1	1302-	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-466-1	01	1	1302-1311	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-537-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-471-1	01	1	1112-1301	●
184	BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1112-1301		●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-471-1	01	1	1302-1311	●
184	BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1302-1311		●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-538-0	01	1	1312-	●
184	BRACKET; UNION FIX (B)	8-98255-538-0	01	1	1312-		●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-526-0	01	1	1112-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-474-1	01	1	1112-1301	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-474-1	01	1	1302-	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1112-1204	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●	●
245	JOINT; 2 WAY POWER ASSIST CLUTCH(S2T)	8-98048-075-0	01	1	1112-1301	●	●
245	JOINT; 2 WAY POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98048-075-0	01	1	1302-	●
245	JOINT; 2 WAY POWER ASSIST CLUTCH(S2T)	8-98048-075-0	01	1	1302-		●

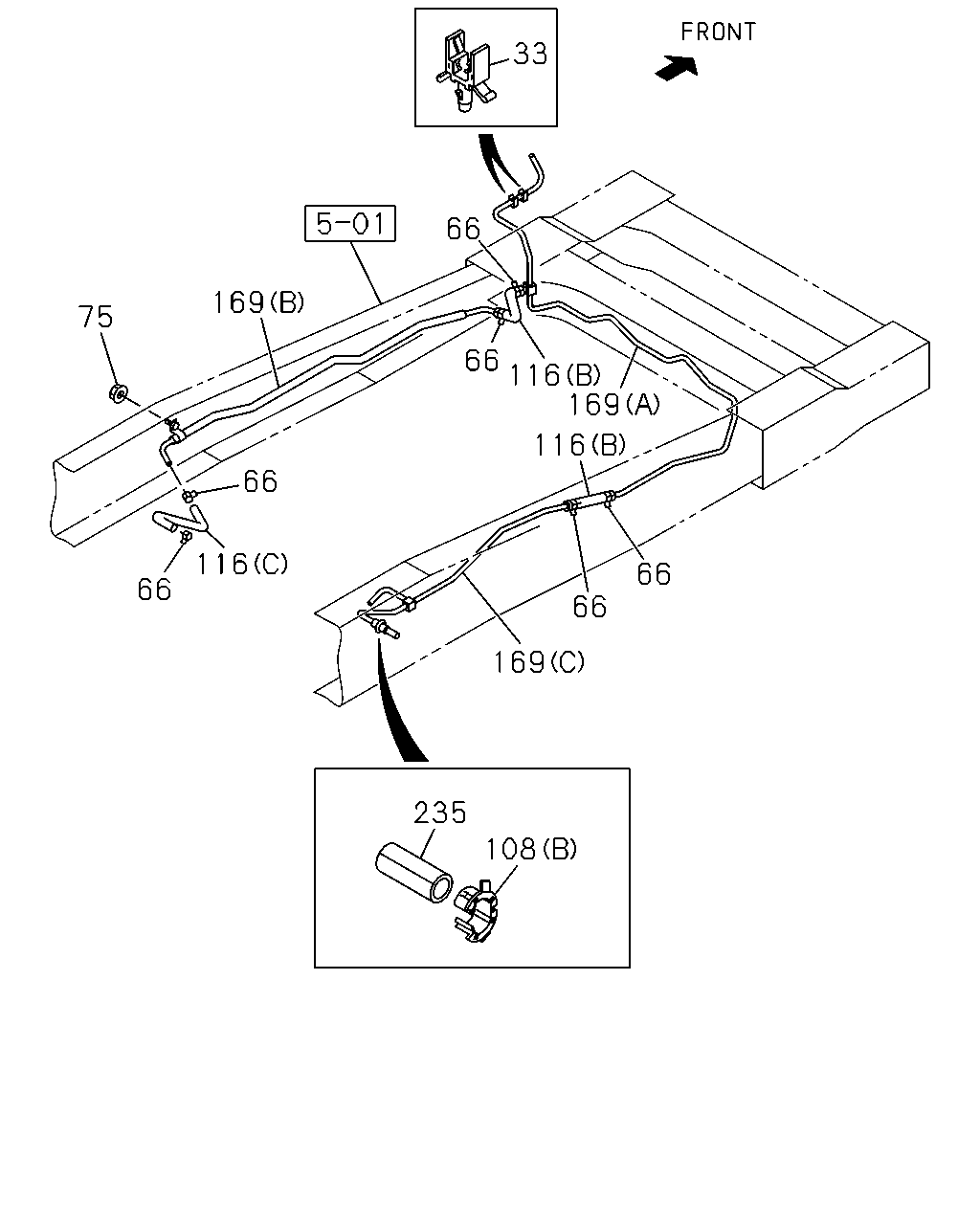

108 235 169 66 66 116 169 116 66 66 33 169 75 66 116 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) ID=10 H=40	8-94462-219-0	02	1	1112-1301	●	●
33	CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1302-	●
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1302-	●
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) ID=10 H=40	8-94462-219-0	02	1	1302-		●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	06	1	1112-	●	●
75	NUT; CLIP,VAC HOSE M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1112-1301	●	●
108	GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1302-	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1302-		●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1112-	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1112-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1302-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1112-	●	●
116	HOSE; VAC,M/VAC (C)	8-98158-378-0	01	1	1112-	●	●
116	HOSE; VAC,M/VAC (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1112-	●	●
116	HOSE; VAC,M/VAC (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1112-	●	●
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-901-0	01	1	1112-1301	●	●
169	PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-901-0	01	1	1302-	●
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-901-0	01	1	1302-		●
169	PIPE; VAC,BOOSTER SIDE (B)	8-98041-052-2	01	1	1112-	●	●
169	PIPE; VAC,BOOSTER SIDE (C)	8-98048-903-0	01	1	1112-	●	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98092-067-0	01	1	1112-1301	●	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	1302-	●
169	PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	1302-	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98092-067-0	01	1	1302-		●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1112-	●	●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1112-	●	●

136 136 78 44 158 236 136 78 136 44 136 78 136 136 122 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	PIPE; VAC,MAG VLV (B)	8-98057-425-1	01	1	1112-	●	●
44	PIPE; VAC,MAG VLV (A)	8-98070-194-0	01	1	1112-	●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98096-135-0	01	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98189-103-0	01	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98057-462-0	01	1	1112-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (B)	8-98081-681-2	01	1	1112-1301	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (B)	8-98081-681-2	01	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (E)	8-98112-680-0	01	1	1112-	●	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98136-614-0	01	1	1112-1301	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98136-614-0	01	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-287-0	01	1	1112-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-105-0	01	1	1112-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1112-	●
136	CLIP; VAC HOSE ID=16	8-98008-098-0	02	1	1112-	●
136	CLIP; VAC HOSE ID=16	8-98008-098-0	06	1	1112-	●	●
158	CLIP; HOSE ID=14-20	8-97061-603-0	01	1	1112-	●
236	BOLT; PIPE M8X25 FLANGE	0-28650-825-0	01	1	1112-	●

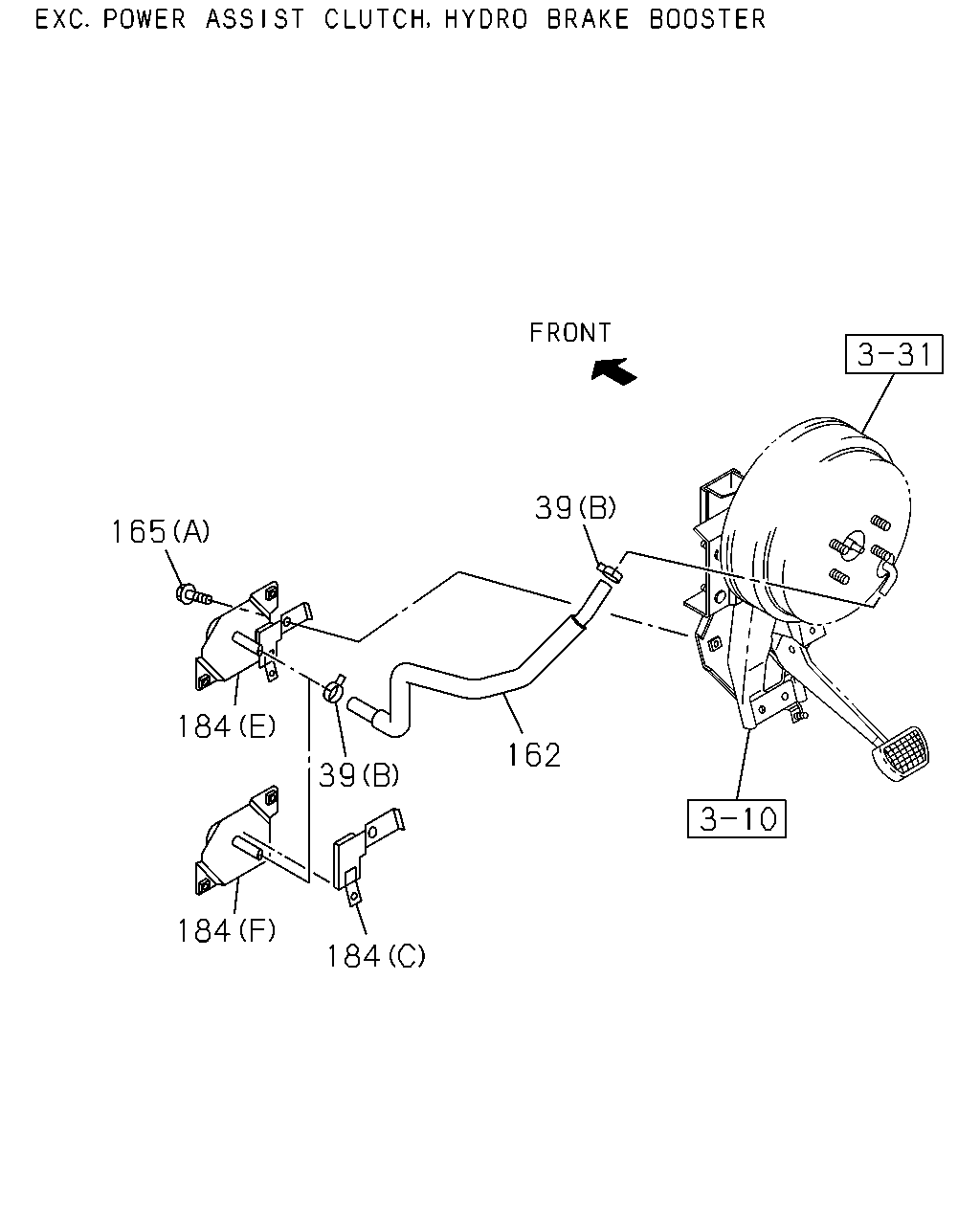

162 39 165 184 39 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	04	1	1302-	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	1112-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1112-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1112-1301	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-98008-098-0	02	1	1112-1205	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1206-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1302-		●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1112-1301	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1302-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1302-		●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98034-154-2	01	1	1302-	●
165	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1112-	●	●
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1112-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-541-0	01	1	1312-	●
184	BRACKET; UNION FIX (C)	8-98255-541-0	01	1	1312-		●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (H)	8-98183-468-1	01	1	1302-	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-465-1	01	1	1302-1311	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-536-0	01	1	1312-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-469-1	01	1	1302-	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-466-1	01	1	1302-1311	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-537-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-471-1	01	1	1112-1301	●
184	BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1112-1301		●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-471-1	01	1	1302-1311	●
184	BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1302-1311		●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-538-0	01	1	1312-	●
184	BRACKET; UNION FIX (B)	8-98255-538-0	01	1	1312-		●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-526-0	01	1	1112-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-474-1	01	1	1112-1301	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-474-1	01	1	1302-	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1112-1204	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●	●

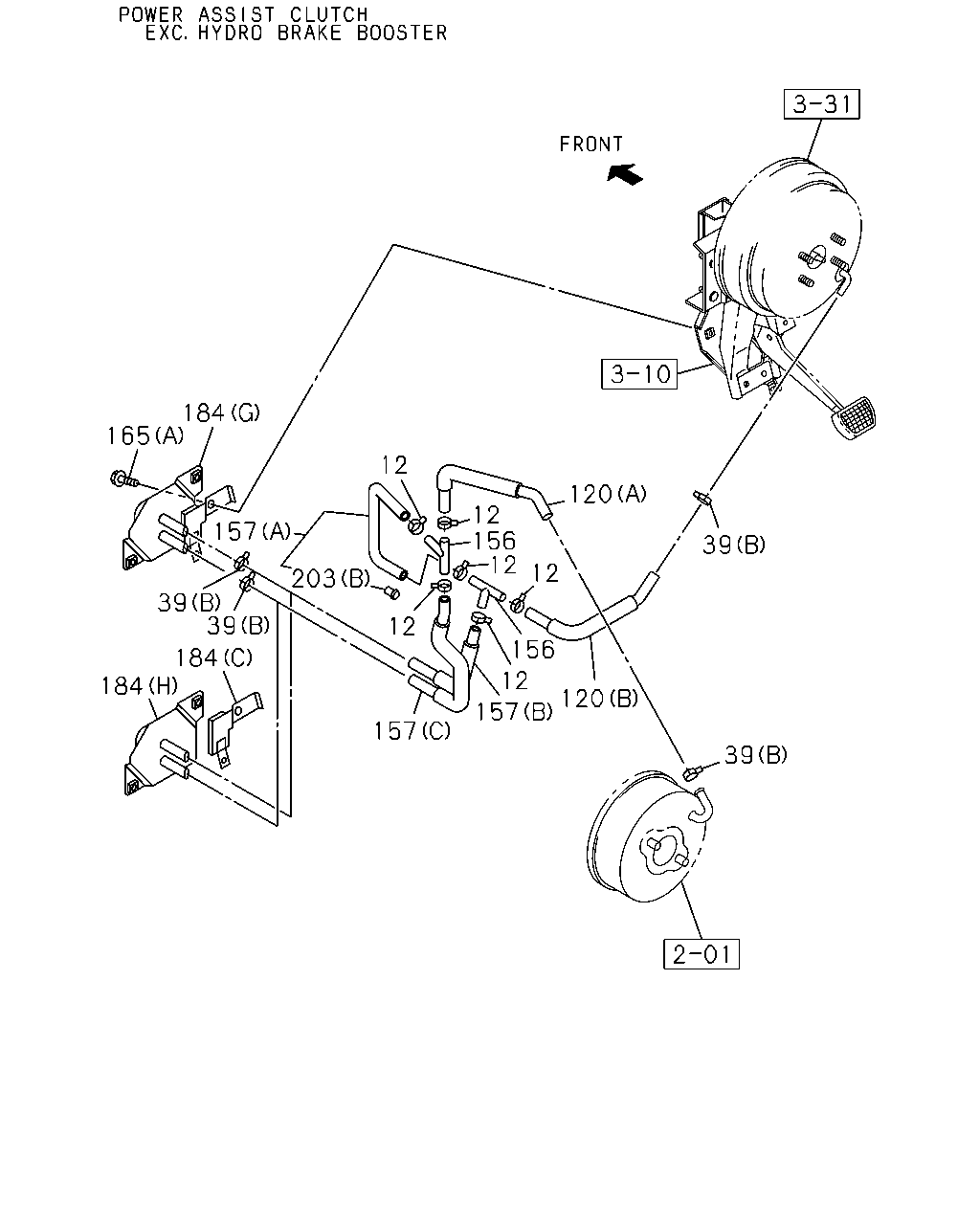

39 120 157 157 12 12 120 12 12 156 203 12 12 157 184 165 39 39 184 184 39 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	06	1	1302-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1112-1301	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1112-1301	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1302-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1302-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1302-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	04	1	1302-	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	1112-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1112-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1112-1301	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-98008-098-0	02	1	1112-1205	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1206-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1302-		●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1112-1301	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1302-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1302-		●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-856-2	01	1	1302-	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-857-3	01	1	1112-	●	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	02	1	1302-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	1302-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	1302-	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1112-	●	●
165	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1112-	●	●
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1112-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-541-0	01	1	1312-	●
184	BRACKET; UNION FIX (C)	8-98255-541-0	01	1	1312-		●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (H)	8-98183-468-1	01	1	1302-	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-465-1	01	1	1302-1311	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-536-0	01	1	1312-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-469-1	01	1	1302-	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-466-1	01	1	1302-1311	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-537-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-471-1	01	1	1112-1301	●
184	BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1112-1301		●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-471-1	01	1	1302-1311	●
184	BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1302-1311		●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-538-0	01	1	1312-	●
184	BRACKET; UNION FIX (B)	8-98255-538-0	01	1	1312-		●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-526-0	01	1	1112-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-474-1	01	1	1112-1301	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-474-1	01	1	1302-	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1112-1204	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-94386-540-0	01	1	1302-	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94104-021-0	01	1	1112-	●	●

39 234 173 173 202 165 234 234 13 12 12 203 184 20 39 116 78 39 234 96 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	06	1	1302-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1112-1301	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1112-1301	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1302-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1302-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1302-	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1302-		●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1112-1301	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	02	1	1302-	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	02	1	1302-	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE	0-91180-106-0	01	1	1112-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	04	1	1302-	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	1112-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1112-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1112-1301	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-98008-098-0	02	1	1112-1205	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1206-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1302-		●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1112-1301	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1302-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98096-135-0	01	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98189-103-0	01	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98057-462-0	01	1	1112-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (B)	8-98081-681-2	01	1	1112-1301	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (B)	8-98081-681-2	01	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (E)	8-98112-680-0	01	1	1112-	●	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98136-614-0	01	1	1112-1301	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98136-614-0	01	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-287-0	01	1	1112-	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-322-0	01	1	1302-	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98082-321-0	01	1	1112-1301	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98082-321-0	01	1	1302-	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98082-321-0	01	1	1302-		●
98	BOLT; VAC PIPE FIX M6X12 FLANGE	0-28050-612-0	02	1	1112-		●
98	BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) M6X12 FLANGE	0-28050-612-0	01	1	1112-1301	●	●
98	BOLT; VAC PIPE FIX M6X12 FLANGE	0-28050-612-0	01	1	1112-1301	●	●
98	BOLT; VAC PIPE FIX M6X12 FLANGE	0-28050-612-0	01	1	1302-	●	●
98	BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE	0-28050-612-0	01	1	1302-	●
98	BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) M6X12 FLANGE	0-28050-612-0	01	1	1302-		●
98	BOLT; VAC PIPE FIX EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE	0-28650-825-0	01	1	1112-1301	●	●
98	BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
98	BOLT; VAC PIPE FIX EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE	0-28650-825-0	01	1	1302-		●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1302-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1112-	●	●
116	HOSE; VAC,M/VAC (C)	8-98158-378-0	01	1	1112-	●	●
116	HOSE; VAC,M/VAC (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1112-	●	●
116	HOSE; VAC,M/VAC (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1112-	●	●
165	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1112-	●	●
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1112-	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98047-184-2	01	1	1302-	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98031-774-1	01	1	1302-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-541-0	01	1	1312-	●
184	BRACKET; UNION FIX (C)	8-98255-541-0	01	1	1312-		●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (H)	8-98183-468-1	01	1	1302-	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-465-1	01	1	1302-1311	●
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-536-0	01	1	1312-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-469-1	01	1	1302-	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-466-1	01	1	1302-1311	●
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-537-0	01	1	1312-	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-471-1	01	1	1112-1301	●
184	BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1112-1301		●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-471-1	01	1	1302-1311	●
184	BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1302-1311		●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-538-0	01	1	1312-	●
184	BRACKET; UNION FIX (B)	8-98255-538-0	01	1	1312-		●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-526-0	01	1	1112-	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-474-1	01	1	1112-1301	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-474-1	01	1	1302-	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1112-1204	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●	●
202	SEAL	8-97856-616-0	02	1	1112-	●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-94386-540-0	01	1	1302-	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94104-021-0	01	1	1112-	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16	8-94238-568-0	04	1	1302-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	03	1	1112-1301	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=16	8-94238-568-0	03	1	1302-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=16	8-94238-568-0	03	1	1302-	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	03	1	1302-		●

39 39 78 39 39 39 80 39 78 80 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	04	1	1302-	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	1112-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1112-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1112-1301	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-98008-098-0	02	1	1112-1205	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1206-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1302-		●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1112-1301	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1302-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98096-135-0	01	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98189-103-0	01	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98057-462-0	01	1	1112-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (B)	8-98081-681-2	01	1	1112-1301	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (B)	8-98081-681-2	01	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (E)	8-98112-680-0	01	1	1112-	●	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98136-614-0	01	1	1112-1301	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98136-614-0	01	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-287-0	01	1	1112-	●
80	PIPE; VAC,ENG SIDE (C)	8-98092-258-1	01	1	1112-		●
80	PIPE; VAC,ENG SIDE (B)	8-98039-753-0	01	1	1112-1301	●	●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	1302-	●
80	PIPE; VAC,ENG SIDE (B)	8-98039-753-0	01	1	1302-		●
80	PIPE; VAC,ENG SIDE (A)	8-98097-788-0	01	1	1112-1301	●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	1302-	●

39 80 78 39 39 39 39 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	04	1	1302-	●
39	CLIP; HOSE,VAC (D) ID=21.7	8-97203-074-0	02	1	1112-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1112-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1112-1301	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16	8-94238-568-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1302-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-98008-098-0	02	1	1112-1205	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1206-1301	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (D) ID=16	8-97329-628-0	02	1	1302-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1302-		●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1112-1301	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1302-	●
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	06	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98096-135-0	01	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE (F)	8-98189-103-0	01	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE (D)	8-98057-462-0	01	1	1112-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (B)	8-98081-681-2	01	1	1112-1301	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (B)	8-98081-681-2	01	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (E)	8-98112-680-0	01	1	1112-	●	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98136-614-0	01	1	1112-1301	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1302-	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98136-614-0	01	1	1302-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-287-0	01	1	1112-	●
80	PIPE; VAC,ENG SIDE (C)	8-98092-258-1	01	1	1112-		●
80	PIPE; VAC,ENG SIDE (B)	8-98039-753-0	01	1	1112-1301	●	●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	1302-	●
80	PIPE; VAC,ENG SIDE (B)	8-98039-753-0	01	1	1302-		●
80	PIPE; VAC,ENG SIDE (A)	8-98097-788-0	01	1	1112-1301	●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	1302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
