◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#78544) — 86 parça

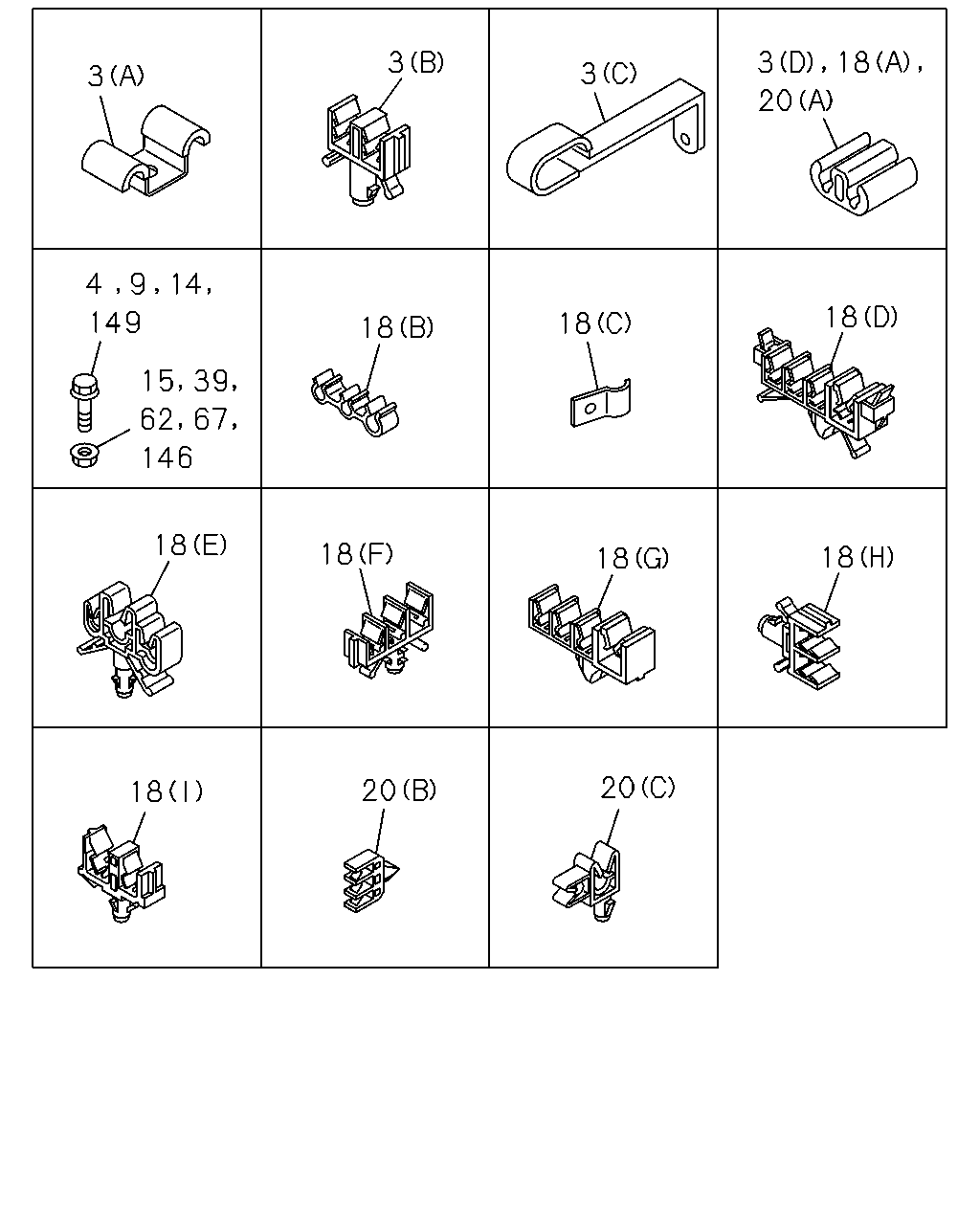

çizim 121608
3 18 3 3 3 20 4 18 149 18 18 146 18 18 18 18 20 20 18 9 14 15 39 62 67
BalonParca AdiParca NoAdetTipApplied Date A B
3 CLIP; BRK PIPE
(A) ID=13 & 18 L=17 & 19 		8-98067-703-0 03 1 1112- ●
3 CLIP; BRK PIPE
(A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 1112-1301 ● ●
3 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 1302- ●
3 CLIP; BRK PIPE
(A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 1302- ●
3 CLIP; BRK PIPE
(C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1112-1301 ● ●
3 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1302- ●
3 CLIP; BRK PIPE
(C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1302- ●
3 CLIP; BRK PIPE
(D) ID=10X2 H=22 		8-94252-455-2 03 1 1112-1301 ● ●
3 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (D) ID=10X2 H=22 		8-94252-455-2 03 1 1302- ●
3 CLIP; BRK PIPE
(D) ID=10X2 H=22 		8-94252-455-2 03 1 1302- ●
3 CLIP; BRK PIPE
(B) ID=10X2 H=37.5 		8-97018-546-0 01 1 1112-1301 ● ●
3 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 1302- ●
3 CLIP; BRK PIPE
(B) ID=10X2 H=37.5 		8-97018-546-0 01 1 1302- ●
4 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1112- ●
4 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 1112- ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
4 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 01 1 1112-1301 ● ●
4 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M10X25 FLANGE 		0-28651-025-0 01 1 1302- ●
4 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 01 1 1302- ●
9 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1112- ● ●
9 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1112- ● ●
14 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
15 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 1112- ● ●
18 CLIP; BRK PIPE
(E) ID=12 & 6.35 & 4.76 		8-97202-954-1 02 1 1408- ● ●
18 CLIP; BRK PIPE
(C) B=18 L=20 		1-09700-372-0 02 1 1112- ● ●
18 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1112- ● ●
18 CLIP; BRK PIPE
(H) ID=4.8X2 IRA 		8-94316-410-0 01 1 1112- ● ●
18 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94389-060-0 01 1 1112- ● ●
18 CLIP; BRK PIPE
(I) ID=4.8X2 		8-94455-816-0 01 1 1112- ● ●
18 CLIP; BRK PIPE
(F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1112- ● ●
18 CLIP; BRK PIPE
(F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1112- ● ●
18 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 02 1 1112- ● ●
18 CLIP; BRK PIPE
(E) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 1112-1407 ● ●
18 CLIP; BRK PIPE
(E) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1408- ● ●
18 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1112- ●
18 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1112- ●
18 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1112- ● ●
18 CLIP; BRK PIPE
WHEEL BASE 4400MM(44W) (D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1112- ●
20 CLIP; BRK PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 1302- ●
20 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1112- ● ●
20 CLIP; BRK PIPE
(A) ID=6.35 & 6.35 		8-94474-113-0 03 1 1112-1301 ● ●
20 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) ID=6.35 & 6.35 		8-94474-113-0 03 1 1302- ●
20 CLIP; BRK PIPE
(A) ID=6.35 & 6.35 		8-94474-113-0 03 1 1302- ●
20 CLIP; BRK PIPE
(C) ID=12 & 6.35 		8-97215-437-0 01 1 1112-1301 ● ●
20 CLIP; BRK PIPE
(C) ID=12 & 6.35 		8-97215-437-0 01 1 1112-1301 ● ●
20 CLIP; BRK PIPE
(C) ID=12 & 6.35 		8-97215-437-0 01 1 1302- ● ●
20 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (C) ID=12 & 6.35 		8-97215-437-0 01 1 1302- ●
20 CLIP; BRK PIPE
(C) ID=12 & 6.35 		8-97215-437-0 01 1 1302- ●
39 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
39 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
62 NUT
M10 FLANGE 		0-91180-110-0 02 1 1112-1301 ● ●
62 NUT
HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE 		0-91180-110-0 02 1 1302- ●
62 NUT
M10 FLANGE 		0-91180-110-0 02 1 1302- ●
67 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 1112- ●
67 NUT; BRKT
M14 		0-91111-514-0 01 1 1112-1301 ● ●
67 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M14 		0-91111-514-0 01 1 1302- ●
67 NUT; BRKT
M14 		0-91111-514-0 01 1 1302- ●
67 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 1112-1301 ● ●
67 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE 		0-91180-110-0 01 1 1302- ●
67 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 1302- ●
146 NUT; PIPE
M6 FLANGE 		0-91180-106-0 01 1 1112- ●
146 NUT; PIPE
M8 FLANGE 		0-91180-108-0 01 1 1112-1301 ● ●
146 NUT; PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE 		0-91180-108-0 01 1 1112-1301 ● ●
146 NUT; PIPE
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 01 1 1302- ●
146 NUT; PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 01 1 1302- ●
146 NUT; PIPE
M8 FLANGE 		0-91180-108-0 01 1 1302- ●
146 NUT; PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE 		0-91180-108-0 01 1 1302- ●
146 NUT; PIPE
M10 FLANGE 		0-91180-110-0 02 1 1112-1301 ● ●
146 NUT; PIPE
HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE 		0-91180-110-0 02 1 1302- ●
146 NUT; PIPE
M10 FLANGE 		0-91180-110-0 02 1 1302- ●
149 BOLT; HOSE
M6X20 FLANGE 		0-28650-620-0 01 1 1112-1301 ● ●
149 BOLT; HOSE
HYDRO BRAKE BOOSTER(7QQ) M6X20 FLANGE 		0-28650-620-0 01 1 1302- ●
149 BOLT; HOSE
M6X20 FLANGE 		0-28650-620-0 01 1 1302- ●
çizim 183624
49 19 49 49 49 49 49
BalonParca AdiParca NoAdetTipApplied Date A B
19 BRACKET; OIL PIPE 8-97389-845-2 01 1 1112- ● ●
49 BRACKET; BRK PIPE
(D) 		8-97251-896-1 01 1 1112- ●
49 BRACKET; BRK PIPE
(E) 		8-98033-803-1 01 1 1112- ●
49 BRACKET; BRK PIPE
(F) 		8-98096-202-1 01 1 1112- ●
49 BRACKET; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-97387-196-0 01 1 1112-1301 ● ●
49 BRACKET; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97387-196-0 01 1 1302- ●
49 BRACKET; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-97387-196-0 01 1 1302- ●
49 BRACKET; BRK PIPE
(B) 		8-98033-802-1 01 1 1112-1301 ● ●
49 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98033-802-1 01 1 1302- ●
49 BRACKET; BRK PIPE
(B) 		8-98033-802-1 01 1 1302- ●
49 BRACKET; BRK PIPE
(A) 		8-98187-801-0 01 1 1112-1301 ● ●
49 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98187-801-0 01 1 1302- ●
49 BRACKET; BRK PIPE
(A) 		8-98187-801-0 01 1 1302- ●
