3-55 — BRAKE PIPING; OIL,REAR (#78543) — 21 parça

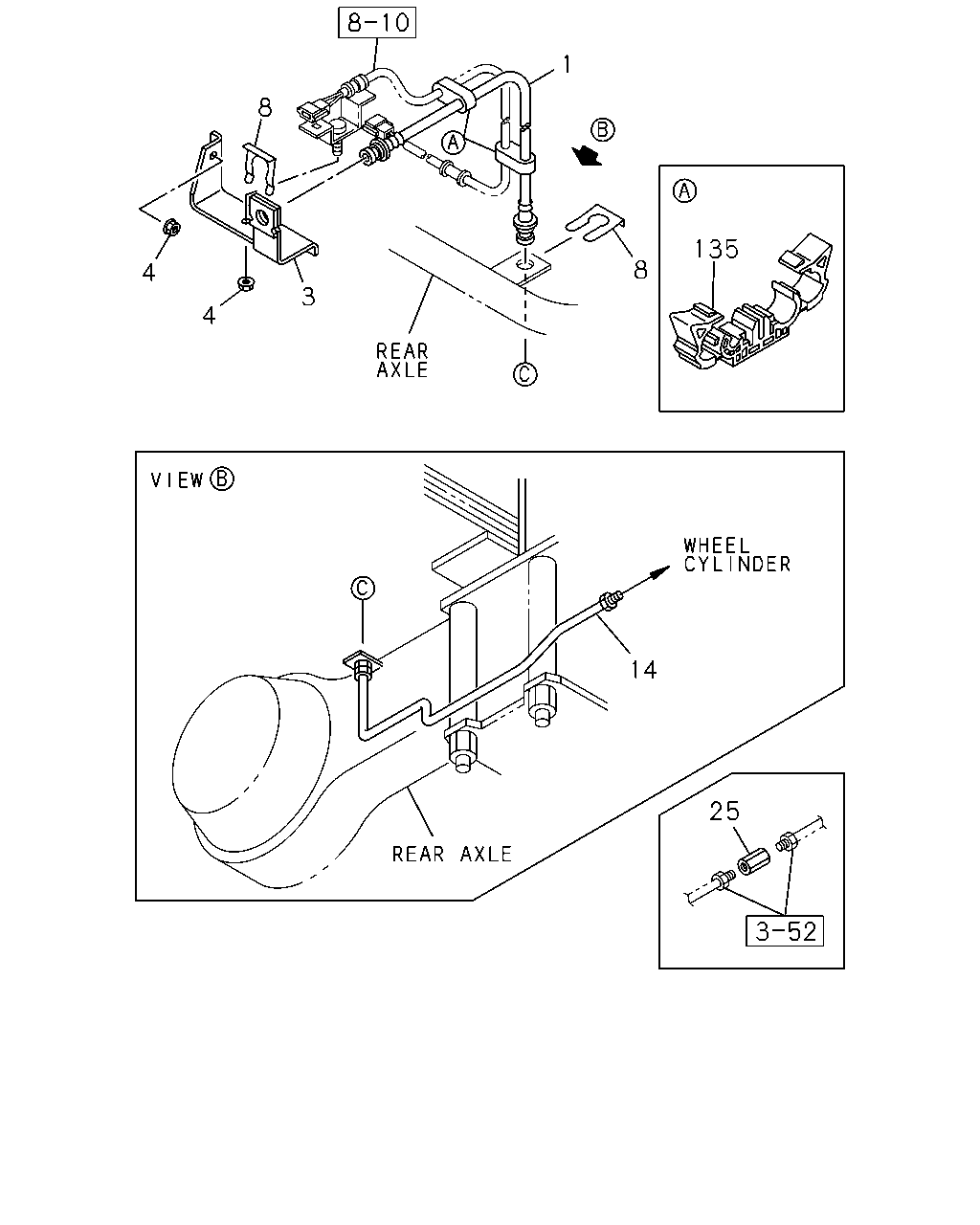

çizim 119779
1 8 135 8 4 4 14 25 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK 8-97253-569-0 01 1 1112- ● ●
1 HOSE; FLEX,RR BRK 8-97253-570-0 01 1 1112- ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 1112- ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 1112- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 1112- ● ●
8 CLIP; RR BRK 8-97360-054-0 04 1 1112- ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1112- ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 1112- ● ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1112- ● ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1112- ● ●
135 CLIP; FLEX HOSE 8-97207-699-0 04 1 1112- ● ●

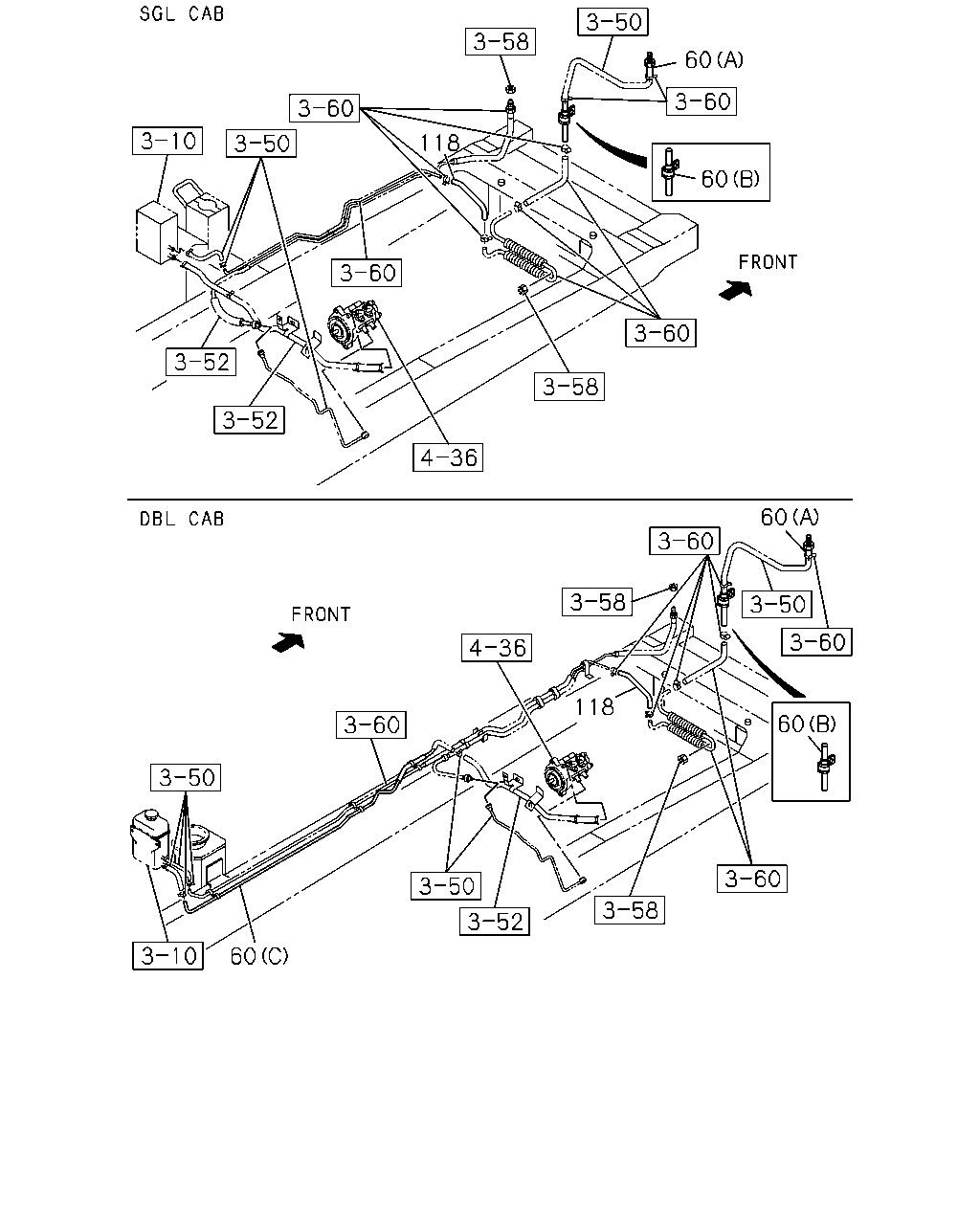

çizim 121108
60 118 60 60 118 60 60
BalonParca AdiParca NoAdetTipApplied Date A B
60 PIPE ASM; BRK
(C) 		8-98092-259-1 01 1 1112- ●
60 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 1112-1301 ● ●
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1302- ●
60 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 1302- ●
60 PIPE ASM; BRK
(B) 		8-98127-815-0 01 1 1112-1301 ● ●
60 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98127-815-0 01 1 1302- ●
60 PIPE ASM; BRK
(B) 		8-98127-815-0 01 1 1302- ●
118 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1112-1301 ● ●
118 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1302- ●
118 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
