3-52 — BRAKE PIPING; OIL,FRONT (#78542) — 43 parça

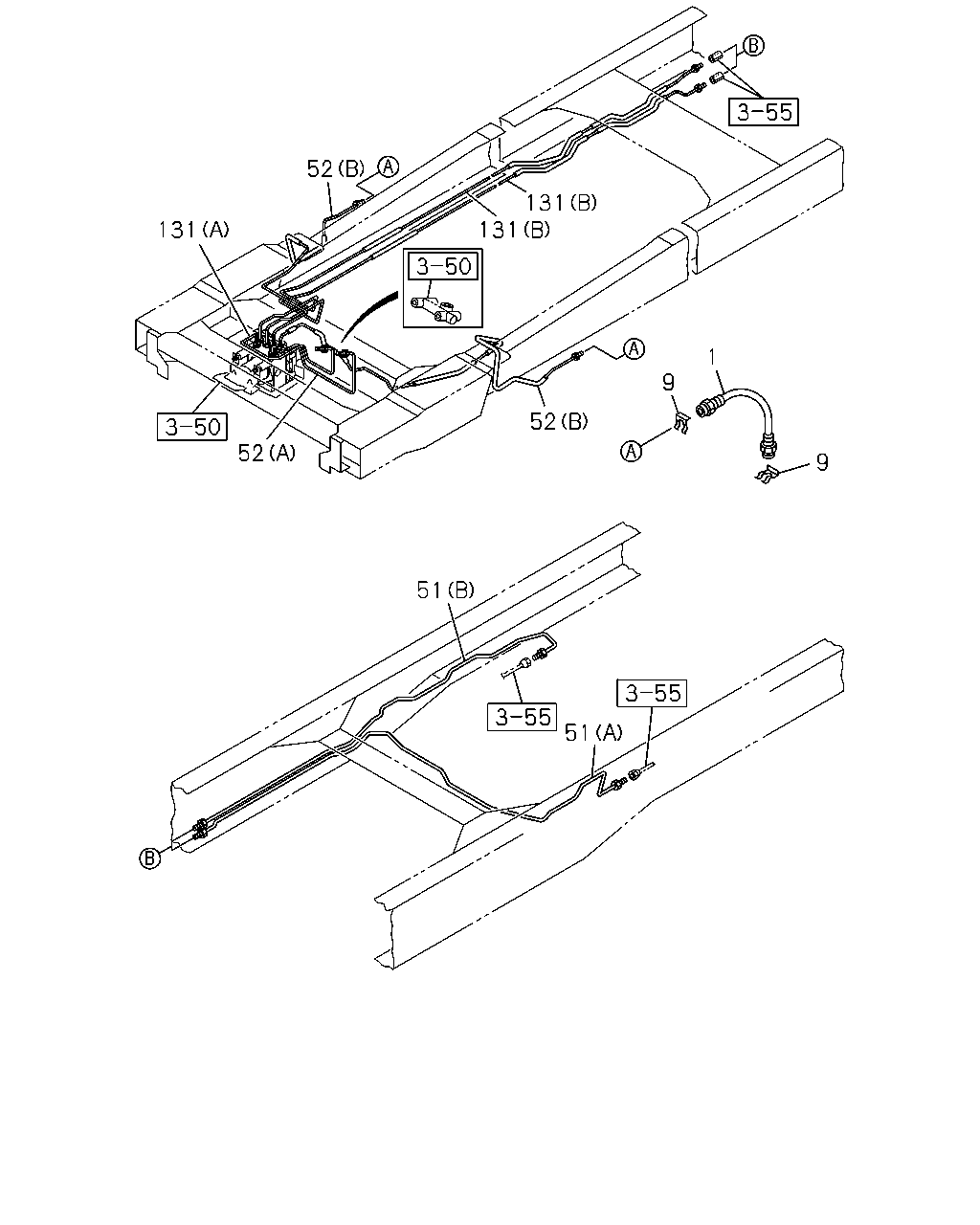

52 131 131 131 1 9 52 52 9 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK FRONT WIDE TREAD<7GV>	8-97115-907-0	02	1	1112-	●
1	HOSE; FLEX,FRT BRK EXC. FRONT WIDE TREAD<7GV>	8-97039-543-1	02	1	1112-	●
1	HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	1112-		●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1112-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1112-		●
51	PIPE; BRK WHEEL BASE 4400MM(44W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-779-1	01	1	1112-	●
51	PIPE; BRK WHEEL BASE 4400MM(44W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98047-143-0	01	1	1112-	●
51	PIPE; BRK WHEEL BASE 3800MM(38W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-778-1	01	1	1112-	●
51	PIPE; BRK (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-778-1	01	1	1112-		●
51	PIPE; BRK WHEEL BASE 3800MM(38W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1112-	●
51	PIPE; BRK (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1112-		●
52	PIPE; BRK FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98135-962-0	01	1	1112-	●
52	PIPE; BRK FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98135-964-0	01	1	1112-	●
52	PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1112-	●	●
52	PIPE; BRK (C)	8-98036-162-0	01	1	1112-1301	●	●
52	PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98036-162-0	01	1	1302-	●
52	PIPE; BRK (C)	8-98036-162-0	01	1	1302-		●
52	PIPE; BRK EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1112-	●
52	PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1112-		●
52	PIPE; BRK EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1112-	●
52	PIPE; BRK (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1112-		●
131	PIPE; OIL,BRK,4/5WAY TO HYD UNIT (A) 4WAY TO HU,REAR	8-97389-372-2	01	1	1112-	●	●
131	PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98033-767-1	01	1	1112-	●	●
131	PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98033-768-1	01	1	1112-	●	●

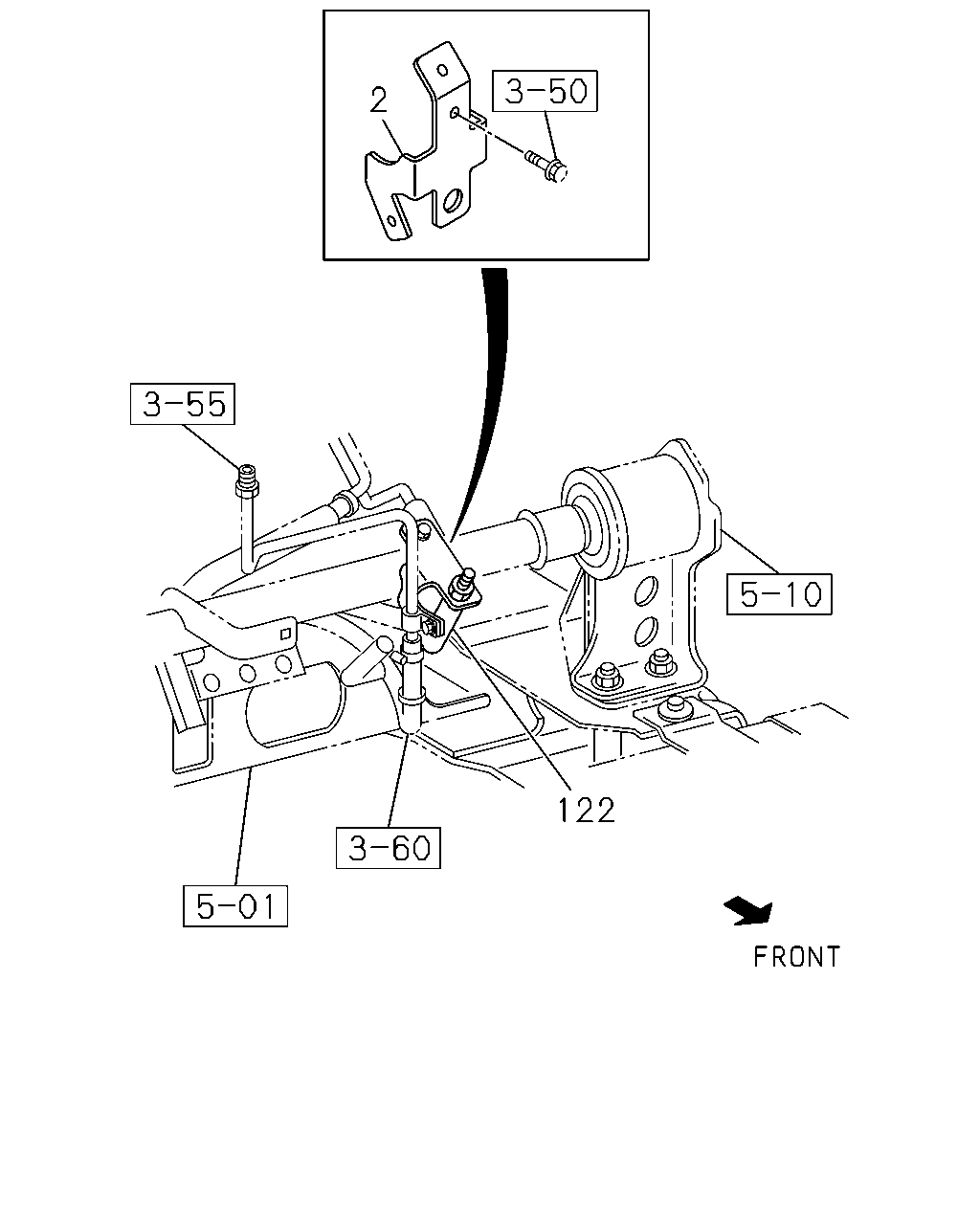

2 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BRACKET; FLEX HOSE,FRT BRK	8-98136-578-0	01	1	1112-1301	●	●
2	BRACKET; FLEX HOSE,FRT BRK HYDRO BRAKE BOOSTER(7QQ)	8-98136-578-0	01	1	1302-	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98136-578-0	01	1	1302-		●
122	PIPE ASM; BRK,2 WAY L=1403	8-98136-576-0	01	1	1112-		●
122	PIPE ASM; BRK,2 WAY L=1284	8-98136-575-0	01	1	1112-1301	●
122	PIPE ASM; BRK,2 WAY HYDRO BRAKE BOOSTER(7QQ) L=1284	8-98136-575-0	01	1	1302-	●

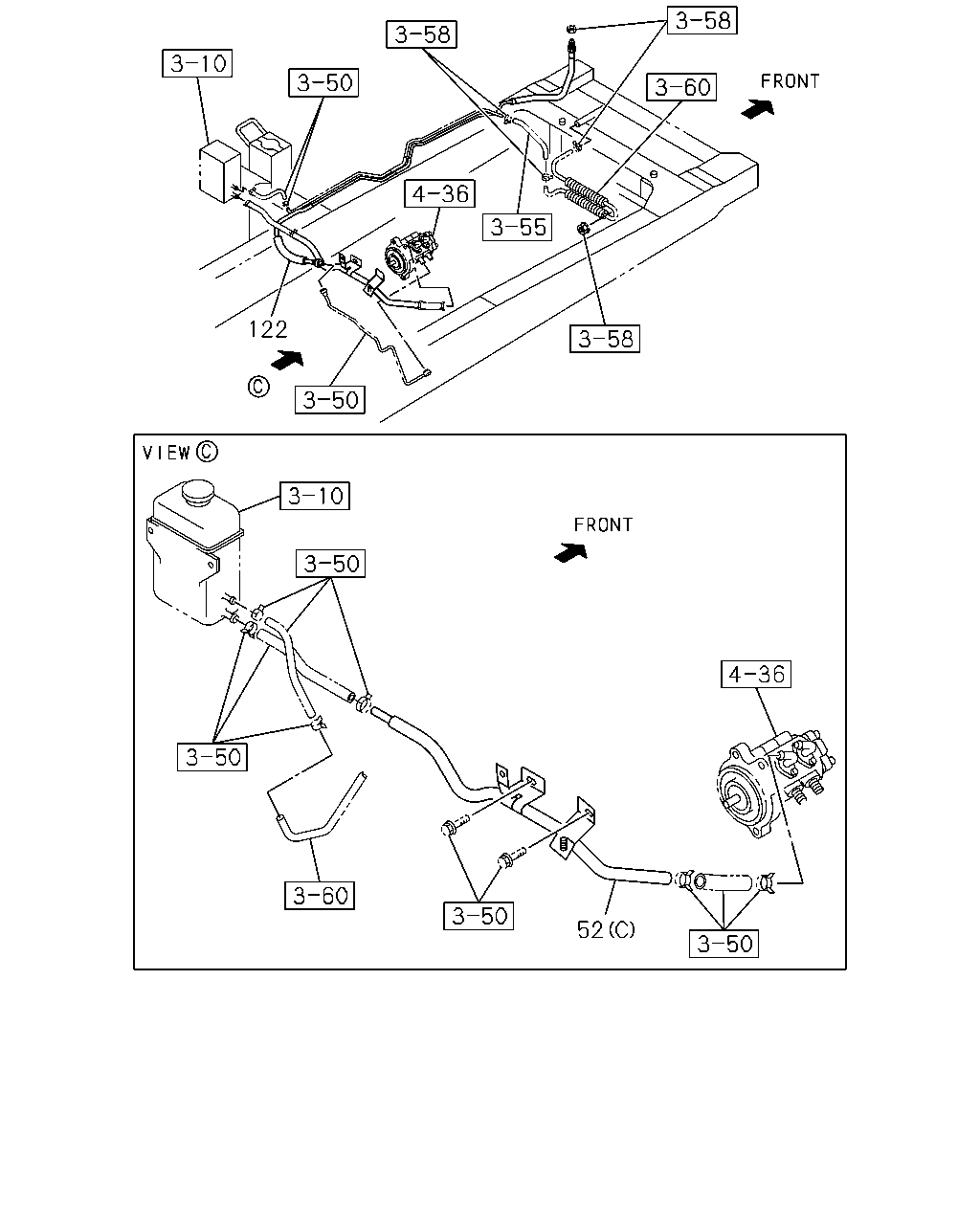

122 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	PIPE; BRK FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98135-962-0	01	1	1112-	●
52	PIPE; BRK FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98135-964-0	01	1	1112-	●
52	PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1112-	●	●
52	PIPE; BRK (C)	8-98036-162-0	01	1	1112-1301	●	●
52	PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98036-162-0	01	1	1302-	●
52	PIPE; BRK (C)	8-98036-162-0	01	1	1302-		●
52	PIPE; BRK EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1112-	●
52	PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1112-		●
52	PIPE; BRK EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1112-	●
52	PIPE; BRK (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1112-		●
122	PIPE ASM; BRK,2 WAY L=1403	8-98136-576-0	01	1	1112-		●
122	PIPE ASM; BRK,2 WAY L=1284	8-98136-575-0	01	1	1112-1301	●
122	PIPE ASM; BRK,2 WAY HYDRO BRAKE BOOSTER(7QQ) L=1284	8-98136-575-0	01	1	1302-	●
