3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#78541) — 148 parça

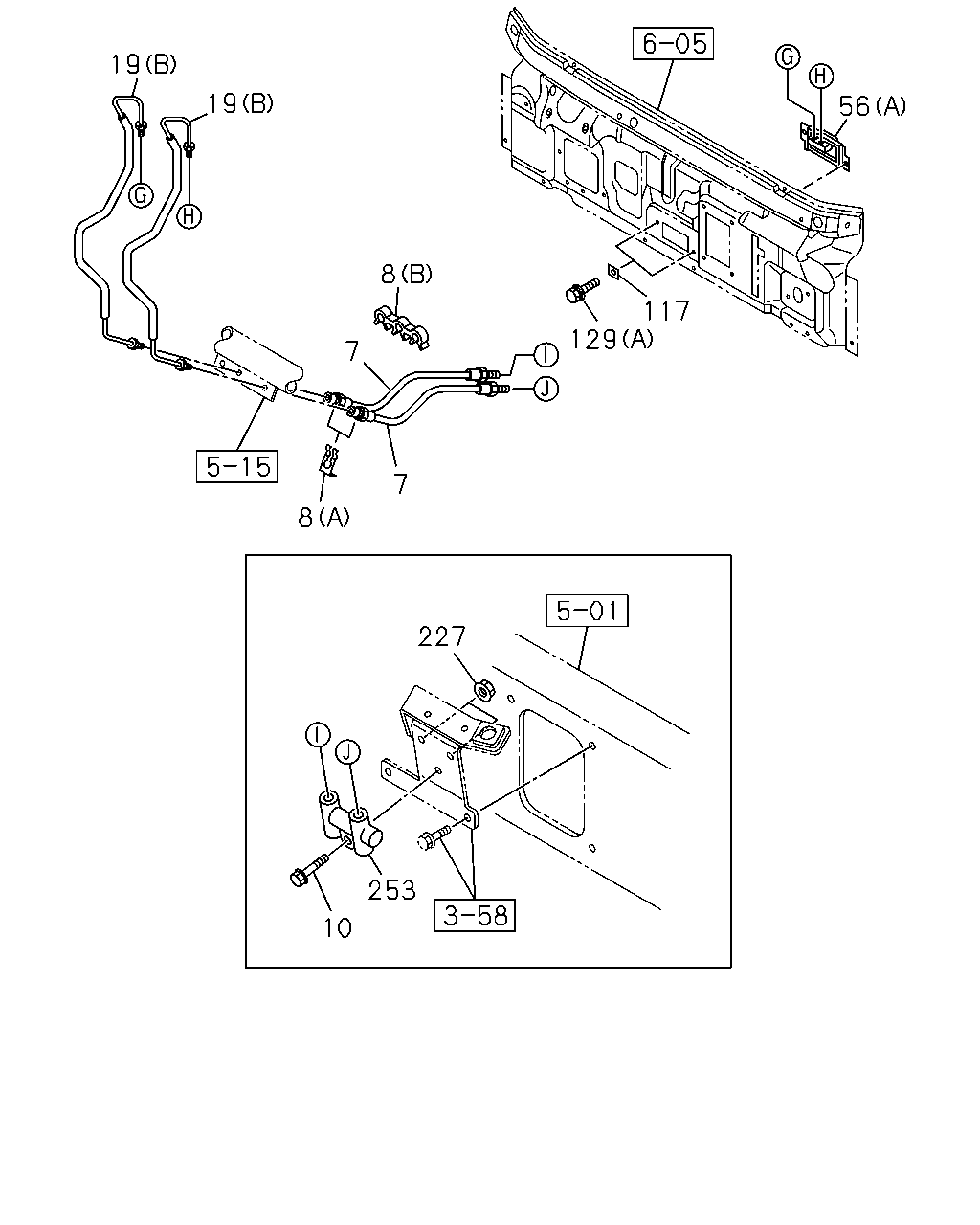

19 19 56 8 117 129 7 7 8 227 253 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1112-	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (B)	8-97076-471-0	01	1	1112-	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1112-	●	●
10	BOLT; JOINT M6X40 FLANGE	0-28650-640-0	01	1	1112-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-98080-579-1	02	1	1112-1301	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-98080-579-1	02	1	1302-		●
19	PIPE; BRK,M/CYL TO UNION (A)	8-98099-794-0	01	1	1112-1301	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION (A)	8-98099-794-0	01	1	1302-		●
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1302-	●
56	BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1112-	●	●
56	BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1112-1301	●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1302-	●
56	BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1302-		●
117	SEAL; UNION,BRK PIPE JOINT	8-97856-616-0	02	1	1112-	●	●
129	BOLT; BRKT (C) M6X12 FLANGE	0-28050-612-0	01	1	1112-1301	●	●
129	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (C) M6X12 FLANGE	0-28050-612-0	01	1	1302-	●
129	BOLT; BRKT (C) M6X12 FLANGE	0-28050-612-0	01	1	1302-		●
129	BOLT; BRKT (B) M6X16 FLANGE	0-28650-616-0	01	1	1112-	●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1112-	●	●
227	NUT; JOINT M8 FLANGE	0-91180-108-0	02	1	1112-	●	●
253	JOINT	8-97038-940-1	01	1	1112-	●	●

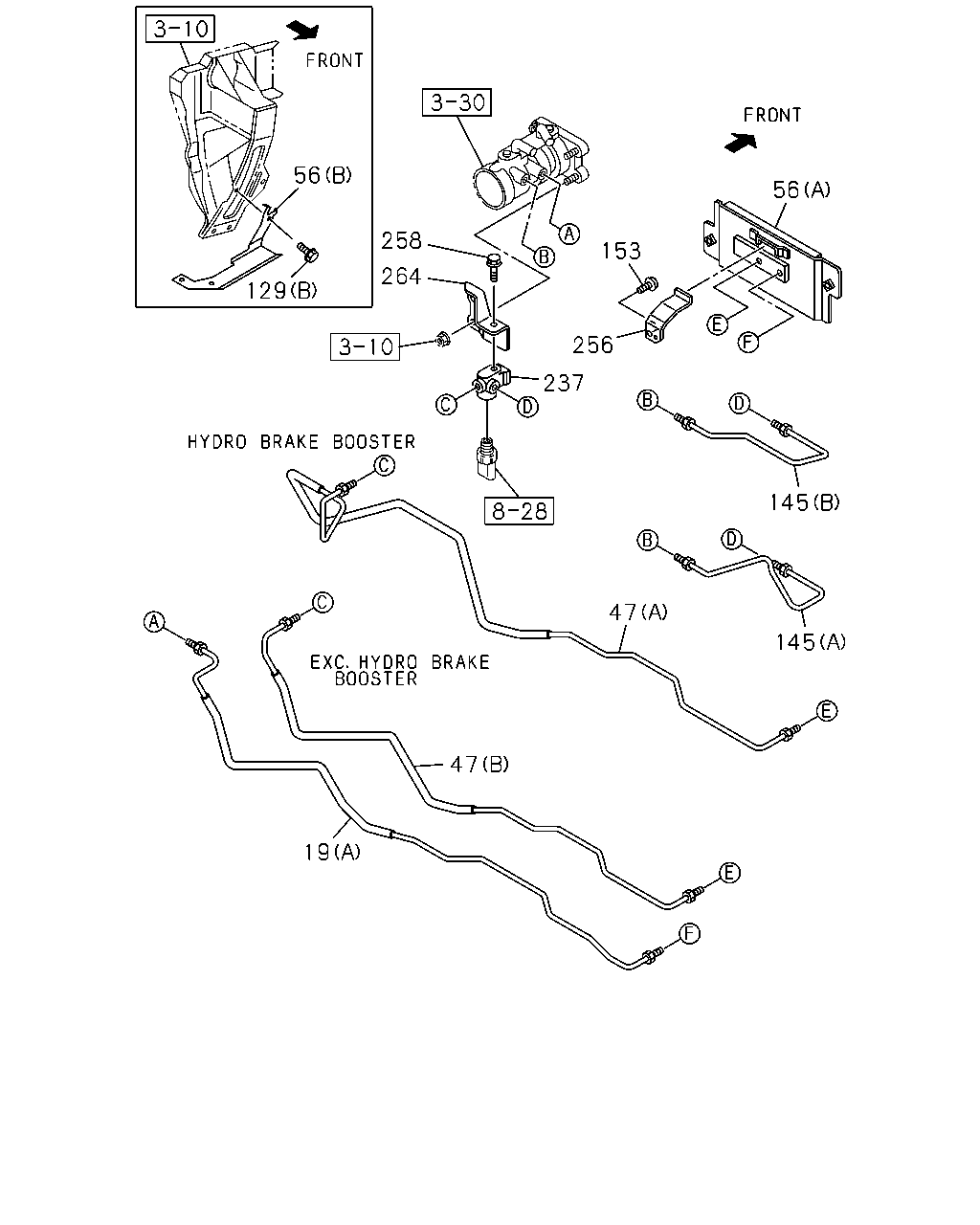

56 129 258 47 19 47 145 145 237 256 153 264 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-98080-579-1	02	1	1112-1301	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-98080-579-1	02	1	1302-		●
19	PIPE; BRK,M/CYL TO UNION (A)	8-98099-794-0	01	1	1112-1301	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION (A)	8-98099-794-0	01	1	1302-		●
47	PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98099-807-0	01	1	1302-1406	●
47	PIPE; OIL,FRT BRK (A) L=1059	8-98099-808-0	01	1	1112-1301	●	●
47	PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) (A) L=1059	8-98099-808-0	01	1	1302-1505	●
47	PIPE; OIL,FRT BRK (A) L=1059	8-98099-808-0	01	1	1302-1505		●
47	PIPE; OIL,FRT BRK (A) L=1059	8-98099-808-0	01	1	1506-	●	●
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1302-	●
56	BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1112-	●	●
56	BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1112-1301	●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1302-	●
56	BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1302-		●
129	BOLT; BRKT (C) M6X12 FLANGE	0-28050-612-0	01	1	1112-1301	●	●
129	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (C) M6X12 FLANGE	0-28050-612-0	01	1	1302-	●
129	BOLT; BRKT (C) M6X12 FLANGE	0-28050-612-0	01	1	1302-		●
129	BOLT; BRKT (B) M6X16 FLANGE	0-28650-616-0	01	1	1112-	●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1112-	●	●
145	PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=247	8-98133-410-0	01	1	1302-1406	●
145	PIPE; BRK,METERING VLV TO UNION (A) L=228	8-98133-411-0	01	1	1112-1301	●	●
145	PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (A) L=228	8-98133-411-0	01	1	1302-1505	●
145	PIPE; BRK,METERING VLV TO UNION (A) L=228	8-98133-411-0	01	1	1302-1505		●
145	PIPE; BRK,METERING VLV TO UNION (A) L=228	8-98133-411-0	01	1	1506-	●	●
153	SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1112-	●
153	SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1112-		●
237	CONNECTOR; MODULATOR	8-98111-748-1	01	1	1112-	●	●
256	BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1112-	●
256	BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-521-0	01	1	1112-		●
258	BOLT; PIPE,BRK M8X12 FLANGE	0-28050-812-0	01	1	1112-	●	●
264	BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	1112-	●	●

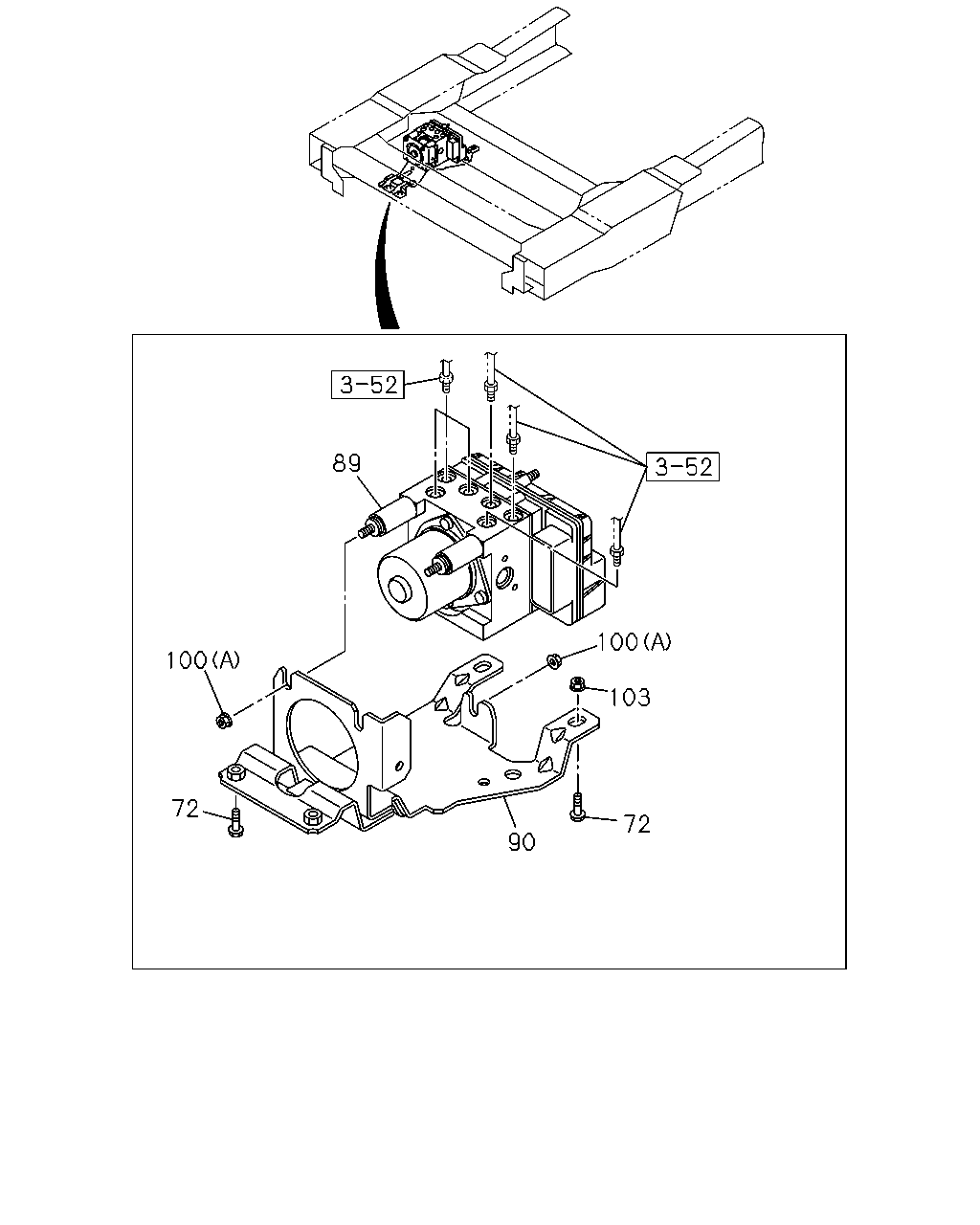

89 100 100 103 72 72 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	BOLT; BRKT TO BODY M8X25 FLANGE	0-28650-825-0	04	1	1112-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-006-1	01	1	1112-1409	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK HYDRO BRAKE BOOSTER(7QQ)	8-98158-006-1	01	1	1410-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-006-1	01	1	1410-		●
90	BRACKET; HYDRAULIC UNIT,ABS	8-97385-320-0	01	1	1112-	●	●
100	NUT; HYDRAULIC UNIT (A) M8 FLANGE	0-91180-108-0	03	1	1112-	●	●
100	NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1112-1301	●	●
100	NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1302-	●
100	NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1302-		●
103	NUT; HYDRAULIC UNIT BRKT M8 FLANGE	0-91180-108-0	02	1	1112-1302	●	●
103	NUT; HYDRAULIC UNIT BRKT M8 FLANGE	0-91180-108-0	01	1	1303-	●	●

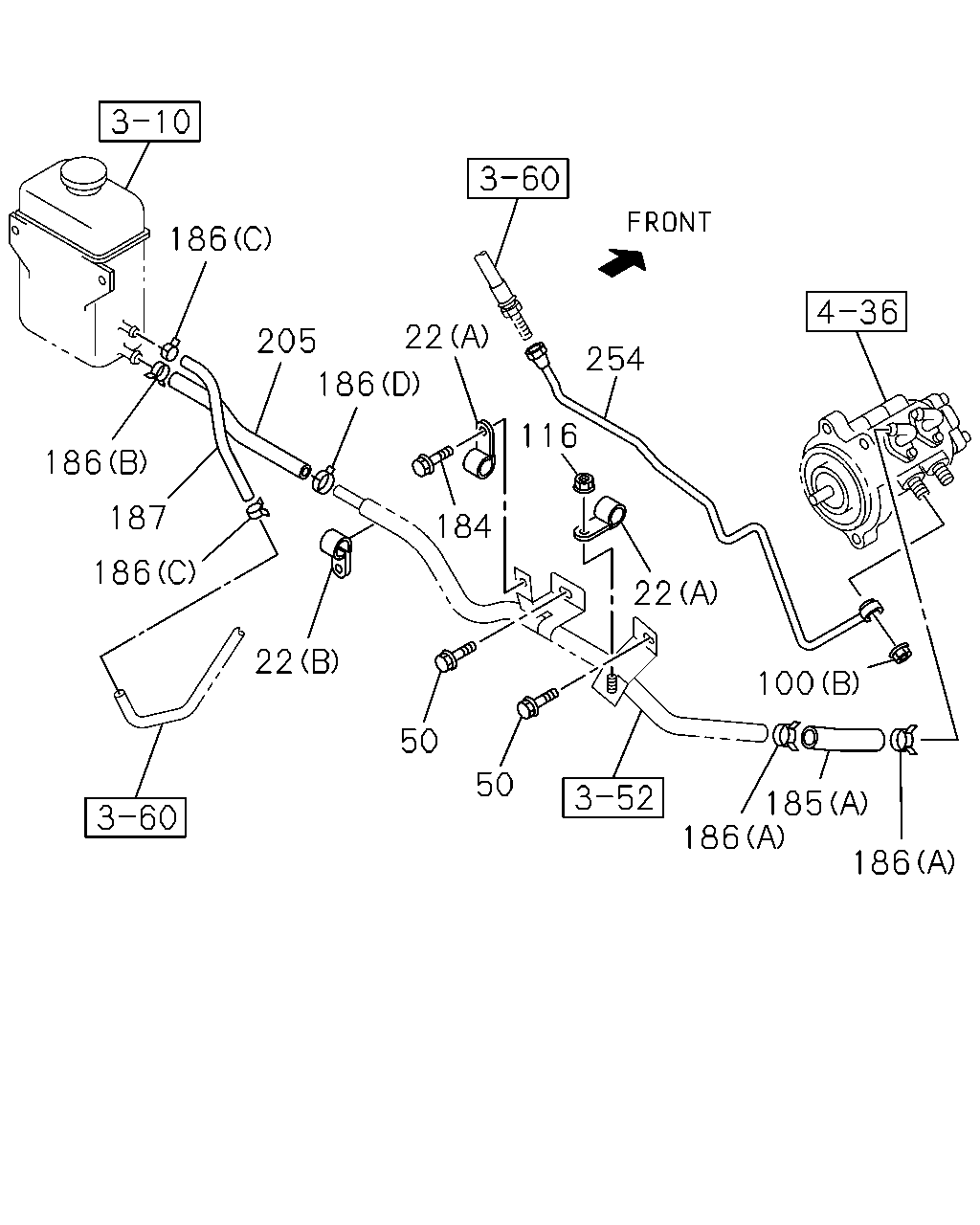

186 22 205 254 186 116 186 187 184 186 22 22 100 50 50 185 186 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	1112-1301	●	●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	1302-	●
22	CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	1302-		●
22	CLIP (B) ID=17 L=21	8-98082-035-0	01	1	1112-1301	●	●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	1302-	●
22	CLIP (B) ID=17 L=21	8-98082-035-0	01	1	1302-		●
50	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	03	1	1112-1301	●	●
50	BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE	0-28050-816-0	03	1	1302-	●
50	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	03	1	1302-		●
100	NUT; HYDRAULIC UNIT (A) M8 FLANGE	0-91180-108-0	03	1	1112-	●	●
100	NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1112-1301	●	●
100	NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1302-	●
100	NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1302-		●
116	NUT M8 FLANGE	0-91180-108-0	01	1	1112-1301	●	●
116	NUT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE	0-91180-108-0	01	1	1302-	●
116	NUT M8 FLANGE	0-91180-108-0	01	1	1302-		●
184	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1112-1301	●	●
184	BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
184	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1302-		●
185	HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1112-1301	●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1302-	●
185	HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1302-		●
185	HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	1112-1301	●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1302-	●
185	HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	1302-		●
186	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1112-1301	●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=21	8-94242-034-0	02	1	1302-	●
186	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1302-		●
186	CLIP; HOSE (B) ID=22 IRA	8-97359-141-0	01	1	1112-1301	●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=22 IRA	8-97359-141-0	01	1	1302-	●
186	CLIP; HOSE (B) ID=22 IRA	8-97359-141-0	01	1	1302-		●
186	CLIP; HOSE (C) ID=16	8-98008-098-0	02	1	1112-1301	●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-98008-098-0	02	1	1302-	●
186	CLIP; HOSE (C) ID=16	8-98008-098-0	02	1	1302-		●
186	CLIP; HOSE (D) ID=21	8-98150-355-0	01	1	1112-1301	●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (D) ID=21	8-98150-355-0	01	1	1302-	●
186	CLIP; HOSE (D) ID=21	8-98150-355-0	01	1	1302-		●
187	HOSE; RUBBER,OIL TANK L=200 SERVICED BY L=3000	0-19809-300-0	01	1	1112-		●
187	HOSE; RUBBER,OIL TANK L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1112-1301	●
187	HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1302-	●
205	HOSE; TANK TO PIPE L=200 SERVICED BY L=300	0-09814-300-0	01	1	1112-		●
205	HOSE; TANK TO PIPE SERVICED BY L=300	0-09814-300-0	01	1	1112-1301	●
205	HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) SERVICED BY L=300	0-09814-300-0	01	1	1302-	●
254	PIPE; BRAKE,2WAY	8-98053-548-0	01	1	1112-		●
254	PIPE; BRAKE,2WAY	8-98036-161-0	01	1	1112-1301	●
254	PIPE; BRAKE,2WAY HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	1302-	●

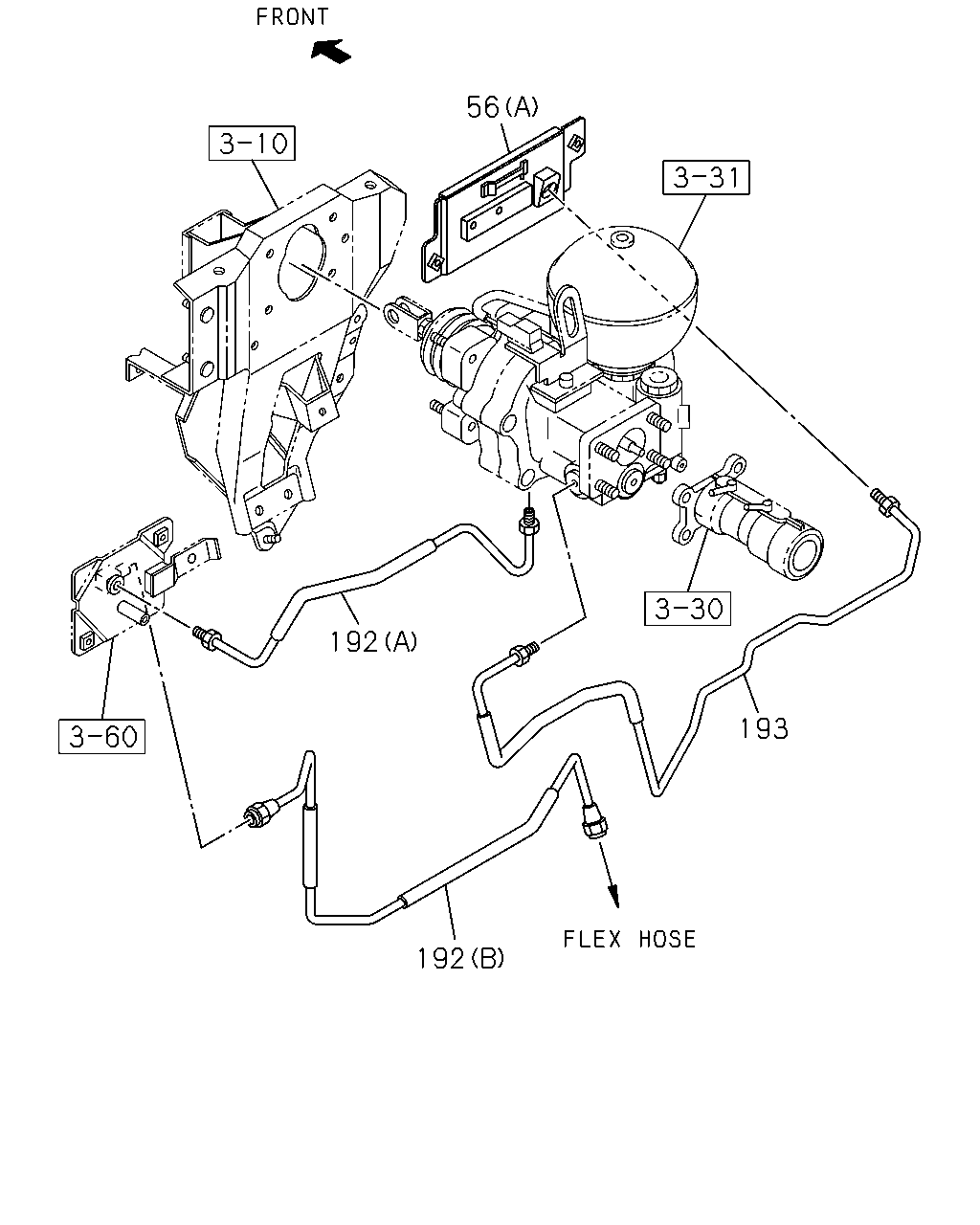

56 192 193 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1302-	●
56	BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1112-	●	●
56	BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1112-1301	●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1302-	●
56	BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1302-		●
192	PIPE; PRESSURE (A)	8-98033-960-0	01	1	1112-1301	●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-960-0	01	1	1302-	●
192	PIPE; PRESSURE (A)	8-98033-960-0	01	1	1302-		●
192	PIPE; PRESSURE (B)	8-98033-961-3	01	1	1112-1301	●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-961-3	01	1	1302-	●
192	PIPE; PRESSURE (B)	8-98033-961-3	01	1	1302-		●
193	PIPE; RETURN	8-98099-795-0	01	1	1112-1301	●	●
193	PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98099-795-0	01	1	1302-	●
193	PIPE; RETURN	8-98099-795-0	01	1	1302-		●

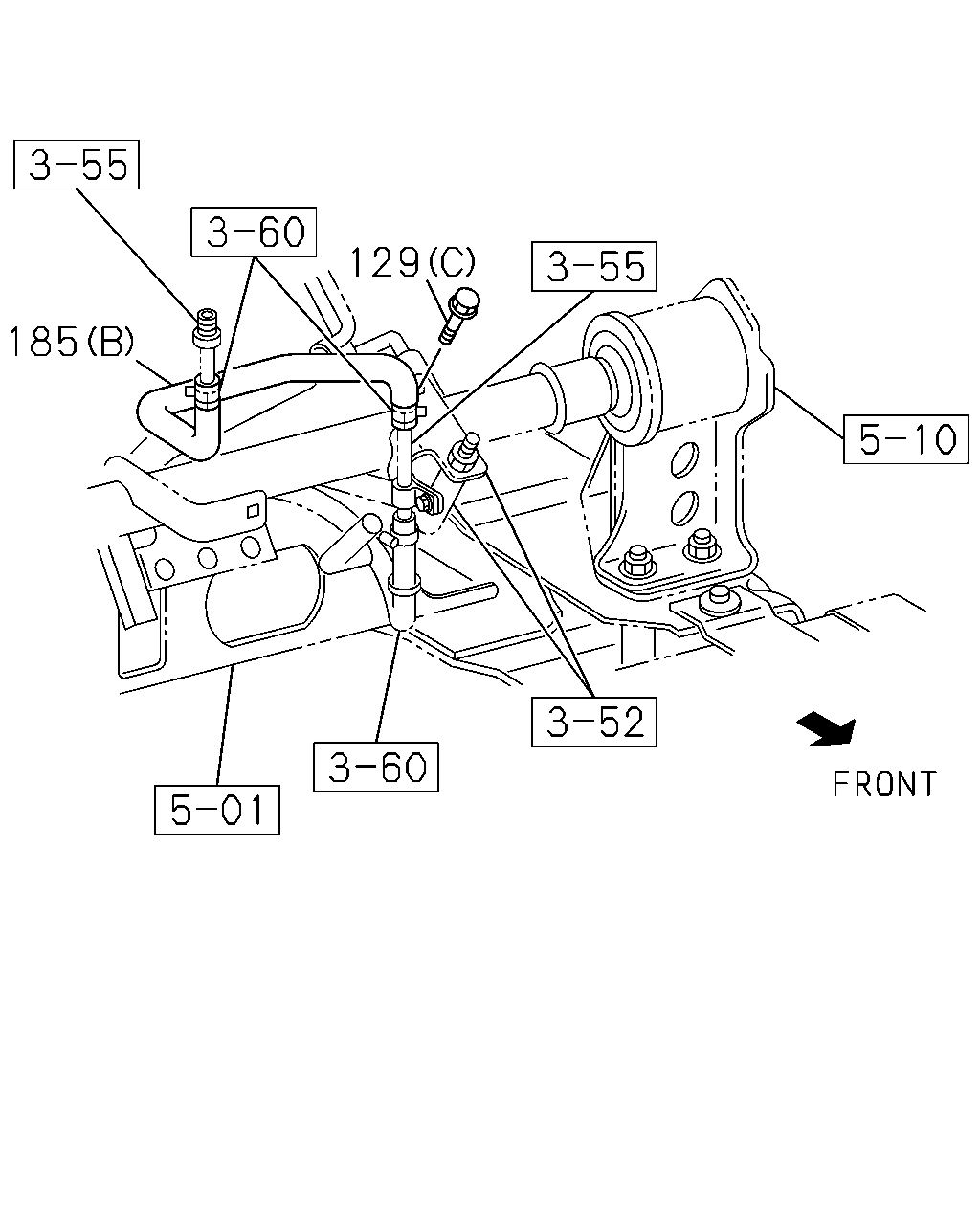

19 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-98080-579-1	02	1	1112-1301	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-98080-579-1	02	1	1302-		●
19	PIPE; BRK,M/CYL TO UNION (A)	8-98099-794-0	01	1	1112-1301	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	1302-	●
19	PIPE; BRK,M/CYL TO UNION (A)	8-98099-794-0	01	1	1302-		●
185	HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1112-1301	●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1302-	●
185	HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1302-		●
185	HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	1112-1301	●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1302-	●
185	HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	1302-		●

130 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	BRACKET; SPEED SENSOR FRONT WIDE TREAD<7GV> (B)	8-98141-581-0	02	1	1112-	●
130	BRACKET; SPEED SENSOR (A)	8-97080-060-2	02	1	1112-	●	●
131	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1112-	●	●
