Isuzu WW
▶
TRUCKS
▶
NPR
▶
51300 - NPR(IRAN)
▶
3 - Brakes, Brake System
▶

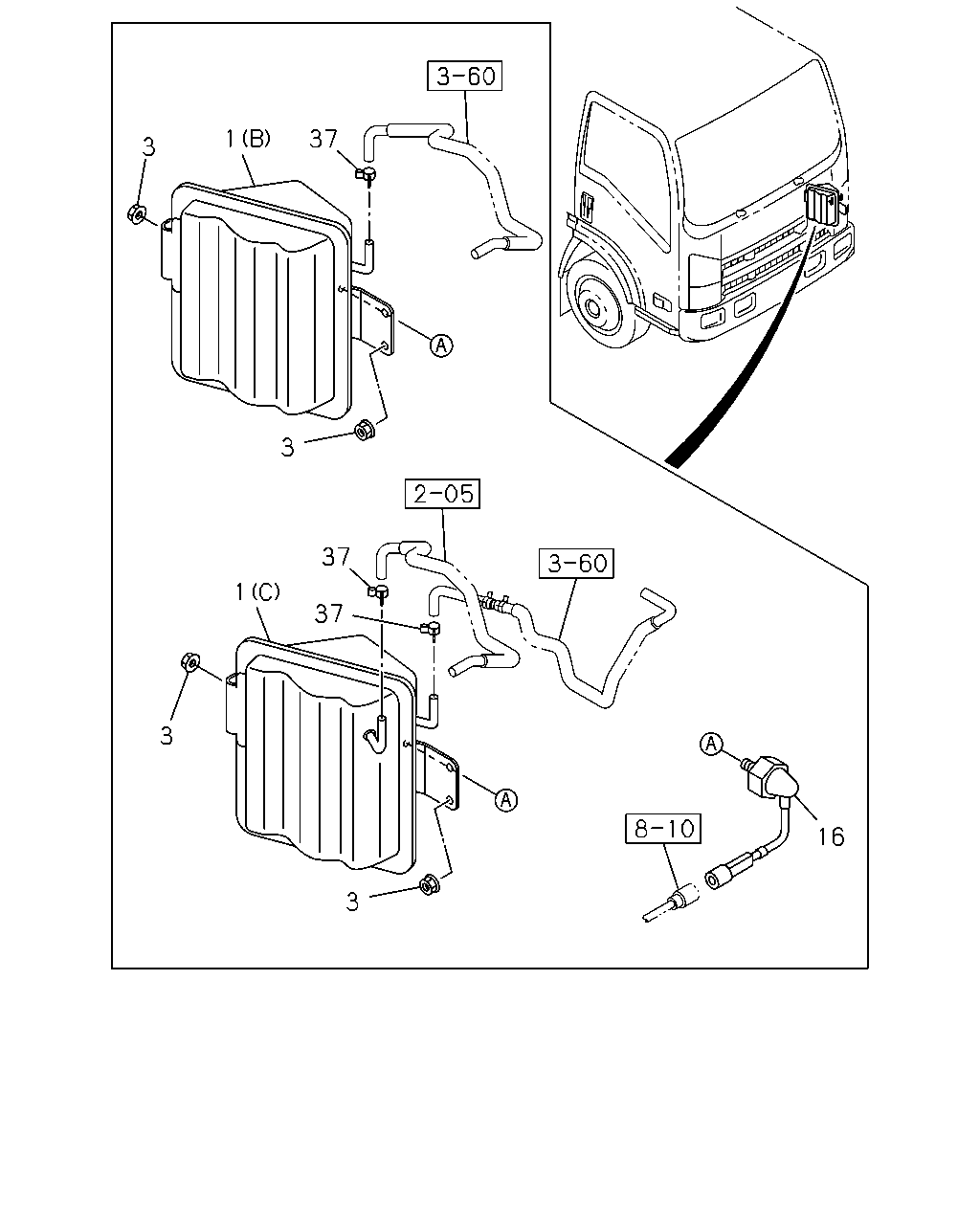

3-21 - VACUUM TANK
▶
3-21 — VACUUM TANK
(#78538) — 25 parça
Tümü
A - NPR6SN
B - NPR6WN
◀
[321A] HYDRO BRAKE BOOSTER (12 parça)
[321A] EXC.HYDRO BRAKE BOOSTER (13 parça)
▶
1
37
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)
8-98009-123-0
01
1
1302-
●
1
TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)
8-98009-124-1
01
1
1302-
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98032-292-0
01
1
1112-1301
●
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)
8-98032-292-0
01
1
1302-
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98032-292-0
01
1
1302-
●
3
NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T)
8-98008-071-0
03
1
1112-1301
●
●
3
NUT; VAC TANK TO BRKT
8-98008-071-0
03
1
1302-
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5
8-94367-944-0
02
1
1302-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5
8-94367-944-0
01
1
1112-1301
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5
8-94367-944-0
01
1
1302-
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5
8-94367-944-0
01
1
1302-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5
8-94367-944-0
01
1
1302-
●
1
3
37
3
37
37
1
3
3
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)
8-98009-123-0
01
1
1302-
●
1
TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)
8-98009-124-1
01
1
1302-
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98032-292-0
01
1
1112-1301
●
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)
8-98032-292-0
01
1
1302-
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98032-292-0
01
1
1302-
●
3
NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T)
8-98008-071-0
03
1
1112-1301
●
●
3
NUT; VAC TANK TO BRKT
8-98008-071-0
03
1
1302-
●
●
16
SWITCH; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98049-417-0
01
1
1302-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5
8-94367-944-0
02
1
1302-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5
8-94367-944-0
01
1
1112-1301
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5
8-94367-944-0
01
1
1302-
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5
8-94367-944-0
01
1
1302-
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5
8-94367-944-0
01
1
1302-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
