◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#78537) — 38 parça

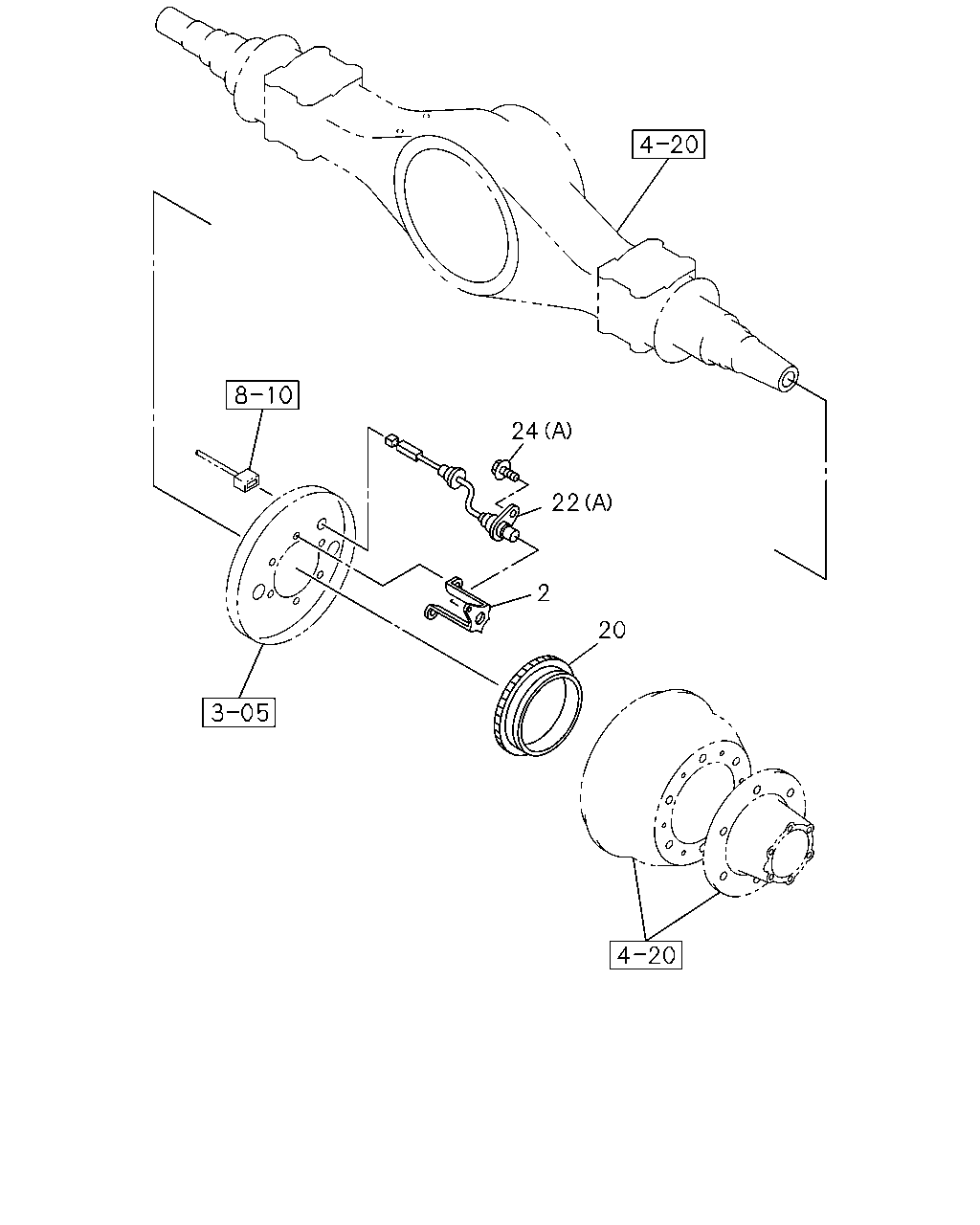

çizim 183619
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; SENSOR 8-98002-440-1 02 1 1112- ● ●
20 ROTOR; SENSOR 8-97206-775-3 02 1 1112- ● ●
22 SENSOR; SPEED
(A) 		8-98002-215-1 02 1 1112-1401 ● ●
22 SENSOR; SPEED
(A) 		8-98219-354-0 02 1 1402- ● ●
22 SENSOR; SPEED
FRONT WIDE TREAD<7GV> (B) 		8-98132-211-2 01 1 1112- ●
22 SENSOR; SPEED
FRONT WIDE TREAD<7GV> (B) 		8-98132-212-2 01 1 1112- ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98006-186-0 01 1 1112-1408 ● ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98219-393-0 01 1 1409- ● ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98006-187-0 01 1 1112-1408 ● ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98219-394-0 01 1 1409- ● ●
24 BOLT; SENSOR
(A) M6X10 FLANGE 		0-28050-610-0 02 1 1112-1401 ● ●
24 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 BOLT; SENSOR
(B) M6X10 FLANGE 		0-28050-610-0 02 1 1112-1310 ●
24 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ●
24 BOLT; SENSOR
FRONT WIDE TREAD<7GV> (C) M8X25 FLANGE 		0-28650-825-0 04 1 1112-1112 ●
24 BOLT; SENSOR
FRONT WIDE TREAD<7GV> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1112- ●
24 BOLT; SENSOR
EXC. FRONT WIDE TREAD<7GV> (C) M8X12 FLANGE 		0-28050-812-0 02 1 1112- ● ●
24 BOLT; SENSOR
EXC. FRONT WIDE TREAD<7GV> (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112-1112 ● ●
24 BOLT; SENSOR
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●

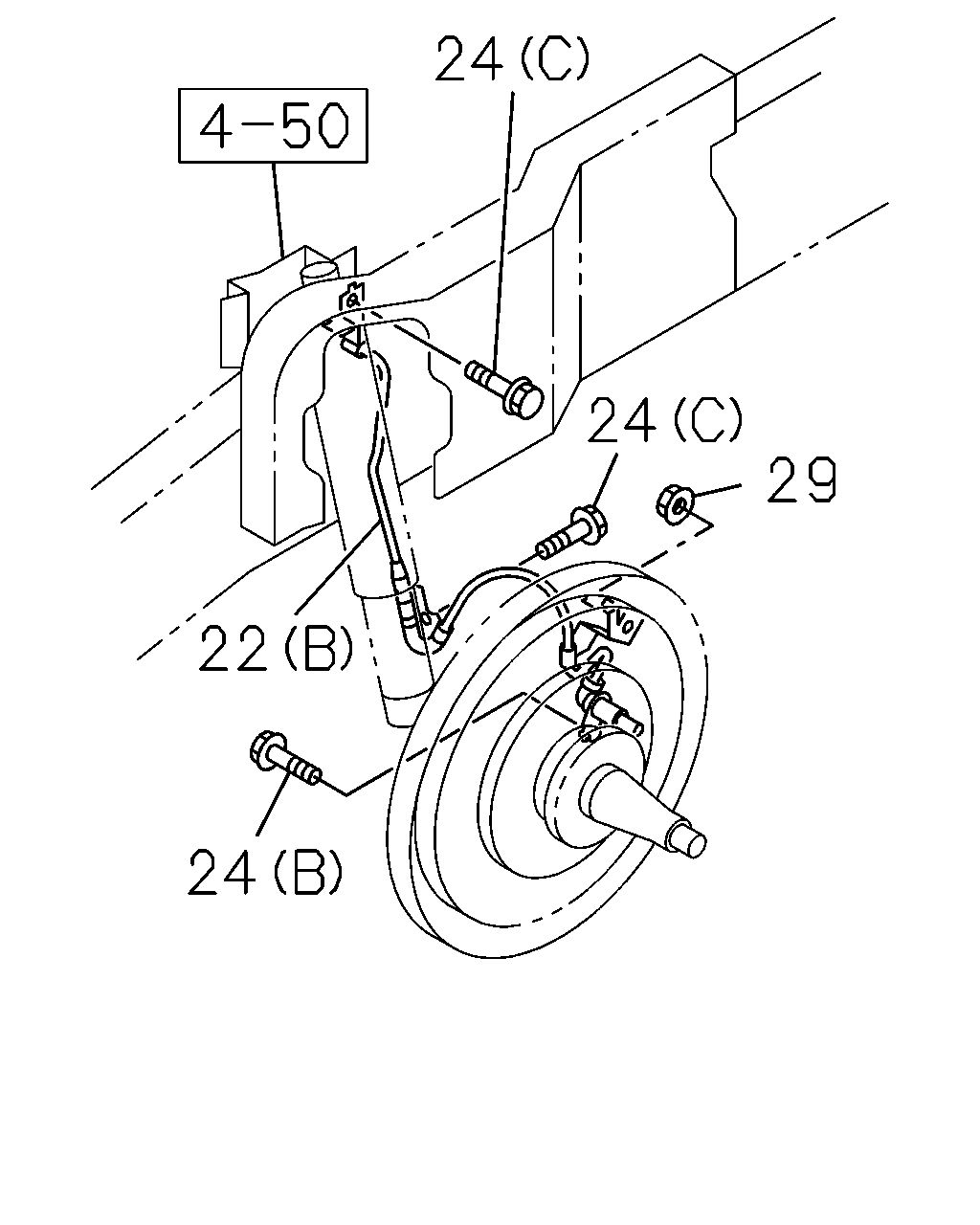

çizim 183623
24 24 29 22 24
BalonParca AdiParca NoAdetTipApplied Date A B
22 SENSOR; SPEED
(A) 		8-98002-215-1 02 1 1112-1401 ● ●
22 SENSOR; SPEED
(A) 		8-98219-354-0 02 1 1402- ● ●
22 SENSOR; SPEED
FRONT WIDE TREAD<7GV> (B) 		8-98132-211-2 01 1 1112- ●
22 SENSOR; SPEED
FRONT WIDE TREAD<7GV> (B) 		8-98132-212-2 01 1 1112- ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98006-186-0 01 1 1112-1408 ● ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98219-393-0 01 1 1409- ● ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98006-187-0 01 1 1112-1408 ● ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98219-394-0 01 1 1409- ● ●
24 BOLT; SENSOR
(A) M6X10 FLANGE 		0-28050-610-0 02 1 1112-1401 ● ●
24 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 BOLT; SENSOR
(B) M6X10 FLANGE 		0-28050-610-0 02 1 1112-1310 ●
24 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ●
24 BOLT; SENSOR
FRONT WIDE TREAD<7GV> (C) M8X25 FLANGE 		0-28650-825-0 04 1 1112-1112 ●
24 BOLT; SENSOR
FRONT WIDE TREAD<7GV> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1112- ●
24 BOLT; SENSOR
EXC. FRONT WIDE TREAD<7GV> (C) M8X12 FLANGE 		0-28050-812-0 02 1 1112- ● ●
24 BOLT; SENSOR
EXC. FRONT WIDE TREAD<7GV> (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112-1112 ● ●
24 BOLT; SENSOR
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
29 NUT
FRONT WIDE TREAD<7GV> M8 FLANGE 		0-91180-108-0 04 1 1112- ●
29 NUT
EXC. FRONT WIDE TREAD<7GV> M8 FLANGE 		0-91180-108-0 02 1 1112- ● ●
