◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#78536) — 60 parça

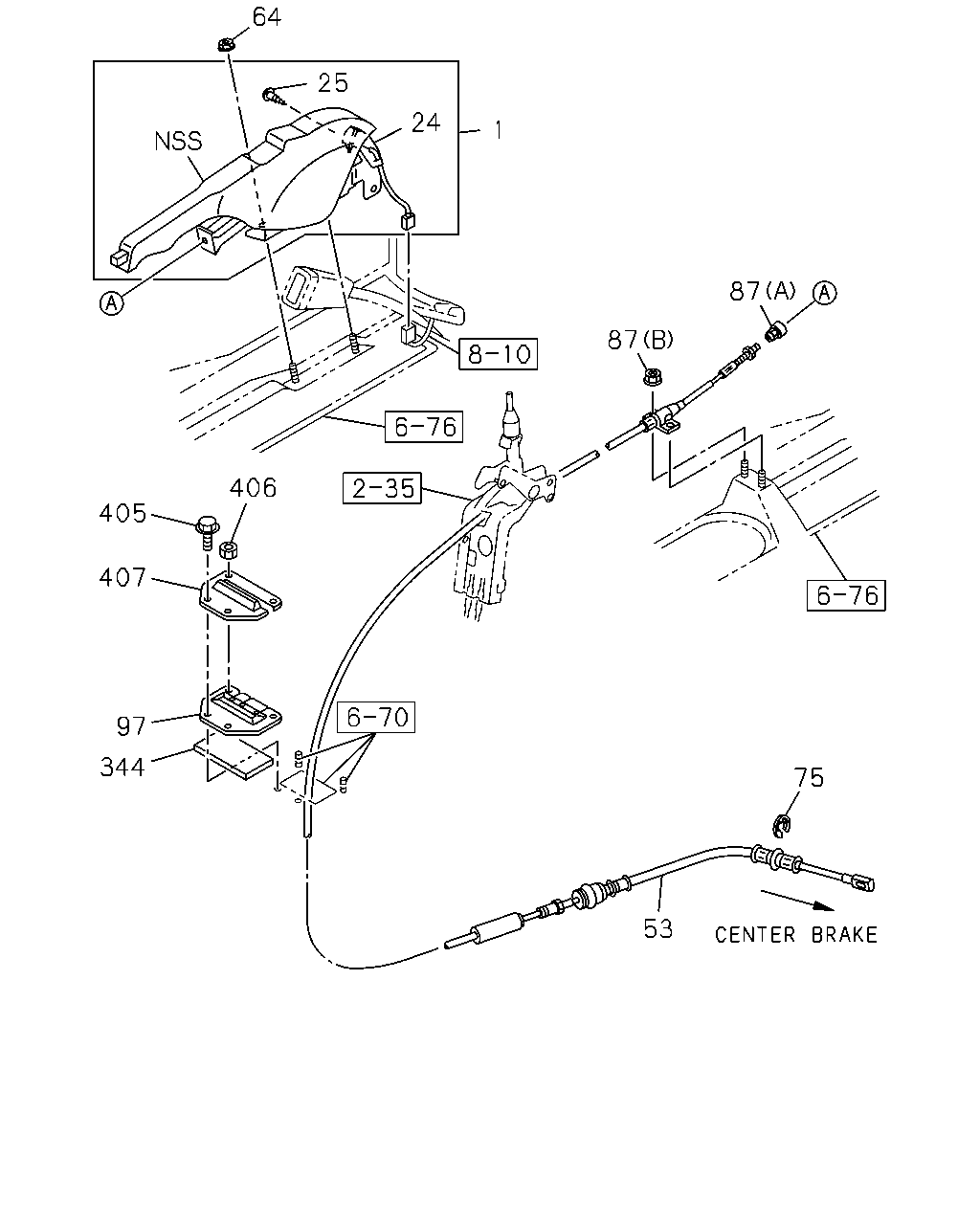

çizim 115611
64 25 24 1 87 87 406 405 407 97 344 75 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 1112-1303 ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ●
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1112-1303 ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1112- ● ●
53 CABLE; PARK BRK,FRT LWR 8-98060-996-3 01 1 1112- ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1112- ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1112- ● ●
87 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1112- ● ●
87 NUT
(A) M6 		8-98034-313-1 01 1 1112- ● ●
97 GROMMET; PARKING BRK CABLE
IRA 		8-97091-890-0 01 1 1112- ● ●
344 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> IRA 		8-97096-753-0 01 1 1112- ●
405 BOLT; GROMMET
M6X20 FLANGE 		0-28450-620-0 02 1 1112- ● ●
406 NUT; GROMMET
M6 FLANGE 		0-91180-106-0 02 1 1112- ● ●
407 RETAINER; GROMMET
IRA 		1-33657-674-0 01 1 1112- ● ●

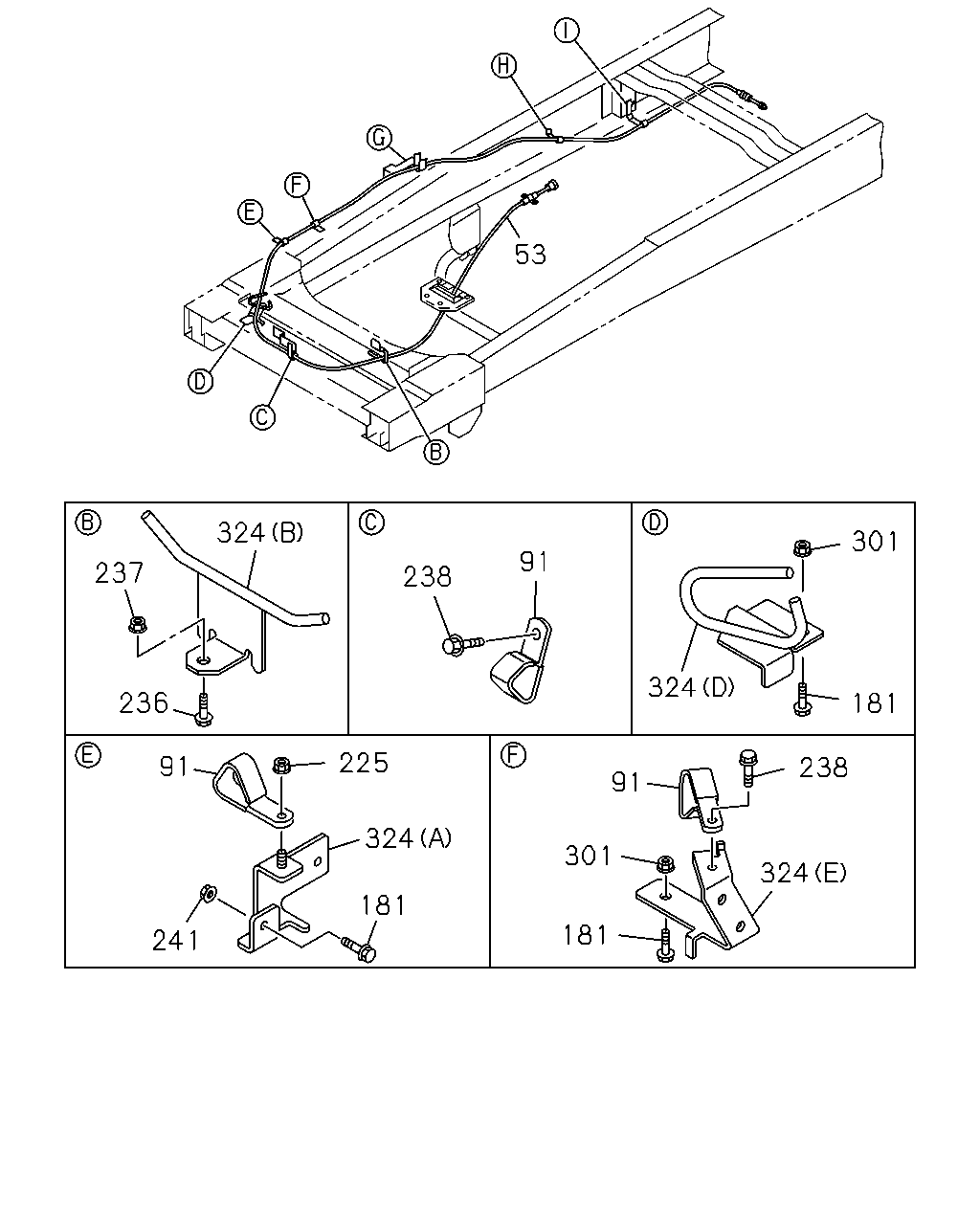

çizim 115684
53 324 301 91 237 238 324 236 181 225 91 238 91 324 301 324 181 181 241
BalonParca AdiParca NoAdetTipApplied Date A B
53 CABLE; PARK BRK,FRT LWR 8-98060-996-3 01 1 1112- ● ●
91 CLIP; PARKING BRK CABLE 8-97036-333-1 01 1 1112- ● ●
91 CLIP; PARKING BRK CABLE 8-97036-333-1 01 1 1112- ● ●
91 CLIP; PARKING BRK CABLE 8-97036-333-1 01 1 1112- ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1112- ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1112- ● ●
225 NUT; CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
225 NUT; CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
236 BOLT; BRKT TO FRAME
M10X25 FLANGE 		0-28651-025-0 01 1 1112- ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 01 1 1112-1301 ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 01 1 1112-1301 ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 01 1 1302- ● ●
237 NUT; BRKT TO FRAME
EXC. HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE 		0-91180-110-0 01 1 1302- ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 01 1 1302- ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
238 BOLT; CLIP TO BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1112- ● ●
241 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1112- ● ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
324 BRACKET
(D) 		8-98189-804-0 01 1 1112- ● ●
324 BRACKET
(E) 		8-98034-185-1 01 1 1112- ● ●
324 BRACKET
(B) 		8-98061-626-1 01 1 1112- ● ●
324 BRACKET
(A) 		8-98099-516-0 01 1 1112-1508 ● ●
324 BRACKET
(A) 		8-98216-763-1 01 1 1509- ● ●
324 BRACKET
(C) 		8-98111-394-1 01 1 1112- ● ●
çizim 115687
237 238 338 235 8 324 238 85 225 237 235
BalonParca AdiParca NoAdetTipApplied Date A B
8 GUIDE; PARKING BRK 8-98110-964-0 01 1 1112- ● ●
85 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1112- ● ●
225 NUT; CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
225 NUT; CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98087-322-0 01 1 1112- ● ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98106-986-1 01 1 1112- ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 01 1 1112-1301 ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 01 1 1112-1301 ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 01 1 1302- ● ●
237 NUT; BRKT TO FRAME
EXC. HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE 		0-91180-110-0 01 1 1302- ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 01 1 1302- ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
238 BOLT; CLIP TO BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1112- ● ●
324 BRACKET
(D) 		8-98189-804-0 01 1 1112- ● ●
324 BRACKET
(E) 		8-98034-185-1 01 1 1112- ● ●
324 BRACKET
(B) 		8-98061-626-1 01 1 1112- ● ●
324 BRACKET
(A) 		8-98099-516-0 01 1 1112-1508 ● ●
324 BRACKET
(A) 		8-98216-763-1 01 1 1509- ● ●
324 BRACKET
(C) 		8-98111-394-1 01 1 1112- ● ●
338 SCREW; GUIDE
M8X25 FLANGE 		0-28650-825-0 01 1 1112- ● ●
