3-10 — BRAKE PEDAL AND CONTROL (#78535) — 178 parça

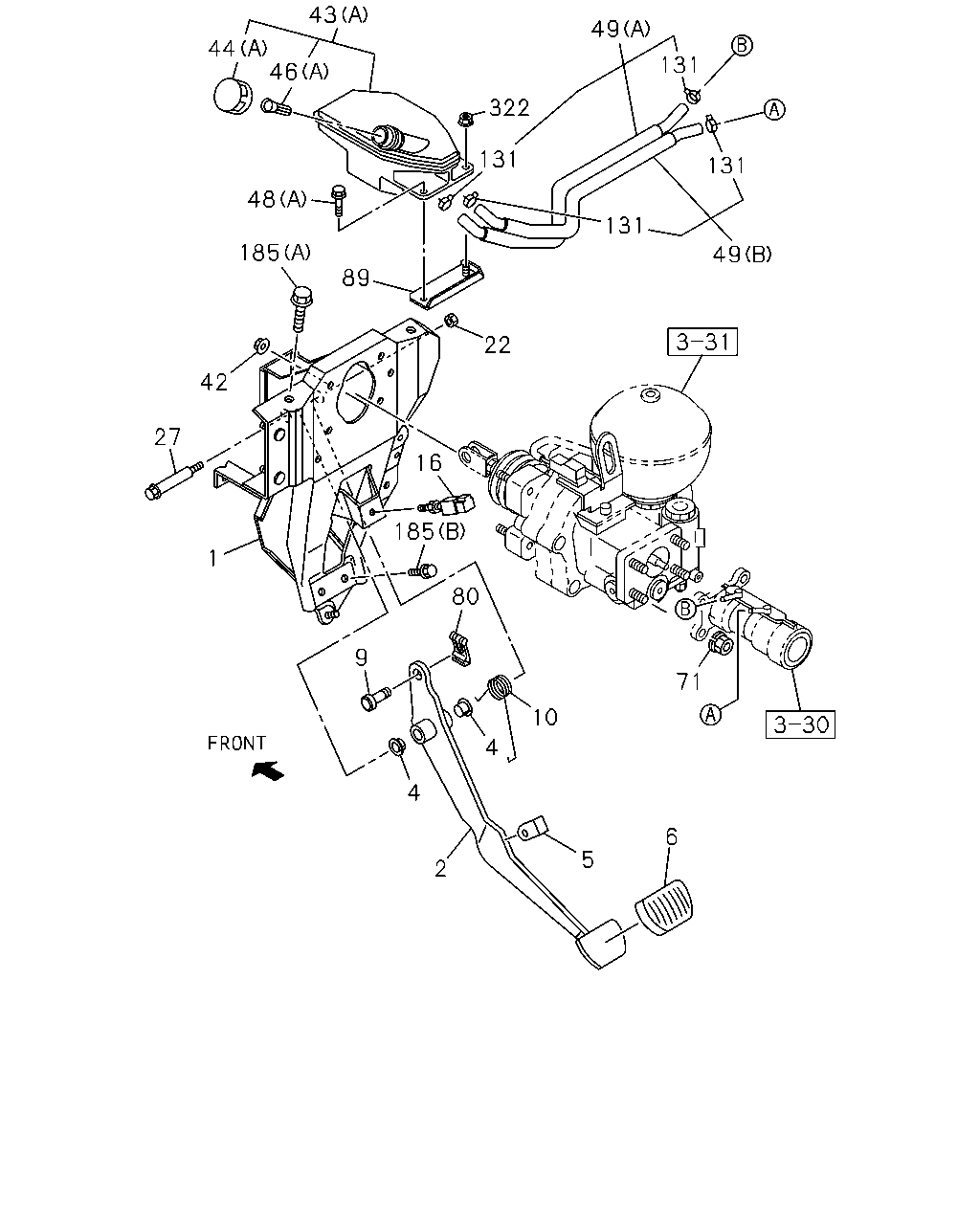

çizim 115315
43 49 44 46 131 322 131 131 48 131 185 49 89 22 42 27 16 185 1 80 9 71 10 4 4 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98029-185-1 01 1 1302- ●
1 BRACKET ASM; PEDAL 8-98091-563-0 01 1 1112-1301 ● ●
1 BRACKET ASM; PEDAL
HYDRO BRAKE BOOSTER(7QQ) 		8-98091-563-0 01 1 1302- ●
1 BRACKET ASM; PEDAL 8-98091-563-0 01 1 1302- ●
2 PEDAL; BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98003-157-0 01 1 1302- ●
2 PEDAL; BRK 8-98011-432-0 01 1 1112-1301 ● ●
2 PEDAL; BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98011-432-0 01 1 1302- ●
2 PEDAL; BRK 8-98011-432-0 01 1 1302- ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 1112- ● ●
5 STOPPER; BRK PEDAL 8-98029-187-0 01 1 1112- ● ●
6 COVER; BRK PEDAL 8-97853-413-2 01 1 1112- ● ●
9 PIN; JAW JOINT 8-98147-657-0 01 1 1112- ● ●
10 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 1112- ● ●
16 SWITCH; STOP LAMP 8-98000-028-0 01 1 1112- ● ●
22 NUT; SHAFT
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1112- ● ●
27 SHAFT; BRK PEDAL 8-97866-667-0 01 1 1112- ● ●
42 NUT; BRK PEDAL
M8 W/LK WASHER 		8-94279-050-0 04 1 1112- ● ●
43 TANK ASM; OIL
(B) 		8-97306-217-0 01 1 1112-1301 ● ●
43 TANK ASM; OIL
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97306-217-0 01 1 1302- ●
43 TANK ASM; OIL
(B) 		8-97306-217-0 01 1 1302- ●
43 TANK ASM; OIL
(A) 		8-97387-219-3 01 1 1112- ● ●
44 CAP; OIL TANK
(B) 		8-94146-153-2 01 1 1112-1301 ● ●
44 CAP; OIL TANK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94146-153-2 01 1 1302- ●
44 CAP; OIL TANK
(B) 		8-94146-153-2 01 1 1302- ●
44 CAP; OIL TANK
(A) 		8-98022-268-0 01 1 1112- ● ●
46 FILTER; RESERVOIR,BRK
(B) 		8-97094-732-0 01 1 1112-1301 ● ●
46 FILTER; RESERVOIR,BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97094-732-0 01 1 1302- ●
46 FILTER; RESERVOIR,BRK
(B) 		8-97094-732-0 01 1 1302- ●
46 FILTER; RESERVOIR,BRK
(A) 		8-98022-269-0 01 1 1112- ● ●
48 BOLT; OIL TANK TO BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1112-1301 ● ●
48 BOLT; OIL TANK TO BRKT
HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
48 BOLT; OIL TANK TO BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
48 BOLT; OIL TANK TO BRKT
(A) M6X20 W/PL WASHER 		8-97370-668-0 01 1 1112- ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(A) 		8-98030-658-1 01 1 1112- ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(B) 		8-98030-659-1 01 1 1112- ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 04 1 1112- ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1112- ● ●
89 BRACKET; M/CYL 8-98005-493-1 01 1 1112- ● ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY 8-98031-178-0 04 1 1112- ● ●
185 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 1112-1408 ●
185 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1409- ●
185 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
185 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1112-1301 ●
185 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) (C) M8X25 FLANGE 		0-28650-825-0 04 1 1302- ●
185 BOLT; BRKT
(A) M10X25 FLANGE 		0-28661-025-0 02 1 1112- ● ●
185 BOLT; BRKT
(B) M10X22 W/PL WASHER 		8-97313-188-0 02 1 1112- ● ●
322 NUT; OIL TANK
M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●

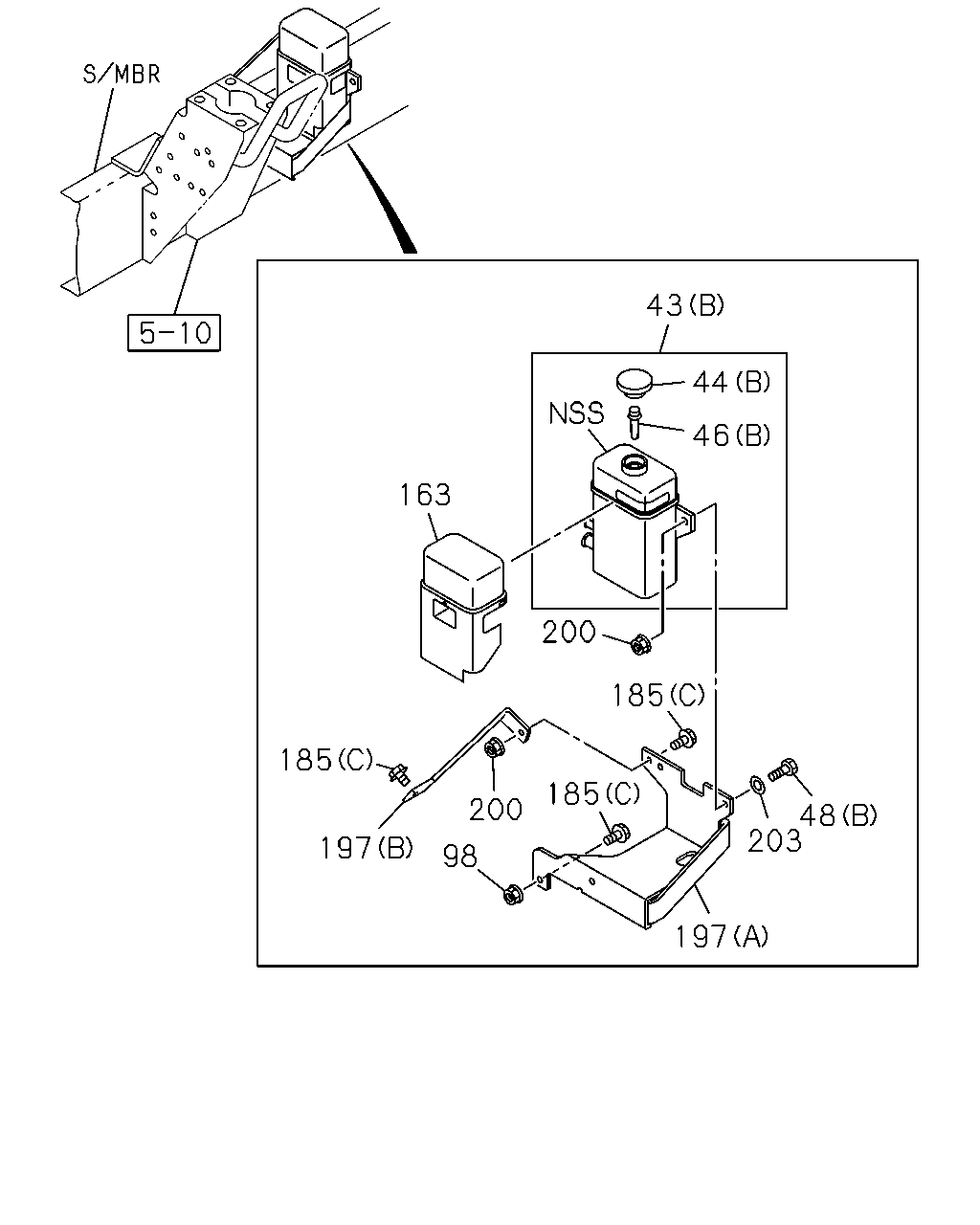

çizim 115639
43 44 46 200 163 185 48 203 197 185 200 185 197 98
BalonParca AdiParca NoAdetTipApplied Date A B
43 TANK ASM; OIL
(B) 		8-97306-217-0 01 1 1112-1301 ● ●
43 TANK ASM; OIL
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97306-217-0 01 1 1302- ●
43 TANK ASM; OIL
(B) 		8-97306-217-0 01 1 1302- ●
43 TANK ASM; OIL
(A) 		8-97387-219-3 01 1 1112- ● ●
44 CAP; OIL TANK
(B) 		8-94146-153-2 01 1 1112-1301 ● ●
44 CAP; OIL TANK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94146-153-2 01 1 1302- ●
44 CAP; OIL TANK
(B) 		8-94146-153-2 01 1 1302- ●
44 CAP; OIL TANK
(A) 		8-98022-268-0 01 1 1112- ● ●
46 FILTER; RESERVOIR,BRK
(B) 		8-97094-732-0 01 1 1112-1301 ● ●
46 FILTER; RESERVOIR,BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97094-732-0 01 1 1302- ●
46 FILTER; RESERVOIR,BRK
(B) 		8-97094-732-0 01 1 1302- ●
46 FILTER; RESERVOIR,BRK
(A) 		8-98022-269-0 01 1 1112- ● ●
48 BOLT; OIL TANK TO BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1112-1301 ● ●
48 BOLT; OIL TANK TO BRKT
HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
48 BOLT; OIL TANK TO BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
48 BOLT; OIL TANK TO BRKT
(A) M6X20 W/PL WASHER 		8-97370-668-0 01 1 1112- ● ●
98 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 1112- ●
98 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1112-1301 ●
98 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 03 1 1302- ●
163 COVER; OIL TANK 8-97164-749-1 01 1 1112-1301 ● ●
163 COVER; OIL TANK
HYDRO BRAKE BOOSTER(7QQ) 		8-97164-749-1 01 1 1302- ●
163 COVER; OIL TANK 8-97164-749-1 01 1 1302- ●
185 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 1112-1408 ●
185 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1409- ●
185 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
185 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1112-1301 ●
185 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) (C) M8X25 FLANGE 		0-28650-825-0 04 1 1302- ●
185 BOLT; BRKT
(A) M10X25 FLANGE 		0-28661-025-0 02 1 1112- ● ●
185 BOLT; BRKT
(B) M10X22 W/PL WASHER 		8-97313-188-0 02 1 1112- ● ●
197 BRACKET; OIL TANK
(C) 		8-97305-565-0 01 1 1112-1408 ●
197 BRACKET; OIL TANK
(D) 		8-98155-479-1 01 1 1409- ●
197 BRACKET; OIL TANK
(A) IRA 		8-97173-342-2 01 1 1112-1301 ●
197 BRACKET; OIL TANK
HYDRO BRAKE BOOSTER(7QQ) (A) IRA 		8-97173-342-2 01 1 1302- ●
197 BRACKET; OIL TANK
(B) 		8-97333-555-2 01 1 1112-1301 ●
197 BRACKET; OIL TANK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97333-555-2 01 1 1302- ●
200 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1112-1301 ● ●
200 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 02 1 1302- ●
200 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1302- ●
203 WASHER; PL,OIL TANK
ID=8.4 OD=22 		0-91610-708-0 02 1 1112-1301 ● ●
203 WASHER; PL,OIL TANK
HYDRO BRAKE BOOSTER(7QQ) ID=8.4 OD=22 		0-91610-708-0 02 1 1302- ●
203 WASHER; PL,OIL TANK
ID=8.4 OD=22 		0-91610-708-0 02 1 1302- ●

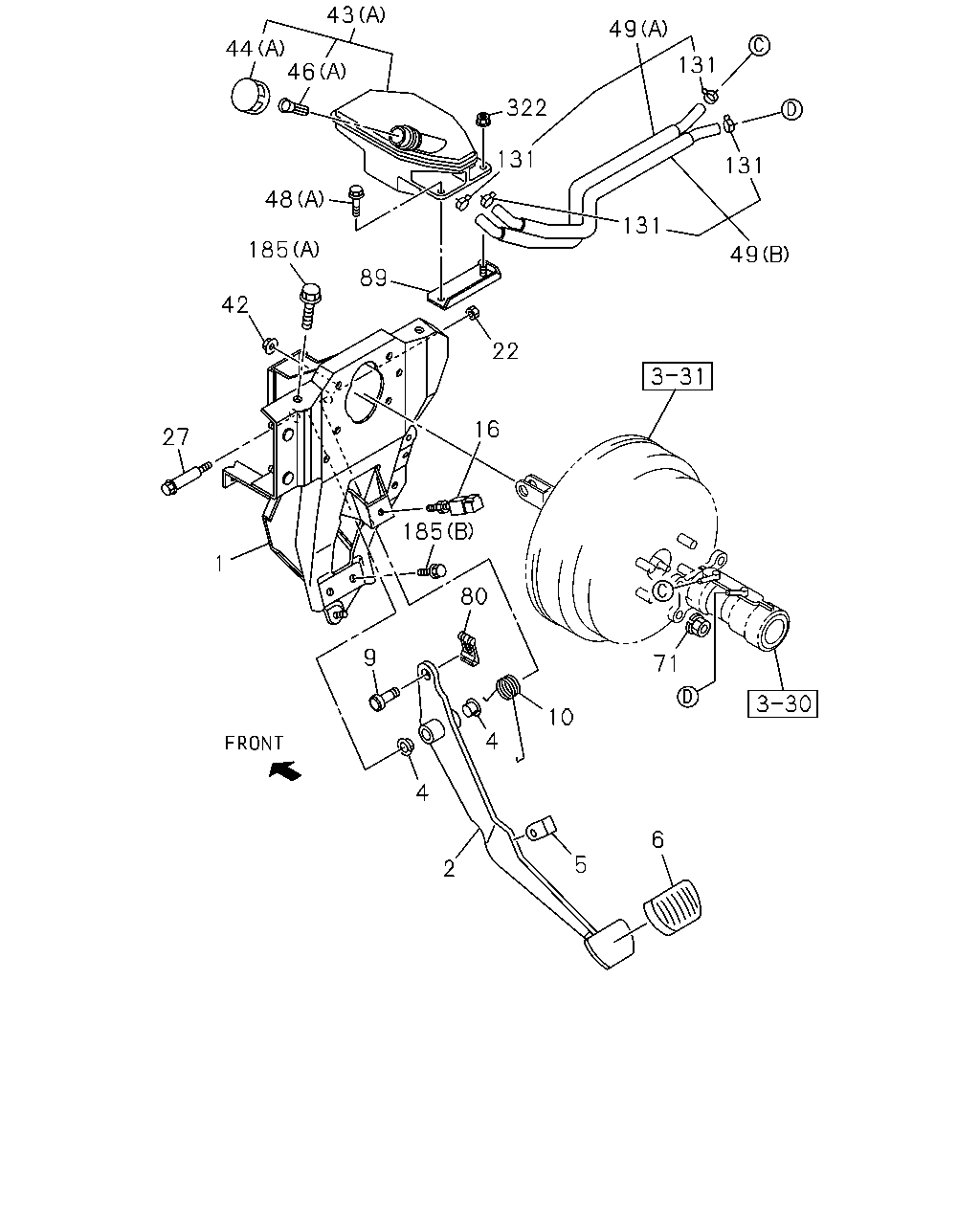

çizim 183618
43 44 46 322 49 131 131 49 131 131 48 185 98 22 16 185 1 27 42 80 9 4 4 10 71 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98029-185-1 01 1 1302- ●
1 BRACKET ASM; PEDAL 8-98091-563-0 01 1 1112-1301 ● ●
1 BRACKET ASM; PEDAL
HYDRO BRAKE BOOSTER(7QQ) 		8-98091-563-0 01 1 1302- ●
1 BRACKET ASM; PEDAL 8-98091-563-0 01 1 1302- ●
2 PEDAL; BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98003-157-0 01 1 1302- ●
2 PEDAL; BRK 8-98011-432-0 01 1 1112-1301 ● ●
2 PEDAL; BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98011-432-0 01 1 1302- ●
2 PEDAL; BRK 8-98011-432-0 01 1 1302- ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 1112- ● ●
5 STOPPER; BRK PEDAL 8-98029-187-0 01 1 1112- ● ●
6 COVER; BRK PEDAL 8-97853-413-2 01 1 1112- ● ●
9 PIN; JAW JOINT 8-98147-657-0 01 1 1112- ● ●
10 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 1112- ● ●
16 SWITCH; STOP LAMP 8-98000-028-0 01 1 1112- ● ●
22 NUT; SHAFT
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1112- ● ●
27 SHAFT; BRK PEDAL 8-97866-667-0 01 1 1112- ● ●
42 NUT; BRK PEDAL
M8 W/LK WASHER 		8-94279-050-0 04 1 1112- ● ●
43 TANK ASM; OIL
(B) 		8-97306-217-0 01 1 1112-1301 ● ●
43 TANK ASM; OIL
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97306-217-0 01 1 1302- ●
43 TANK ASM; OIL
(B) 		8-97306-217-0 01 1 1302- ●
43 TANK ASM; OIL
(A) 		8-97387-219-3 01 1 1112- ● ●
44 CAP; OIL TANK
(B) 		8-94146-153-2 01 1 1112-1301 ● ●
44 CAP; OIL TANK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94146-153-2 01 1 1302- ●
44 CAP; OIL TANK
(B) 		8-94146-153-2 01 1 1302- ●
44 CAP; OIL TANK
(A) 		8-98022-268-0 01 1 1112- ● ●
46 FILTER; RESERVOIR,BRK
(B) 		8-97094-732-0 01 1 1112-1301 ● ●
46 FILTER; RESERVOIR,BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97094-732-0 01 1 1302- ●
46 FILTER; RESERVOIR,BRK
(B) 		8-97094-732-0 01 1 1302- ●
46 FILTER; RESERVOIR,BRK
(A) 		8-98022-269-0 01 1 1112- ● ●
48 BOLT; OIL TANK TO BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1112-1301 ● ●
48 BOLT; OIL TANK TO BRKT
HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
48 BOLT; OIL TANK TO BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
48 BOLT; OIL TANK TO BRKT
(A) M6X20 W/PL WASHER 		8-97370-668-0 01 1 1112- ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(A) 		8-98030-658-1 01 1 1112- ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(B) 		8-98030-659-1 01 1 1112- ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 04 1 1112- ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1112- ● ●
98 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 1112- ●
98 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1112-1301 ●
98 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 03 1 1302- ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY 8-98031-178-0 04 1 1112- ● ●
185 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 1112-1408 ●
185 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1409- ●
185 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
185 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1112-1301 ●
185 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) (C) M8X25 FLANGE 		0-28650-825-0 04 1 1302- ●
185 BOLT; BRKT
(A) M10X25 FLANGE 		0-28661-025-0 02 1 1112- ● ●
185 BOLT; BRKT
(B) M10X22 W/PL WASHER 		8-97313-188-0 02 1 1112- ● ●
322 NUT; OIL TANK
M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●
çizim 327864
98 203 48 197 203 48 46 44 43 163 200 185 98 197 185
BalonParca AdiParca NoAdetTipApplied Date A B
43 TANK ASM; OIL
(B) 		8-97306-217-0 01 1 1112-1301 ● ●
43 TANK ASM; OIL
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97306-217-0 01 1 1302- ●
43 TANK ASM; OIL
(B) 		8-97306-217-0 01 1 1302- ●
43 TANK ASM; OIL
(A) 		8-97387-219-3 01 1 1112- ● ●
44 CAP; OIL TANK
(B) 		8-94146-153-2 01 1 1112-1301 ● ●
44 CAP; OIL TANK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94146-153-2 01 1 1302- ●
44 CAP; OIL TANK
(B) 		8-94146-153-2 01 1 1302- ●
44 CAP; OIL TANK
(A) 		8-98022-268-0 01 1 1112- ● ●
46 FILTER; RESERVOIR,BRK
(B) 		8-97094-732-0 01 1 1112-1301 ● ●
46 FILTER; RESERVOIR,BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97094-732-0 01 1 1302- ●
46 FILTER; RESERVOIR,BRK
(B) 		8-97094-732-0 01 1 1302- ●
46 FILTER; RESERVOIR,BRK
(A) 		8-98022-269-0 01 1 1112- ● ●
48 BOLT; OIL TANK TO BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1112-1301 ● ●
48 BOLT; OIL TANK TO BRKT
HYDRO BRAKE BOOSTER(7QQ) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
48 BOLT; OIL TANK TO BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
48 BOLT; OIL TANK TO BRKT
(A) M6X20 W/PL WASHER 		8-97370-668-0 01 1 1112- ● ●
98 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 1112- ●
98 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1112-1301 ●
98 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 03 1 1302- ●
163 COVER; OIL TANK 8-97164-749-1 01 1 1112-1301 ● ●
163 COVER; OIL TANK
HYDRO BRAKE BOOSTER(7QQ) 		8-97164-749-1 01 1 1302- ●
163 COVER; OIL TANK 8-97164-749-1 01 1 1302- ●
185 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 1112-1408 ●
185 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1409- ●
185 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
185 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1112-1301 ●
185 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) (C) M8X25 FLANGE 		0-28650-825-0 04 1 1302- ●
185 BOLT; BRKT
(A) M10X25 FLANGE 		0-28661-025-0 02 1 1112- ● ●
185 BOLT; BRKT
(B) M10X22 W/PL WASHER 		8-97313-188-0 02 1 1112- ● ●
197 BRACKET; OIL TANK
(C) 		8-97305-565-0 01 1 1112-1408 ●
197 BRACKET; OIL TANK
(D) 		8-98155-479-1 01 1 1409- ●
197 BRACKET; OIL TANK
(A) IRA 		8-97173-342-2 01 1 1112-1301 ●
197 BRACKET; OIL TANK
HYDRO BRAKE BOOSTER(7QQ) (A) IRA 		8-97173-342-2 01 1 1302- ●
197 BRACKET; OIL TANK
(B) 		8-97333-555-2 01 1 1112-1301 ●
197 BRACKET; OIL TANK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97333-555-2 01 1 1302- ●
200 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1112-1301 ● ●
200 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 02 1 1302- ●
200 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1302- ●
203 WASHER; PL,OIL TANK
ID=8.4 OD=22 		0-91610-708-0 02 1 1112-1301 ● ●
203 WASHER; PL,OIL TANK
HYDRO BRAKE BOOSTER(7QQ) ID=8.4 OD=22 		0-91610-708-0 02 1 1302- ●
203 WASHER; PL,OIL TANK
ID=8.4 OD=22 		0-91610-708-0 02 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
