Isuzu WW
▶
TRUCKS
▶
NPR
▶
51300 - NPR(IRAN)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

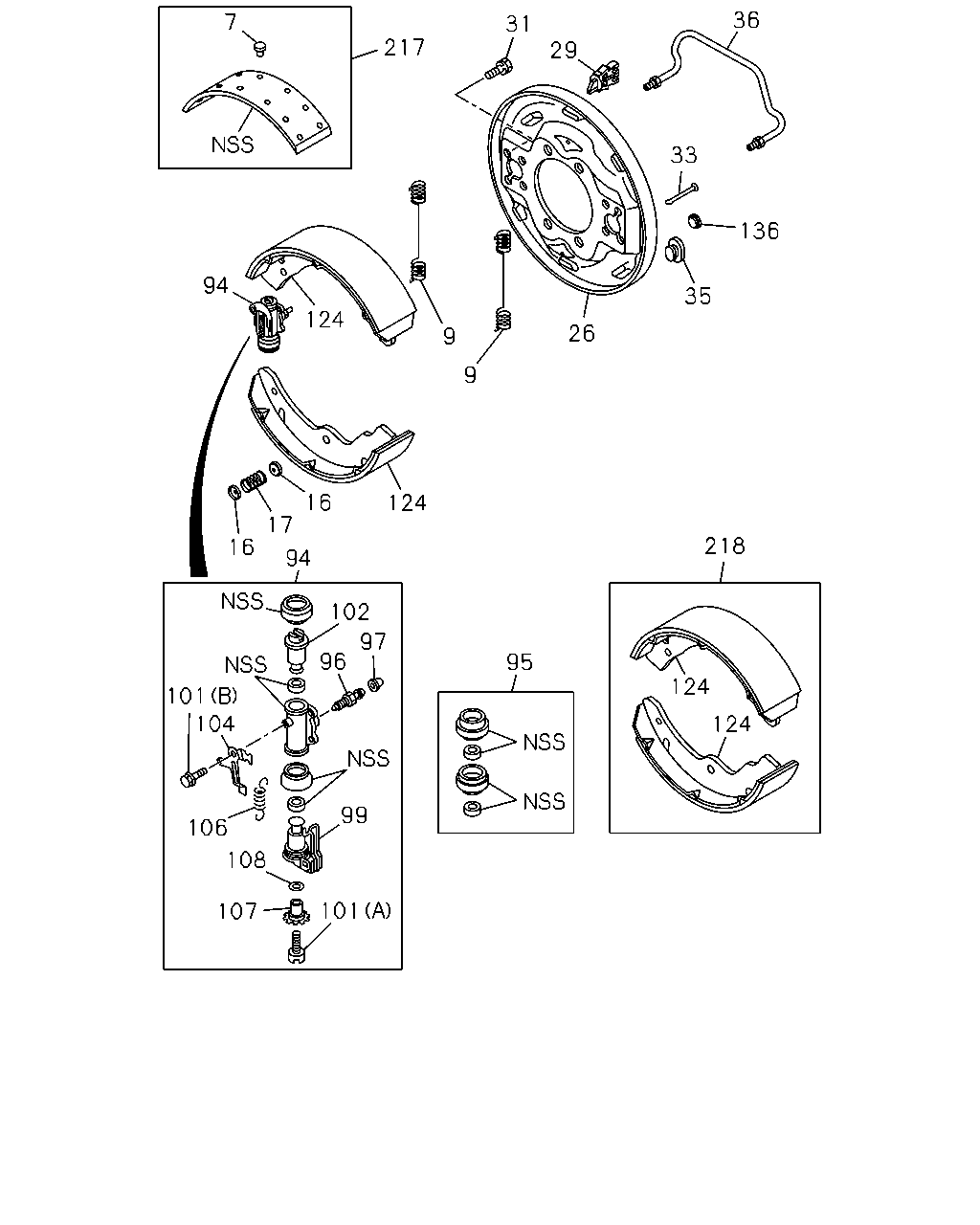

3-05 — REAR WHEEL BRAKE
(#78533) — 35 parça
Tümü
A - NPR6SN
B - NPR6WN
36
7
31
217
29
33
136
94
35
124
26
9
9
16
124
17
218
16
94
102
97
96
95
124
101
104
124
99
106
108
101
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
RIVET; LINING,RR BRK
1-09732-029-0
64
1
1112-
●
●
9
SPRING; RETURN,BRK SHOE
8-97122-869-0
04
1
1112-
●
●
16
CUP; SHOE HOLDING
9-47165-096-0
08
1
1112-
●
●
17
SPRING; SHOE HOLD DOWN
5-09580-101-1
04
1
1112-
●
●
26
PLATE; BACK,RR BRK
8-97207-157-0
01
1
1112-
●
●
26
PLATE; BACK,RR BRK
8-97207-158-0
01
1
1112-
●
●
29
CLIP; PIPE,BRK
8-97022-086-0
02
1
1112-
●
●
31
BOLT; RR WHEEL CYL
8-97081-305-0
16
1
1112-
●
●
33
PIN; SHOE HOLD DOWN
8-97122-870-0
04
1
1112-
●
●
35
GROMMET; CHECK HOLE
8-97017-507-0
06
1
1112-
●
●
36
PIPE; OIL,RR BRK
8-97192-215-0
02
1
1112-
●
●
94
CYLINDER; WHEEL,RR BRK
REAR
8-97358-878-0
01
1
1112-
●
●
94
CYLINDER; WHEEL,RR BRK
REAR
8-97358-879-0
01
1
1112-
●
●
94
CYLINDER; WHEEL,RR BRK
FRONT
8-97358-880-0
01
1
1112-
●
●
94
CYLINDER; WHEEL,RR BRK
FRONT
8-97358-881-0
01
1
1112-
●
●
95
CUP SET; RR WHEEL CYL
5-87832-051-0
02
1
1112-
●
●
96
SCREW; BLEEDER,RR BRK
8-98050-477-0
02
1
1112-
●
●
97
CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
02
1
1112-
●
●
99
PISTON; RR WHEEL CYL
8-97349-731-0
02
1
1112-
●
●
99
PISTON; RR WHEEL CYL
8-97349-732-0
02
1
1112-
●
●
101
SCREW; ADJ,RR WHEEL CYL
(A)
8-97349-741-0
02
1
1112-
●
●
101
SCREW; ADJ,RR WHEEL CYL
(A)
8-97349-742-0
02
1
1112-
●
●
101
SCREW; ADJ,RR WHEEL CYL
(B)
8-97349-747-0
04
1
1112-
●
●
102
PISTON; REAR WHEEL CYL
8-97332-043-0
04
1
1112-
●
●
104
LEVER; ADJ
8-97349-743-0
02
1
1112-
●
●
104
LEVER; ADJ
8-97349-744-0
02
1
1112-
●
●
106
SPRING; ADJ LEVER
8-97349-745-0
04
1
1112-
●
●
107
GEAR; ADJ,RR W/CYL
8-97358-894-0
02
1
1112-
●
●
107
GEAR; ADJ,RR W/CYL
8-97358-895-0
02
1
1112-
●
●
108
WASHER; THRUST,GEAR ADJ
8-97349-736-0
04
1
1112-
●
●
124
SHOE ASM; BRK,RR
8-97188-455-0
04
1
1112-
●
●
136
GROMMET
1-47154-008-0
04
1
1112-
●
●
217
LINING KIT; RR BRK
5-87831-692-0
01
1
1112-
●
●
217
LINING KIT; RR BRK
BEST VALUE PARTS
5-87610-119-0
01
1
1112-
●
●
218
SHOE KIT; BRK,RR
5-87831-693-0
01
1
1112-
●
●
