3-01 — FRONT WHEEL BRAKE (#78532) — 39 parça

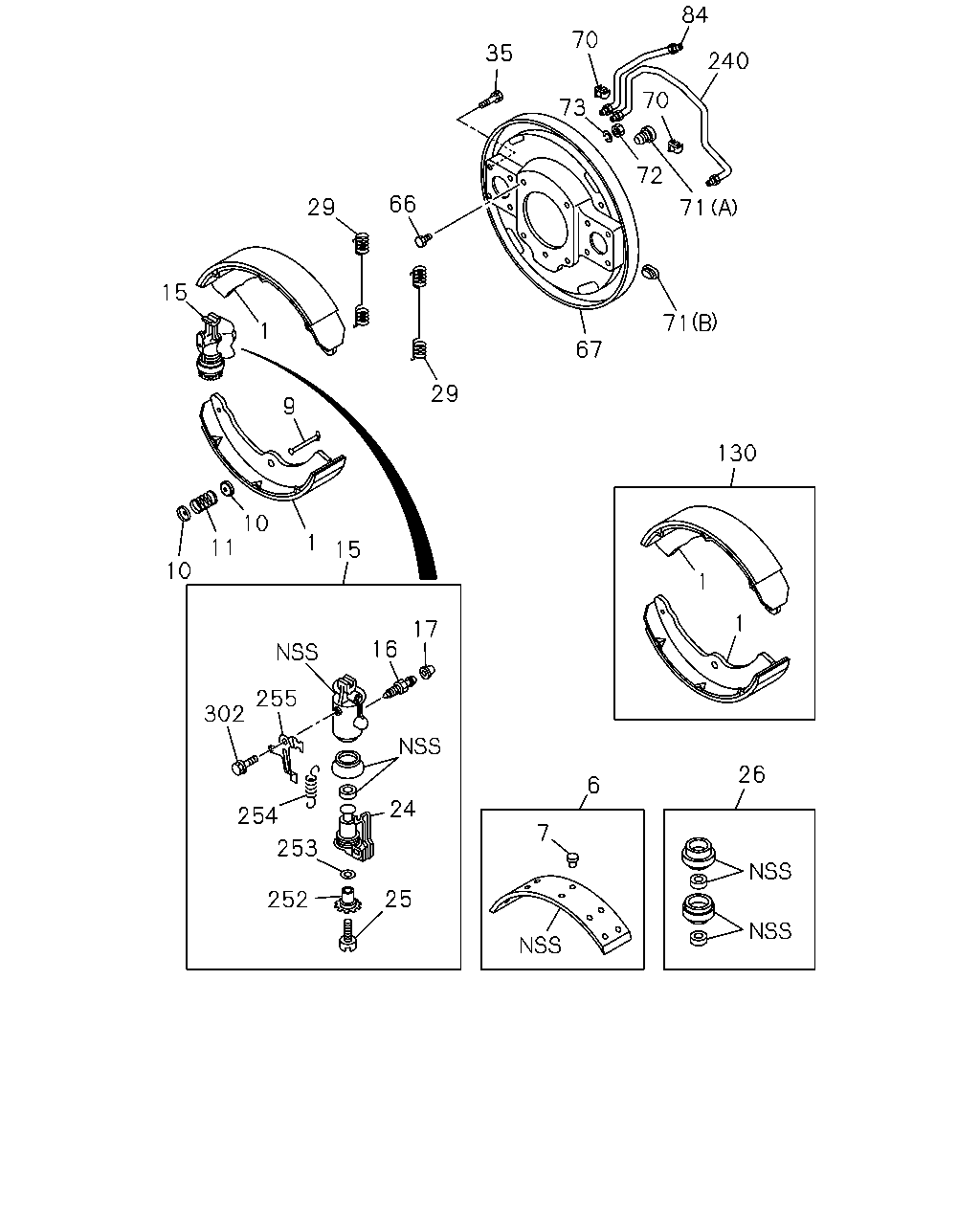

çizim 183634
84 70 35 240 70 73 72 66 29 71 15 71 1 67 29 9 130 10 1 11 15 10 1 1 17 16 255 302 26 6 24 254 7 253 25 252
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT 8-97188-455-0 04 1 1112- ● ●
6 LINING KIT; FRT BRK 5-87831-692-0 01 1 1112- ● ●
6 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 1112- ● ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 64 1 1112- ● ●
9 PIN; SHOE HOLDER 8-97122-870-0 04 1 1112- ● ●
10 CUP; SHOE HOLDING 9-47165-096-0 08 1 1112- ● ●
11 SPRING; SHOE HOLDING 5-09580-101-1 04 1 1112- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-98081-290-0 01 1 1112- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-98081-291-0 01 1 1112- ● ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-98081-292-0 01 1 1112- ● ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-98081-293-0 01 1 1112- ● ●
16 SCREW; BLEEDER,FRT BRK 8-98050-477-0 02 1 1112- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1112- ● ●
24 PISTON; FRT WHEEL CYL 8-97349-731-0 02 1 1112- ● ●
24 PISTON; FRT WHEEL CYL 8-97349-732-0 02 1 1112- ● ●
25 SCREW; ADJ,FRT WHEEL CYL 8-97349-741-0 02 1 1112- ● ●
25 SCREW; ADJ,FRT WHEEL CYL 8-97349-742-0 02 1 1112- ● ●
26 CUP SET; FRT WHEEL CYL 5-87832-051-0 01 1 1112- ● ●
29 SPRING; RETURN,FRT BRK SHOE 8-97122-869-0 04 1 1112- ● ●
35 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 1112- ● ●
66 BOLT; OIL SHIELD COVER
M14X40 		8-98007-879-0 08 1 1112- ● ●
67 PLATE; BACK,FRT BRK 8-97358-868-0 01 1 1112- ● ●
67 PLATE; BACK,FRT BRK 8-97358-869-0 01 1 1112- ● ●
70 CLIP; PIPE HOLD 8-97022-086-0 04 1 1112- ● ●
71 GROMMET; CHECK HOLE
(A) 		1-47154-008-0 04 1 1112- ● ●
71 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 06 1 1112- ● ●
72 NUT; OIL SHIELD COVER
M14 		0-91110-514-0 08 1 1112- ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=14.2 		0-91510-814-0 08 1 1112- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 1112- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 1112- ● ●
130 SHOE KIT; BRK,FRT 5-87831-693-0 01 1 1112- ● ●
240 PIPE; OIL,FRT BRK 8-97079-847-0 02 1 1112- ● ●
252 GEAR; ADJ,FRT WHEEL CYL 8-97358-894-0 02 1 1112- ● ●
252 GEAR; ADJ,FRT WHEEL CYL 8-97358-895-0 02 1 1112- ● ●
253 WASHER; THRUST 8-97349-736-0 04 1 1112- ● ●
254 SPRING; ADJ LEVER 8-97349-745-0 04 1 1112- ● ●
255 LEVER; ADJ 8-97349-743-0 02 1 1112- ● ●
255 LEVER; ADJ 8-97349-744-0 02 1 1112- ● ●
302 SCREW; ADJ LEVER 8-97349-747-0 04 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
