2-85 — POWER TAKE OFF CONTROL (#78531) — 78 parça

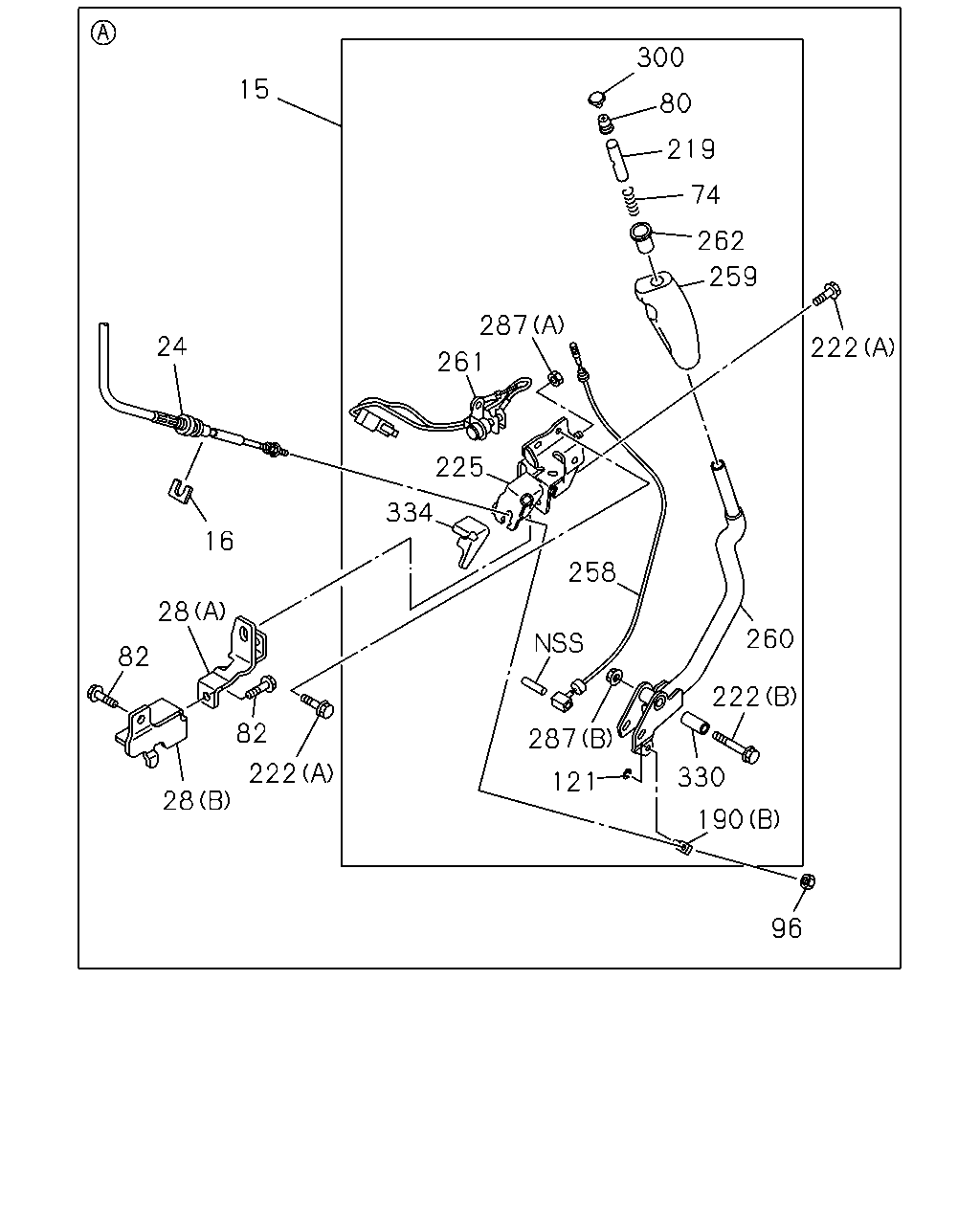

15 24 261 287 225 334 258 287 121 190 96 330 222 260 16 28 82 28 82 222 222 259 262 74 219 80 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98070-129-3	01	1	1112-
16	CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1112-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3413	8-98085-646-1	01	1	1112-1204
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3413	8-98212-276-0	01	1	1205-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3399	8-98223-354-1	01	1	1208-
28	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	1112-
28	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	1112-
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1112-
80	COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1112-
82	BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) M8X20 FLANGE	0-28650-820-0	02	1	1112-
96	NUT PTO MANUAL CONTROL(6WC) M6	0-91110-506-0	01	1	1112-
121	RING; SNAP PTO MANUAL CONTROL(6WC) ID=4	0-91805-504-0	01	1	1112-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	1112-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1112-
219	KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1112-
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1112-
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (A) M8X20 FLANGE	0-28650-820-0	03	1	1112-
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	1112-
258	CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	1112-
259	GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1112-
260	LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	1112-
261	SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-899-2	01	1	1112-
262	RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1112-
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (A) M6	0-91110-506-0	01	1	1112-
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (B) M8 FLANGE	0-91180-208-0	01	1	1112-
300	CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1112-
330	COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1112-
334	SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	1112-

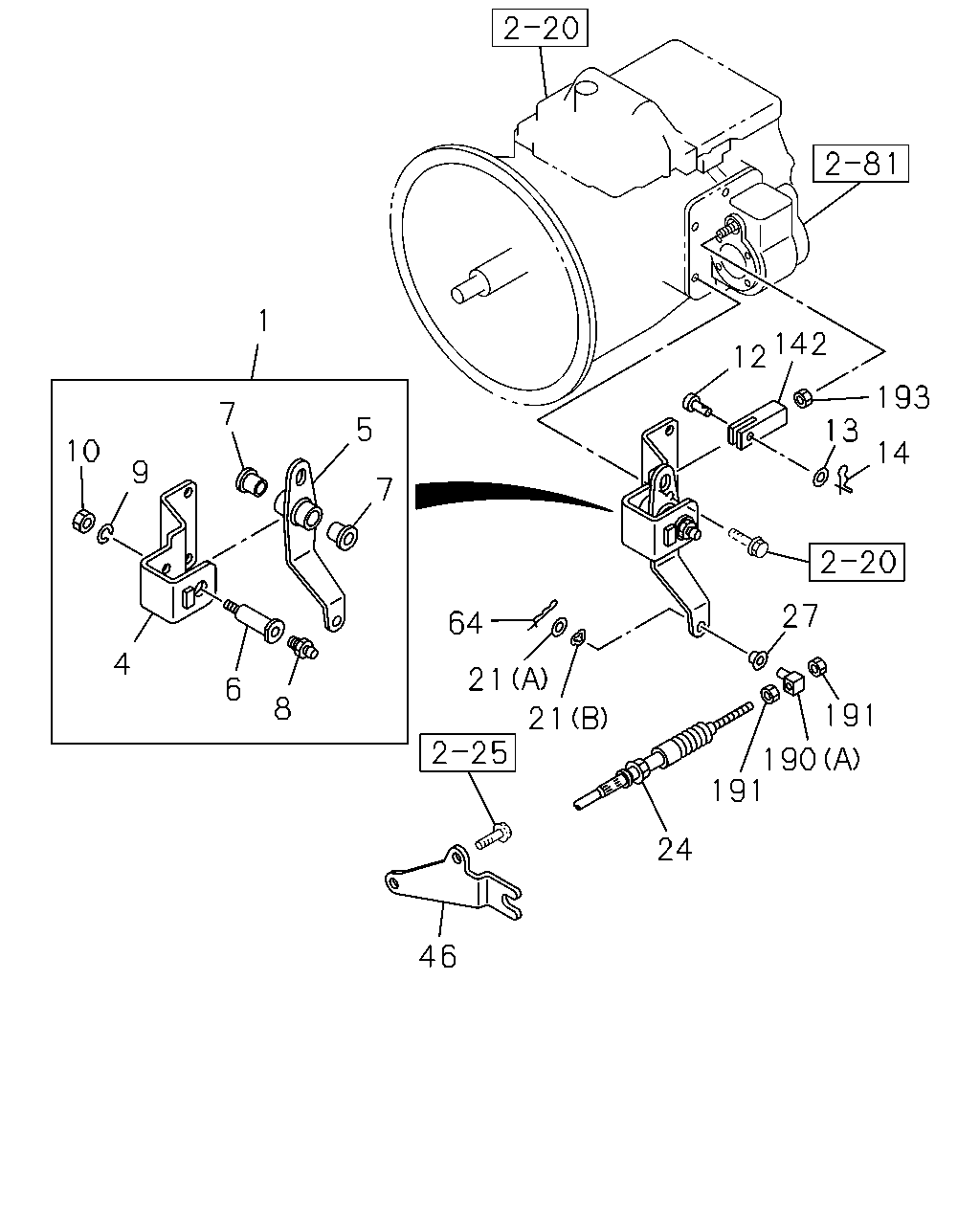

1 142 12 193 7 5 13 10 14 9 7 27 64 4 21 21 6 8 191 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1112-1301
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1302-
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1112-1301
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1302-
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	1112-1301
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1302-
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1112-1301
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1302-
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	1112-1301
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1302-
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	0-90301-406-0	01	1	1112-1301
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M6 STRAIGHT	0-90301-406-0	01	1	1302-
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	1112-1301
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1302-
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8	0-91110-508-0	01	1	1112-1301
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	0-91110-508-0	01	1	1302-
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	1112-1301
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1302-
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	1112-1301
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1302-
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	1112-1301
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1302-
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (A) ID=8.4 OD=22 IRA	0-91614-708-0	01	1	1112-
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1112-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3413	8-98085-646-1	01	1	1112-1204
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3413	8-98212-276-0	01	1	1205-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3399	8-98223-354-1	01	1	1208-
27	BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC)	8-94367-367-0	01	1	1112-
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC)	8-98032-829-2	01	1	1112-
64	PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) L=27.7	8-94111-137-0	01	1	1112-
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	1112-1301
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1302-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	1112-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1112-
191	NUT; BOSS PTO MANUAL CONTROL(6WC) M6	0-91110-506-0	02	1	1112-
193	NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	1112-1301
193	NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1302-

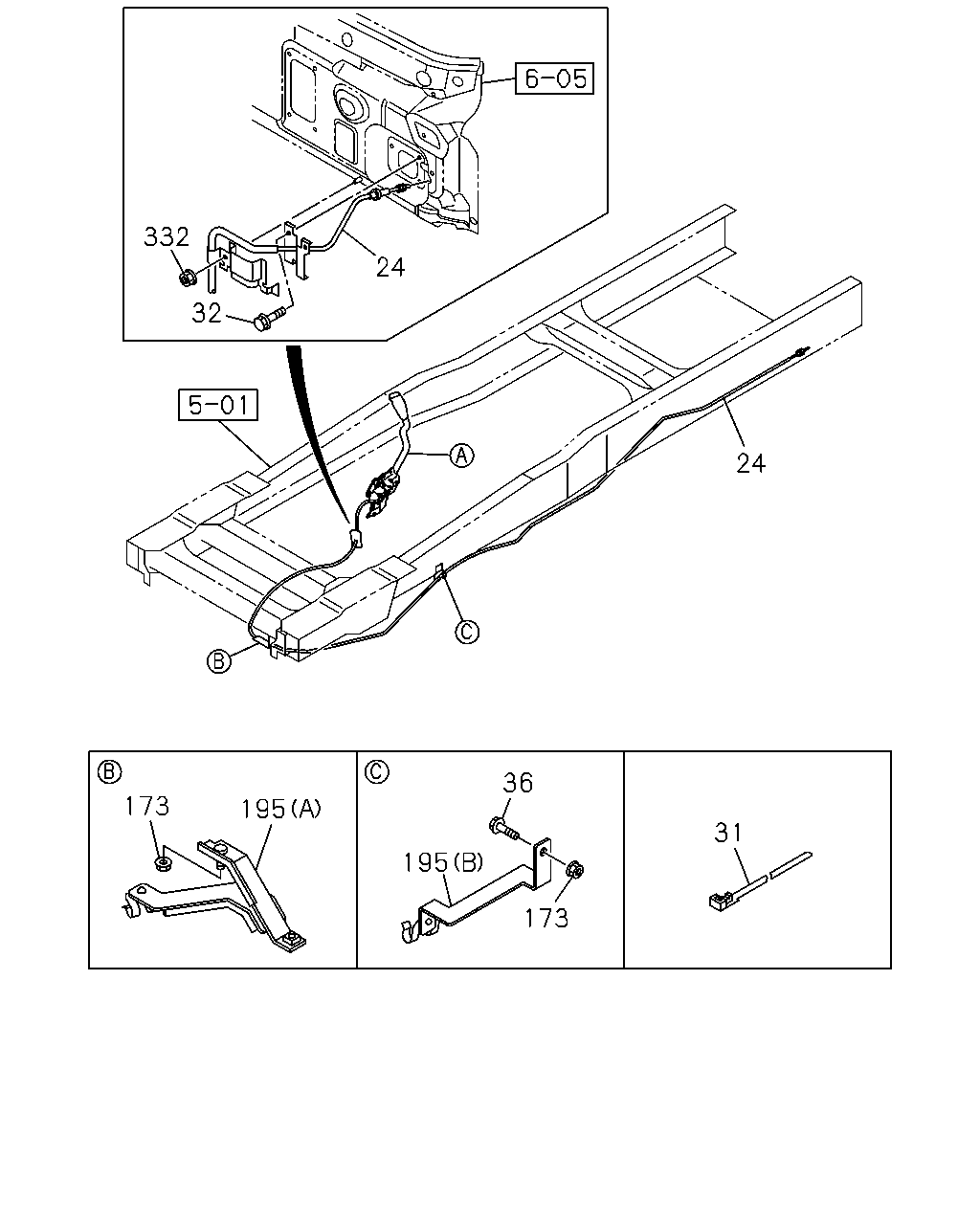

332 24 32 24 36 173 195 31 195 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3413	8-98085-646-1	01	1	1112-1204
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3413	8-98212-276-0	01	1	1205-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3399	8-98223-354-1	01	1	1208-
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) L=250	5-09707-030-1	01	1	1112-
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) L=250	5-09707-030-1	01	1	1112-
32	BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X12 FLANGE	8-97329-610-0	02	1	1112-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) M8X25 FLANGE	0-28650-825-0	01	1	1112-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) M8 FLANGE	0-91180-108-0	01	1	1112-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) M8 FLANGE	0-91180-108-0	01	1	1112-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98086-269-2	01	1	1112-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98119-504-0	01	1	1112-1112
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98203-717-0	01	1	1201-
332	NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) M6 FLANGE	0-91180-106-0	01	1	1112-
