3-34 — BRAKE VALVE; AIR (#7853) — 66 parça

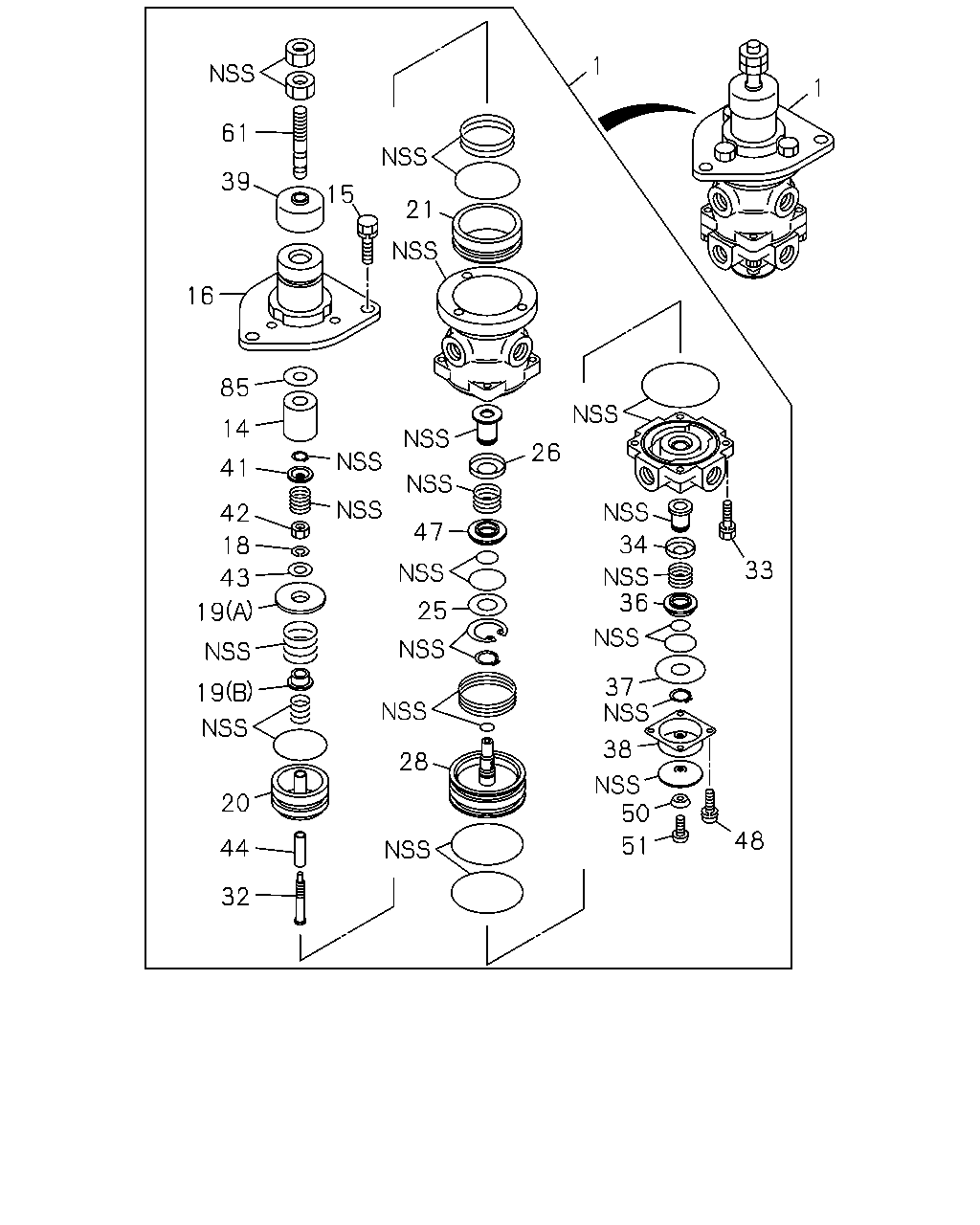

çizim 27025
1 1 61 39 15 21 16 85 14 26 41 42 47 34 18 33 36 43 25 19 37 19 38 28 50 20 48 51 44 32
BalonParca AdiParca NoAdetTipApplied Date A B C
1 VALVE; BRK 1-48100-750-4 01 1 0302-0405 ●
1 VALVE; BRK 1-48100-872-0 01 1 0406- ●
1 VALVE; BRK 1-48100-726-6 01 1 9905- ● ●
14 PLUNGER; BRK VLV 1-48119-365-0 01 1 9905-0301 ● ●
14 PLUNGER; BRK VLV 1-48119-365-0 01 1 0302- ● ● ●
15 BOLT; PLATE,BRK VLV 1-48119-232-0 03 1 9905-0301 ● ●
15 BOLT; PLATE,BRK VLV 1-48119-232-1 03 1 0302- ● ● ●
16 PLATE; MTG,BRKT VLV 1-48119-364-1 01 1 9905-0301 ● ●
16 PLATE; MTG,BRKT VLV 1-48119-364-3 01 1 0302- ● ● ●
18 WASHER; LK,SEAT,BRK VLV 1-48199-024-0 01 1 9905-0301 ● ●
18 WASHER; LK,SEAT,BRK VLV 1-48199-024-0 01 1 0302- ● ● ●
19 SEAT; SPRING,BRK VLV
(A) 		1-48119-370-1 01 1 0302- ●
19 SEAT; SPRING,BRK VLV
(B) 		1-48119-371-0 01 1 0302- ●
19 SEAT; SPRING,BRK VLV
(A) 		1-48119-321-0 01 1 9905- ● ●
19 SEAT; SPRING,BRK VLV
(B) 		1-48119-339-1 01 1 9905- ● ●
20 PISTON; UPR,BRK VLV 1-48119-318-0 01 1 9905-0301 ● ●
20 PISTON; UPR,BRK VLV 1-48119-318-0 01 1 0302- ● ● ●
21 BUSHING; UPR BODY 1-48119-317-0 01 1 9905-0301 ● ●
21 BUSHING; UPR BODY 1-48119-317-0 01 1 0302- ● ● ●
25 WASHER; PISTON,BRK VLV 1-48129-149-0 01 1 9905-0301 ● ●
25 WASHER; PISTON,BRK VLV 1-48129-149-0 01 1 0302- ● ● ●
26 RETAINER; VLV,BRK VLV 1-48122-003-0 01 1 9905-0301 ● ●
26 RETAINER; VLV,BRK VLV 1-48122-003-0 01 1 0302- ● ● ●
28 PISTON; LWR,BRK VLV 1-48119-337-0 01 1 9905-0301 ● ●
28 PISTON; LWR,BRK VLV 1-48119-337-0 01 1 0302- ● ● ●
32 SCREW; BRK VLV 1-48119-323-0 01 1 9905-0301 ● ●
32 SCREW; BRK VLV 1-48119-323-0 01 1 0302- ● ● ●
33 BOLT; BODY,BRK VLV 1-48129-068-0 04 1 9905-0301 ● ●
33 BOLT; BODY,BRK VLV 1-48129-068-0 04 1 0302- ● ● ●
34 RETAINER; VLV,BRK VLV 1-48122-010-0 01 1 9905-0301 ● ●
34 RETAINER; VLV,BRK VLV 1-48122-010-0 01 1 0302- ● ● ●
36 RETAINER; GASKET,BRK VLV 1-48129-298-0 01 1 9905-0301 ● ●
36 RETAINER; GASKET,BRK VLV 1-48129-298-0 01 1 0302- ● ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-166-0 01 1 9905-0301 ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-166-0 01 1 0302-0405 ● ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-321-0 01 1 0406- ● ● ●
38 COVER; EXH,BRK VLV 1-48119-217-0 01 1 9905-0301 ● ●
38 COVER; EXH,BRK VLV 1-48119-217-0 01 1 0302-0405 ● ● ●
38 COVER; EXH,BRK VLV 1-48119-597-0 01 1 0406- ● ● ●
39 BOOT; PLUNGER,BRK VLV 1-48119-438-0 01 1 9905-0301 ● ●
39 BOOT; PLUNGER,BRK VLV 1-48119-438-0 01 1 0302- ● ● ●
41 PLATE; STEM,BRK VLV 1-48129-167-0 01 1 9905-0301 ● ●
41 PLATE; STEM,BRK VLV 1-48129-167-0 01 1 0302- ● ● ●
42 NUT; SPR SEAT,BRK VLV 1-48199-025-0 01 1 9905-0301 ● ●
42 NUT; SPR SEAT,BRK VLV 1-48199-025-0 01 1 0302- ● ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48129-170-0 01 1 9905-0301 ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48129-170-0 01 1 0302- ● ● ●
44 SLEEVE; PISTON,BRK VLV 1-48119-322-0 01 1 9905-0301 ● ●
44 SLEEVE; PISTON,BRK VLV 1-48119-322-0 01 1 0302- ● ● ●
47 RETAINER; GASKET,BRK VLV 1-48129-297-0 01 1 9905-0301 ● ●
47 RETAINER; GASKET,BRK VLV 1-48129-297-0 01 1 0302- ● ● ●
48 BOLT; COVER,BRK VLV 1-48119-216-0 04 1 9905-0301 ● ●
48 BOLT; COVER,BRK VLV 1-48119-216-0 04 1 0302-0405 ● ● ●
50 WASHER; RET,BRK VLV 1-48129-112-0 01 1 9905-0301 ● ●
50 WASHER; RET,BRK VLV 1-48129-112-0 01 1 0302-0405 ● ● ●
51 SCREW; FORMING,BRK VLV 1-48129-111-0 01 1 9905-0301 ● ●
51 SCREW; FORMING,BRK VLV 1-48129-111-0 01 1 0302-0405 ● ● ●
61 ROD; PUSH,BRK VLV 1-48119-363-0 01 1 9905-0301 ● ●
61 ROD; PUSH,BRK VLV 1-48119-363-0 01 1 0302- ● ● ●
85 WASHER; PUSH ROD 1-48119-366-0 01 1 9905-0301 ● ●
85 WASHER; PUSH ROD 1-48119-366-0 01 1 0302- ● ● ●

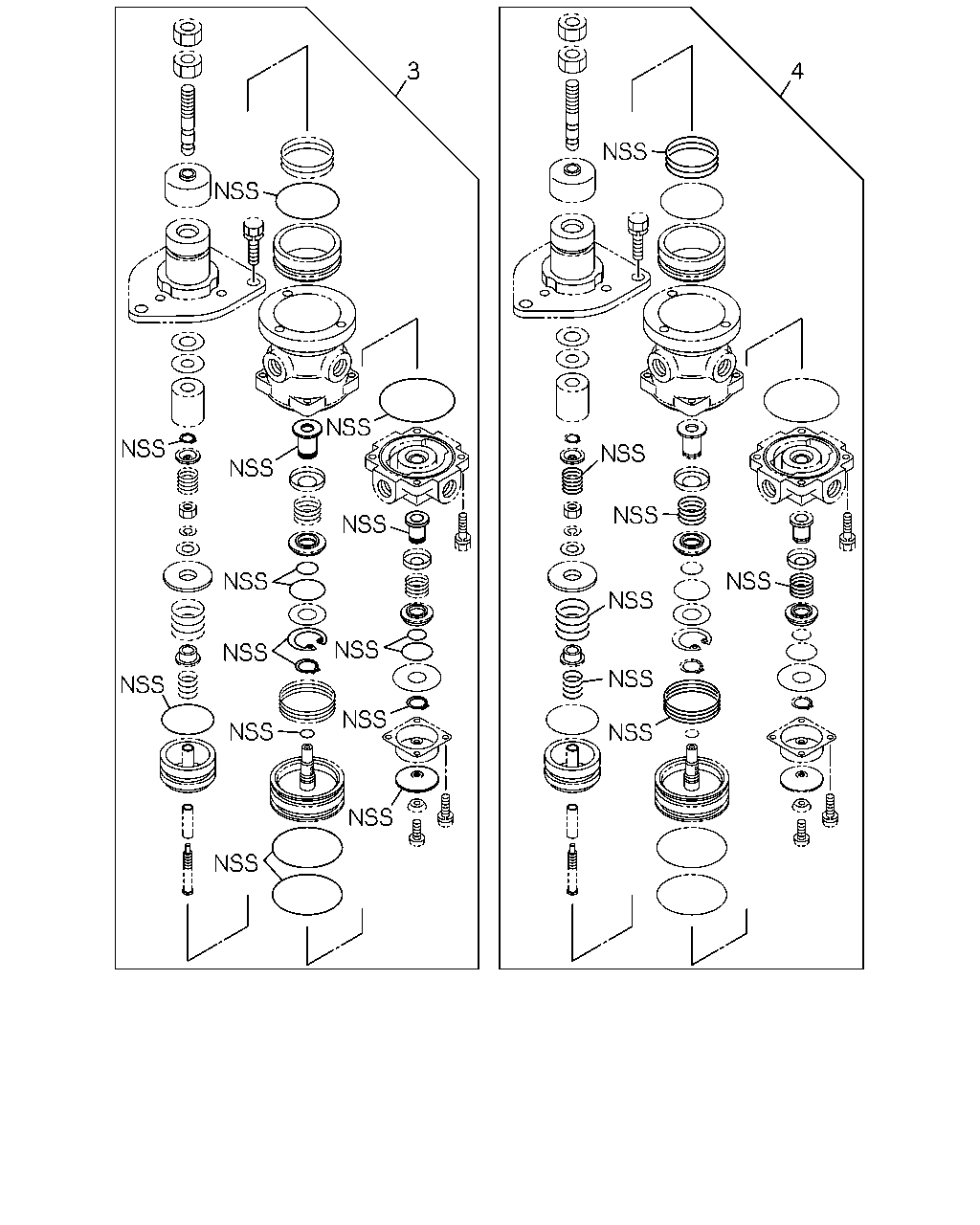

çizim 99066
3 4
BalonParca AdiParca NoAdetTipApplied Date A B C
3 REPAIR KIT; RUBBER,BRK VLV 1-85576-177-0 01 1 9905-0301 ● ●
3 REPAIR KIT; RUBBER,BRK VLV 1-85576-177-0 01 1 0302-0405 ● ● ●
3 REPAIR KIT; RUBBER,BRK VLV 1-85576-391-0 01 1 0406- ● ● ●
4 REPAIR KIT; SPRING,BRK VLV 1-85576-179-0 01 1 0302- ●
4 REPAIR KIT; SPRING,BRK VLV 1-85576-176-0 01 1 9905- ● ●
