Isuzu WW
▶
TRUCKS
▶
NPR
▶
51300 - NPR(IRAN)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

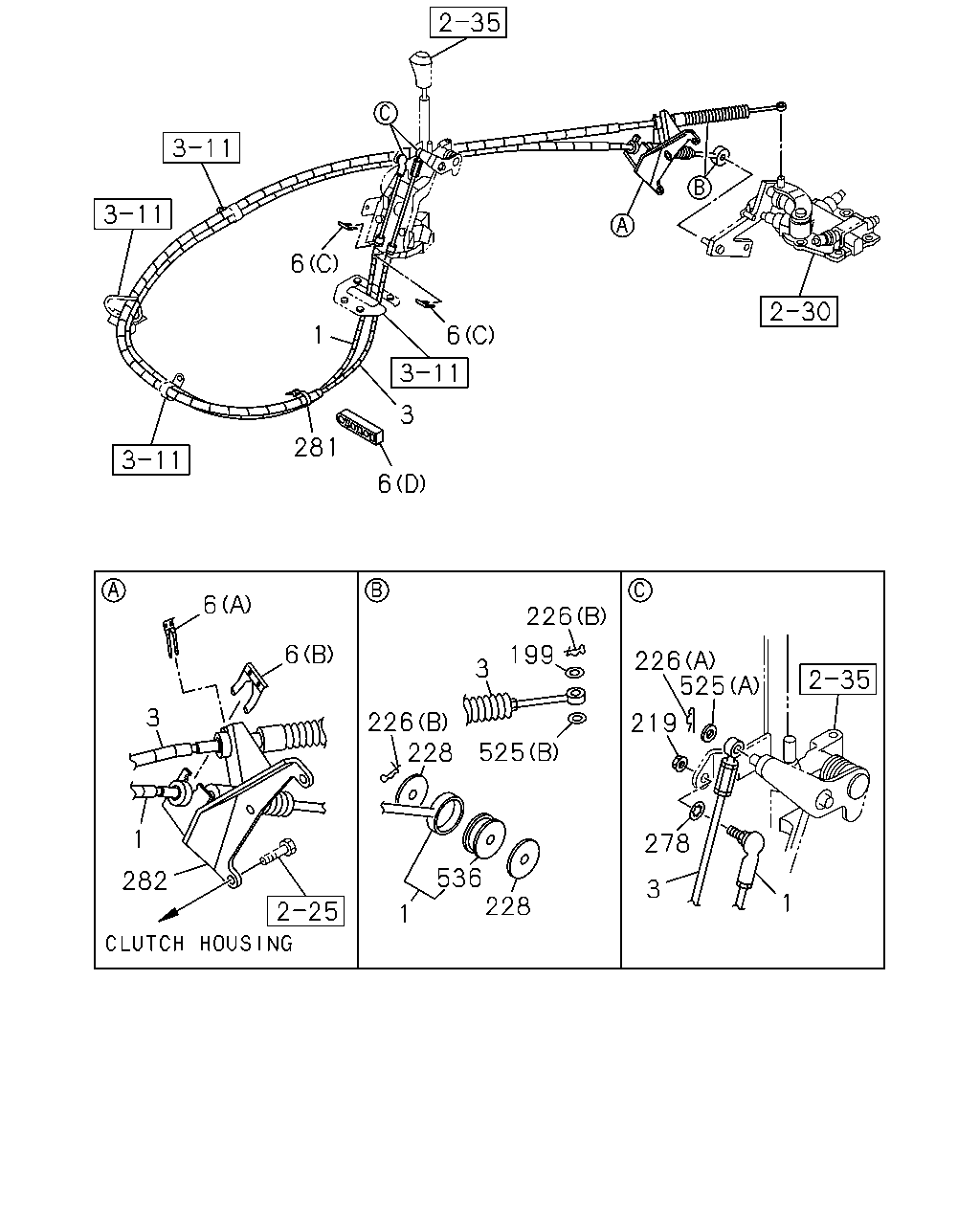

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#78529) — 18 parça
6
1
6
3
281
6
6
226
6
199
226
525
3
3
226
228
219
525
1
278
536
228
282
3
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3115
8-98146-878-0
01
1
1112-
3
CABLE; SELECT,TRANS CONT
L=3247
8-98025-445-4
01
1
1112-
6
CLIP; CABLE
NNR/NPR/NQR SGL CAB(NP**S*) EXC. MANUAL TILT CAB<RWZ> (D)
8-97093-491-1
01
1
1112-
6
CLIP; CABLE
NNR/NPR/NQR DBL CAB(NP**W*) (D)
8-97093-491-1
01
1
1112-
6
CLIP; CABLE
(A) ID=22.2
1-09701-209-1
01
1
1112-
6
CLIP; CABLE
(C)
8-97011-448-0
02
1
1112-
6
CLIP; CABLE
(B) ID=19.2
8-97211-011-0
01
1
1112-
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91610-508-0
01
1
1112-
219
NUT; FLANGE,SHAFT CABLE
M8 T=8.0
8-94363-045-0
01
1
1112-
226
PIN; SHIFT CABLE
(A) L=27.7
8-94111-137-0
01
1
1112-
226
PIN; SHIFT CABLE
(B) L=23
8-94170-378-0
02
1
1112-
228
WASHER; PL,SHIFT CABLE
ID=8.2 OD=40
8-97182-975-0
02
1
1112-
278
WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT
0-91541-208-0
01
1
1112-
281
CLIP; BAND
L=140
5-09707-031-1
01
1
1112-
282
BRACKET; TRANS SIDE
8-98032-395-1
01
1
1112-
525
WASHER; SHIFT CABLE
(A) ID=8.4 OD=16
0-91614-508-0
01
1
1112-
525
WASHER; SHIFT CABLE
(B) ID=8.4 OD=14
5-09550-002-0
01
1
1112-
536
DAMPER; CABLE
8-98097-681-0
01
1
1112-
