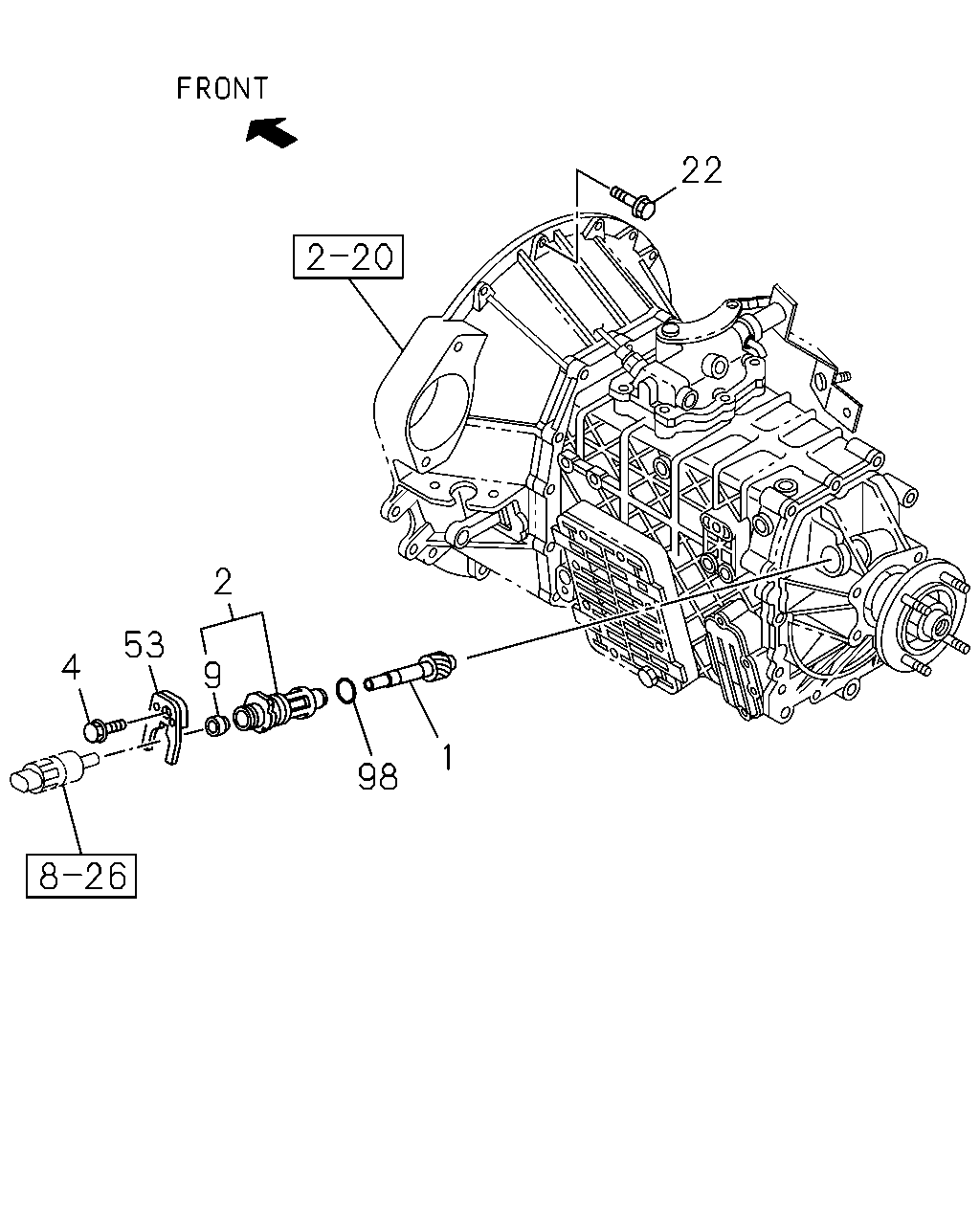

2-25 — SPEEDOMETER DRIVEN GEAR (#78525) — 23 parça

22 2 53 4 9 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) Z=11	8-97253-559-1	01	1	1112-	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) Z=13	8-97253-562-1	01	1	1112-	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/9(S2J) Z=12	8-97253-563-1	01	1	1112-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/9(HC6) MARK "10,11,16,17"	8-97253-124-0	01	1	1112-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) MARK "12,13,14,15"	8-97253-125-0	01	1	1112-	●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28650-820-0	01	1	1112-	●	●
9	SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	1112-	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	04	1	1302-	●	●
22	BOLT; TRANS CASE TO ENG PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	02	1	1112-1301	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	05	1	1302-	●	●
22	BOLT; TRANS CASE TO ENG M10X35 FLANGE	0-28151-035-0	03	1	1112-1301	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1302-	●	●
22	BOLT; TRANS CASE TO ENG M10X55 FLANGE	8-97365-449-0	02	1	1112-1301	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	02	1	1112-1301	●	●
22	BOLT; TRANS CASE TO ENG M10X30 FLANGE	0-28151-030-0	02	1	1112-1301	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	02	1	1302-1302	●	●
22	BOLT; TRANS CASE TO ENG M10X30 FLANGE	0-28151-030-0	02	1	1302-1302	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	02	1	1302-1302	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	02	1	1302-	●	●
53	PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	1112-	●	●
98	SEAL; OIL,BUSH	9-09561-324-0	01	1	1112-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
