2-08 — CLUTCH MASTER CYLINDER (#78522) — 28 parça

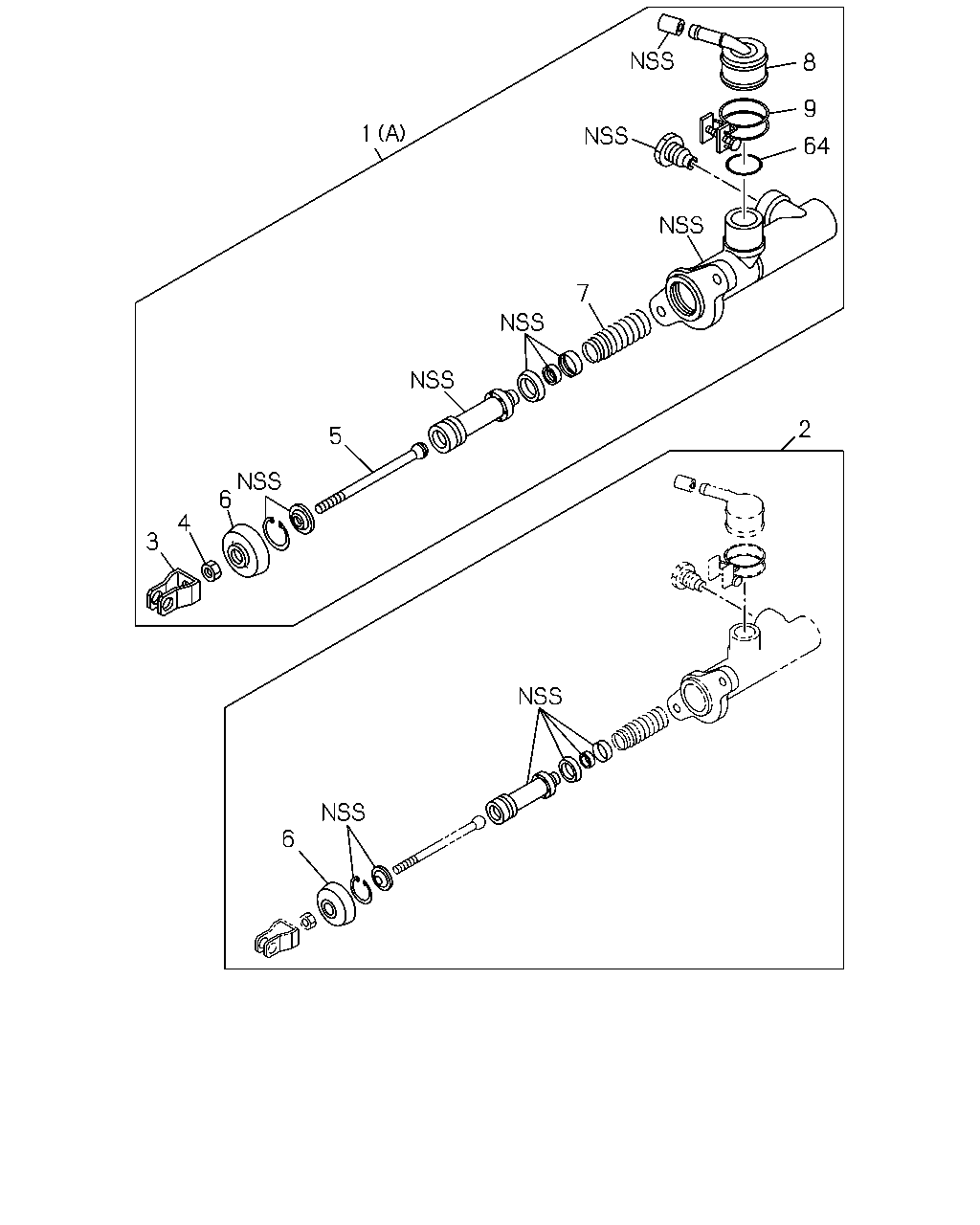

çizim 103325
8 9 1 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
NNR/NPR/NQR SGL CAB(NP**S*) POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98025-308-0 01 1 1112-
1 CYLINDER ASM; CLUTCH MASTER
NNR/NPR/NQR DBL CAB(NP**W*) POWER ASSIST CLUTCH(S2T) (B) 		8-98025-308-0 01 1 1112-
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-642-0 01 1 1112-
1 CYLINDER ASM; CLUTCH MASTER
NNR/NPR/NQR SGL CAB(NP**S*) POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-251-0 01 1 1112-
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1112-
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1112-
3 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1112-
4 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1112-
5 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1112-
6 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1112-
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1112-
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1112-
8 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1112-
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 1112-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1112-
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1112-

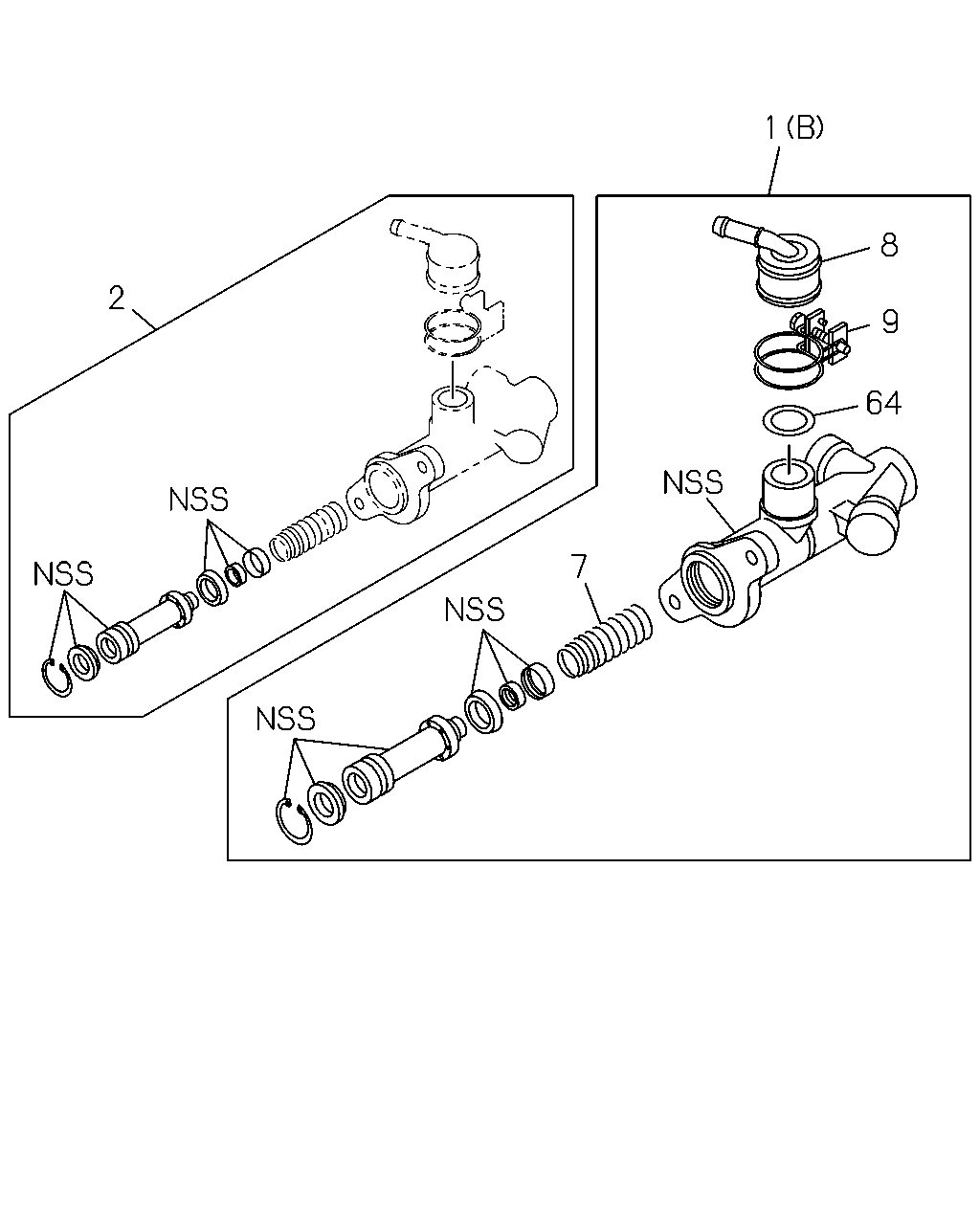

çizim 104131
1 8 2 9 64 7
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
NNR/NPR/NQR SGL CAB(NP**S*) POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98025-308-0 01 1 1112-
1 CYLINDER ASM; CLUTCH MASTER
NNR/NPR/NQR DBL CAB(NP**W*) POWER ASSIST CLUTCH(S2T) (B) 		8-98025-308-0 01 1 1112-
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-642-0 01 1 1112-
1 CYLINDER ASM; CLUTCH MASTER
NNR/NPR/NQR SGL CAB(NP**S*) POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-251-0 01 1 1112-
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1112-
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1112-
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1112-
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1112-
8 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1112-
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 1112-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1112-
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1112-
