◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#78519) — 23 parça
çizim 102517
2 3 3 3 2 5 3 7 42 18 20 17 183
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; EYE,SLAVE CYL
M10X22 		8-98014-005-0 02 1 1112-
3 GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0 		9-09571-410-0 04 1 1112-
5 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1112-
5 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1112-
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91180-108-0 02 1 1112-
17 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1112-
18 DAMPER ASM; CLU OIL 8-98077-610-1 01 1 1112-
20 NUT; CLU OIL DAMPER
M8 FLANGE 		0-91180-108-0 02 1 1112-
42 BRACKET; FLEX HOSE,CLU CONT 8-98100-943-1 01 1 1112-
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 1112-

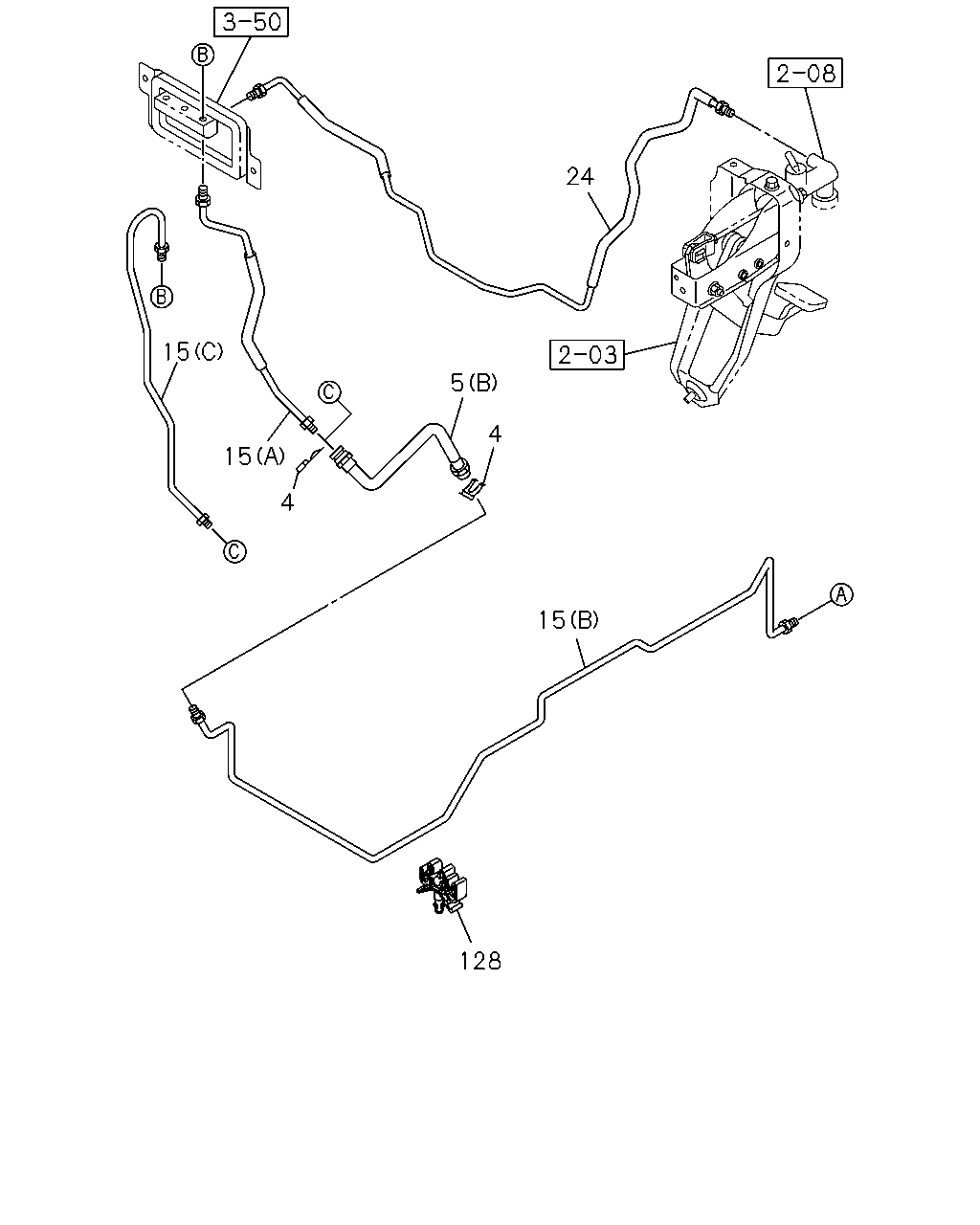

çizim 183612
24 4 5 15 15 4 15 128
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 1112-
5 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1112-
5 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1112-
15 PIPE; CLU,FLEX HOSE
NNR/NPR/NQR SGL CAB(NP**S*) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98100-910-0 01 1 1302-
15 PIPE; CLU,FLEX HOSE
(B) 		8-98041-742-3 01 1 1112-
15 PIPE; CLU,FLEX HOSE
(A) 		8-98047-202-3 01 1 1112-1301
15 PIPE; CLU,FLEX HOSE
NNR/NPR/NQR SGL CAB(NP**S*) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98047-202-3 01 1 1302-
15 PIPE; CLU,FLEX HOSE
NNR/NPR/NQR DBL CAB(NP**W*) (A) 		8-98047-202-3 01 1 1302-
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98097-187-1 01 1 1112-1504
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98250-071-0 01 1 1505-
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98099-806-2 01 1 1112-1504
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98250-075-0 01 1 1505-
128 CLIP; AIR PIPE
ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
