Isuzu WW
▶
TRUCKS
▶
NPR
▶
51300 - NPR(IRAN)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

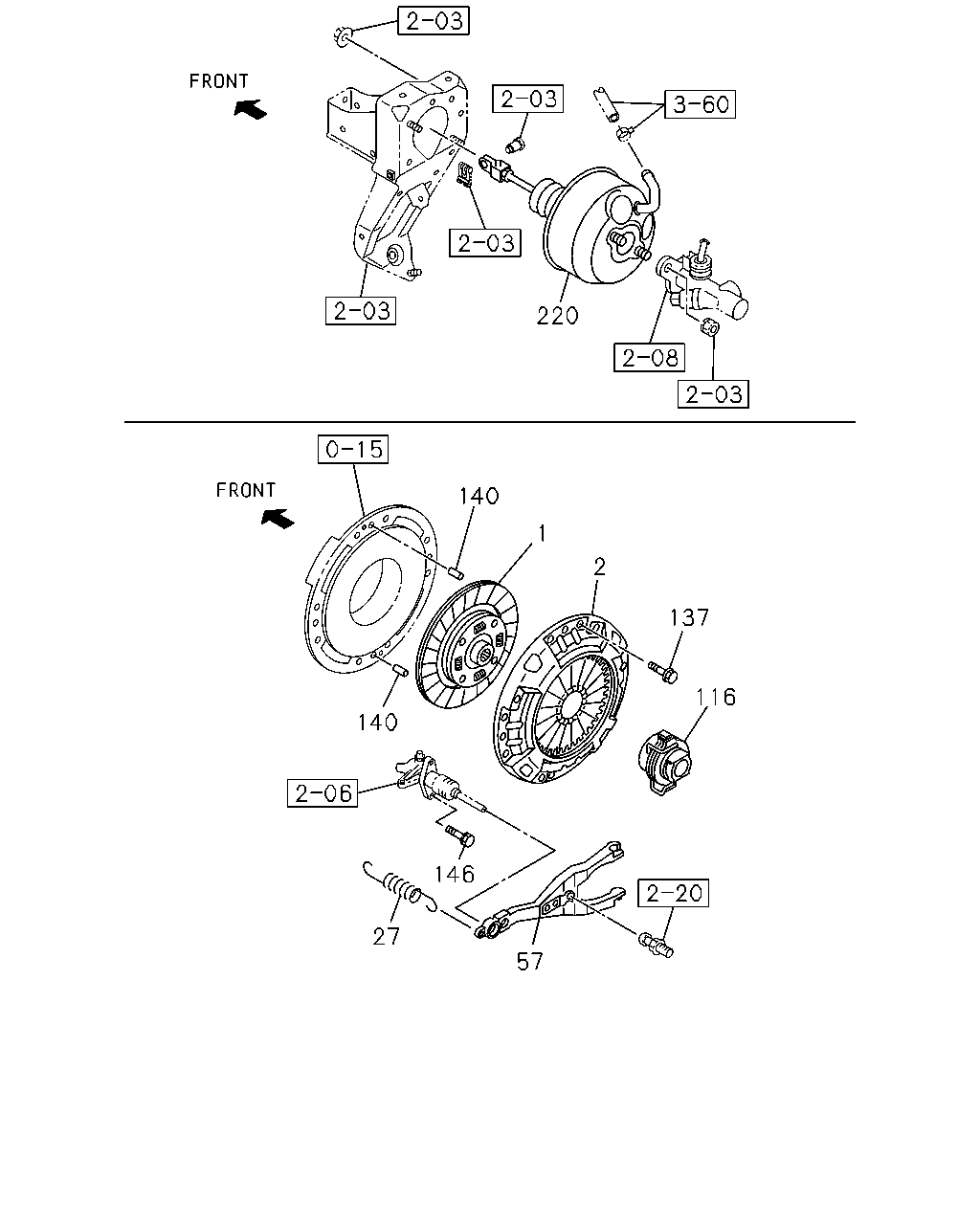

2-01 — CLUTCH
(#78517) — 16 parça
140
1
2
137
116
140
146
27
57
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
BEST VALUE PARTS
5-87610-080-1
01
1
1502-
1
DISC; CLUTCH
8-97362-235-1
01
1
1112-1402
1
DISC; CLUTCH
8-98255-140-1
01
1
1403-
1
DISC; CLUTCH
BEST VALUE PARTS
5-87610-080-0
01
1
1112-1402
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
5-87610-081-0
01
1
1112-1405
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
5-87610-104-0
01
1
1406-
2
PLATE ASM; PRESSURE,CLU
8-97351-794-0
01
1
1112-1405
2
PLATE ASM; PRESSURE,CLU
8-97038-831-2
01
1
1406-
27
SPRING; RETURN,SHIFT FORK
8-98025-313-0
01
1
1112-
57
FORK; SHIFT,CLU
8-97255-303-0
01
1
1112-
116
BLOCK; SHIFT,CLU
BEST VALUE PARTS
5-87610-110-0
01
1
1112-
116
BLOCK; SHIFT,CLU
8-97255-313-0
01
1
1112-
137
BOLT; CLU COVER
M10X16 FLANGE IRA
0-28051-016-0
10
1
1112-
140
PIN; STRAIGHT
L=25
8-94410-361-0
02
1
1112-
146
BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE
0-28650-830-0
02
1
1112-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)
8-98033-837-0
01
1
1112-
