1-50 — EXHAUST PIPE AND SILENCER (#78514) — 96 parça
çizim 96554
25 172 38 532 385 143 562 2 44 1 36 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
IRA 		8-98074-108-1 01 1 1112- ● ●
2 GASKET; PIPE TO MANIF 8-97381-455-0 01 1 1112- ● ●
8 BRACKET; EXH PIPE 8-97365-228-0 01 1 1112- ● ●
25 PIPE; EXH,BRK VLV TO SILENCER
IRA 		8-98074-109-0 01 1 1112- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1112- ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
44 BOLT; BRKT
M10X40 FLANGE 		0-28051-040-0 01 1 1112- ● ●
143 RUBBER; SUPPORT
(A) 		8-97080-694-0 01 1 1112- ● ●
143 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1112- ● ●
172 BOLT
M10X35 FLANGE 		0-28651-035-0 02 1 1112- ● ●
385 BRACKET; SILENCER MTG
(A) 		8-98101-911-0 01 1 1112- ●
385 BRACKET; SILENCER MTG
(B) 		8-97207-224-0 02 1 1112- ● ●
385 BRACKET; SILENCER MTG
(A) 		8-98074-495-1 01 1 1112- ●
532 NUT
M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
532 NUT
M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
562 PLATE; STUD,BOLT
M8X70 		0-10855-870-0 04 1 1112- ● ●

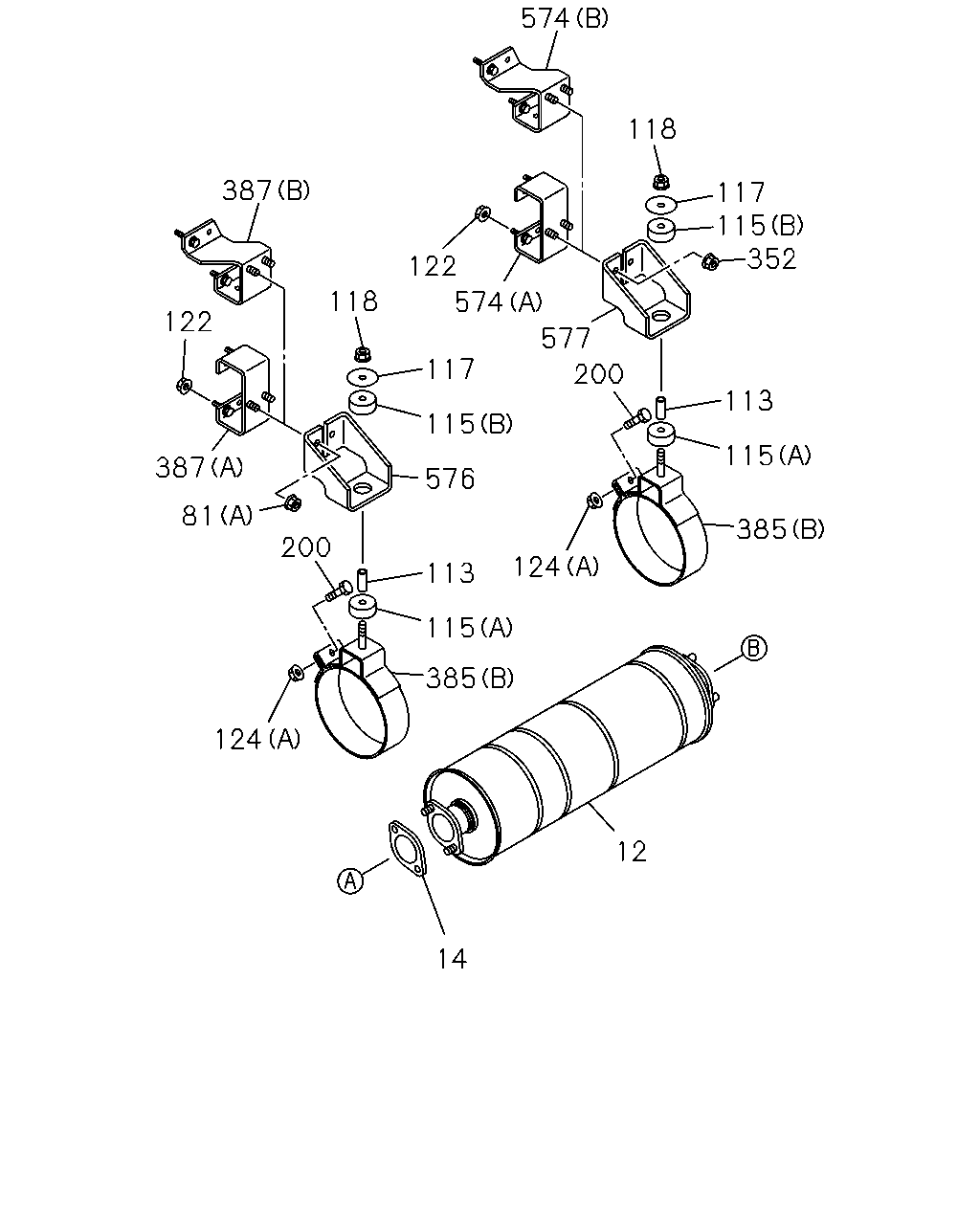

çizim 97351
574 118 387 117 115 352 122 118 574 122 577 117 200 113 115 115 387 576 81 385 200 124 113 115 385 124 12 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
IRA 		8-98090-839-0 01 1 1112- ● ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 1112- ● ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1112- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 02 1 1112- ● ●
115 RUBBER; MTG,SILENCER
(A) 		8-97379-882-0 02 1 1112- ● ●
115 RUBBER; MTG,SILENCER
(B) 		8-97379-927-0 02 1 1112- ● ●
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 1112- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 02 1 1112- ● ●
122 NUT; HANGER BRKT
M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
124 NUT; SUPPORT RUBBER
(A) M8 		0-91110-508-0 02 1 1112- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
200 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER 		0-50540-845-0 02 1 1112- ● ●
352 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
385 BRACKET; SILENCER MTG
(A) 		8-98101-911-0 01 1 1112- ●
385 BRACKET; SILENCER MTG
(B) 		8-97207-224-0 02 1 1112- ● ●
385 BRACKET; SILENCER MTG
(A) 		8-98074-495-1 01 1 1112- ●
387 SPACER; BRKT
(B) 		8-98050-196-2 01 1 1112- ●
387 SPACER; BRKT
(A) 		8-98044-774-0 01 1 1112- ●
574 SPACER; DPD
(B) 		8-98050-196-2 01 1 1112- ●
574 SPACER; DPD
(A) 		8-98044-774-0 01 1 1112- ●
576 BRACKET; DPD FRT TO FRAME 8-98074-124-1 01 1 1112- ● ●
577 BRACKET; DPD RR TO FRAME 8-98074-124-1 01 1 1112- ● ●

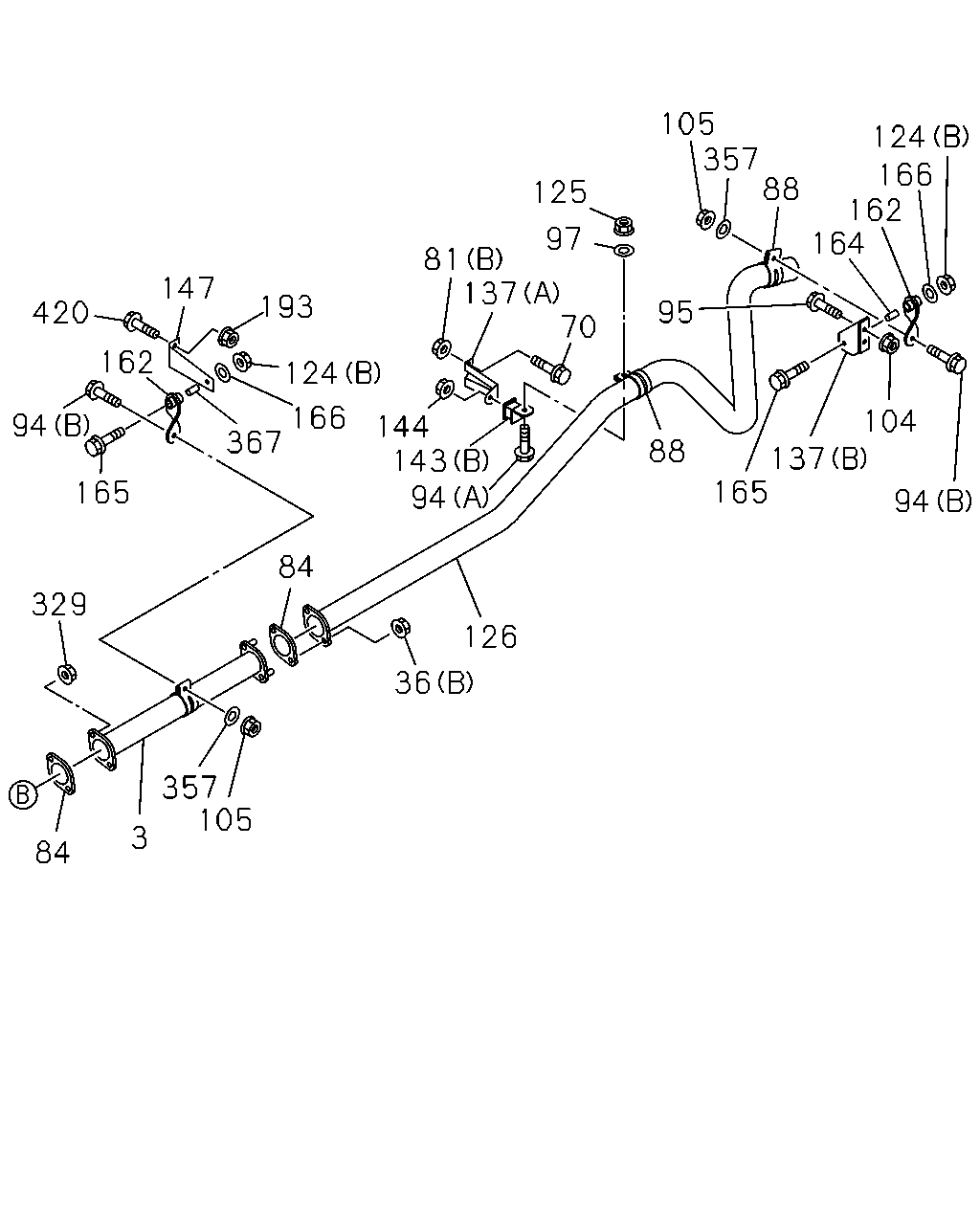

çizim 183611
105 357 88 124 166 162 164 125 97 81 137 147 70 193 95 420 162 124 166 367 104 137 165 94 144 143 94 88 165 94 84 329 126 36 357 105 3 84
BalonParca AdiParca NoAdetTipApplied Date A B
3 PIPE; EXH,CENTER
WHEEL BASE 4400MM(44W) IRA 		8-98283-854-0 01 1 1509- ●
3 PIPE; EXH,CENTER
IRA 		8-98134-199-0 01 1 1112-1508 ● ●
3 PIPE; EXH,CENTER
WHEEL BASE 3800MM(38W) IRA 		8-98134-199-0 01 1 1509- ●
3 PIPE; EXH,CENTER
IRA 		8-98134-199-0 01 1 1509- ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1112- ● ●
70 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1112- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
84 GASKET; EXH PIPE
ID=64.7 		8-94328-352-0 01 1 1112- ● ●
84 GASKET; EXH PIPE
ID=64.7 		8-94328-352-0 01 1 1112- ● ●
88 CLAMP; EXH PIPE
IRA 		8-97373-158-0 01 1 1112- ● ●
88 CLAMP; EXH PIPE
IRA 		8-97373-158-0 01 1 1112- ● ●
88 CLAMP; EXH PIPE
IRA 		8-97373-158-0 01 1 1112- ● ●
94 BOLT; CLAMP
(A) M10X50 FLANGE 		8-97301-165-0 01 1 1112- ● ●
94 BOLT; CLAMP
(B) M10X45 FLANGE 		0-28051-045-0 01 1 1112- ● ●
94 BOLT; CLAMP
(B) M10X45 FLANGE 		0-28051-045-0 01 1 1112- ● ●
95 BOLT; BRKT
WHEEL BASE 4400MM(44W) M10X30 FLANGE 		0-28651-030-0 02 1 1112- ●
95 BOLT; BRKT
WHEEL BASE 3800MM(38W) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ●
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1112- ●
97 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 1112- ● ●
104 NUT; BRKT
WHEEL BASE 4400MM(44W) M10 FLANGE 		0-91180-110-0 02 1 1112- ●
104 NUT; BRKT
WHEEL BASE 3800MM(38W) M8 FLANGE 		0-91180-108-0 02 1 1112- ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1112- ●
105 NUT; CLAMP
M10 		0-91110-510-0 01 1 1112- ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 01 1 1112- ● ●
124 NUT; SUPPORT RUBBER
(A) M8 		0-91110-508-0 02 1 1112- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
125 NUT; CLAMP
M10 		0-91110-510-0 01 1 1112- ● ●
126 PIPE; EXH,RR
WHEEL BASE 4400MM(44W) IRA 		8-98011-818-0 01 1 1112-1508 ●
126 PIPE; EXH,RR
WHEEL BASE 4400MM(44W) IRA 		8-98283-855-0 01 1 1509- ●
126 PIPE; EXH,RR
WHEEL BASE 3800MM(38W) 		8-98134-798-0 01 1 1112- ●
126 PIPE; EXH,RR 8-98134-798-0 01 1 1112- ●
137 BRACKET; TAIL PIPE
WHEEL BASE 4400MM(44W) (B) 		8-97185-801-0 01 1 1112- ●
137 BRACKET; TAIL PIPE
(A) 		8-97096-651-0 01 1 1112- ● ●
137 BRACKET; TAIL PIPE
WHEEL BASE 3800MM(38W) (B) 		8-97116-588-2 01 1 1112- ●
137 BRACKET; TAIL PIPE
(B) 		8-97116-588-2 01 1 1112- ●
143 RUBBER; SUPPORT
(A) 		8-97080-694-0 01 1 1112- ● ●
143 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1112- ● ●
144 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
147 BRACKET; VERTICAL PIPE 8-98117-604-0 01 1 1112- ● ●
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-98034-765-0 01 1 1112- ● ●
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-98034-765-0 01 1 1112- ● ●
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 1112- ● ●
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 1112- ● ●
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 1112- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 		0-91614-810-0 01 1 1112- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 		0-91614-810-0 01 1 1112- ● ●
193 NUT; BRKT,VERTICAL PIPE
M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 1112- ● ●
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 1112- ● ●
367 COLLAR; DIST,SUPPORT RUBBER
L=37.5 		9-22151-217-0 01 1 1112- ● ●
420 BOLT; BRKT,VERTICAL PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 1112- ● ●
