1-31 — AIR DUCT (#78510) — 218 parça

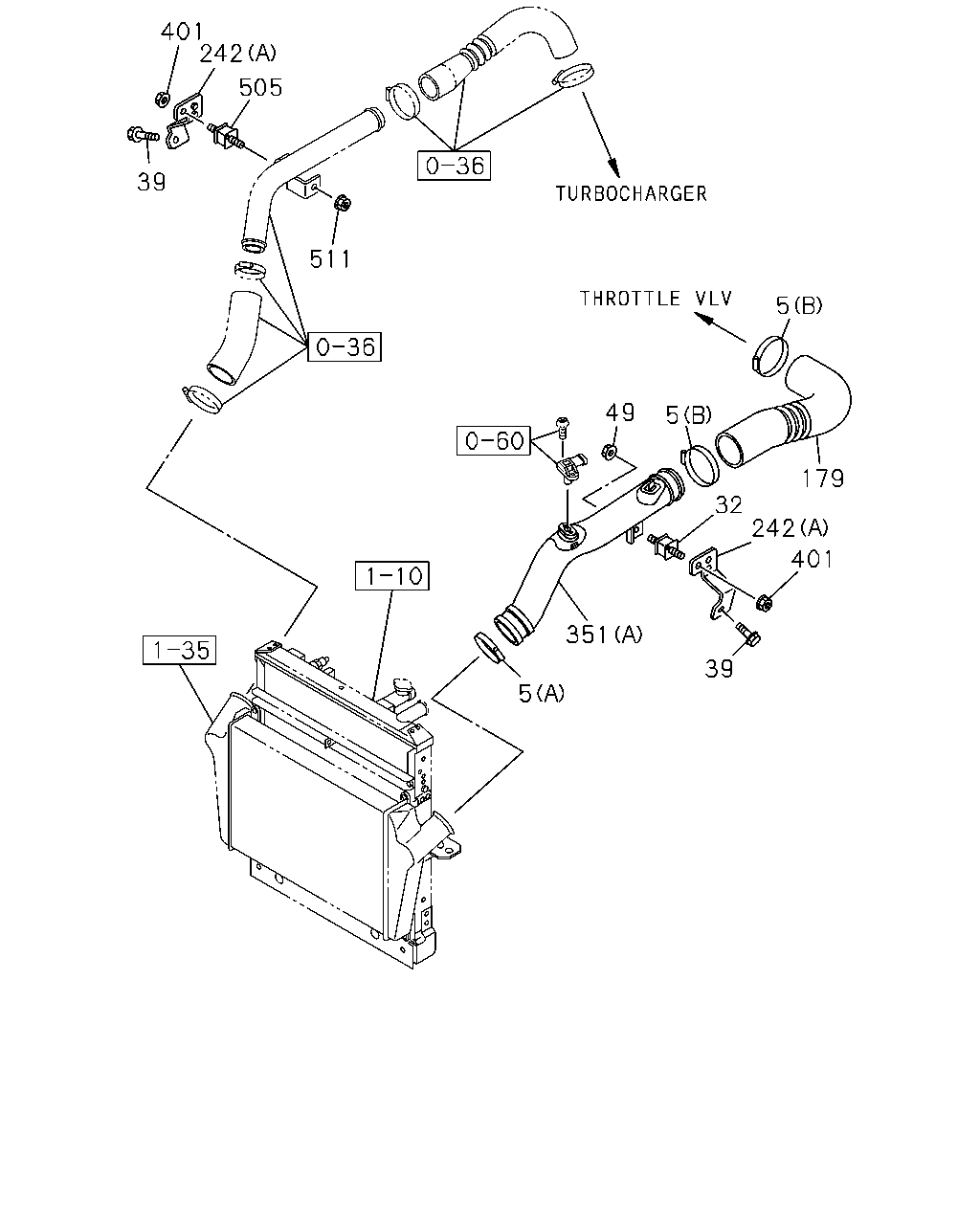

çizim 91846
401 242 505 39 511 5 49 5 179 32 242 401 351 39 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(F) ID=55-75 		8-98133-349-0 01 1 1112- ●
5 CLIP; AIR DUCT
(G) ID=65-85 		8-98133-350-0 02 1 1112- ●
5 CLIP; AIR DUCT
(E) ID=112 IRA 		9-09915-074-1 01 1 1112- ●
5 CLIP; AIR DUCT
(D) ID=127 		1-14239-263-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 1112- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 IRA 		9-09915-502-1 01 1 1112- ● ●
32 RUBBER; AIR DUCT MTG 8-97081-886-0 01 1 1112- ● ●
39 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ●
49 NUT; AIR DUCT
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
179 HOSE; AIR INT 8-98114-719-0 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(A) 		8-98032-142-1 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98032-143-1 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(B) IRA 		8-98145-112-1 01 1 1112- ●
351 DUCT; AIR
(B) 		8-98070-850-0 01 1 1112- ●
351 DUCT; AIR
(C) 		8-98070-863-1 01 1 1112- ●
351 DUCT; AIR
(A) 		8-98105-722-1 01 1 1112- ● ●
401 NUT; BRKT,AIR INT
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
401 NUT; BRKT,AIR INT
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
505 RUBBER; MTG 8-97081-886-0 01 1 1112- ● ●
511 NUT; PIPE
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●

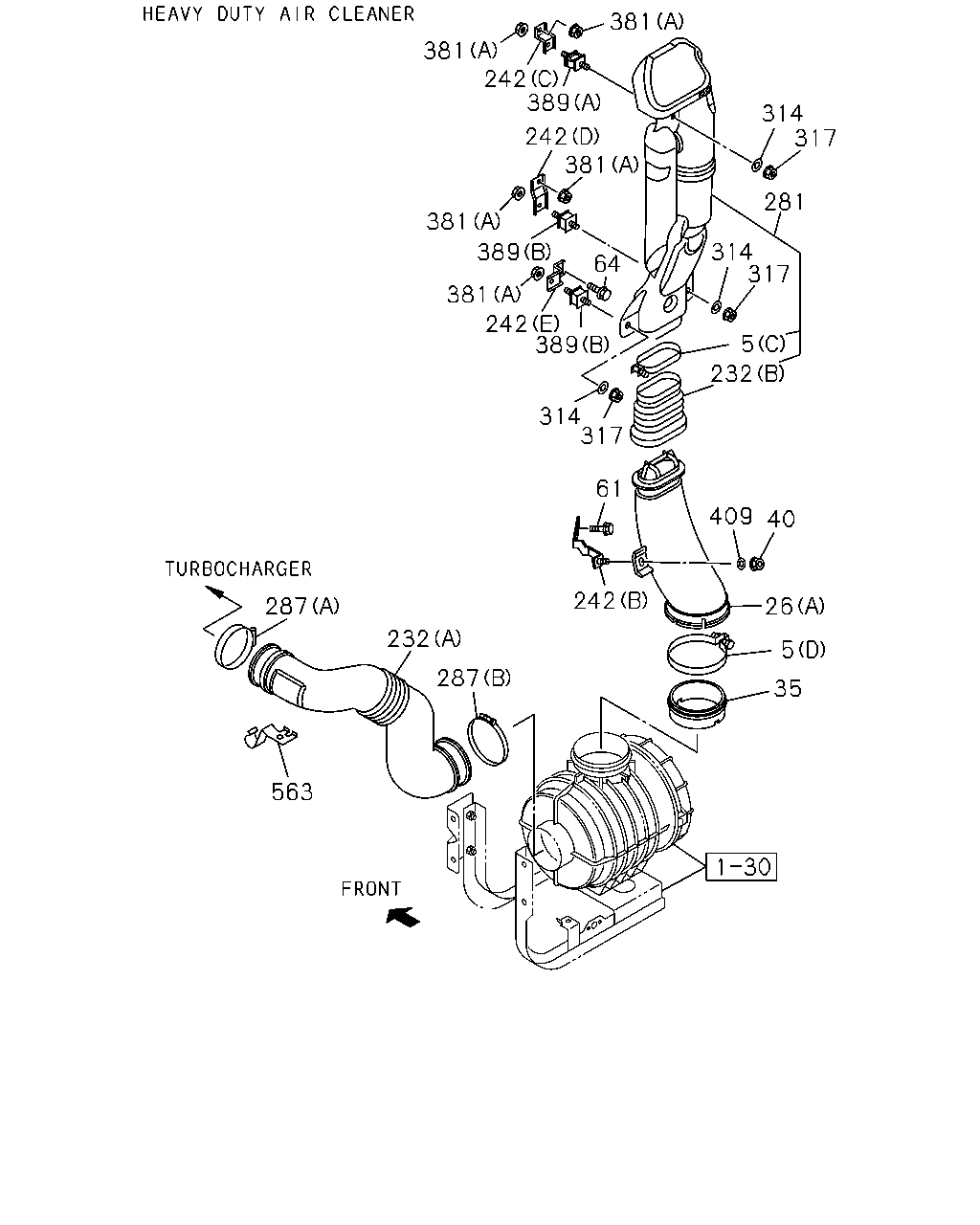

çizim 91867
381 381 242 389 314 317 242 381 281 381 314 317 389 64 381 242 389 5 232 314 317 61 409 40 242 287 26 232 5 287 35 563
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(F) ID=55-75 		8-98133-349-0 01 1 1112- ●
5 CLIP; AIR DUCT
(G) ID=65-85 		8-98133-350-0 02 1 1112- ●
5 CLIP; AIR DUCT
(E) ID=112 IRA 		9-09915-074-1 01 1 1112- ●
5 CLIP; AIR DUCT
(D) ID=127 		1-14239-263-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 1112- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 IRA 		9-09915-502-1 01 1 1112- ● ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1112- ●
26 DUCT; AIR INT
(A) IRA 		8-98025-626-0 01 1 1112- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1112- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		0-28650-825-0 01 1 1112- ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1112- ●
232 HOSE; CONN
(C) 		8-98094-582-2 01 1 1112- ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98070-857-1 01 1 1112- ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 1112-1309 ● ●
232 HOSE; CONN
(B) IRA 		8-98231-785-0 01 1 1310- ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98095-507-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(A) 		8-98032-142-1 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98032-143-1 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(B) IRA 		8-98145-112-1 01 1 1112- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1112- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1112- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> IRA 		8-98000-230-5 01 1 1112- ●
287 CLIP; AIR DUCT
(A) ID=55-75 		8-98133-349-0 01 1 1112- ●
287 CLIP; AIR DUCT
(B) ID=112 IRA 		9-09915-074-1 01 1 1112- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1112- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ● ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE 		0-91180-110-0 01 1 1112- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1112- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1112- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1112- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1112- ● ●
563 BRACKET; CLIP 8-98090-587-0 01 1 1112- ● ●

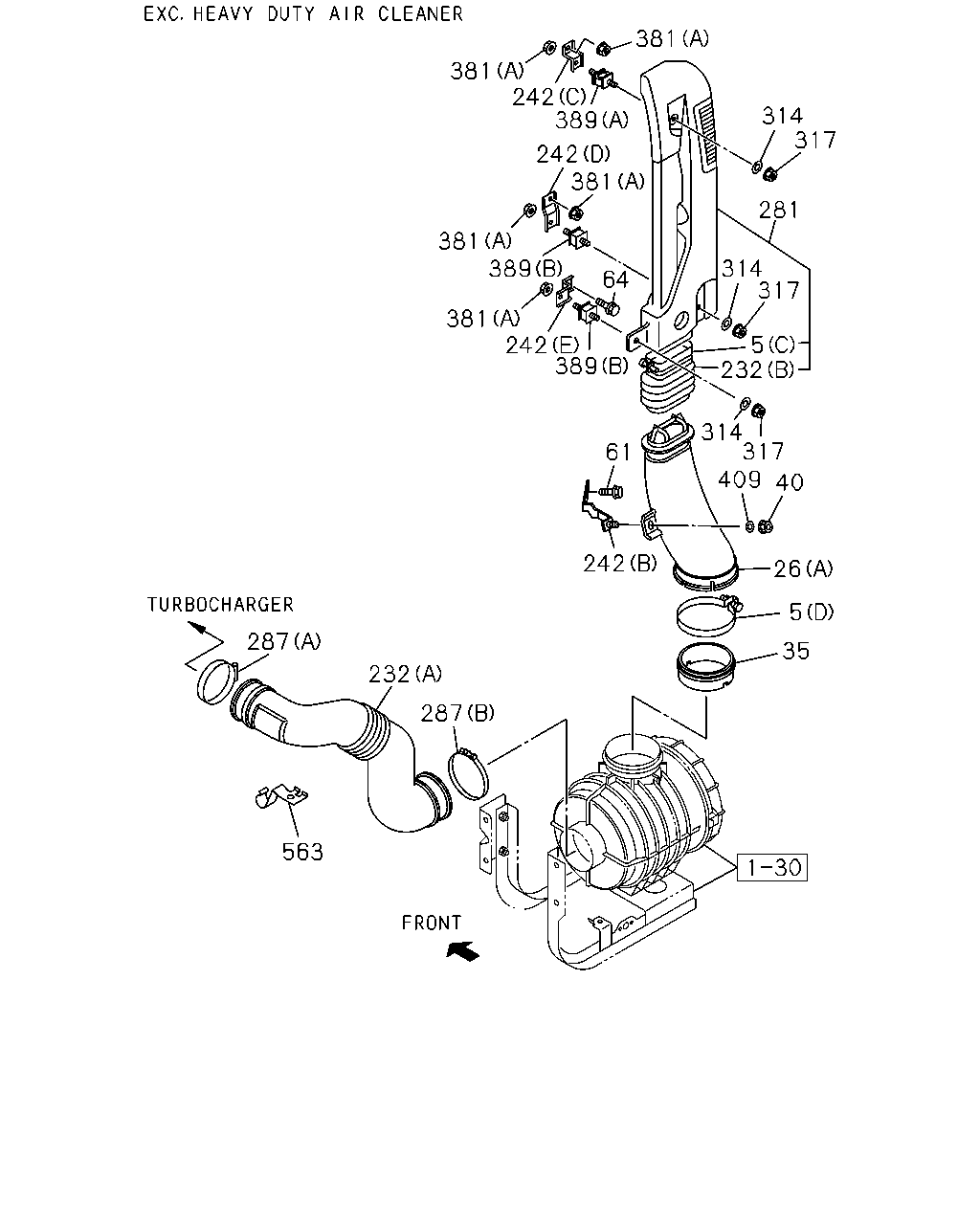

çizim 92214
381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 242 389 5 232 314 317 409 61 40 242 26 5 287 35 232 287 563
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(F) ID=55-75 		8-98133-349-0 01 1 1112- ●
5 CLIP; AIR DUCT
(G) ID=65-85 		8-98133-350-0 02 1 1112- ●
5 CLIP; AIR DUCT
(E) ID=112 IRA 		9-09915-074-1 01 1 1112- ●
5 CLIP; AIR DUCT
(D) ID=127 		1-14239-263-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 1112- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 IRA 		9-09915-502-1 01 1 1112- ● ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1112- ●
26 DUCT; AIR INT
(A) IRA 		8-98025-626-0 01 1 1112- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1112- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		0-28650-825-0 01 1 1112- ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1112- ●
232 HOSE; CONN
(C) 		8-98094-582-2 01 1 1112- ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98070-857-1 01 1 1112- ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 1112-1309 ● ●
232 HOSE; CONN
(B) IRA 		8-98231-785-0 01 1 1310- ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98095-507-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(A) 		8-98032-142-1 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98032-143-1 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(B) IRA 		8-98145-112-1 01 1 1112- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1112- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1112- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> IRA 		8-98000-230-5 01 1 1112- ●
287 CLIP; AIR DUCT
(A) ID=55-75 		8-98133-349-0 01 1 1112- ●
287 CLIP; AIR DUCT
(B) ID=112 IRA 		9-09915-074-1 01 1 1112- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1112- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ● ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE 		0-91180-110-0 01 1 1112- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1112- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1112- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1112- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1112- ● ●
563 BRACKET; CLIP 8-98090-587-0 01 1 1112- ● ●

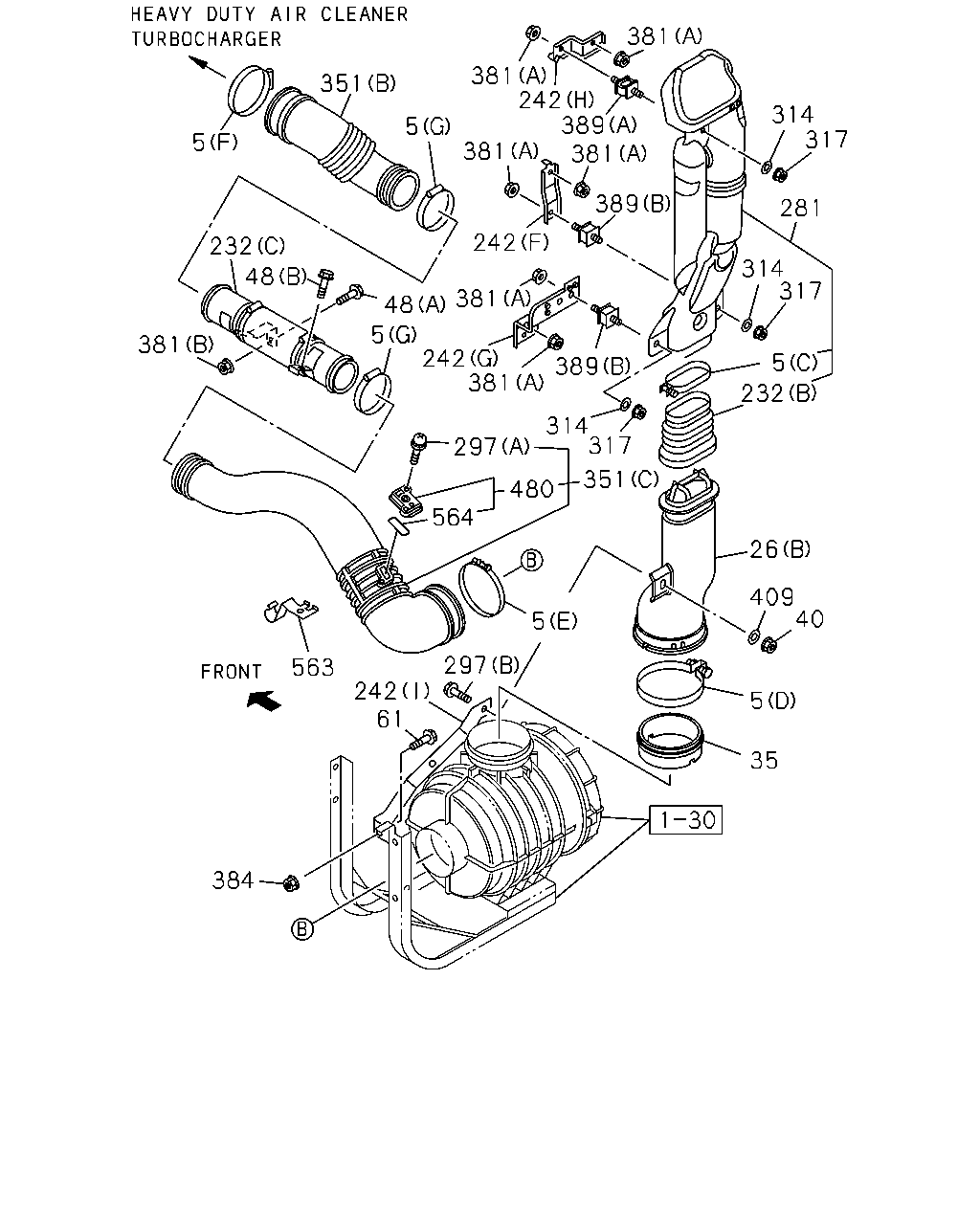

çizim 183609
381 381 242 389 381 351 314 317 5 5 381 389 281 232 242 314 317 48 381 48 5 242 381 381 389 5 232 314 317 297 351 480 564 26 409 40 5 297 563 242 61 5 35 384
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(F) ID=55-75 		8-98133-349-0 01 1 1112- ●
5 CLIP; AIR DUCT
(G) ID=65-85 		8-98133-350-0 02 1 1112- ●
5 CLIP; AIR DUCT
(E) ID=112 IRA 		9-09915-074-1 01 1 1112- ●
5 CLIP; AIR DUCT
(D) ID=127 		1-14239-263-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 1112- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 IRA 		9-09915-502-1 01 1 1112- ● ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1112- ●
26 DUCT; AIR INT
(A) IRA 		8-98025-626-0 01 1 1112- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1112- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
48 BOLT; AIR DUCT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1112- ●
48 BOLT; AIR DUCT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		0-28650-825-0 01 1 1112- ●
232 HOSE; CONN
(C) 		8-98094-582-2 01 1 1112- ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98070-857-1 01 1 1112- ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 1112-1309 ● ●
232 HOSE; CONN
(B) IRA 		8-98231-785-0 01 1 1310- ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98095-507-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(A) 		8-98032-142-1 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98032-143-1 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(B) IRA 		8-98145-112-1 01 1 1112- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1112- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1112- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> IRA 		8-98000-230-5 01 1 1112- ●
297 BOLT; DUCT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
297 BOLT; DUCT
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1112- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1112- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ● ●
351 DUCT; AIR
(B) 		8-98070-850-0 01 1 1112- ●
351 DUCT; AIR
(C) 		8-98070-863-1 01 1 1112- ●
351 DUCT; AIR
(A) 		8-98105-722-1 01 1 1112- ● ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE 		0-91180-110-0 01 1 1112- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1112- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ●
384 NUT; AIR INT DUCT BRKT
M10 FLANGE 		0-91180-110-0 01 1 1112- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1112- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1112- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1112- ● ●
480 ADAPTER 8-98086-417-0 01 1 1112- ●
563 BRACKET; CLIP 8-98090-587-0 01 1 1112- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1112- ●

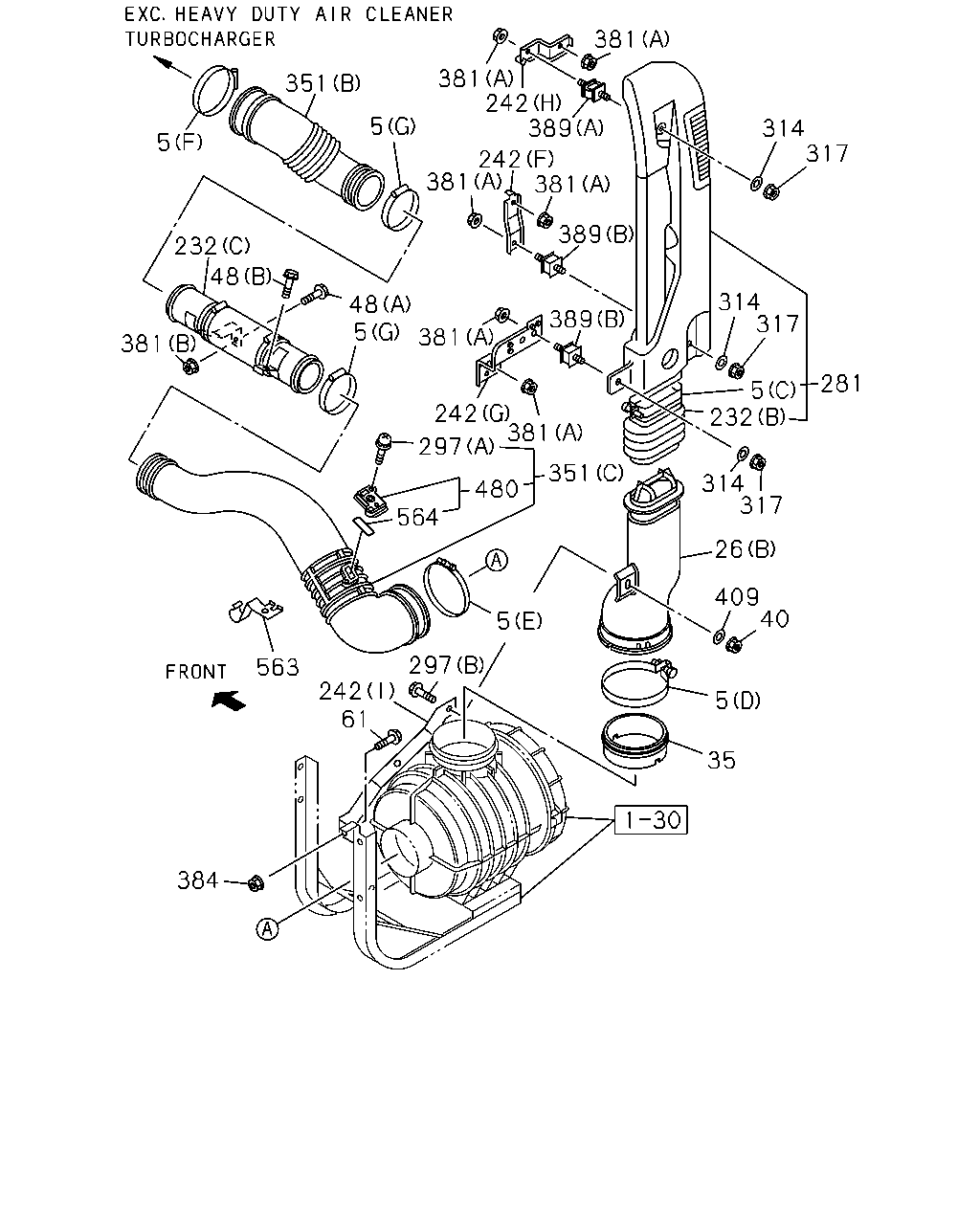

çizim 183610
381 381 242 389 351 5 314 317 5 242 381 381 389 232 48 314 317 48 5 389 381 381 5 232 281 242 381 297 351 314 317 480 564 26 409 40 5 297 563 242 61 5 35 384
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(F) ID=55-75 		8-98133-349-0 01 1 1112- ●
5 CLIP; AIR DUCT
(G) ID=65-85 		8-98133-350-0 02 1 1112- ●
5 CLIP; AIR DUCT
(E) ID=112 IRA 		9-09915-074-1 01 1 1112- ●
5 CLIP; AIR DUCT
(D) ID=127 		1-14239-263-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 1112- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 IRA 		9-09915-502-1 01 1 1112- ● ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1112- ●
26 DUCT; AIR INT
(A) IRA 		8-98025-626-0 01 1 1112- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1112- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
48 BOLT; AIR DUCT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1112- ●
48 BOLT; AIR DUCT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		0-28650-825-0 01 1 1112- ●
232 HOSE; CONN
(C) 		8-98094-582-2 01 1 1112- ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98070-857-1 01 1 1112- ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 1112-1309 ● ●
232 HOSE; CONN
(B) IRA 		8-98231-785-0 01 1 1310- ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98095-507-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1112- ●
242 BRACKET; AIR DUCT
(A) 		8-98032-142-1 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98032-143-1 01 1 1112- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1112- ●
242 BRACKET; AIR DUCT
(B) IRA 		8-98145-112-1 01 1 1112- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1112- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1112- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> IRA 		8-98000-230-5 01 1 1112- ●
297 BOLT; DUCT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1112- ●
297 BOLT; DUCT
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1112- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1112- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ● ●
351 DUCT; AIR
(B) 		8-98070-850-0 01 1 1112- ●
351 DUCT; AIR
(C) 		8-98070-863-1 01 1 1112- ●
351 DUCT; AIR
(A) 		8-98105-722-1 01 1 1112- ● ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE 		0-91180-110-0 01 1 1112- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1112- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1112- ●
384 NUT; AIR INT DUCT BRKT
M10 FLANGE 		0-91180-110-0 01 1 1112- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1112- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1112- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1112- ● ●
480 ADAPTER 8-98086-417-0 01 1 1112- ●
563 BRACKET; CLIP 8-98090-587-0 01 1 1112- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
