Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#7850) — 286 parça

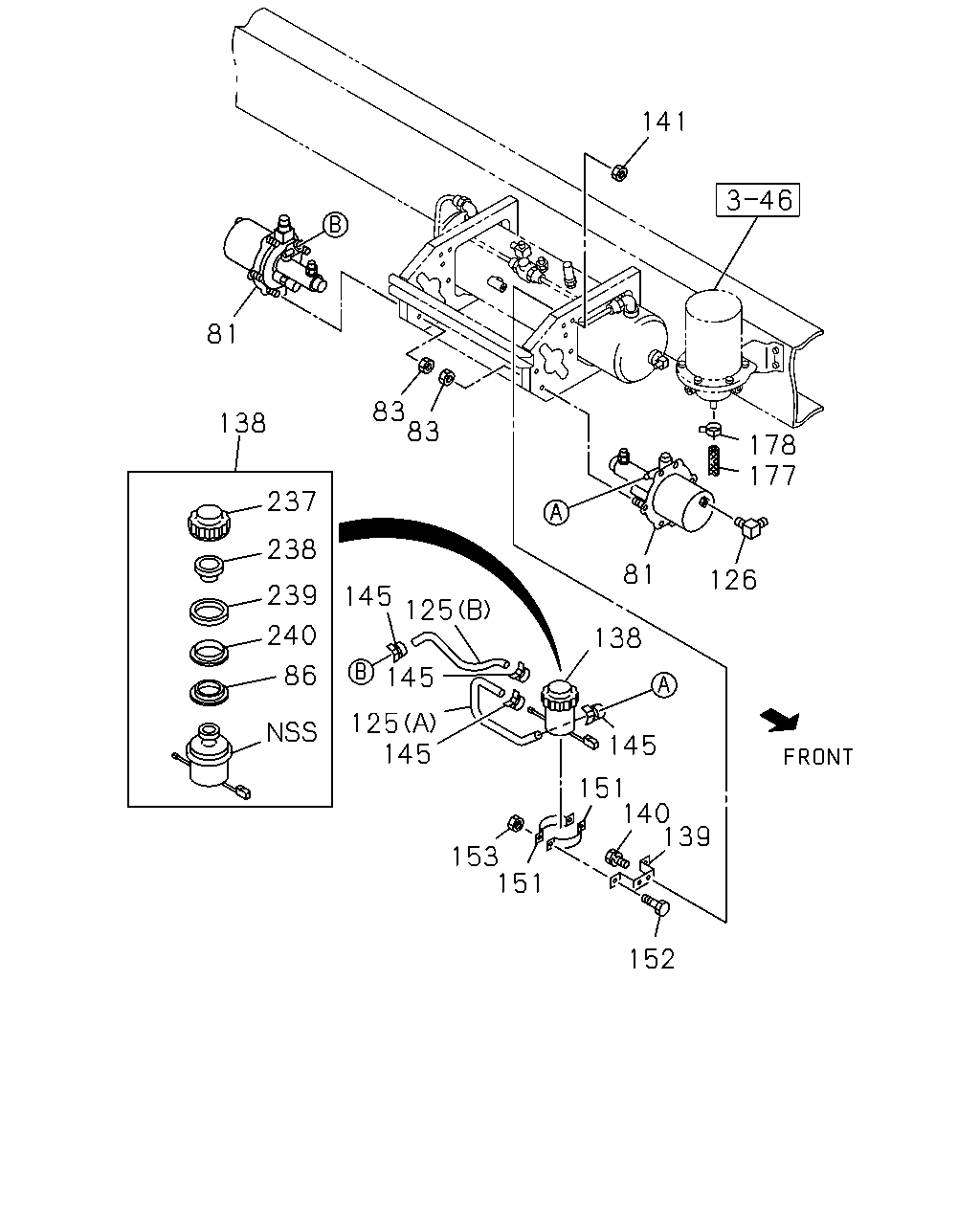

141 81 83 83 138 178 177 237 238 81 126 239 145 125 240 138 86 145 125 145 145 151 140 139 153 151 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-656-2	02	1	9905-0202	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-789-0	02	1	0203-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-663-1	01	1	9905-0301		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-663-1	01	1	0302-		●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-664-2	01	1	9905-0301		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-664-2	01	1	0302-		●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	9905-0602	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	08	1	0603-	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	9905-0301		●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	0302-0602		●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-		●	●
86	SEAL; DUST	1-47529-019-0	01	1	9905-0301	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0302-	●	●	●
125	HOSE; OIL TANK TO AIR MASTER (B) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9905-	●
125	HOSE; OIL TANK TO AIR MASTER (A)	1-47469-127-1	01	1	9905-	●
125	HOSE; OIL TANK TO AIR MASTER (C) L=270 SERVICED BY L=1800	1-09360-320-0	02	1	9905-0301		●
125	HOSE; OIL TANK TO AIR MASTER (C) L=270 SERVICED BY L=1800	1-09360-320-0	02	1	0302-		●	●
126	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9905-	●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9905-0011	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-0	01	1	0207-0301	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0302-	●	●	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	9905-	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9905-0301		●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0302-		●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9905-0301	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0302-0512	●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9905-0301	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0302-0602	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9905-0301	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0302-	●	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9905-0301	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0302-	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9905-0301	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0302-0512	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9905-0301	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
177	HOSE; RUBBER,DRAIN L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9905-0109	●	●
177	HOSE; RUBBER,DRAIN L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0110-0301	●	●
177	HOSE; RUBBER,DRAIN L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0302-	●	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	9908-0301	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	0302-	●	●	●
237	CAP; OIL TANK	1-47525-024-0	01	1	9905-0011	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-0301	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0302-	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9905-0301	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0302-	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9905-0301	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0302-	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9905-0301	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0302-	●	●	●

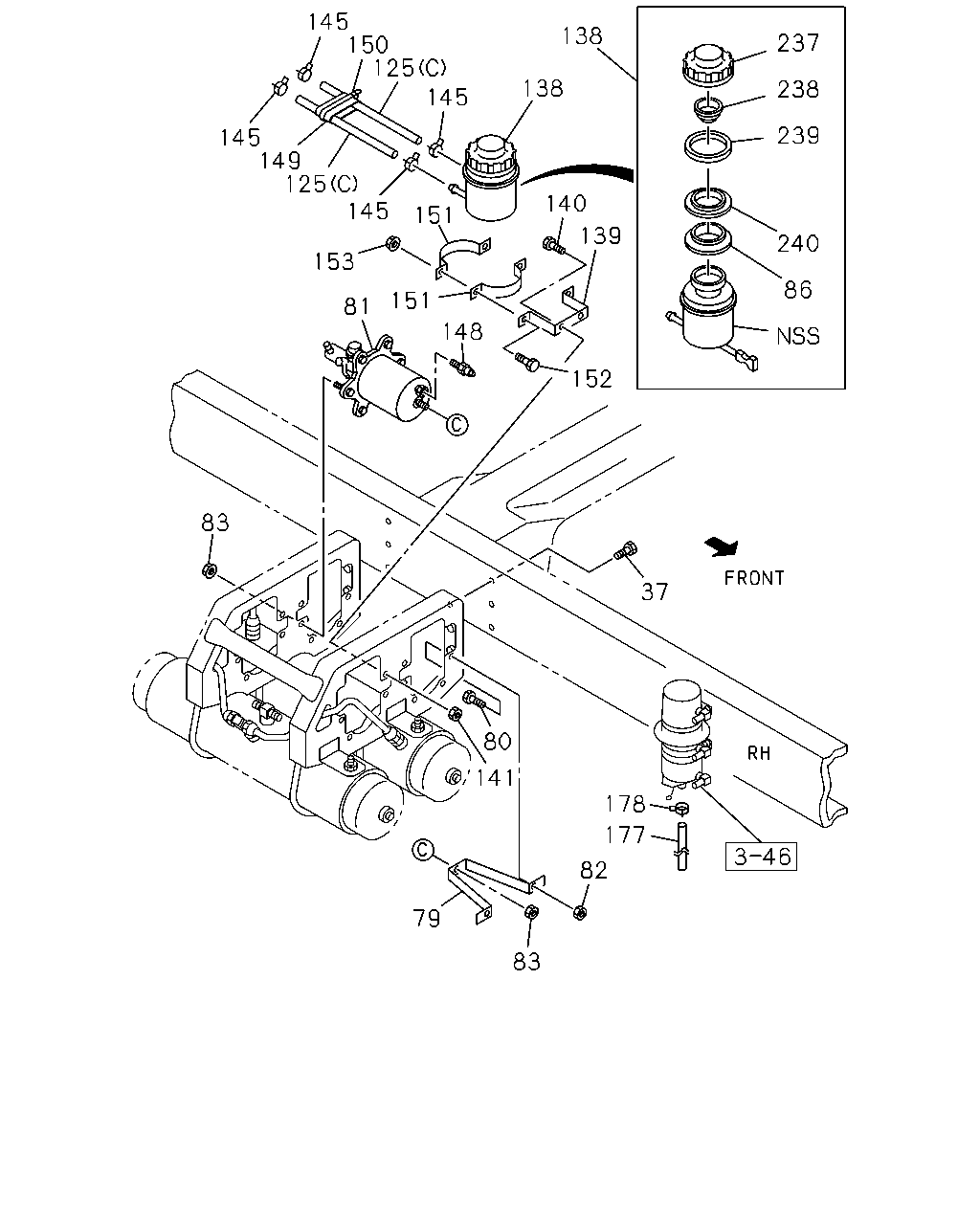

145 150 125 138 237 138 238 145 239 145 149 125 145 140 151 139 240 153 86 151 81 148 152 83 37 80 141 178 177 82 79 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9905-0512	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9905-0301		●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	0302-0512		●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-		●	●
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	9905-0301		●
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	0302-		●	●
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9905-0301		●
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0302-0512		●	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-		●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-656-2	02	1	9905-0202	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-789-0	02	1	0203-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-663-1	01	1	9905-0301		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-663-1	01	1	0302-		●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-664-2	01	1	9905-0301		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-664-2	01	1	0302-		●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9905-0301		●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	0302-0602		●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	9905-0602	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	08	1	0603-	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	9905-0301		●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	0302-0602		●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-		●	●
86	SEAL; DUST	1-47529-019-0	01	1	9905-0301	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0302-	●	●	●
125	HOSE; OIL TANK TO AIR MASTER (B) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9905-	●
125	HOSE; OIL TANK TO AIR MASTER (A)	1-47469-127-1	01	1	9905-	●
125	HOSE; OIL TANK TO AIR MASTER (C) L=270 SERVICED BY L=1800	1-09360-320-0	02	1	9905-0301		●
125	HOSE; OIL TANK TO AIR MASTER (C) L=270 SERVICED BY L=1800	1-09360-320-0	02	1	0302-		●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9905-0011	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-0	01	1	0207-0301	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0302-	●	●	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	9905-	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9905-0301		●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0302-		●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9905-0301	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0302-0512	●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9905-0301	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0302-0602	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9905-0301	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0302-	●	●	●
148	CONNECTOR; AIR MASTER DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9905-0301		●
148	CONNECTOR; AIR MASTER DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0302-		●	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9905-0301		●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	0302-		●	●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	9905-0301		●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	0302-		●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9905-0301	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0302-	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9905-0301	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0302-0512	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9905-0301	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
177	HOSE; RUBBER,DRAIN L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9905-0109	●	●
177	HOSE; RUBBER,DRAIN L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0110-0301	●	●
177	HOSE; RUBBER,DRAIN L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0302-	●	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	9908-0301	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	0302-	●	●	●
237	CAP; OIL TANK	1-47525-024-0	01	1	9905-0011	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-0301	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0302-	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9905-0301	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0302-	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9905-0301	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0302-	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9905-0301	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0302-	●	●	●

246

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	246	GROMMET; VINYL PIPE OD=35	8-94122-971-0	01	1	9905-0301	●	●
	246	GROMMET; VINYL PIPE OD=35	8-94122-971-0	01	1	0302-	●	●	●

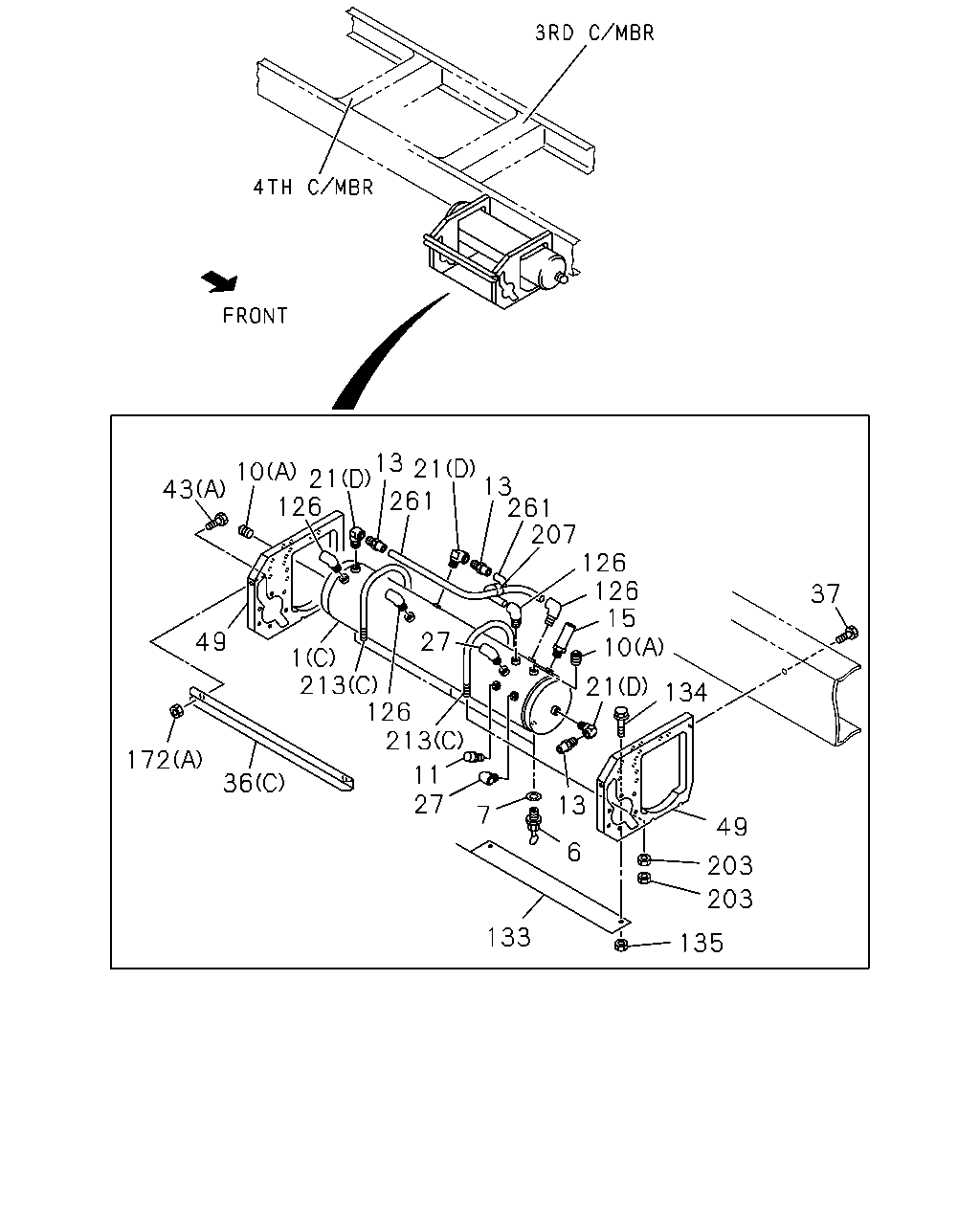

13 21 21 13 126 261 207 126 126 15 10 10 43 261 37 27 49 1 213 126 213 21 134 172 11 27 36 13 7 49 6 203 203 133 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; AIR (C)	1-48370-745-0	01	1	9905-	●
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	9905-0301		●
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	0302-		●	●
1	TANK ASM; AIR (A)	1-48370-513-0	01	1	9905-0212		●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0301-0301		●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0302-		●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	9905-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9905-0301		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0302-		●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9905-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9905-0301		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0302-		●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9905-0212	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0301-	●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	01	1	9905-0301		●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	01	1	0302-		●	●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	03	1	9905-0212		●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	05	1	0301-0301		●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	05	1	0302-		●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9905-0301	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0302-	●	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9905-0007	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●
15	SWITCH; LOW PRESS,AIR TANK 530KPA	1-48340-054-1	01	1	9905-	●
21	VALVE; CHECK,AIR TANK (D) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9905-	●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	9905-0301		●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0302-		●	●
21	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9905-0301		●
21	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	0302-		●	●
21	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9905-0301		●
21	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0302-		●	●
27	UNION; ELBOW,AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9905-	●
36	STAY; MAIN TANK (C)	1-48317-307-2	01	1	9905-	●
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	9905-0301		●
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	0302-		●	●
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	9905-0301		●
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	0302-		●	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9905-0512	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9905-0301		●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	0302-0512		●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-		●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-0301	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	02	1	0302-0512	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28681-025-0	04	1	9905-0301		●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28681-025-0	04	1	0302-0512		●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-		●	●
49	BRACKET; AIR TANK	1-48317-709-4	02	1	9905-	●
49	BRACKET; AIR TANK	1-53318-338-6	02	1	9905-0301		●
49	BRACKET; AIR TANK	1-53318-338-6	02	1	0302-		●	●
126	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9905-	●
133	COVER; AIR MASTER	1-48317-641-1	01	1	9905-	●
134	BOLT; COVER FIX M8X20 FLANGE	0-28680-820-0	04	1	9905-0512	●
134	BOLT; COVER FIX M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	9905-0602	●
135	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	0603-	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	9905-0301	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9905-0301		●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0302-0602		●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
203	NUT M8	9-09110-408-0	08	1	9905-0512	●
203	NUT M8	0-91110-508-0	08	1	0601-	●
207	CLIP; AIR PIPE ID=12 & 12	1-09709-280-1	01	1	9905-	●
213	BOLT; U AIR TANK (C) L=250	1-48317-308-0	02	1	9905-	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	9905-0301		●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0302-		●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	9905-0301		●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0302-		●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9905-	●

172 43 49 54 49 21 12 36 172 282 11 10 21 67 10 36 12 282 8 53 10 10 21 43 10 282 9 7 7 6 58 6 1 58 4 10 58 42 58 58 42 58 58 58 10 10 1 213 213 213 213

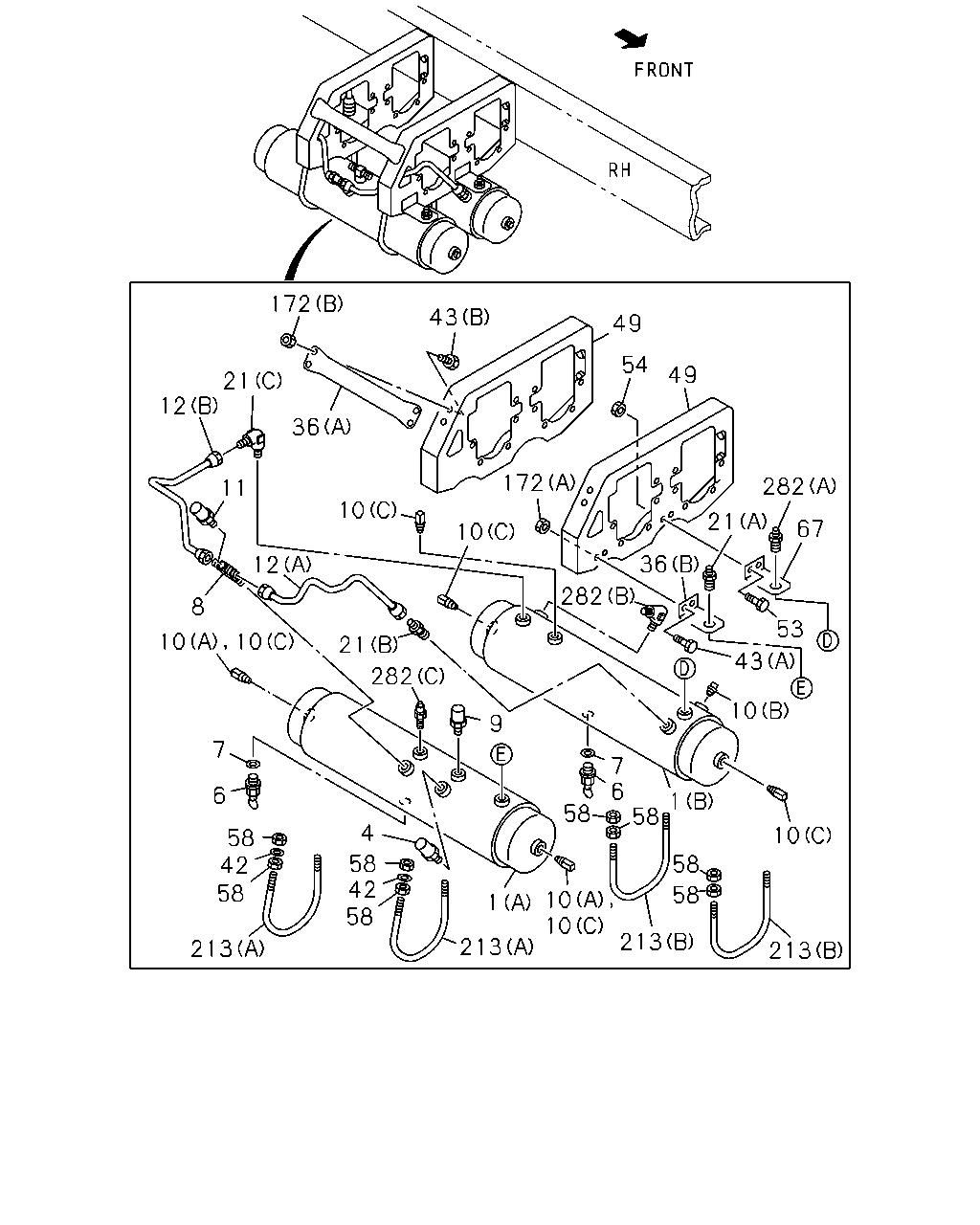

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; AIR (C)	1-48370-745-0	01	1	9905-	●
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	9905-0301		●
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	0302-		●	●
1	TANK ASM; AIR (A)	1-48370-513-0	01	1	9905-0212		●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0301-0301		●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0302-		●	●
4	CONNECTOR; FLARE	1-09650-283-1	01	1	9905-0301		●
4	CONNECTOR; FLARE	1-09650-283-1	01	1	0302-		●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	9905-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9905-0301		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0302-		●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9905-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9905-0301		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0302-		●	●
8	CONNECTOR; AIR TANK	1-09656-699-0	01	1	9905-0301		●
8	CONNECTOR; AIR TANK	1-09656-699-0	01	1	0302-		●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	01	1	9905-0301		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	01	1	0302-		●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9905-0212	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0301-	●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	01	1	9905-0301		●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	01	1	0302-		●	●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	03	1	9905-0212		●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	05	1	0301-0301		●
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	05	1	0302-		●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9905-0301	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0302-	●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9905-0301		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	0302-		●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9905-0301		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	0302-		●	●
21	VALVE; CHECK,AIR TANK (D) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9905-	●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	9905-0301		●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0302-		●	●
21	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9905-0301		●
21	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	0302-		●	●
21	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9905-0301		●
21	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0302-		●	●
36	STAY; MAIN TANK (C)	1-48317-307-2	01	1	9905-	●
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	9905-0301		●
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	0302-		●	●
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	9905-0301		●
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	0302-		●	●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9905-0301		●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	0302-0605		●	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-		●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-0301	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	02	1	0302-0512	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28681-025-0	04	1	9905-0301		●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28681-025-0	04	1	0302-0512		●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-		●	●
49	BRACKET; AIR TANK	1-48317-709-4	02	1	9905-	●
49	BRACKET; AIR TANK	1-53318-338-6	02	1	9905-0301		●
49	BRACKET; AIR TANK	1-53318-338-6	02	1	0302-		●	●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28680-820-0	02	1	9905-0301		●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28680-820-0	02	1	0302-0512		●	●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	9905-0301		●
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	0302-0602		●	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	16	1	9905-0301		●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	16	1	0302-0512		●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0601-		●	●
67	STAY; SUB TANK	1-48317-349-0	01	1	9905-0301		●
67	STAY; SUB TANK	1-48317-349-0	01	1	0302-		●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	9905-0301	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9905-0301		●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0302-0602		●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
213	BOLT; U AIR TANK (C) L=250	1-48317-308-0	02	1	9905-	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	9905-0301		●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0302-		●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	9905-0301		●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0302-		●	●
282	UNION; 2 WAY (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-0301		●
282	UNION; 2 WAY (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0302-		●	●
282	UNION; 2 WAY (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0212		●
282	UNION; 2 WAY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0301-0301		●
282	UNION; 2 WAY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0302-		●	●
282	UNION; 2 WAY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9905-0301		●
282	UNION; 2 WAY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0302-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
