Isuzu WW
▶
TRUCKS
▶
NPR
▶
51300 - NPR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#78499) — 15 parça
◀

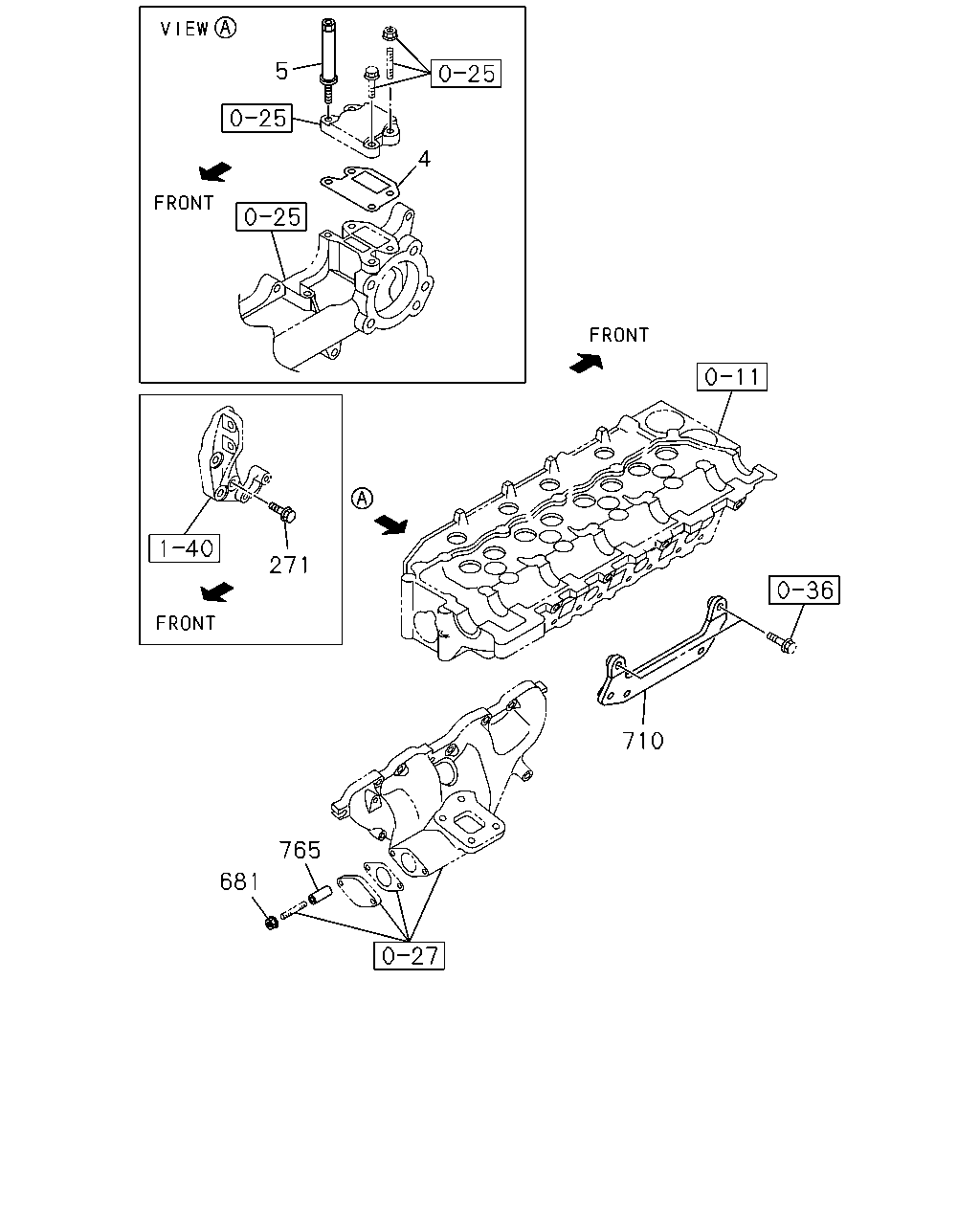

[057A] EGR COOLER BRACKET AND OTHER PARTS (6 parça)

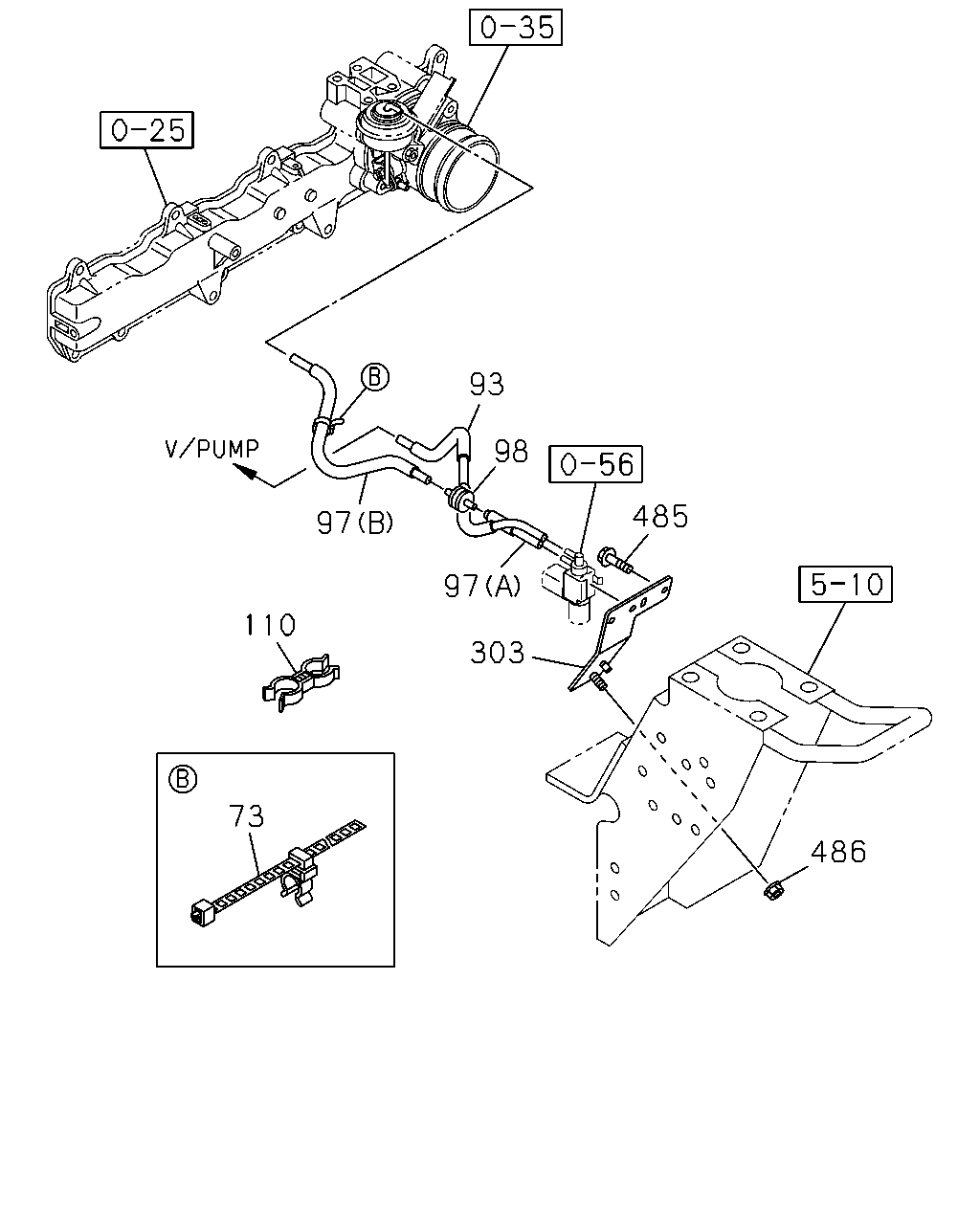

[057A] VACUUM HOSE (9 parça)
▶
5
4
271
710
765
681
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97306-040-0
01
1
1112-
5
ADAPTER ASM
8-97377-804-0
01
1
1112-
271
BOLT; BRKT
M12X50 FLANGE
0-28151-250-0
02
1
1112-
681
NUT; EGR PIPE
M8 FLANGE
0-91180-208-0
02
1
1112-
710
BRACKET; EGR COOLER
8-98079-255-1
01
1
1112-
765
SPACER; EGR PIPE
8-94225-562-0
02
1
1112-
93
98
485
97
97
110
303
73
486
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
CLIP; VAC HOSE
L=350
8-97373-487-0
02
1
1112-
93
HOSE ASM
8-98105-295-1
01
1
1112-
97
HOSE; RUBBER
(B)
8-98113-964-0
01
1
1112-
97
HOSE; RUBBER
(A)
8-98113-965-0
01
1
1112-
98
VALVE; DELAY
8-94110-978-0
01
1
1112-
110
CLIP; VAC HOSE
ID=13.2 & 14.5
8-94475-649-0
01
1
1112-
303
BRACKET; VAC SW
8-98097-124-0
01
1
1112-
485
BOLT; VSV
M5X10 W/LK+PL WASHER
0-36230-510-0
01
1
1112-
486
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
