0-40 — FUEL INJECTION SYSTEM (#78492) — 89 parça

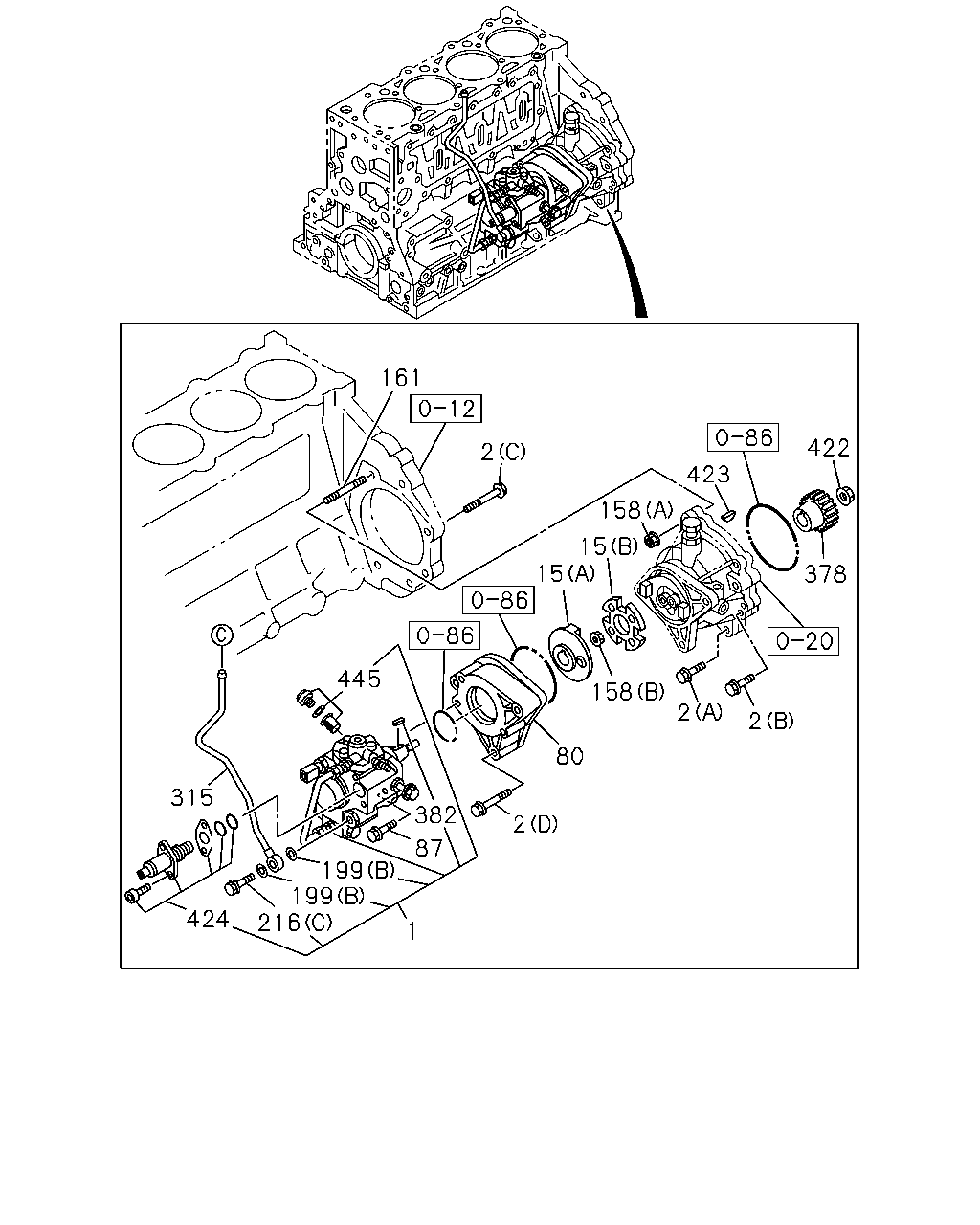

çizim 63378
1 424 315 445 216 199 199 87 80 158 15 2 2 15 2 161 158 423 378 422 382 2
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 1112-
2 BOLT; INJ PUMP
(D) M10X60 FLANGE 		0-28051-060-0 03 1 1112-
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28151-070-0 01 1 1112-
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28151-270-0 01 1 1112-
2 BOLT; INJ PUMP
(C) M12X95 FLANGE 		8-94396-485-1 01 1 1112-
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1112-
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1112-
80 BRACKET; PUMP 8-98061-699-0 01 1 1112-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1112-
158 NUT; INJ PUMP
(A) M10 FLANGE 		0-91180-110-0 02 1 1112-
158 NUT; INJ PUMP
(B) M14 FLANGE 		0-91180-114-0 01 1 1112-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1112-
199 GASKET; EYE BOLT
(B) 		1-15619-507-0 02 1 1112-
199 GASKET; EYE BOLT
(A) 		8-97602-218-0 04 1 1112-
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1112-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1112-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1112-
315 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 1112-
378 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 1112-
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1112-1201
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202-
422 NUT; GEAR
M18 		8-97141-154-0 01 1 1112-
423 KEY; GEAR 9-08055-519-0 01 1 1112-
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1112-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1112-

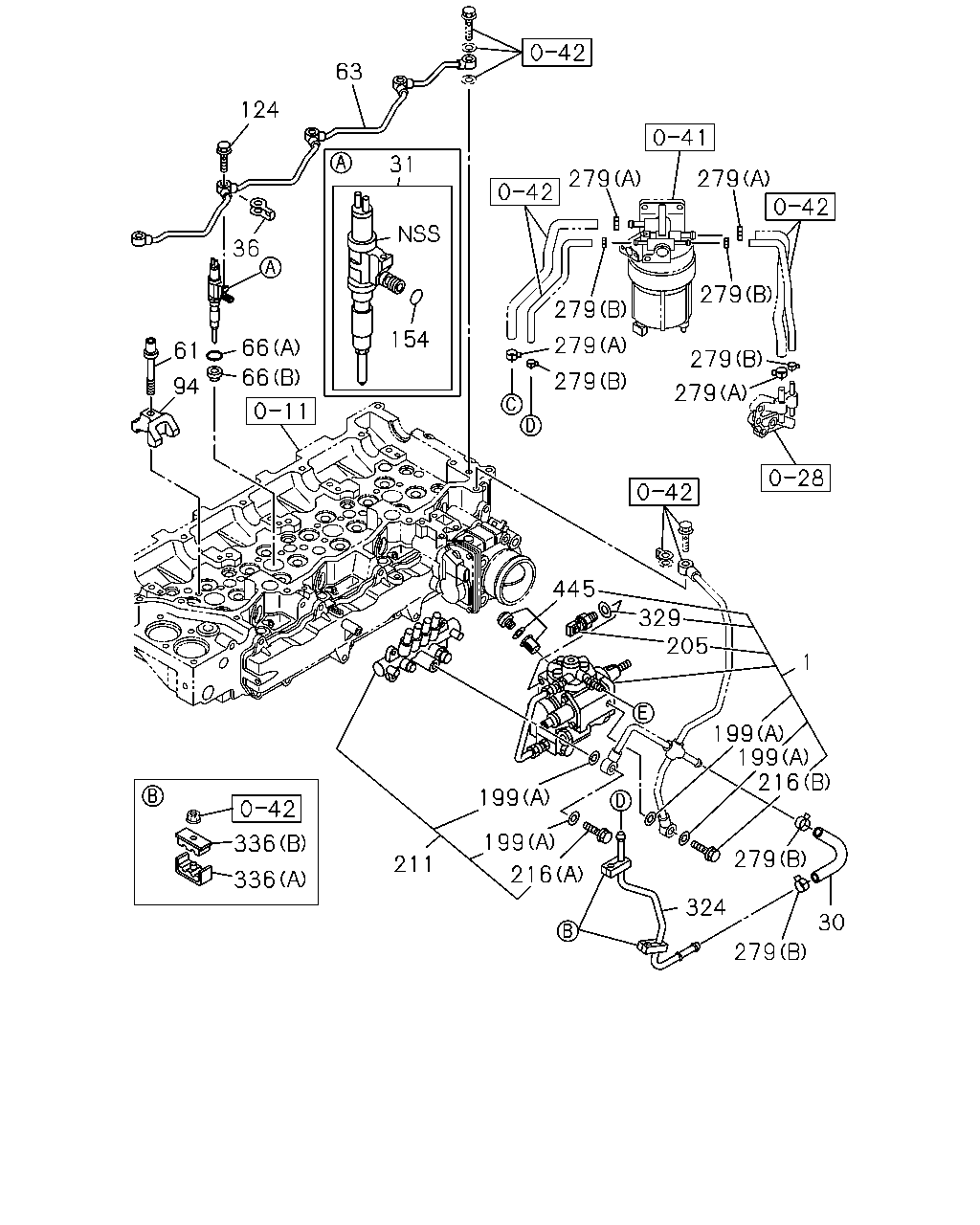

çizim 183597
279 279 279 279 279 279 279 279 279 279 445 329 205 199 199 216 1 199 199 216 211 336 336 31 154 66 66 61 94 124 36 63 324 30
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 1112-
30 HOSE; RUBBER,FUEL LEAK 8-98036-320-2 01 1 1112-
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1112-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1112-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1112-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1112-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=23.3 		8-94173-412-0 04 1 1112-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-98079-248-0 04 1 1112-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1112-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1112-
154 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1112-
199 GASKET; EYE BOLT
(B) 		1-15619-507-0 02 1 1112-
199 GASKET; EYE BOLT
(A) 		8-97602-218-0 04 1 1112-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1112-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1112-
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1112-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1112-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1112-
279 CLIP; FUEL HOSE
(A) ID=16 		8-97329-628-0 04 1 1112-
279 CLIP; FUEL HOSE
(B) ID=11.5 		8-97375-638-0 06 1 1112-
324 PIPE; FUEL RETURN 8-98036-173-0 01 1 1112-
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 1112-1201
336 CLIP; FUEL PIPE
(A) ID=8 & 9 L=25 		8-97603-522-0 02 1 1112-
336 CLIP; FUEL PIPE
(B) ID=8 & 9 L=25 		8-97603-523-0 02 1 1112-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1112-

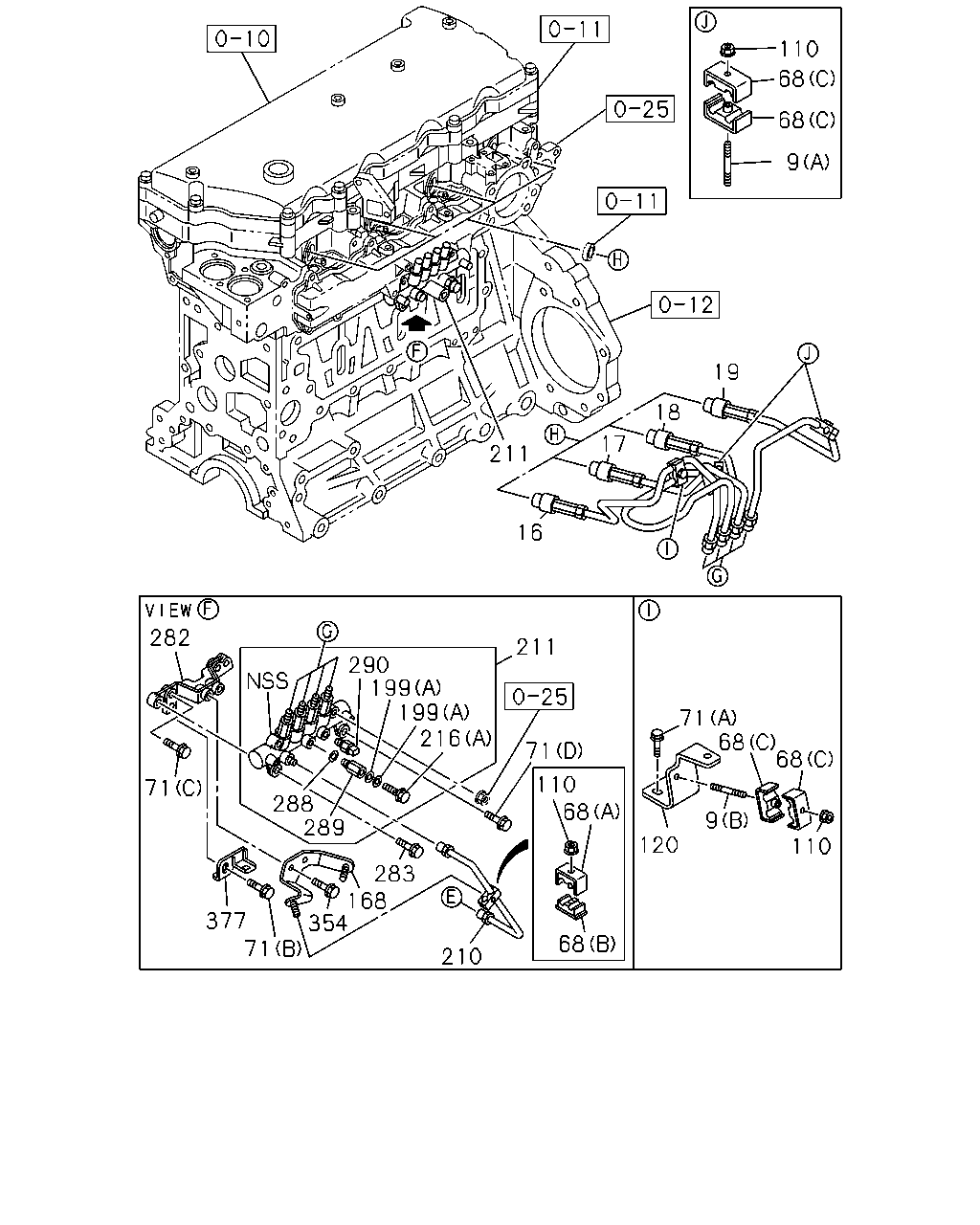

çizim 183598
110 68 68 9 19 211 18 17 16 282 211 290 199 199 216 71 68 68 71 110 68 71 288 289 9 120 110 283 168 354 71 377 68 210
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
(A) M6X30 L=38 		0-41010-630-0 02 1 1112-
9 STUD; CLIP
(B) M6X35 L=43 		8-97203-278-0 01 1 1112-
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1112-1404
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502-
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1112-1404
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502-
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1112-1404
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502-
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1112-1404
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502-
68 CLIP; INJ PIPE
(A) 		1-09701-195-3 01 1 1112-
68 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1112-
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1112-1405
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406-
71 BOLT; BRKT
(B) M6X10 FLANGE 		0-28050-610-0 01 1 1112-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1112-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1112-
71 BOLT; BRKT
(D) M8X50 FLANGE IRA 		0-28050-850-0 01 1 1112-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 1112-
120 BRACKET; INJ PIPE 8-98041-601-0 01 1 1112-
168 BRACKET; FUEL PIPE 8-98036-175-1 01 1 1112-
199 GASKET; EYE BOLT
(B) 		1-15619-507-0 02 1 1112-
199 GASKET; EYE BOLT
(A) 		8-97602-218-0 04 1 1112-
210 PIPE; INJ,C/R 8-98036-176-1 01 1 1112-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1112-
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1112-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1112-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1112-
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1112-
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 1112-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1112-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1112-
290 SENSOR; PRESS 8-98119-790-0 01 1 1112-
354 BOLT; FUEL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1112-
377 BRACKET; HARNESS 8-97310-438-1 01 1 1112-
