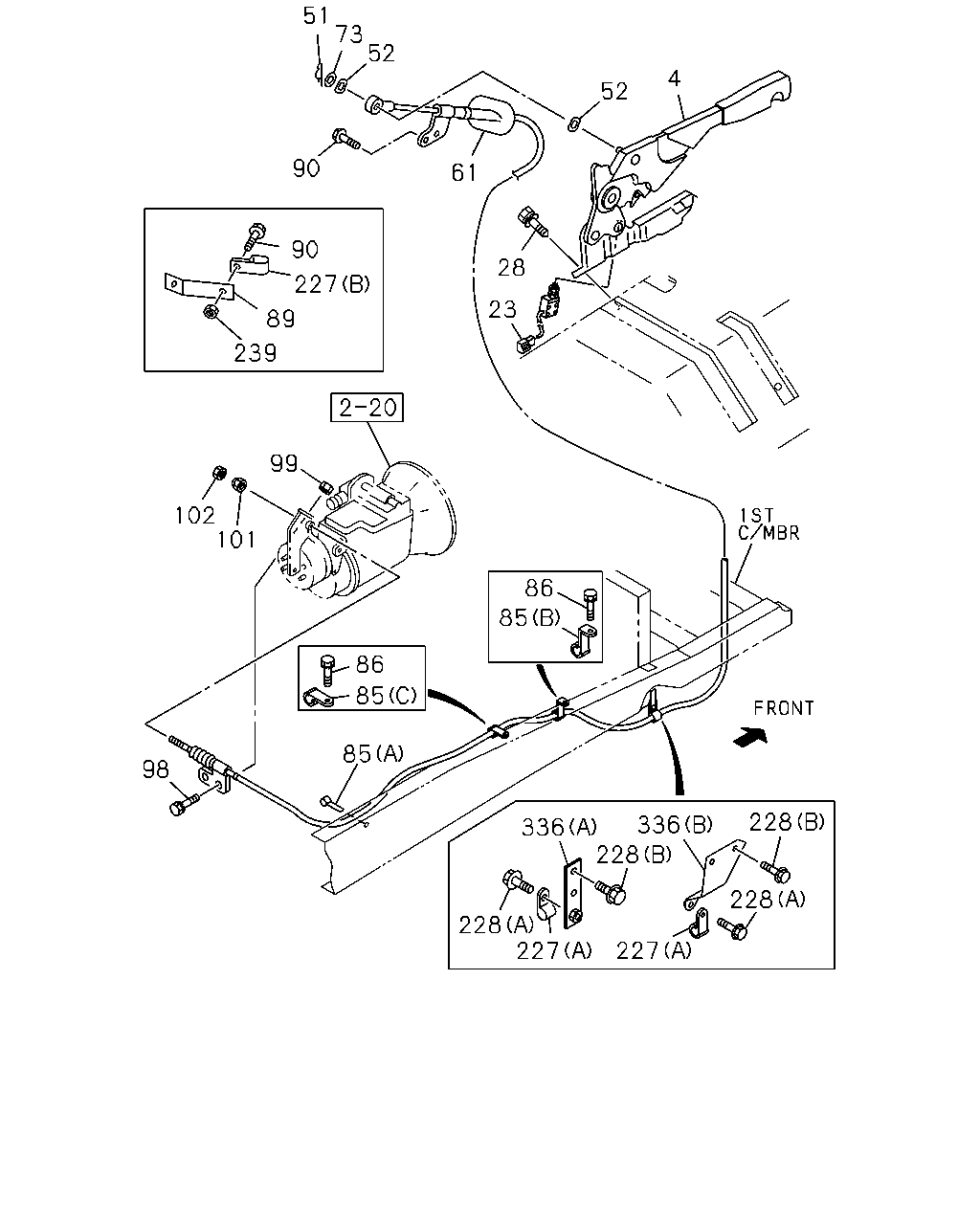

3-11 — PARKING BRAKE CONTROL (#7849) — 86 parça

51 73 52 4 52 90 61 90 28 227 23 89 239 99 102 101 86 85 86 85 85 98 228 336 336 228 228 228 227 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	STEM; PARKING BRK	1-79996-423-0	01	1	9905-9908	●	●
4	STEM; PARKING BRK	1-79996-485-0	01	1	9909-9911	●	●
4	STEM; PARKING BRK	1-79996-505-0	01	1	9912-0010	●	●
4	STEM; PARKING BRK	1-79996-565-0	01	1	0011-0301	●	●
4	STEM; PARKING BRK	1-79996-565-0	01	1	0302-	●	●	●
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	9905-0301	●	●
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	0302-	●	●	●
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-0301	●	●
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0302-	●	●	●
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	9905-0301	●	●
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	0302-	●	●	●
52	WASHER; CURVED RELAY LEVER ID=19	8-94206-429-1	02	1	9905-0301	●	●
52	WASHER; CURVED RELAY LEVER ID=19	8-94206-429-1	02	1	0302-	●	●	●
61	CABLE; PARKING BRK L=4729	1-79996-599-3	01	1	0302-			●
61	CABLE; PARKING BRK L=4689	1-79996-442-3	01	1	9905-9909	●
61	CABLE; PARKING BRK MLD6Q M/T(X5J) L=4689	1-79996-442-3	01	1	9905-9909		●
61	CABLE; PARKING BRK L=4689	1-79996-469-1	01	1	9910-0011	●
61	CABLE; PARKING BRK MLD6Q M/T(X5J) L=4689	1-79996-469-1	01	1	9910-0011		●
61	CABLE; PARKING BRK L=4589	1-79996-580-3	01	1	0012-0301	●
61	CABLE; PARKING BRK MLD6Q M/T(X5J) L=4589	1-79996-580-3	01	1	0012-0301		●
61	CABLE; PARKING BRK MLD6Q M/T(X5J) L=4589	1-79996-580-3	01	1	0302-	●	●
61	CABLE; PARKING BRK MBJ5T M/T(Y2K) L=4769	1-79996-448-2	01	1	9905-9909		●
61	CABLE; PARKING BRK MBJ5T M/T(Y2K) L=4959	1-79996-471-4	01	1	9910-		●
73	WASHER; PL,CABLE ID=17	9-09160-516-0	01	1	9905-0301	●	●
73	WASHER; PL,CABLE ID=17	9-09160-516-0	01	1	0302-0605	●	●	●
73	WASHER; PL,CABLE ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●	●
85	CLIP; BRKT (A) ID=15 L=65	1-09700-466-0	02	1	9905-0301	●	●
85	CLIP; BRKT (A) ID=15 L=65	1-09700-466-0	02	1	0302-	●	●	●
85	CLIP; BRKT (B) ID=16 H=30 L=30	1-09701-080-0	01	1	9905-0301	●	●
85	CLIP; BRKT (B) ID=16 H=30 L=30	1-09701-080-0	01	1	0302-	●	●	●
85	CLIP; BRKT (C) ID=24 L=40	1-09701-139-0	01	1	9905-0011	●	●
85	CLIP; BRKT (C) ID=19 L=40	9-09525-876-0	01	1	0012-0301	●	●
85	CLIP; BRKT (C) ID=19 L=40	9-09525-876-0	01	1	0302-0606	●	●	●
85	CLIP; BRKT (C) ID=19 L=40	0-95235-876-0	01	1	0607-	●	●	●
86	BOLT M8X25 FLANGE	0-28680-825-0	02	1	9905-0301	●	●
86	BOLT M8X25 FLANGE	0-28680-825-0	02	1	0302-0512	●	●	●
86	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
89	BRACKET; CLIP FIRE FIGHTING TRUCK(RA9)	1-47477-648-0	01	1	9908-		●
90	BOLT; CABLE TO BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-0301	●	●
90	BOLT; CABLE TO BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0302-	●	●	●
90	BOLT; CABLE TO BRKT FIRE FIGHTING TRUCK(RA9) M8X25 FLANGE	0-28680-825-0	02	1	9908-0512		●
90	BOLT; CABLE TO BRKT FIRE FIGHTING TRUCK(RA9) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
98	BOLT; RR COVER M10X30 FLANGE	0-28681-030-0	02	1	9905-0301	●	●
98	BOLT; RR COVER M10X30 FLANGE	0-28681-030-0	02	1	0302-0512	●	●	●
98	BOLT; RR COVER M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●
99	NUT; CONT CABLE M10 FLANGE	0-91150-210-0	02	1	9905-0301	●	●
99	NUT; CONT CABLE M10 FLANGE	0-91150-210-0	02	1	0302-0602	●	●	●
99	NUT; CONT CABLE M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
101	NUT; CABLE TO LEVER	1-46259-007-0	01	1	9905-0301	●	●
101	NUT; CABLE TO LEVER	1-46259-007-0	01	1	0302-	●	●	●
102	NUT; LK,CABLE TO LEVER M8 FLANGE	0-91150-108-0	01	1	9905-0301	●	●
102	NUT; LK,CABLE TO LEVER M8 FLANGE	0-91150-108-0	01	1	0302-0602	●	●	●
102	NUT; LK,CABLE TO LEVER M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
227	CLIP; RAD (A) ID=13 L=20	9-09525-235-0	01	1	9905-0301	●	●
227	CLIP; RAD (A) ID=13 L=20	9-09525-235-0	01	1	0302-0606	●	●	●
227	CLIP; RAD (A) ID=13 L=20	0-95235-235-0	01	1	0607-	●	●	●
227	CLIP; RAD FIRE FIGHTING TRUCK(RA9) (B) ID=18 H=23 L=28	1-09700-860-0	01	1	9908-		●
228	BOLT; CLIP RAD MTG (A) M8X16 FLANGE	0-28080-816-0	01	1	9905-0302	●	●
228	BOLT; CLIP RAD MTG (A) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512	●	●	●
228	BOLT; CLIP RAD MTG (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●
228	BOLT; CLIP RAD MTG (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9905-0302	●	●
228	BOLT; CLIP RAD MTG (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0303-	●	●	●
239	NUT; CLIP TO BRKT FIRE FIGHTING TRUCK(RA9) M8 FLANGE	0-91150-108-0	02	1	9908-0602		●
239	NUT; CLIP TO BRKT FIRE FIGHTING TRUCK(RA9) M8 FLANGE	0-91180-108-0	02	1	0603-		●
336	BRACKET; RADIATOR (B)	1-36183-199-0	01	1	0302-			●
336	BRACKET; RADIATOR (A)	1-36183-202-0	01	1	9905-9907	●	●
336	BRACKET; RADIATOR (A)	1-36183-209-0	01	1	9908-	●	●

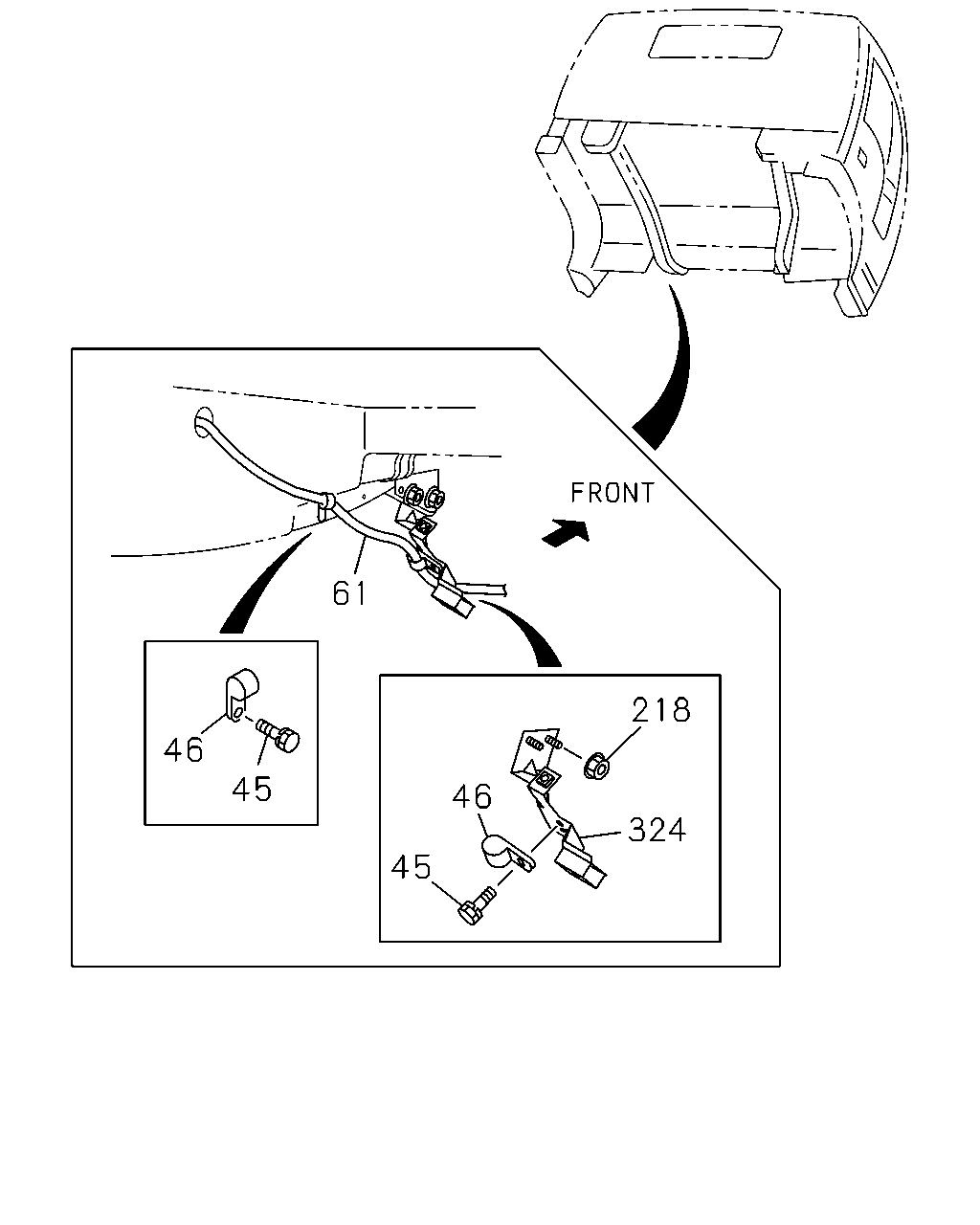

61 218 46 45 46 324 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
45	BOLT; CABLE TO FLOOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9905-0301	●	●
45	BOLT; CABLE TO FLOOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0302-	●	●	●
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	9-09525-535-0	02	1	9905-0301	●	●
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	9-09525-535-0	02	1	0302-0606	●	●	●
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	0-95235-535-0	02	1	0607-	●	●	●
61	CABLE; PARKING BRK L=4729	1-79996-599-3	01	1	0302-			●
61	CABLE; PARKING BRK L=4689	1-79996-442-3	01	1	9905-9909	●
61	CABLE; PARKING BRK MLD6Q M/T(X5J) L=4689	1-79996-442-3	01	1	9905-9909		●
61	CABLE; PARKING BRK L=4689	1-79996-469-1	01	1	9910-0011	●
61	CABLE; PARKING BRK MLD6Q M/T(X5J) L=4689	1-79996-469-1	01	1	9910-0011		●
61	CABLE; PARKING BRK L=4589	1-79996-580-3	01	1	0012-0301	●
61	CABLE; PARKING BRK MLD6Q M/T(X5J) L=4589	1-79996-580-3	01	1	0012-0301		●
61	CABLE; PARKING BRK MLD6Q M/T(X5J) L=4589	1-79996-580-3	01	1	0302-	●	●
61	CABLE; PARKING BRK MBJ5T M/T(Y2K) L=4769	1-79996-448-2	01	1	9905-9909		●
61	CABLE; PARKING BRK MBJ5T M/T(Y2K) L=4959	1-79996-471-4	01	1	9910-		●
218	NUT; BRKT,PARKING BRK CABLE M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9905-0301	●	●
218	NUT; BRKT,PARKING BRK CABLE M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0302-	●	●	●
324	BRACKET	1-79996-443-0	01	1	9905-0301	●	●
324	BRACKET	1-79996-443-0	01	1	0302-	●	●	●
