◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#78486) — 13 parça

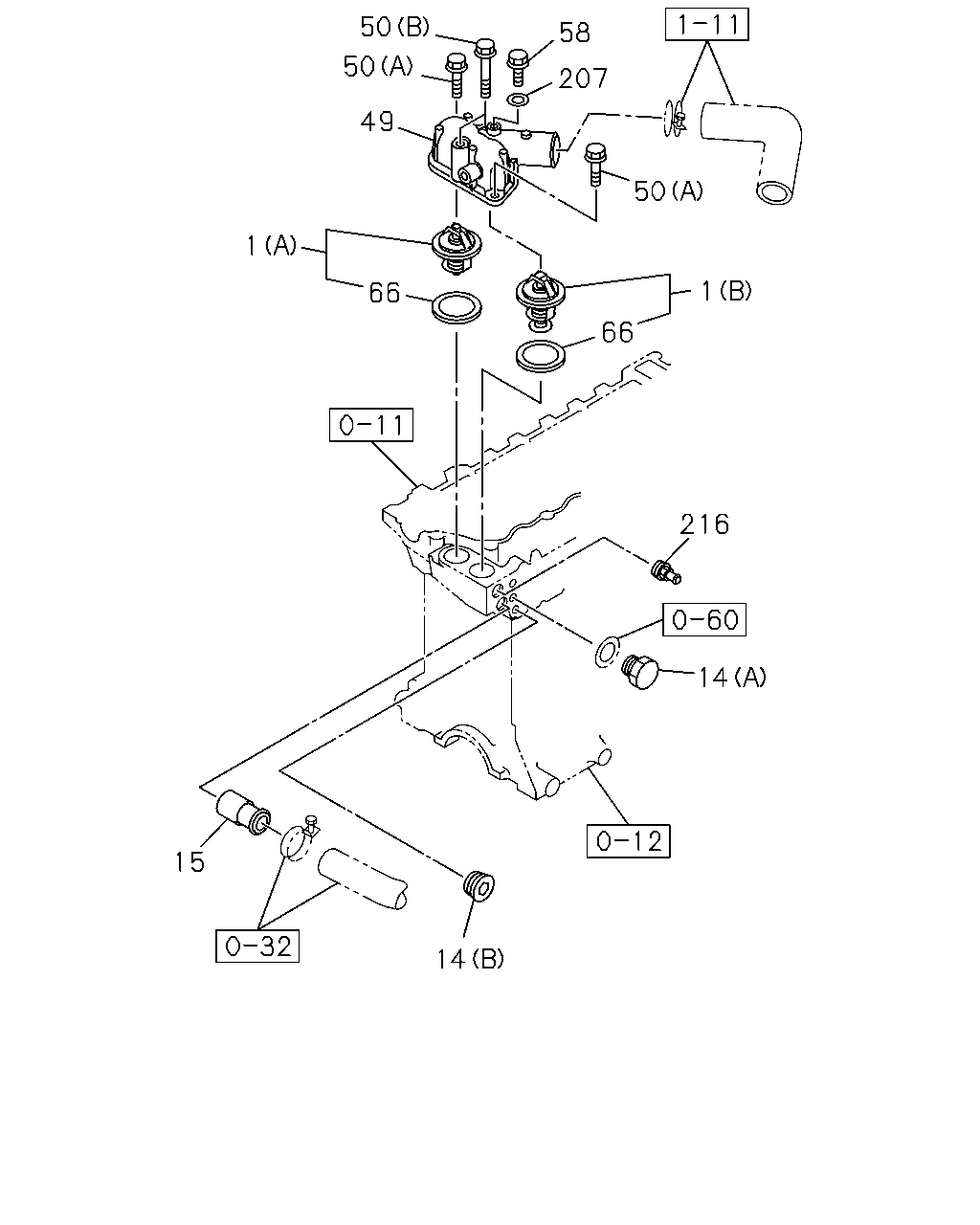

çizim 183593
14 14 15 216 1 66 66 1 49 50 50 58 50 207
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
(A) 85 CELSIUS 		8-97300-787-3 01 1 1112-
1 THERMOSTAT
(B) 82 CELSIUS 		8-97300-790-3 01 1 1112-
14 PLUG; SW
(B) PT3/8 		5-09605-005-0 01 1 1112-
14 PLUG; SW
(A) M16X8 PLUG 		9-09661-005-0 01 1 1112-
15 PIPE; BYPASS 8-94342-574-0 01 1 1112-
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 1112-
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1112-
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 1112-
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1112-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1112-1501
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502-
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 1112-
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 1112-
